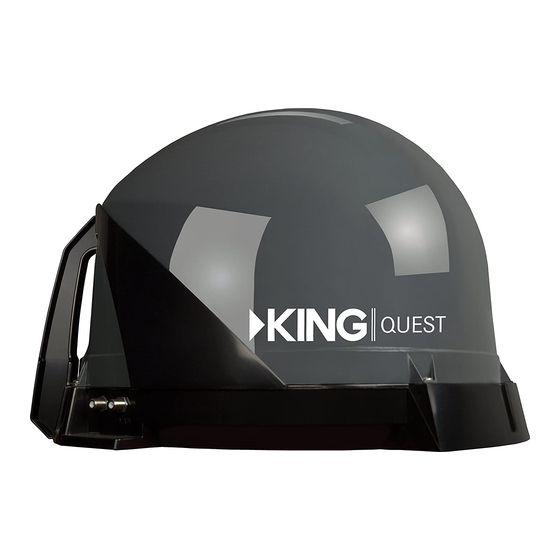

King Quest VQ4100 Owner's Manual

For directv
Hide thumbs Also See for VQ4100:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Quick Reference Manual
For Sales Information Please Contact
RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.
TM
Wilmington, NC 28411
(800) 507-0482 / (910) 686-4281
VQ4100 Owner's Manual
This manual contains detailed information on your KING Quest.
To start watching TV right away,
use the Quick Reference Guide.
For DIRECTV
®
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - (800) 507-0482 / (910) 686-4281

Advertisement

Table of Contents
loading

Related Manuals for King Quest VQ4100

Summary of Contents for King Quest VQ4100

  • Page 1 RoadTrucker Inc (www.RoadTrucker.com) 8312 Sidbury Rd. Wilmington, NC 28411 (800) 507-0482 / (910) 686-4281 VQ4100 Owner’s Manual This manual contains detailed information on your KING Quest. To start watching TV right away, use the Quick Reference Guide. For DIRECTV ®...

  • Page 2: Table Of Contents

    KING and Dome Magic are registered trademarks of Electronic Controlled Systems, Inc. which is not affiliated with DIRECTV, L.L.C. KING Quest and Simply better, by design. are trademarks of Electronic Controlled Systems, Inc. which is not affiliated with DIRECTV, L.L.C.

  • Page 3: Introduction

    6. Do not operate near any indoor or outdoor heat source such as radiators, heat registers, stoves, barbecues, campfires, or other items that produce heat. 7. Do not stack the KING Quest on top of or below other electronic devices as this can cause heat buildup or block the satellite signal from reaching the KING Quest.

  • Page 4: Apply Rubber Feet To Antenna Unit

    See the roof installation section later in this manual. SET UP TV AND RECEIVER Set up your TV and receiver. IMPORTANT! The KING Quest will not work with SWM only receivers. For a list of compatible receivers, see www.kingconnect.com/dtv-receivers. All components sold separately.

  • Page 5: Operation

    10-15 minutes. The KING Quest is not programmed to lock on the 119 satellite, so you will not receive your local channels if they are broadcast from the 119. If you wish to receive programming from the 119 as well as the 101, you can replace the power injector with the KING UC1000 Controller (sold separately - see your dealer or our website www.kingconnect.com for details.)

  • Page 6: Using A Second Receiver

    If you wish to start a new scan (for example, the unit gets moved and you lose reception): Pressing the power injector’s RESET button is the preferred method to start a new scan, but there are two alternate methods as well: •...

  • Page 7: Roof Installation

    ROOF INSTALLATION 1. Make sure you have the following tools and materials before starting. NOTE: Many RVs are prewired with RG-6 coax cable for satellite antennas. Contact the manufacturer of your RV or your local RV dealer to verify where this cable is located. If prewired, run the existing coax cable from the prewire location in the roof to the antenna unit.
  • Page 8 ANTENNA UNIT LOCATION APPROXIMATE MINIMUM DISTANCE HEIGHT OF TO EDGE OF ANTENNA UNIT OBSTRUCTION 10” 8” 11” 10” 12” 12” 13” 14” 14” 16” 15” 18” 16” 20” Page 7 For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com) 8312 Sidbury Rd.; Wilmington, NC 28411 - (800) 507-0482 / (910) 686-4281...
  • Page 9 NOTE: The installer is responsible for determining the most appropriate fastener to secure the antenna unit to the roof. Depending on the roof material, fasteners such as lag screws, well nuts, sheet metal screws, toggle bolts and T anchors may be used, and should always be used in combination with a roof compatible sealant. IMPORTANT! The installer is responsible for weatherproofing all holes with sealant.
  • Page 10 6. Run coax from the antenna unit to the roof edge, then along edge to location where coax will be fed into the vehicle. If installing an optional second receiver, run second coax to location where it will enter the vehicle. Secure (both) coax to roof every 12-18 inches (see below). 7.

  • Page 11: Troubleshooting

    Make sure nothing is temporarily blocking view to the southern sky (like tree branches blowing in the wind). SECURITY FEATURE The KING Quest can be secured to an object using a cable looped thru the handle. NOTE: The optional KING Controller can be used as an alarm to deter theft as well (see next page).

  • Page 12: Accessories

    If power injector is present, remove from system before adding the controller. KING MB150 MOUNTING BRACKET The KING Quest can be permanently mounted to a vehicle using the MB150 Mounting Bracket. IMPORTANT! The KING Quest is not compatible with the MB100 Mounting Bracket.

  • Page 13: Limited Warranty

    LIMITED WARRANTY Every new KING Quest Satellite System is thoroughly inspected and tested before leaving the factory, and is covered by the following two year parts and one year labor limited warranty from the date of original purchase: • Two year parts warranty: The customer is not responsible for the cost of replacement parts if the original part is determined to be defective under the terms of the warranty.
  • Page 14 Simply better, by design. ™ For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com) 8312 Sidbury Rd. Wilmington, NC 28411 (800) 507-0482 / (910) 686-4281 11200 Hampshire Avenue South, Bloomington, MN 55438 PH 952.922.6889 || FAX 952.922.8424 || kingconnect.com ©2015 KING 21961 Rev C...
