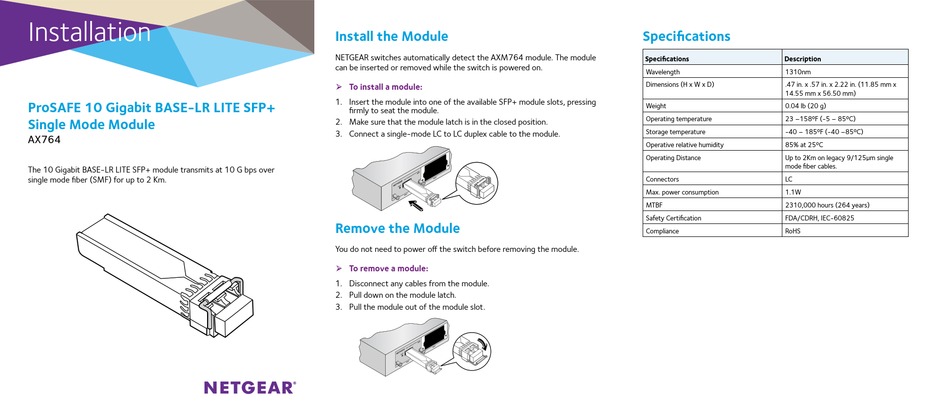

NETGEAR AX764 Installation Manual

Installation
ProSAFE 10 Gigabit BASE-LR LITE SFP+
Single Mode Module
AX764
The 10 Gigabit BASE-LR LITE SFP+ module transmits at 10 G bps over
single mode fiber (SMF) for up to 2 Km.
Install the Module
NETGEAR switches automatically detect the AXM764 module. The module
can be inserted or removed while the switch is powered on.
¾ To install a module:
1. Insert the module into one of the available SFP+ module slots, pressing
firmly to seat the module.
2. Make sure that the module latch is in the closed position.
3. Connect a single-mode LC to LC duplex cable to the module.
Remove the Module
You do not need to power off the switch before removing the module.
¾ To remove a module:
1. Disconnect any cables from the module.
2. Pull down on the module latch.
3. Pull the module out of the module slot.

Specifications

Specifications Description
Wavelength 1310nm
Dimensions (H x W x D) .47 in. x .57 in. x 2.22 in. (11.85 mm x
14.55 mm x 56.50 mm)
Weight 0.04 lb (20 g)
Operating temperature 23 –158ºF (-5 – 85ºC)
Storage temperature -40 – 185ºF (-40 –85ºC)
Operative relative humidity 85% at 25ºC
Operating Distance Up to 2Km on legacy 9/125μm single
mode fiber cables.
Connectors LC
Max. power consumption 1.1W
MTBF 2310,000 hours (264 years)
Safety Certification FDA/CDRH, IEC-60825
Compliance RoHS
