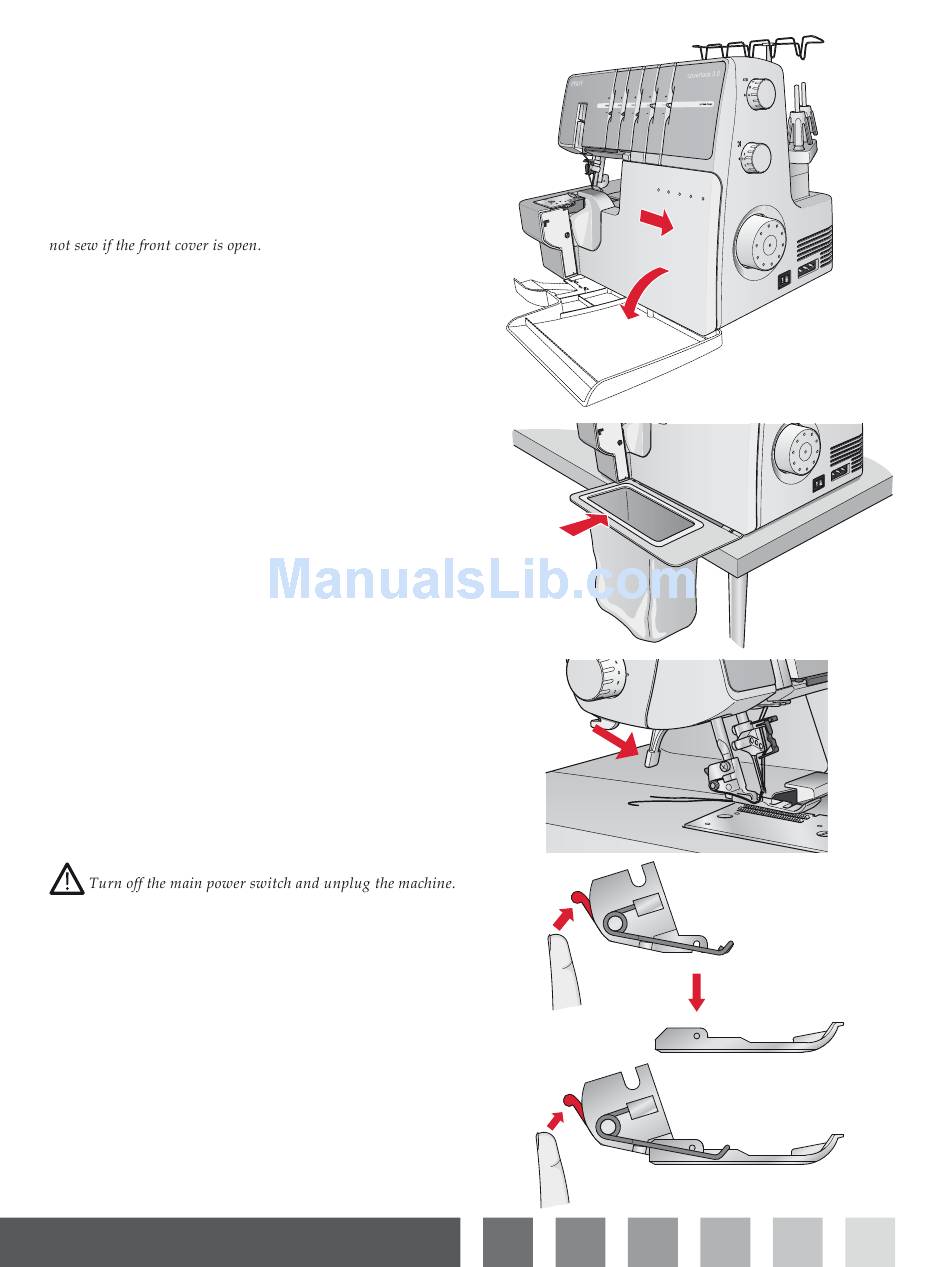

Front cover

Open

First push the cover to the right as far as it will go and
then pull it downward toward you.

Close

First pull the cover upward and then slide it to the left
until it locks.
Note: The front cover has a safety switch and the machine will

Attaching the waste tray

Position the machine so the front is nearly aligned with
the edge of the table. Insert the U-shaped hooks of the
waste tray onto the two suction cups on the underside of
the machine. Make sure the trim falls into the bag while
sewing.

Presser foot lift

Raise the presser foot by lowering presser foot lift at the
back of the machine.
Pressing down on the presser foot lift puts the presser foot
in the extra lift position.

Changing the presser foot

• Raise the presser foot.
• Turn the handwheel toward you until the needles are
at the highest position.
• Push the red button on the back of the presser foot
ankle to release the presser foot.
• Raise the presser foot to the extra lift position and the
foot will come off.
• Place the new foot with the pin right underneath the
groove of the ankle while in the extra lift position.
Lower the presser foot. Push the red button on the back
of the presser foot ankle and the foot will snap into
place.
8 Preparations
