1

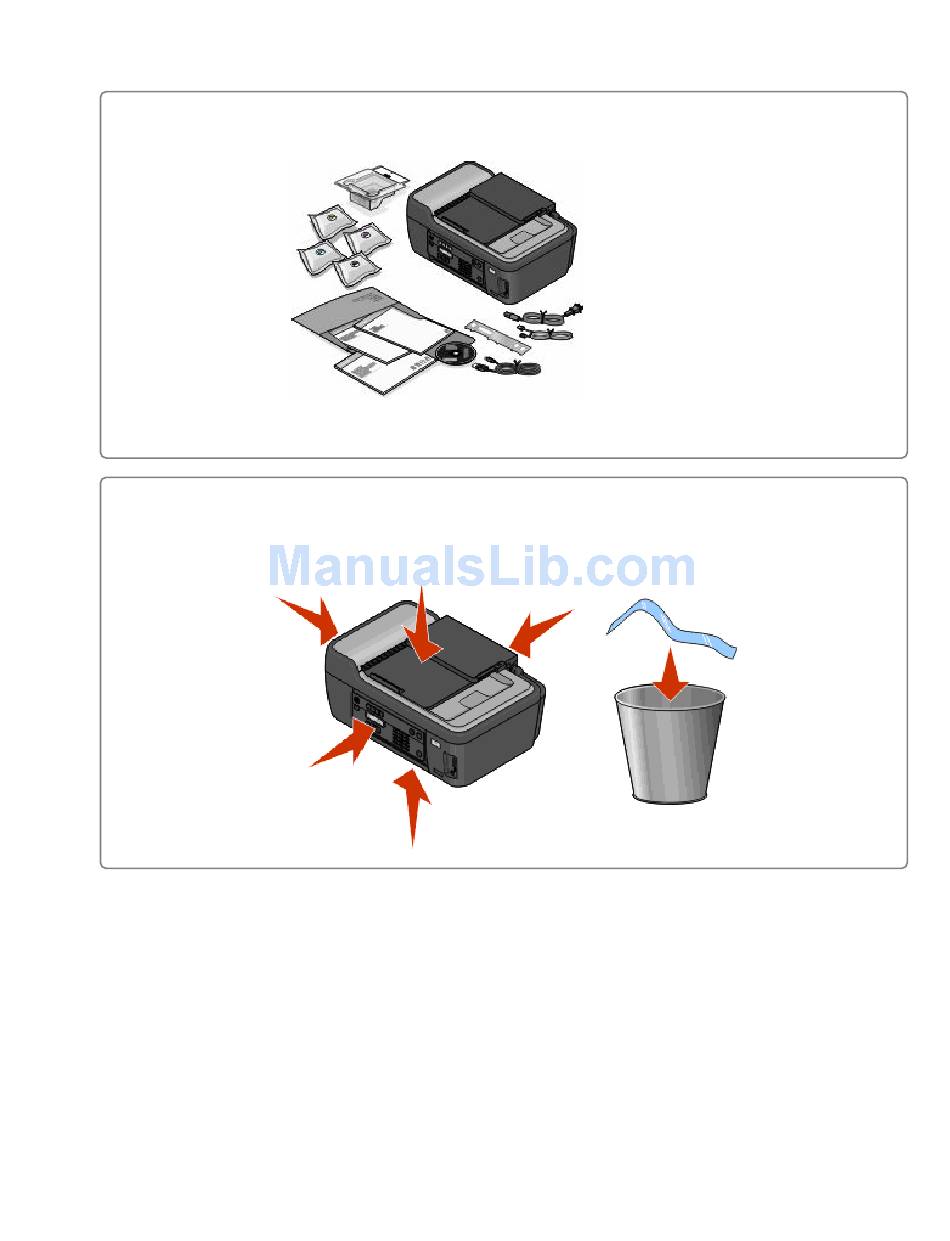

Unpack printer
2
Remove tape and packing material from all areas of the
printer
Lexmark S400 Series Installation
Notes:
Place the printer near the computer
•
during setup. If you're setting up on
a wireless network, then you may
move the printer after setup is
complete.
Do not attach the USB cable until
•
prompted to do so.
The packaged printhead is shipped
•
inside the printer.
Contents may vary by model and
•
region.
Advertisement
Table of Contents
Related Manuals for Lexmark S400 Series
Summary of Contents for Lexmark S400 Series
-
Page 1: Unpack Printer
Lexmark S400 Series Installation Unpack printer Notes: Place the printer near the computer • during setup. If you're setting up on a wireless network, then you may move the printer after setup is complete. Do not attach the USB cable until •... - Page 2 Lexmark S400 Series Installation Raise paper support Raise printer control panel...
- Page 3 Lexmark S400 Series Installation Open printer and remove packaged printhead from printer If necessary, insert correct (1) language overlay and install (2) protective cover...
-
Page 4: Close Printer
Lexmark S400 Series Installation Lock the protective cover in place Close printer... -
Page 5: Load Paper
Lexmark S400 Series Installation Use lever to extend paper guides Load paper Note: Use the lever to adjust the paper guides. - Page 6 Lexmark S400 Series Installation Extend paper exit tray Connect power cord only Note: DO NOT attach the USB cable yet. CAUTION—POTENTIAL INJURY: Read the safety information included with this product before connecting power or making any cabling connections. Make sure printer is on...
-
Page 7: Set Language
Lexmark S400 Series Installation Set language Using the printer control panel, press until the language you want appears on the display. Press OK to save. Set country/region Using the printer control panel, press until the country or region you want is highlighted on the display. -
Page 8: Set Date And Time
Lexmark S400 Series Installation Set date and time Using the keypad on the printer control panel, set the date. Press or to scroll between the month, day, and year. Date format varies depending on selected country or region. Press OK. - Page 9 Lexmark S400 Series Installation Squeeze and lift latch Remove printhead from the disposable container Insert printhead and close latch until it clicks...
- Page 10 Lexmark S400 Series Installation Close printer Open printer Note: The printhead moves to the cartridge installation position as shown.
- Page 11 Lexmark S400 Series Installation First, insert each color ink cartridge. Then, use two hands to install black cartridge. Close printer...
- Page 12 Lexmark S400 Series Installation Press OK to print alignment page Notes: Do not remove the page until • printing stops. The alignment page may take a while to print and will move in and out during the process. Streaks on the alignment page are •...
