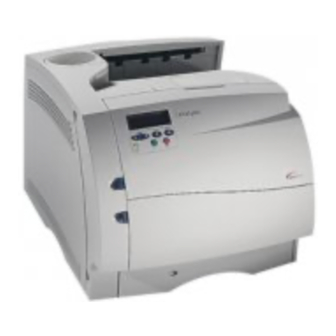

Optra S, Optra Se 3455
and Optra K 1220
SIMM for IPDS
Installation and User's
Guide

Advertisement

Table of Contents
loading

Related Manuals for Lexmark 3455

Summary of Contents for Lexmark 3455

  • Page 1 Optra S, Optra Se 3455 and Optra K 1220 SIMM for IPDS Installation and User’s Guide...
  • Page 2 Document GI-009-07 Rev. 7.0 Seventh Edition Printed in USA P/N 11K1877 E.C. 1K0316 © Copyright Intermate International, Inc., 1997 and LCI Intermate A/S, 1998 and 1999. All rights reserved. © Copyright Lexmark International, Inc., 1998 and 1999. All rights reserved.
  • Page 3 PCL is a registered trademark of the Hewlett-Packard Company. Lexmark and Lexmark with diamond design, Optra, MarkNet and MarkVision are trademarks of Lexmark International, Inc. registered in the United States and/or other countries. PostScript is a registered trademark of Adobe Systems Incorporated.

  • Page 4: Table Of Contents

    2.3 Installing the SIMM for IPDS...14 2.4 Removing the SIMM for IPDS ...19 3 Using the Operator Panel Setup Options...21 3.1 SIMM for IPDS Setup Options vs. Printer Setup Options...21 3.2 Changing IPDS Settings Using the Operator Panel ...22 3.2.1 The IPDS Setup Menu ...22 3.2.2 Selecting a New Value as a Setting...22...
  • Page 5 5 IPDS Job Cancel...71 5.1 Canceling an IPDS Job ...71 5.2 Aborting a Cancel Request ...72 6 Remote Configuration of Printer IPDS Settings ...73 6.1 Settings That Require Operator Intervention ...73 6.2 Option Values Which Can Not Be Changed Remotely...73 6.3 Remote Configuration Using an IPDS Text Job ...74...
  • Page 6 7.7.2 Example CRTDEVPRT for OS/400 V3R7, V4R1, V4R2, V4R3, or V4R4 ...106 7.7.3 Example CRTDEVPRT for OS/400 V3R7, V4R1, V4R2, V4R3, or V4R4 (continued)...107 7.8 Printing IPDS from PSF/MVS...108 7.8.1 Steps to Create a New Printer ...109 7.8.2 Printer Sharing Parameters ...110...
  • Page 7 7.8.3 Example PSF STARTUP PROC - JCL and PRINTDEV ...112 7.9 Printing IPDS from PSF/2 ...113 7.10 Printer Sharing in the PSF/2 Environment...117 7.11 Printing IPDS from PSF/AIX ...119 8 Using the SIMM for IPDS with the Adapter for SCS ...121 8.1 Using the Coax/Twinax Adapter for SCS ...121...
  • Page 8 B.8 Postnet Font Support...166 B.9 Font Substitution ...167 B.9.1 4028 / 31xx / 43xx Font substitution... 167 B.9.2 3812/16 Font substitution ... 168 C. Recommended memory...171 D. Related Publications...173 D.1 Lexmark Publications ...173 D.2 IBM Publications ...173 D.3 Intermate Publications...174 Glossary...175 Index...177...

  • Page 9: About This Guide

    Understanding, using, and changing the option settings to affect the way host jobs are printed. Conventions Printer menu keys and operator panel texts are written in bold. Option values are written in “quotation marks”. Section titles and book titles are written in italic.

  • Page 11: Introduction

    IBM host workstation printer capable of printing AFP documents from an AS/400 To use the SIMM for IPDS, your Lexmark Optra printer must have a minimum of 4 MB of installed memory and one of the following: a MarkNet internal print server for connection to a Token-Ring or Ethernet LAN.

  • Page 12: Customer Support

    If you need to update your adapter’s code level, contact the Lexmark Technical Support Center. MarkNet print server and Adapter for SCS firmware updates are also available from the Lexmark web site at http://www.lexmark.com. 1.2 Customer Support If you cannot find answers in this booklet about using the SIMM for IPDS, please contact your point of purchase, your local Lexmark office, or call the Lexmark Technical Support Center.

  • Page 13: Installation

    Menu+ for Menu> and Menu- for <Menu. Examples in this book will use Menu> and <Menu. Press Menu> until Print Menus appears. Press Select. The message Printing Menu Settings is displayed. The printer returns to the Ready state after the list of user default settings prints.

  • Page 14: Installing The Simm For Ipds

    Avoid touching the connection points along the edge of the card. Your card may vary in appearance. Save the packing materials. Check the printer model and SIMM to be sure you install the SIMM in the correct Optra model. The printer model number is located on the front or top cover.
  • Page 15 Turn the printer power OFF (O) and unplug the printer power cord. Disconnect all cables from the back of the printer. You must access the printer system board. Refer to your printer User's Guide and follow the instructions on how to access the printer system board. After accessing the system board proceed to step 6.
  • Page 16 User’s Guide to install additional user memory and any other options. After installing additional options, proceed to step 9. Close the printer system board. Refer to your printer User's Guide and follow the instructions on how to close the Printer System Board. After closing the Printer System Board, proceed to step 10.
  • Page 17 SIMM and repeat the steps in this section to reinstall it. Be sure the SIMM can be used in your printer model. Refer to step 2 for SIMM identification.
  • Page 18 See the menu settings page you printed before starting this installation for comparison. Tip: Place a label on the front of the printer indicating the connector locations of all installed options to avoid having to print the Menu Settings.

  • Page 19: Removing The Simm For Ipds

    Warning: The option card is easily damaged by static electricity. Before handling the cards, be sure to touch the printer’s metal cabinet or put on an anti- static wrist strap. Turn the printer power OFF (O) and unplug the printer power cord.
  • Page 20 Refer to the figure below for your printer to locate the SIMM for IPDS in the connector slot. Push out on the metal clips at each end of the connector and rotate the SIMM away from the system board. Optra S/Se Optra K Place the SIMM for IPDS in its original packaging.

  • Page 21: Using The Operator Panel Setup Options

    3 Using the Operator Panel Setup Options The SIMM for IPDS option settings may be changed from the printer operator panel or changed remotely by sending a text job with special commands to the printer. This section of the guide reviews how to change and save option settings using the operator panel.

  • Page 22: Changing Ipds Settings Using The Operator Panel

    Menu+ for Menu> and Menu- for <Menu. Examples in this book will use Menu> and <Menu. Press Select to select the IPDS MENU. You can modify printer settings by: Selecting a setting from a list of values. Changing a numerical setting.
  • Page 23 Press Go once to return to the IPDS MENU and a second time to return to Ready if this is the last printer setting to change. User default settings remain in effect until you save new settings or restore the factory defaults.

  • Page 24: Selecting A Setting From A List Of Values

    An asterisk (*) displays next to the value you selected to indicate it is the new user default. If this is the last printer setting to change, press Return to back up to the list of menus. Press Go twice to display the Ready status message. See section 3.2.5 Activating...

  • Page 25: Changing A Numerical Setting

    SAVED. Press Return to back up the list of menus, or press Go once to display the IPDS MENU and a second time to display the Ready status message if this is the last printer setting to be changed. See Activating Saved Option Changes below.

  • Page 26: Activating Saved Option Changes

    3.2.5 Activating Saved Option Changes You may need to power the printer OFF and ON to activate an option change. See the section below, which corresponds to your "attachment" method. LAN Attachment Most changes to IPDS MENU settings are active on the very next IPDS print job. This is true when you are LAN attached using a MarkNet internal print server or a MarkNet Pro external print server, or MarkNet XLe adapter.

  • Page 27: Setup Operations Reference

    Some options are only activated after the printer power has been recycled. Refer to section 3.2.5 Activating Saved Option Changes on page 26. To reach any of the sub-menus, press Menu> until IPDS MENU appears on the second line of the printer operator panel. Press Select to select the IPDS MENU.

  • Page 28: Overview Of The Emulation Menu Options

    4.2 Overview of the EMULATION Menu Options The following lists all menu options found under the EMULATION Menu. Values only display when they are available on your printer. An asterisk “*” indicates the default factory value. The selected value for each of these options is listed on the IPDS Print Menus page.
  • Page 29 IPDS Resolution Intervention Req IPDS Timeout Trace Functions IPDS Version A detailed description of each EMULATION Menu option follows. 600 dpi*, 1200 dpi, 300 dpi Report*, Do not report Host Controlled*, 15 seconds, 30 seconds, 60 seconds, 90 seconds, 2 minutes, 3 minutes, 5 minutes, 10 minutes Disable*, Serial Output, Parallel Output Display IPDS version number in the operator panel.

  • Page 30: Emulation Menu Options

    300 dpi. If 3812/16 emulation is selected and the printer IPDS Resolution setting is 300 dpi, the printer IPDS emulation ignores the 300 dpi setting and uses 600 dpi. This means, that the 240 dpi data received from the host is...

  • Page 31: Default Codepage

    4.3.2 Default Codepage This option defines the default code page with the appropriate character set to be used. Values are in alphabetical order. The panel will display code page options beginning with the letters A - E, then F – K, and L - Z. Select the appropriate path to reach the desired code page.

  • Page 32: Default Fgid

    4.3.4 Default FGID Selects the default FGID to be used by the printer IPDS emulation when the host does not send an FGID at the start of a job. This option is only available on IPDS emulation code level 8141 or higher.

  • Page 33: Page Counter

    Early Update All page counters are updated when they are processed but not printed. Pages may be lost if power or printer failure occurs. However, selecting this option may increase printing speed. Note: When Early Update is selected, Intervention Required...

  • Page 34: Printable Area

    All other printer models will report the physical page printable area but will clip any text printed within 50 pels of any edge. Full Page is only available on the Optra S/Se printer models.

  • Page 35: Resource Memory

    More Up to 1.5MB plus 50% of memory above 4MB can be used as IPDS resource memory. Note: Resource Memory appears as an option in the printer panel only if you have more than 4MB of installed memory.

  • Page 36: Exception Control

    IPDS data stream. Sup beyond VPA Exception reporting or position errors (outside VPA) is suppressed. The printer IPDS emulation will print the IPDS job but not report "08C1" printable area exceptions or "0411" bar code exceptions to the host.

  • Page 37: Font Control

    The strict setting prints all characters. 4.3.11 Font Type This option selects the type of fonts used by the printer when a fixed pitch Courier, Prestige, or Letter Gothic Font is requested by the host. Use Scalable* Use printer resident scalable fonts for Courier, Prestige, and Letter Gothic fonts when bitmap font Font IDs are received from the host.

  • Page 38: Ipds Resolution

    600 dpi. Some jobs may not print in the standard 4MB of installed printer memory. The 300 dpi resolution uses the least amount of memory. Switch to this resolution if your job will not print in the memory installed in the printer or add additional memory.

  • Page 39: Intervention Required

    This option defines if the emulation should report Intervention Required messages to the host. Types of intervention required messages include a paper jam, paper out, cover open or offline message. These types of messages mean the printer is not ready to print. Report* Report intervention required messages to the host.

  • Page 40: Ipds Timeout

    The printer is capable of receiving jobs on multiple printer ports. While the printer is busy printing jobs from one printer port, jobs on other printer ports remain in a waiting status. When the host disconnects from the printer or when the printer IPDS emulation times out, the printer automatically switches to another printer port to start a new job.
  • Page 41 15 seconds IPDS emulation timeout value. These values are only used by 30 seconds the printer IPDS emulation when the host sends IPDS jobs on 60 seconds port 9600 to a MarkNet internal print server. If the host does 90 seconds...
  • Page 42 Reset Printer is selected on the operator panel. The printer is powered OFF. If the IPDS resources are deleted, the printer will return a Printer Reset exception to the host. The host will download the resources again with the next IPDS job.

  • Page 43: Trace Functions

    Unless you have a computer running a capture program attached to the serial or parallel port to receive the trace data, the printer will hang Busy and display IPDS on the first line of the operator panel and TRC on the second line of the operator panel.

  • Page 44: Overview Of The Paper Handling Menu Options

    The following lists all menu options found under the PAPER HANDLING Menu. Values only display when they are available on your printer. An asterisk “*” indicates the default factory value. The selected value for each of these options is listed on the IPDS Print Menus page.
  • Page 45 Other Env Size A detailed description of each PAPER HANDLING option follows. Envelope Length 4200*, range: 1500 - 4200 Envelope Width 2550*, range: 825 - 2550...

  • Page 46: Paper Handling Menu Options

    4.5 PAPER HANDLING Menu Options In the following an asterisk “*” indicates the default factory value. 4.5.1 Duplex Control This option defines the treatment of duplex printing. Autodetect* Use and report duplex if a duplexer is installed. Enable Always report duplex. If a duplexer is not installed, the pages are printed in simplex.

  • Page 47: Ipds Envelope Paper

    You can do one of the following: Use the printer setting Manual Env Size. Use the printer setting Env Feeder Size (if installed). Select a different envelope size from the IPDS Menu. The selection applies to both Manual Env and Env Feeder.
  • Page 48 Note: Other Envelope is only available on IPDS code level 9241 or above. If printing occurs after the length of the physical paper, the message 34 Short Paper is displayed in the operator panel.

  • Page 49: Ipds Manual Paper

    Universal Note: Universal paper support is only available on IPDS code level 9241 and above. Use the paper size from the “Manual Pap Size” printer default setting. Letter paper size (8.5” x 11.0”) Legal paper size (8.5” x 14.0”) B5 (JIS) paper size (182mm x 257mm) A4 paper size (210mm x 297mm) Executive paper size (7.25”...

  • Page 50: Ipds Multipurpose (Mp) Paper

    This option only displays if a Multipurpose Feeder is installed. You can do one of the following: Use the printer setting “MP Feeder Size”. Select a different paper size or envelope size for IPDS. Selecting a specific size under the IPDS Menu will change the media size selected for the Postscript and PCL emulations, too.

  • Page 51: Preprinted Media

    The Host Controlled setting requires the user to know how preprinted paper, such as letterhead, is loaded in the printer. If printing in simplex, the paper has to be loaded with the preprinted side face down and the top edge of the page facing toward the front of the printer.

  • Page 52: Universal Size

    4.5.7 Universal Size A paper size of Universal is displayed in the printer menu when a non-standard size paper is detected in an auto size sensing tray or Universal is selected in the IPDS PAPER HANDLING menu as the paper size loaded into a non-size sensing tray or feeder.

  • Page 53: Other Env Size

    4.5.8 Other Env Size A printer envelope size of Other Envelope may be selected in the printer menu or Other Envelope may be selected in the IPDS PAPER HANDLING menu when a non-standard size envelope is loaded into a non-size sensing tray or feeder. This option allows you to specify the envelope size returned to the host when Other Envelope is selected in the printer menu as the envelope size.

  • Page 54: Map Input Trays Menu Options

    This option defines the mapping of the host's request for a physical feeder or input tray in the printer. Any host input source can be mapped to any printer input source. The printer input source is mapped to an IPDS host number. Input sources include the envelope feeder, manual feed paper or manual feed envelopes.
  • Page 55 Env Feeder. Tray Mapping 6 Tray Mapping 7 In other words, the printer attempts to map to (select media from) the Env Feeder first and if it is not installed, the printer defaults to Manual Env. Example 3 To link multiple input trays as one big input tray, you need to make changes under the printer's PAPER MENU.

  • Page 56: Tray Mapping

    Tray 1 Type Tray 2 Type Tray 3 Type The printer will feed paper from Tray 3 when Tray 2 is empty. 4.6.1 Tray Mapping In the following an asterisk “*” indicates the default factory value. The default value for each of these options is listed on the IPDS Print Menus page. See section 2.2 Printing the Menu Settings on page 13.
  • Page 57 Tray Mapping 5 No Map, Tray 1, Tray 2, Tray 3, Tray 4, Tray 5*, MP Feeder, Env Feeder, Manual Paper, Manual Env IPDS Number 4*, 0 to 255 Tray Mapping 6 No Map, Tray 1, Tray 2, Tray 3, Tray 4, Tray 5, MP Feeder, Env Feeder*, Manual Paper, Manual Env IPDS Number 64*, 0 to 255 Tray Mapping 7...

  • Page 58: Map Output Bins Menu Options

    This option defines the mapping of the host's request for a physical output bin in the printer. The printer bin is mapped to an IPDS host number. Printer output bins include the top of the printer (standard bin) and optional output bins that attach to the top of the printer.

  • Page 59: Bin Mapping

    4.7.1 Bin Mapping Note: Output Bin values will only be displayed when optional output bins are installed. In the following an asterisk “*” indicates the default factory value. The default value for each of these options is listed on the second Print Menus page. See section 2.3 Installing the SIMM for IPDS on page 17, step 14.
  • Page 60 Bin Mapping 6 Standard Bin, No Map*, Output Bin 1, Output Bin 2, Output Bin 3 IPDS Number X, 1 to 255 Bin Mapping 7 Standard Bin, No Map*, Output Bin 1, Output Bin 2, Output Bin 3 IPDS Number X, 1 to 255 Bin Mapping 8 Standard Bin, No Map*, Output Bin 1, Output Bin 2, Output Bin 3...

  • Page 61: Margins Menu Options

    IPDS jobs and are not affected by IPDS commands in the job. The input tray Left Margin and input tray Top Margin option settings should not be confused with the IPDS left and top margin settings sent from the host.
  • Page 62 Margin Adjustment = All Input Trays setting + Specific Tray / Feeder Setting The SIMM for IPDS is limited by the printer’s printable area. The Margins menu may be used to adjust page images outside the valid printable area. The page image will be clipped.
  • Page 63 Example – Margin and Tray Mapping The host input source IPDS Number 1 normally selects the printer physical tray 2. If IPDS Number 1 has been mapped to Tray 1, the Tray 1 Adjust margin values will be...

  • Page 64: All Input Trays Menu

    Each margin menu option has four sub-menus. The exception being the envelope menu options, which have only two. The available margin menu options and their sub-menus are shown below. Margin menu option ALL INPUT TRAYS TRAY 1 ADJUST TRAY 2 ADJUST TRAY 3 ADJUST TRAY 4 ADJUST TRAY 5 ADJUST...

  • Page 65: Tray 1 Adjust Menu

    4.8.2 TRAY 1 ADJUST Menu This menu option allows additional adjustment to the top and left margins for simplex and duplex pages printed from tray 1. Tray 1 Adjust margin settings adjusts the value of the All Input Trays corresponding margin setting for all pages printed from tray 1. See margin settings examples under 4.8 MARGINS Menu Options on page 61 for additional information.

  • Page 66: Tray 3 Adjust Menu

    4.8.4 TRAY 3 ADJUST Menu This menu option allows additional adjustment to the top and left margins for simplex and duplex pages printed from tray 3. Tray 3 Adjust margin settings adjusts the value of the All Input Trays corresponding margin setting for all pages printed from tray 3. See margin settings examples under 4.8 MARGINS Menu Options on page 61 for additional information.

  • Page 67: Tray 5 Adjust Menu

    4.8.6 TRAY 5 ADJUST Menu This menu option allows additional adjustment to the top and left margins for simplex and duplex pages printed from tray 5. Tray 5 Adjust margin settings adjusts the value of the All Input Trays corresponding margin setting for all pages printed from tray 5. See margin settings examples under 4.8 MARGINS Menu Options on page 61 for additional information.

  • Page 68: Env Feeder Adj Menu

    4.8.8 ENV FEEDER ADJ Menu This menu option allows additional adjustment to the top and left margins for jobs printed from the envelope feeder. Env Feeder Adj margin settings adjusts the value of the All Input Trays corresponding margin setting for all pages printed from the envelope feeder.

  • Page 69: Manual Env Adj Menu

    4.8.10 MANUAL ENV ADJ Menu This menu option allows additional adjustment to the top and left margins for jobs printed from the manual tray. Manual Env Adj margin settings adjusts the value of the All Input Trays corresponding margin setting for all envelopes printed from the manual tray.

  • Page 71: Ipds Job Cancel

    5 IPDS Job Cancel The IPDS cancel function allows IPDS jobs to be canceled at the printer. Selecting a specific job to cancel is difficult when several small jobs are queued to print from the host. The job being printed may not be the job which is canceled. The cancel request is returned to the host on the earliest possible page boundary.

  • Page 72: Aborting A Cancel Request

    The host cancels the job and the next job on the host queue will be sent to the printer. (Note: The actual host action is dependent on host settings.) IPDS resources are saved by the printer unless the host requests deletion of these resources.

  • Page 73: Remote Configuration Of Printer Ipds Settings

    Most IPDS emulation settings stored in the printer (the default IPDS settings) can be changed remotely by sending a special IPDS text job to the printer. This method of changing settings is useful during printer installation to set the IPDS option settings to the values recommended by your system administrator.

  • Page 74: Remote Configuration Using An Ipds Text Job

    The option and value strings are entered at the host as normal text and are sent to the printer like any other IPDS text job. Valid value strings change the IPDS option value and store the new value as a permanent IPDS option setting.

  • Page 75: As/400 Recommended Procedure

    6.3.1 AS/400 Recommended Procedure The IPDS session must be closed after the text job has been sent to the printer to activate the new IPDS option settings. The changes take effect during the next established IPDS session. The following steps are recommended to remotely change the printer IPDS option settings.

  • Page 76: Mainframe Recommended Procedure

    6.3.2 Mainframe Recommended Procedure The IPDS session must be closed after the text job has been sent to the printer to activate the new IPDS default settings. The changes take effect during the next established IPDS session. Changing some options may generate a reset message or a configuration change message on the host when restarting from a timed out session.

  • Page 77: Lead-In String

    Both lower and upper case letters can be used for options and values. The case of each option or value does not have to match the operator panel. 6.3.3.1 Lead-in String The text string below is the Lead-in string which causes the IPDS emulation to enter an IPDS set option mode.

  • Page 78: Entering Option Name And Value Settings

    The text for specifying Option Name and Value Settings is based on the text appearing in the printer operator panel. Most option names are unique and occur only once. For these options it is possible to use the syntax shown below.

  • Page 79: Entering Comments In The Job

    TrayMapping 1=Tray 1,2; The example assigns the IPDS logical paper source number 2 with Tray 1. 6.3.3.4 Entering Comments in the Job Comments may be entered in the job text. The beginning of a comment is marked with the start characters (/*) and terminated with the end characters (*/). See the sample comment below.

  • Page 80: Examples Of Legal Commands

    6.3.3.6 Examples of legal commands The following are examples of legal commands which will be processed by the printer IPDS emulation and will change the IPDS option value setting. IpdsEmulation=4028; EMULATION: IPDS Emulation = 3112/3116; Emulation:ipdsemulation=4028;defaultcodepage=Fin/Sweden278; Margins:Tray1Adjust:Top Margin = 20;...

  • Page 81: Set Default Options Mode Error Messages

    6.3.3.8 Set Default Options Mode Error Messages An option change status page is printed after each page with received changes. An option change status page is also printed if a page break is detected before a full page with changes has been received.Valid option value text strings are printed. Error messages are printed for invalid option value text strings to assist in correcting the text string.

  • Page 82: Restoring Factory Default Settings Remotely

    An unsupported option in the current printer configuration was specified. An example could be an attempted margin adjustment of tray 3 on a printer with only 2 trays. This message is printed if the value is found but not currently available. This could happen if a printer option has not been installed.

  • Page 83: Using The Simm For Ipds With A Marknet Internal Or External Print Server

    MarkNet Internal or External Print Server 7.1 IPDS in a LAN Environment When using the SIMM for IPDS in a printer attached to a LAN with the MarkNet internal print server (Token-Ring or Ethernet), MarkNet Pro external print server (Token-Ring or Ethernet), or the MarkNet XLe print server (Token-Ring or Ethernet),...

  • Page 84: Configuring A Marknet Internal Print Server

    IPDS job is received from a LAN attached host. When another IPDS job is received through the Adapter for SCS card, the printer will return a Printer Reset exception to the host. The host will download the resources again with the next IPDS job.

  • Page 85: Selecting The Marknet Internal Print Server Tcp/Ip Protocol Settings

    7.2.1 Selecting the MarkNet Internal Print Server TCP/IP Protocol Settings From the printer operator panel, do the following: Press Menu> until the NETWORK MENU displays. Press Select. Press Menu> until the NETWORK OPTION 1 displays. Press Select. (This example assumes the MarkNet internal print server is installed in option connector 1.)

  • Page 86: Setting The Marknet Internal Print Server Job Timeout

    Press Menu> until you see NETWORK CARD. Press Select. Here you find the following setting: Job Timeout (A setting of 0 allows the host system timer or the printer IPDS Timeout value to control when print jobs from another protocol, interface, server or host can be started.)

  • Page 87: Configuring A Marknet Pro External Print Server

    To enable IPDS printing with the MarkNet Pro several settings must be changed. Changes to MarkNet Pro settings can be made using the appropriate network printer utilities. For more information on how to change these settings, refer to your Lexmark MarkNet Pro network adapter manual which came with your print server.

  • Page 88: Setting The Marknet Pro Job Timeout

    You may set the MarkNet Pro Job Timeout value to a value greater than the host "release timer" value. Errors are very likely to occur when the printer requires user intervention and the intervention is not cleared before the timeout occurs.

  • Page 89: Configuring A Marknet Xle External Print Server

    Replace the adapter’s switch cover. For more information, see Lexmark’s Network Printer Utility Guide. If you need to update your MarkNet XLe code level, contact the Lexmark Technical Support Center. MarkNet XLe firmware updates are also available from the Lexmark web site at http://www.lexmark.com.

  • Page 90: Setting The Marknet Xle Tcp/Ip Protocol Settings

    You may set the MarkNet XLe Job Timeout value to a value greater than the host "release timer" value. Errors are very likely to occur when the printer requires user intervention and the intervention is not cleared before the timeout occurs.

  • Page 91: Setting The Marknet Xle Busy Timeout

    You may set the MarkNet XLe Busy Timeout value to a value greater than the host "release timer" value. Errors are very likely to occur when the printer requires user intervention and the intervention is not cleared before the timeout occurs.
  • Page 92 AFP attachment Press <ENTER> Font identifier (Font Global ID for Courier 10 CPI Form feed Press <ENTER>, then <PAGE DOWN> Remote location Press <ENTER> to create the printer device description for the Optra IPDS printer. OPTRA *RMT *IPDS *YES *APPC...
  • Page 93 Using WRKAFP2, specify the printer’s TCP/IP configuration information. This data area, which must be saved in library QGPL, will override the APPC device description just created with the CRTDEVPRT command. At the command line, type: WRKAFP2 and press <F4>. Printer device name DEVD...
  • Page 94 Related information Vary on the printer device description: VRYCFG CFGOBJ(OPTRA) CFGTYPE(*DEV) STATUS(*ON) Start the writer: STRPRTWTR OPTRA To PING the device: PING ‘ip_address’ or PING host_name For example: PING ‘157.184.67.102’ To print the contents of the data area in the library QGPL, type:...

  • Page 95: Printing Ipds From Psf/400 With Os/400 V3R2

    Add a TCP/IP interface using ADDTCPIFC. Add a router definition, if required, using ADDTCPRTE. Start TCP/IP using STRTCP. Create a printer device description using CRTDEVPRT (see steps below and the example on page 101). Note: Only the required fields are listed below.
  • Page 96 Press <ENTER> AFP attachment Press <ENTER> Font identifier (Font Global ID for Courier 10 CPI Form feed Press <ENTER>, then <PAGE DOWN> Remote location Press <ENTER> to create the printer device description for the Optra IPDS printer. *YES *APPC *AUTOCUT TCPIP...
  • Page 97 Using CRTPSFCFG, specify the printer’s TCP/IP configuration information. This PSF configuration object, which must be saved in library QGPL, overrides the APPC device description just created with the CRTDEVPRT command. See the example on page 99. At the command line, type: CRTPSFCFG and press <F4>. Enter the following...
  • Page 98 Related information Vary on the printer device description: VRYCFG CFGOBJ(OPTRA) CFGTYPE(*DEV) STATUS(*ON) Start the writer: STRPRTWTR OPTRA To PING the device: PING ‘ip_address’ or PING host_name For example, PING ‘157.184.67.102’ To list PSF configuration objects (in the library QGPL), use WRKPSFCFG command.

  • Page 99: Example Crtdevprt For Os/400 V3R2

    Separator drawer ..: Separator program ..: Printer error message Message queue ..: Library .

  • Page 100: Example Crtpsfcfg For Os/400 V3R2

    7.6.2 Example CRTPSFCFG for OS/400 V3R2 PSF configuration ..: Library ... . : User resource library IPDS pass through ..: Activate release timer .

  • Page 101: Printing Ipds From Psf/400 With Os/400 V3R7, V4R1, V4R2, V4R3, Or V4R4

    Define a PSF configuration object for your printers using CRTPSFCFG. What you define here is referenced in the printer device description (CRTDEVPRT). More than one printer can use this object. See the example on page 106. Note: Only the required fields are listed below.
  • Page 102 With V3R7 you enter the TCP/IP address and port number in the printer device description. It is not entered here. Press <ENTER> to create the PSF object. Create a printer device description for your printer using CRTDEVPRT. See the example on page 106. Note: Only the required fields are listed.
  • Page 103 (IP address or remote host name) Press <PAGE DOWN> (or <ROLL UP>) User-defined object: Object Library Object type Text 'description' (Optional) Press <ENTER> to create the printer device description. Vary on the device: VRYCFG CFGOBJ(OPTRA) CFGTYPE(*DEV) STATUS(*ON) Start the writer: STRPRTWTR OPTRA FONT FORMFEED *AUTOCUT...
  • Page 104 Related information To end the writer: To PING the device: To list PSF configuration objects (in the library QGPL), use the WRKPSFCFG command. Command set for PSF configuration objects: CRTPSFCFG - create CHGPSFCFG - change (with the writer stopped) DSPPSFCFG - display DLTPSFCFG - delete (with the writer stopped) ENDWTR OPTRA PING 'ip_address' or PING host_name...

  • Page 105: Example Crtpsfcfg For Os/400 V3R7, V4R1, V4R2 V4R3, Or V4R4

    ... . REPLACE Authority ... AUT > OPTRAPRT > > *YES > *SEC15 RETRYDLY > 'Optra Printer' Additional Parameters RMTLOCNAME > *NONE > *NONE ..ACTTMR QGPL *JOBLIBL...

  • Page 106: Example Crtdevprt For Os/400 V3R7, V4R1, V4R2, V4R3, Or V4R4

    Library ... Number of drawers ..NBRDRAWER Printer error message Message queue ..MSGQ Library ...

  • Page 107: Example Crtdevprt For Os/400 V3R7, V4R1, V4R2, V4R3, Or V4R4 (Continued)

    USRDFNOBJ . . USRDRVPGM ..SYSDRVPGM ..DEPLOCNAME *YES *NOMAX F1C10110 *LIBL *SYSVAL > 157.184.67.102 *NETATR *NETATR QSPWTR *NONE *LIBCRTAUT *NONE > OPTRAPRT > QGPL > *PSFCFG *NONE *NONE > 'OPTRA PRINTER' *NONE...

  • Page 108: Printing Ipds From Psf/Mvs

    7.8 Printing IPDS from PSF/MVS The SIMM for IPDS enables IPDS printing directly from a MVS mainframe. Software requirements for the MVS are: PSF/MVS Version 2 Release 2.0 with APAR OW15599,OW15018 and OW16442 PSF/MVS Version 3.1 or later MVS Scheduler APAR OW12236 to support two new PRINTDEV keywords: IPADDR and PORTNO.

  • Page 109: Steps To Create A New Printer

    FSS(FSS1) PROC=PSFPROC,HASPFSSM=HASPFSSM PRT7 FSS=FSS1,MODE=FSS, PRMODE=(LINE,PAGE,SOSI1), CLASS=C,UCS=0,SEP,NOSEPDS,CKPTPAGE=100, DRAIN,MARK,TRKCELL=YES Example for JES3 FFSDEF,TYPE=WTR,FSSNAME=FSS3,PNAME=SAMPLE01, SYSTEM=SYS1,TERM=NO, DEVICE,DTYPE=PRTAFP1,NAME=PRT7, JUNIT=(,SYS1,,OFF),FSSNAME=FSS3, MODE=FSS,PM=(LINE,PAGE,SOSI1),CHARS=(YES,GT12), CARRIAGE=(YES,A868),CKPNTGP=100,HEADER=YES, WC=(C) Add the printer to the PSF STARTUP PROC. //PRT7 CNTL //PRT7 PRINTDEV FONTDD=*.FONT01, //OVLYDD=*.OLAY01, //PSEGDD=*.PSEG02, //PDEFDD=*.PDEF01, //FDEFDD=*.FDEF01, //JOBHDR=*.JOBHDR, //JOBTRLR=*.JOBTLR, //DSHDR=*.DSHDR, //FORMDEF=A10110, //PIMSG=(YES,16), //DATACK=BLOCK,...

  • Page 110: Printer Sharing Parameters

    The value (15) for DISCINTV specifies the time in seconds after which PSF ends the printer session when no output is available. The valid range is from 0 to 8160 seconds. The default value is 0. If DISCINTV=0, the PSF does not end the printer session when no output is available.
  • Page 111 End-of-Job Timeout option. We will refer to both as the End- of-Job Timeout. The default is 90 seconds. It is recommended that the End-of-Job Timeout is disabled (set to 0) and the DISCINTV is set to 15 seconds, if the printer IPDS Timeout value is set to Host Controlled.

  • Page 112: Example Psf Startup Proc - Jcl And Printdev

    7.8.3 Example PSF STARTUP PROC - JCL and PRINTDEV //SAMPLE PROC //STEP01 EXEC PGM=APSPPIEP,REGION=4096K,TIME=1440 //STEPLIB DD DSN=PSF.LINKLIB,DISP=SHR //JOBHDR OUTPUT PAGEDEF=V06483, FORMDEF=A10110,CHARS=GT12 //JOBTLR OUTPUT PAGEDEF=V06483, FORMDEF=A10110,CHARS=GT12 //MSGDS OUTPUT PAGEDEF=A08682 FORMDEF=A10110,CHARS=GT15 //FONT01 DD DSN=SYS1.FONTLIB,DISP=SHR/* SYSTEM FONTS DD DSN=INST.FONTLIB,DISP=SHR/* USER FONTS //PSEG02 DD DSN=INST.PSEGLIB,DISP=SHR/* PAGE SEGMENTS //OLAY01 DD DSN=INST.OVERLIB,DISP=SHR/* OVERLAYS //PDEF01 DD DSN=SYS1.PDEFLIB,DISP=SHR/* SYSTEM PAGE DEFS DD DSN=INST.PDEFLIB,DISP=SHR/* PAGE DEFS...

  • Page 113: Printing Ipds From Psf/2

    DB/2 version 1.0 or newer PSF/2 version 2.0 or newer TCP/IP version 2.0 (CSD UN56401) or newer How to Create a New Printer Start PSF/2 control panel by selecting the PSF/2 Folder and then selecting the PSF/2 Control Panel icon.
  • Page 114 On the PSF/2 Control Panel select |Profile| and then |New|. The PSF/2 New Device menu appears. Enter the device name and the device description and select a Device Resolution of 300 pel.
  • Page 115 Select TCP/IP as Attachment Type and select Settings. The TCP/IP Settings menu appears. Enter the IP address of the printer. The IP address should be obtained from your network administrator. The TCP/IP port number entered must be either 9100, 9102, or 9600.
  • Page 116 The Setup queues menu will appear. It will be blank at first. Enter the Queue name, description and select the Device and then select Setup. An OS/2 printer queue is now created and the printer is ready to print IPDS from OS/2 and a PSF/2 connected host.

  • Page 117: Printer Sharing In The Psf/2 Environment

    7.10 Printer Sharing in the PSF/2 Environment To enable the printer to start other print jobs from another protocol, interface or server, the PSF/2 tuning option Job Interval Shutdown Timer is used. Important: The End-of-Job Timeout has to be disabled (set to 0) in order to prevent the print server or adapter from releasing the TCP/IP protocol.
  • Page 118 1-9998 time in seconds to wait between jobs 9999 wait indefinitely for the next job to be received. If you are using a MarkNet internal print server and set the printer IPDS Timeout value to Host Controlled, the recommended value is 30 seconds.

  • Page 119: Printing Ipds From Psf/Aix

    Printer Definition for TCP/IP attached printers. Answer the following: Printer NAME: Enter a name for the IPDS printer. This name will also be used for the print queue associated with the printer. Internet ADDRESS: Enter the host name (preferred) or IP address you have assigned to the MarkNet adapter (e.g.
  • Page 120 -P'psfqueue' -odatatype=AFPDS /etc/motd You can also use the command smit psf_data_type_sel to queue the job. See also the chapter Installing a TCP/IP-attached IPDS printer in the IBM AIX Print Service Facility/6000: Print Administration Version 1.2 manual for further information about this task.

  • Page 121: Using The Simm For Ipds With The Adapter For Scs

    H01-9072 (or greater) for coax H02-8491 (or greater) for twinax To see the Adapter for SCS code level, you need to use the printer's operator panel. The last four digits (in "8491") are the ones you want to be greater than or equal to.
  • Page 122 IPDS job is received from a LAN attached host. When another IPDS job is received through the Adapter for SCS card, the printer will return a Printer Reset exception to the host. The host will download the resources again with the next IPDS job.

  • Page 123: Using The Coax Interface With Ipds

    SIMM for IPDS is installed. If you install a new Adapter for SCS in an Optra printer with a SIMM for IPDS (and vice versa), you do not need to configure the Adapter for SCS to use the IPDS emulation.

  • Page 124: Changing The Coax Timeout Value (For Reference Only)

    8.4 Changing the Coax Timeout Value (For Reference Only) If necessary you can change the Coax Timeout value by following these steps: Press Menu> until NETWORK MENU displays. Press Select. Press Menu> until NETWORK OPTION 1, NETWORK OPTION 2 or NETWORK OPTION 3 displays.

  • Page 125: Verifying The Coax Interface With The Simm For Ipds

    Press Menu> until you see SCS IDB DUMP. Press Select. Press Menu> until you see Print. Press Select. The printer returns to Ready when the IDB Dump has been printed. The SCS IDB dump contains all the current adapter settings including the IPDS Enabled setting and the current Adapter for SCS firmware level.

  • Page 126: Using The Twinax Interface With Ipds

    When twinax attached, the Adapter for SCS will, by default, NOT use the IPDS emulation if it is installed in the printer. The Adapter for SCS must be configured to use the installed SIMM for IPDS before it connects to the host.

  • Page 127: Twinax Interface Settings

    8.9 SCS Device Address Setting The SCS Device Address is used to select the twinax device address for the SCS emulation or to disable the SCS emulation if you don’t want to use it. From the printer operator panel, do the following: Press Menu>...

  • Page 128: Ipds Device Address And Ipds Buffer Sizes Settings

    The 1024 byte buffer has the fastest transfer rate, but it isn’t compatible with some older IBM equipment. IPDS Buf. Size appears as an option in the printer panel only if the IPDS Dev. Addr. is enabled (address = 0 - 6).

  • Page 129: Changing The Twinax Timeout Value (For Reference Only)

    8.11 Changing the Twinax Timeout Value (For Reference Only) If necessary you can change the Twinax Timeout value by following these steps: Press Menu> until NETWORK MENU displays. Press Select. Press Menu> until NETWORK OPTION 1, NETWORK OPTION 2 or NETWORK OPTION 3 displays.

  • Page 130: Example Crtdevprt For Os/400 V3R7, V4R1, V4R2, V4R3, Or V4R4 (Locally Attached)

    Separator program Library ... Number of drawers Printer error message Message queue ..MSGQ Library ...

  • Page 131: Example Crtdevprt For Os/400 V3R7, V4R1, V4R2, V4R3, Or V4R4 (Locally Attached, Continued)

    . . USRDRVPGM ..SYSDRVPGM ..DEPLOCNAME *MFRTYPMDL *MFRTYPMDL *MFRTYPMDL *YES *NOMAX F1C10110 *LIBL *SYSVAL *NETATR *NETATR QSPWTR *NONE *LIBCRTAUT *NONE > OPTRAPRT > QGPL > *PSFCFG *NONE *NONE > 'OPTRA PRINTER' *NONE...

  • Page 133: Printer Messages And Problems

    Busy and displays IPDS even when no IPDS jobs are printing. Solution: The host still has control of the printer. You need to adjust the Adapter for SCS timeout, the end-of-job timeout on your network adapter, the printer IPDS Timeout value, the host port value, or the appropriate timer/timeout value on your IPDS host.
  • Page 134 The recommended setting for the MarkNet internal print server, MarkNet Pro external print server, or MarkNet XLe end-of-job-timeout is 0 (disabled). This allows the host timer/timeout value or printer IPDS Timeout value (when using a MarkNet internal print server only) to control when print jobs from another protocol, interface, server, or host can be started.
  • Page 135 IPDS Timeout = Host Controlled (when using MarkNet internal print server, MarkNet Pro external print server, or MarkNet XLe) Note: The printer defaults to Host Controlled when receiving IPDS jobs on port 9100 or 9102. If you selected any other IPDS Timeout value, go to IPDS Timeout = 15 seconds to 10 minutes on page 136.
  • Page 136 Host Controlled on page 135. If you selected an IPDS Timeout value of 15 seconds to 10 minutes to allow the printer IPDS emulation to determine when an IPDS LAN session times out, follow the steps below to correct the problem.
  • Page 137 The message 36 Resolution Reduced displays and the printer stops. Solution: The printer memory is full and the page cannot be printed at the selected IPDS Resolution. Press Go and the page is printed at a lower resolution. If this is a constant problem and you want to print at the higher resolution, you need to add more memory to the printer.
  • Page 138 C. Recommended memory on page 171. Problem: I can’t cancel an IPDS job from the printer operator panel. When I try to enter the menus with <Menu or Menu>, I get the message Menus Disabled. Solution: You must be in an IPDS session (IPDS displayed on the front panel) to cancel an IPDS job.
  • Page 139 Problem: Sometimes the messages (38I Memory Full or Memory Full) display on the printer operator panel and the connection with the printer is lost. What do these messages mean? What should I try? Solution: 38I Memory Full - this message is generated when there is insufficient memory to print the page.
  • Page 140 Tip: Place a label on the front of the printer indicating the connector locations of all installed options. Problem: Before installing the SIMM for IPDS, my PostScript and PCL jobs printed correctly.
  • Page 141 MarkNet Pro or MarkNet XLe. Problem: I’m trying to set up a remote printer with a MarkNet internal print server, MarkNet Pro external print server, or MarkNet XLe (named Optra) from my AS/400. When I try to print to it, I get the message: “All sessions ended for device Optra”...
  • Page 142 Solution: The IPDS memory has been corrupted. Power the printer OFF and then ON. 12. Problem: The IPDS host stops when it attempts to connect to the printer when using the MarkNet XLe adapter. Solution: The MarkNet adapter is not establishing a bi-directional connection with the printer.
  • Page 143 I get the message Recycle PWR to activate value. Solution: A host session was established and was idle when you changed settings. The settings changed had already been reported to the host. Power the printer OFF then ON. This causes the host to request the new printer settings.
  • Page 144 The message Resources Lost appears on the display before an IPDS job prints. Solution: IPDS resources were deleted by the printer. Try to determine what is causing the resources to be deleted. See the section 4.3.14 IPDS Timeout on page 40 for additional information.

  • Page 145: Warranty

    10 Warranty The limited warranty you received with your printer gives warranty terms and conditions. For warranty information, refer to your printer documentation.

  • Page 147: Appendices

    LAN printing with IPDS emulation. A.2 Product Description The SIMM for IPDS is an option which is installed in the printer optional firmware SIMM connector. With the SIMM (Single Inline Memory Module) and either a MarkNet internal print server (Ethernet or Token-Ring), MarkNet Pro external print...

  • Page 148: Ipds Features List

    Support Notes: When the SIMM for IPDS is set to emulate an IBM 43xx, 311x, 3812/16 or 4028, the emulated printer function depends on the IBM host software. IBM 43xx printer = IBM 4312, 4317 or 4324 printer. IBM 311x printer = IBM 3112 or 3116 printer.

  • Page 149: For Direct Network Attachment

    A.5 For Direct Network Attachment Hardware Compatibility When the printer contains an optional SIMM for IPDS, it attaches to a network using a MarkNet internal print server or a MarkNet Pro external print server or MarkNet XLe external print server.

  • Page 150: For Direct Twinaxial Attachment

    A.6 For Direct Twinaxial Attachment Hardware Compatibility When the printer contains the optional SIMM for IPDS and the Adapter for SCS with a twinaxial cable, the printer attaches to the following IBM hardware: AS/400 Twinaxial Workstation Controllers AS/400 Advanced System/36 Twinaxial Workstation Controller...
  • Page 151 Software Compatibility The IBM host software requirements for AFP/IPDS printing when the SIMM for IPDS is set to emulate an IBM 43xx, 311x, 381x or 4028 printer are as follows: AS/400 PSF/400 V3R2, V3R1, V3R7, V3R6, V4R1, V4R2, V4R3, V4R4 or...

  • Page 152: For Direct Coaxial Attachment

    A.7 For Direct Coaxial Attachment Hardware Compatibility When the printer contains the SIMM for IPDS and the Adapter for SCS with a coaxial cable, the printer attaches to the following IBM hardware: IBM 3174 Control Unit IBM 3274 Control Unit...

  • Page 153: Font And Code

    B. Font and Code Page Information B.1 International Language Definitions The SIMM for IPDS supports a variety of languages, which are grouped below into descriptions used by IBM in their materials. B.1.1 Latin 1 Afrikaans Brazilian Portuguese Canadian French Danish Finnish German Italian...

  • Page 154: Latin 4

    B.1.4 Latin 4 Estonian Lappish Lithuanian B.1.5 Latin 5 Turkish B.1.6 Baltic Multilingual (Latin 6) Latvian B.1.7 Cyrillic Bulgarian Macedonian Serbo-Croatian B.1.8 Greek Greek Greenlandic Latvian Lithuanian Byelorussian Russian Ukrainian...

  • Page 155: Font Support Overview

    This is controlled by the Font Type option under IPDS MENU. When this option is set to Use Scalable, improved font quality will result, since the scalable fonts use the higher resolution of the printer. This font set is available in 4028, 3112/16 and 43xx mode.

  • Page 156: Ibm 4028 Compatibility Ipds Resident Font Set Fonts (Latin 1)

    B.3 IBM 4028 Compatibility IPDS Resident Font Set Fonts (Latin 1) The bitmap fonts included in the 4028 Compatibility Font Set are supporting the 300 dpi bitmap font in the 4028, 3112/16 and 43xx printer series. Most of these fonts support the Latin 1 languages. Typeface...

  • Page 157: Special Code Pages Supported By The 4028 Compatibility Font Set

    In addition to the above set of fonts, a number of other FGIDs are also recognized by the IPDS printer emulation. These are simulated by substitution with one of the above fonts or by bolding one of the above fonts. See B.9 Font Substitution on page 167.

  • Page 158: Ibm 3812/16 Compatibility Font Set

    B.4 IBM 3812/16 Compatibility Font Set When the 3812/16 emulation is selected, these bitmap fonts replace the 4028 Compatibility Font Set. Typeface OCR-B Orator Courier 10 Courier Italic 10 OCR-A Gothic-text 10 Katakana-gothic 10 APL 10 Gothic-text 12 Gothic Italic 12 Script 12 Courier 12 Prestige 12...

  • Page 159: Special Code Pages Supported By The 3812/16 Compatibility Font Set

    Most of the 3812/16 Compatibility fonts support the Latin 1 set of code pages. This includes the euro code pages 1140 – 1149. In addition to the above set of fonts a number of other FGIDs are also recognized by the IPDS.

  • Page 160: Ibm Core Interchange Resident Scalable Font Set

    The typefaces defined for the IBM Core Set font provide support for the following groups of languages and are supported in the Optra printer: Latin 1 including DCF, Latin 2, Latin 3, Latin 4 and Latin 5, Cyrillic, Baltic, Greek and symbols. Symbols are provided in medium and bold typefaces only.

  • Page 161: Ipds Core Font Set Code

    B.6 IPDS Core Font Set Code Page Support The code pages supported by the Core Font Set are listed below. A selection of these code pages can be set as default from the front panel. See IPDS MENUS on page 31 for those code pages, which can be selected. B.6.1 Latin 1 Country Extended Code Pages Languages Austrian / German...

  • Page 162: Latin 1 Ebcdic Publishing Code

    B.6.2 Latin 1 EBCDIC Publishing Code Pages Languages Belgian Brazilian Portuguese Canadian French Castilian Spanish Danish / Norwegian Finnish / Swedish French / Catalan German Italian Japanese (Latin) Latin America Spanish Multilingual (Belgian / Dutch / Swiss) Portuguese UK English US / Canadian English B.6.3 Latin 1 ASCII Code Pages Languages...

  • Page 163: Latin 2, 3, 4, 5 Code

    B.6.4 Latin 2, 3, 4, 5 Code Pages Languages Eastern Europe PC Latin 2 ISO (ANSI) Latin 2 Multilingual Latin 2 Multilingual EBCDIC Latin 3 Multilingual EBCDIC Latin 3 Multilingual PC Latin 4 EBCDIC Latin 4 ISO (ASCII) Latin 5 EBCDIC Latin 5 ISO (ANSI) Latin 5 PC B.6.5 Latin EBCDIC DCF Code Pages...

  • Page 164: Arabic Code

    Arabic PC GML List symbols Note: Arabic code pages/fonts are only supported in an optional font package. The IPDS printer emulation accesses these fonts from a user flash memory installed in the flash memory connector. B.6.8 Hebrew Code Pages Languages...

  • Page 165: Ibm Coordinated Font Set

    Boldface, APL and OCR fonts are only supported using bitmaps from the Compatible Font Sets. If an FGID is not available, the font will be mapped to another font either at the host or in the printer using a font best-fit algorithm. FGID GCSGID...

  • Page 166: Postnet Font Support

    B.8 Postnet Font Support The Postnet bar code font is available in all emulations on IPDS code level 8223 and above. Code pages that can be used with FGID 4094 include the following. Codepage 1301 1302 1303 In addition the Postnet font can also be used to replace numeric characters on other code pages.

  • Page 167: Font Substitution

    B.9 Font Substitution If a font is not available, a different font is substituted using a best-fit algorithm. This substitution is based on the FGID and the font width. If any of the font IDs in the following tables are used in a document, they are mapped to the substituted font id given.

  • Page 168: 3812/16 Font Substitution

    The following table applies only if the Font Type option is set to Use Bitmaps. Typestyle Courier 12 Bold Courier 17.1 Bold Letter Gothic 12 Letter Gothic 12 Bold Prestige Pica Bold b = Bold B.9.2 3812/16 Font substitution The following substitution IDs are used if the Font Type option is set to Use Scalable. Typestyle Matrix Gothic 10 Roman Text...
  • Page 169 The following table applies only if the Font Type option is set to Use Bitmaps. Typestyle Prestige Pica Bold Courier 12 Bold Letter Gothic 12 Bold Courier 17.1 Bold Original Substituted FGID FGID/Font Width 12 b 144 fw 85 b 120 fw 87 b 120 fw...

  • Page 171: Recommended Memory

    1200 dpi, Duplex and saving IPDS resources* Saving of IPDS resources is activated when the host timeout and printer IPDS Timeout values are properly set. See IPDS Timeout on page 40 and the appropriate host operating system setup section for more information.

  • Page 173: Related Publications

    D. Related Publications D.1 Lexmark Publications Optra S User’s Guide (1250, 1620, 1650, 2420, 2450) Optra S User’s Guide (1255, 1625, 1855, 2455) Optra Se 3455 User’s Guide Optra K 1220 User’s Guide Network Adapter Hardware Setup Network Adapter User's Guide D.2 IBM Publications...

  • Page 174: Intermate Publications

    D.3 Intermate Publications Adapter for SCS Coax/Twinax Connection Installation and User's Guide GI-008-x...

  • Page 175: Glossary

    A 32-bit address defined by the Internet Protocol RFC 791 usually represented in dotted decimal notation, e.g. 157.184.67.102. IPDS IBM’s Intelligent Printer Data Stream. Maximum Transmission Unit The largest possible unit of data that can be sent on a given physical medium in a single frame on a LAN.
  • Page 176 Request for Comments The document series that describes a part of the Internet suite of protocols and related experiments. All Internet standards are documented as RFC’s. Server A network device that allows sharing of resources such as programs, storage and printers between multiple LAN workstations.

  • Page 177: Index

    Index Aborting a cancel request ... 72 Activating saved option changes... 26 Adapter for SCS ...11;121;123;125;126;127;137;150 Adapter for SCS code levels... 121 All Input Trays... 64 ALL INPUT TRAYS... 64 Anti-static precautions ... 19 Asterisk (*) ... 24 Asterisk “*”... 28;44 Bad Memory System...
  • Page 178 Default Codepage ... 31 Default CPI ... 32 Default FGID ... 32 Exception Control... 36 Font Control... 37 Font Type... 37 Intervention Required ... 39 IPDS Emulation ... 30 IPDS Resolution ... 38 IPDS timeout ... 40 IPDS Version... 43 Page Counter...
  • Page 179 Job Menu ... 71 LAN Attachment... 26 LAN environment ... 83 Lead-in string... 77 Lead-out string... 77 Lexmark support ... 12;87 Manual Env Adj... 64 MANUAL ENV ADJ ... 69 MANUAL PAPER ADJ ... 68 MAP INPUT TRAYS menu Available options ... 54 Tray Mapping ...
  • Page 180 PostScript print jobs...21;35;137;139 Print menus ...13;28;43;44;56 Print setup page ... 87 Printer memory ... 17;137 Printer Messages... 133 Printer setup options ... 21 Printer sharing MVS ... 108 Printer sharing parameters ... 110 Printer sharing PSF/2 ... 113 Printers supported ... 147 Printing from PSF/400 ...
  • Page 181 Setting MarkNet internal Print Server Job Timeout ... 86 Setting the MarkNet Pro external print server busy timeout ... 88 Setting the MarkNet Pro external print server job timeout ... 88 Setting the MarkNet XLe busy timeout ... 91 Setting the MarkNet XLe job timeout ...

This manual is also suitable for:

Optra sOptra k 1220Optra se 3455

Table of Contents
