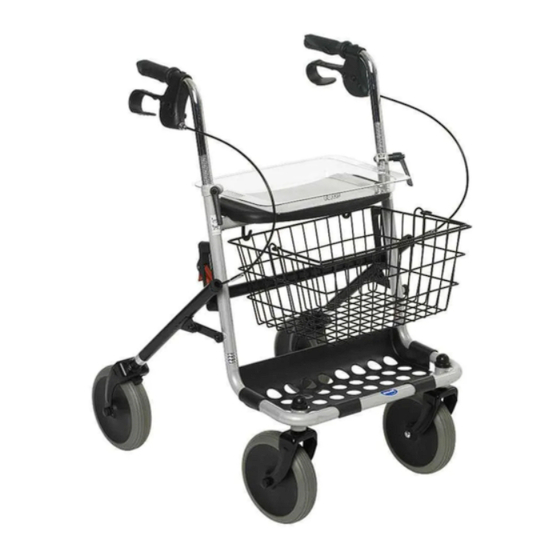

Spartan and Sprint Rollators
Assembly, Installation and Operating Instructions
Model Nos. 65400 (3-Wheel) and 65420 (4-Wheel)
NOTE: Check ALL parts for shipping damage. If shipping damage is noted, DO NOT use.
Contact Carrier/Dealer for further instruction.
To ensure the safe and proper installation of the Rollators, these instructions must
be followed:
DO NOT install this equipment without first reading and understanding this
instruction sheet. If you are unable to understand the Warnings, Cautions
and Instructions, contact a healthcare professional, dealer or technical
personnel if applicable before attempting to install this equipment.
Otherwise, injury or damage may occur.
A physical/occupational therapist should assist in the placement and
positioning of the hand grips for maximum support and correct brake
activation. Be sure the rollator is properly balanced before using.
Care should be taken to ensure that all hand and height adjustments are
secure, and that casters and moving objects are in good working order before
using this or any mobility aid.
All wheels MUST be in contact with the floor at all times during use.
On Model 65420, the brakes MUST be in the locked position before using the seat.
The Rollator is NOT intended for propelling while seated. It is NOT to be
pushed and/or used as a wheelchair.
The Rollator is designed to provide support, increased stability and assistance
to the end user while walking. The 3-Wheel Rollator is NOT designed to
support the total weight of an individual and has a weight limitation of 250 lbs
(114kg). The 4-Wheel Rollator can provide ambulatory assistance for an
individual weighing up to 270 lbs (123kg), including the weight of the contents
of the basket and tray.
The seat on Model 65420 can support an individual weighing up to 270 lbs
(123 kg)
The Rollator basket has a weight limit of 15 lbs (7 kg). The Rollator tray has a
weight limit of 5 lbs (4.5 kg).
Invacare products are specifically designed and manufactured for use in con-
junction with Invacare accessories. Accessories designed by other manufac-
turers have not been tested by Invacare and are not recommended for use
with Invacare products.
For more information regarding Invacare products, parts, and services,
Part No 1076166
SAVE THESE INSTRUCTIONS
Safety Summary
WARNING
please visit www.invacare.com
1
Spartan and Sprint Rollators
Advertisement
Related Manuals for Invacare Spartan 65400
Summary of Contents for Invacare Spartan 65400
-
Page 1: Safety Summary
Invacare products are specifically designed and manufactured for use in con- junction with Invacare accessories. Accessories designed by other manufac- turers have not been tested by Invacare and are not recommended for use with Invacare products. For more information regarding Invacare products, parts, and services, please visit www.invacare.com... -
Page 2: Installation Warnings
INSTALLATION WARNINGS Always test to see that the rollator is properly and securely locked when in the open position before using. The rollator height can be adjusted only where the push handle is textured (FIGURE 3). After installation and before use, ensure that all attaching hardware is securely tightened. - Page 3 Folding 1. Grasp cutout in seat and pull up. NOTE: Shipping Tube NOT shown for clarity. Cutout Seat FIGURE 2 Opening/Folding Rollator - Model 65420 Installing/Adjusting Push Handles Installing 1. Turn adjustment levers counterclockwise. 2. Insert push handles into side frames with the hand grip facing the back of the rollator.
- Page 4 Installing Basket - Model 65420 Only NOTE: Refer to Safety Summary on page 1 of this instruction sheet. NOTE: The rollator MUST be in the open Hook Hook position when installing the basket. 1. Install both hooks of basket over Seat seat support tube.
- Page 5 Locking/Unlocking/Using Hand Brakes Locking Hand Brakes (For Stationary Use) 1. Push down on the bottom portion of both brake handles as shown in FIGURE 6 until an audible “click” is heard. Brake Handle FIGURE 6 Locking Hand Brakes (For Stationary Use) Unlocking Hand Brakes 1.
- Page 6 Brake Handle Adjustment Nut Cable Brake Handle Nut FIGURE 8 Adjusting the Brake Handle 5. Refer to Locking/Unlocking/Using Hand Brakes on page 5 of this instruction sheet. Adjusting the Cable Adjuster Unit - Wheel Assembly Model 65400 NOTE: Adjusting the cable adjuster unit will increase/decrease the cable brake pressure on the wheels.
-
Page 7: Replacing Tires
1. Loosen the cable brake adjuster unit locknut. 2. Do one (1) of the following: • To increase tension, turn the cable adjuster unit counterclockwise. • To decrease tension, turn the cable adjuster unit clockwise. 3. Retighten the cable adjuster unit locknut. 4. -
Page 8: Limited Warranty
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. Invacare warrants its product to be free from defects in materials and workmanship for the lifetime of the product for the original purchaser. If within such warranty period any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare's option.
