Summary of Contents for Invacare Step Up
-

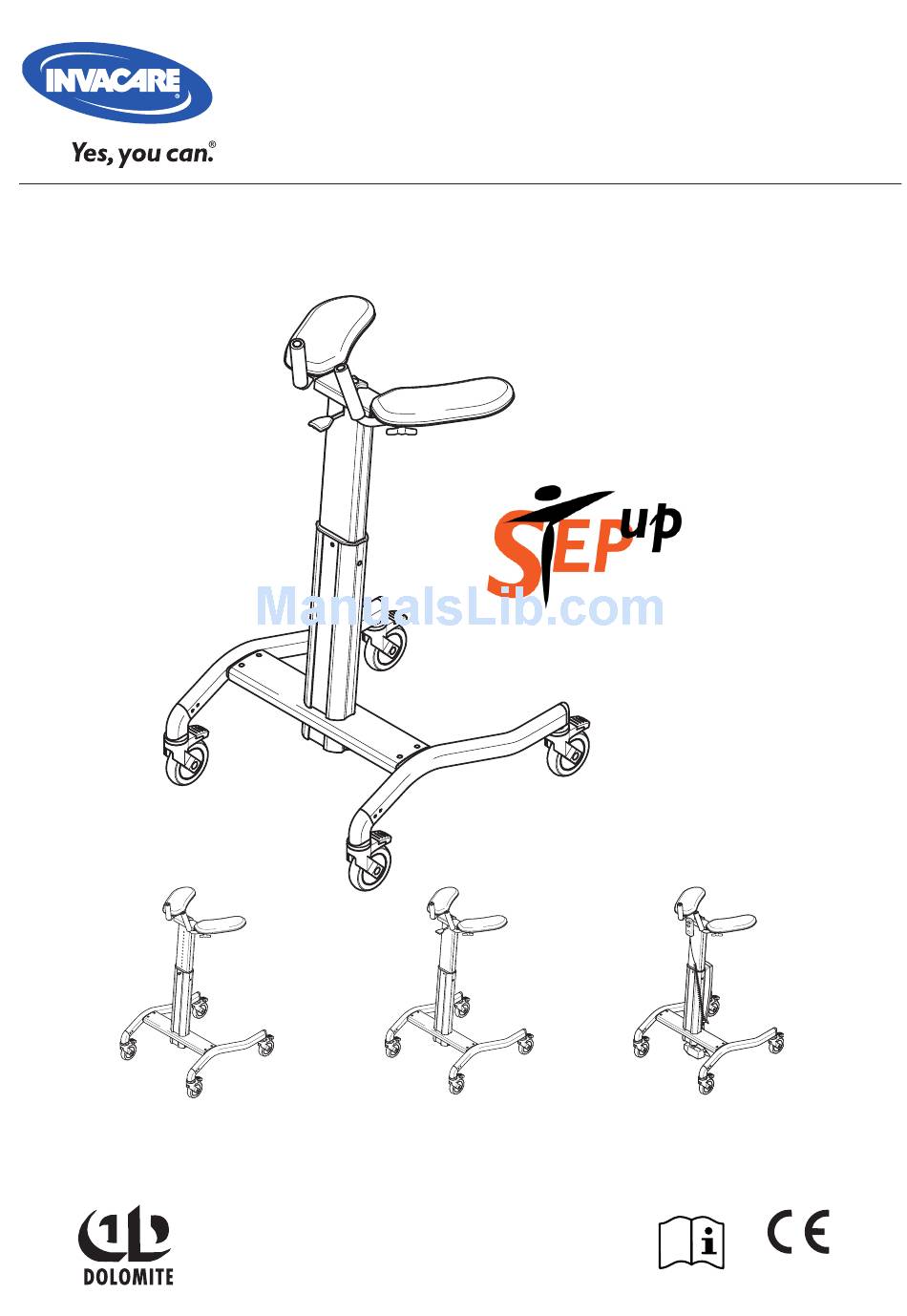

Page 1: Operating Instructions
Operating instructions English Hydraulic Electric Manual... -
Page 2: Table Of Contents
DOLOMITE STEP UP Symbols Contents Symbols This symbol means DOLOMITE STEP UP "Warning" Intended use Guarantee This symbol means Delivery inspection "Use an Allen key" Preparation Width adjustment This symbol means Brakes "Manual height adjustment" Charging electric motor Product features... -
Page 3: Dolomite Step Up
Read carefully through the manual. Ensure that user(s) and persons concerned are familiarised with the necessary information. Intended use DOLOMITE STEP UP is a platform support. A platform support is classified as a walking aid that is controlled using both arms. DOLOMITE STEP UP is intended for indoor use. -
Page 4: Preparation
Product features The H-shaped lower frame has the same DOLOMITE STEP UP' can be adjusted in dimensions in the front and back. Adjust the three widths. width so that the platform can negotiate the... -
Page 5: Adaptation
DOLOMITE STEP UP 125 mm The height of the back part of the frame is low All brakes are easy to access thanks to the to allow the platform to roll under furniture which facilitates movement to and from a design of the frame. -
Page 6: Product Features
DOLOMITE STEP UP Product features DOLOMITE STEP UP has pressure-relieving To facilitate height adjustment for the user we recommend measuring the distance from material in the cushions and they are made in order to withstand disinfection. They are securely elbow to heel while the user is lying on a bed. -
Page 7: Accessories
DOLOMITE STEP UP Accessories 1. Basket A practical little basket in which to keep belongings. The basket is simply attached at the top of the platform support. 2. Tray A simple tray that is easy to position at the top of the basket. -
Page 8: Directional Lock
DOLOMITE STEP UP 7. Directional lock Wheels with a directional lock (green latch) are used to facilitate movement straight ahead. Press down the latch and swivel the wheel until a click is heard and the wheel no longer rotates. The wheel has no brake when the directional lock is mounted. -
Page 9: Technical Data
16 kg 18 kg 23 kg weight Serial number label The label for DOLOMITE STEP UP contains all important technical information It is located on the inside of the lower frame (G). 1: Article number 2: Product name 3: Serial number 4: Date of manufacture 5: Max. -
Page 10: Electrical Data
The "Stand assist" accessory must always be used with the harness included in the kit. No other harness may be used. Observe caution when moving over obstacles, e.g. doorways when using the Step Up with the accessory stand plate. When using the stand plate, the wheels must be locked when the user moves onto / off the stand plate. -
Page 11: Maintenance And Service
DOLOMITE STEP UP Maintenance and service Cleaning • DOLOMITE STEP UP can be cleaned in a washing plant or by means of high pressure water. 60° C maxi- mum. • Never use acids, bases or solvents to clean the product. • After washing, wipe the platform support dry. - Page 12 Invacare Mecc San s.r.l., Via dei Pini 62, I-36016 Thiene (VI) Tel: (39) 0445 38 00 59, Fax: (39) 0445 38 00 34 italia@invacare.com / http://www.invacare.it Manufacturer INVACARE DOLOMITE AB, BOX 200, 343 75 DIO, ŠVÉDSKO TEL. +46 (0)476 535 00, FAX +46 (0)476 535 99...
