- Page 1 Owner’s Manual 21 Healey Road Dandenong, 3175 Victoria, Australia ACN # 088 609 661 www.pridemobility.com...
- Page 2 WARNING! Failure to heed the warnings in this owner’s manual may result in personal injury. CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your power chair. Copyright © 2002 Pride Mobility Products Australia, Pty. Ltd. INFMANU1283/REV D/JULY 2002 Jazzy 1120...
-
Page 3: Table Of Contents
C O N T E N T S INTRODUCTION ......................... 4 SAFETY ............................6 III. THE JAZZY 1120 ........................8 IV. ASSEMBLY ..........................13 COMFORT ADJUSTMENTS ....................15 VI. DISASSEMBLY ......................... 20 VII. OPERATION ..........................17 VIII. BATTERIES AND CHARGING .................... 25 IX. -
Page 4: Introduction
I N T R O D U C T I O N Welcome to Pride Mobility Products Australia Pty. Ltd. (Pride). Congratulations on the purchase of your new Jazzy power chair. The Jazzy 1120 design combines the most advanced state-of-the-art components with modern, attractive styling. - Page 5 Jazzy Model:__________________________________________________________________________ Serial Number:__________________________________________________________________________ Purchase Date:________________________________________________________________________ NOTE: If you ever lose or misplace your warranty card or your copy of this manual, call or write to us and we will be glad to send you a new one immediately. Jazzy 1120...
-
Page 6: Safety
TRANSFERS Transferring onto and off of your Jazzy 1120 requires a good sense of balance. Be sure to have an attendant or health care professional present while learning to properly transfer yourself. To eliminate the possibility of injury, we ask that you verify the following before attempting a transfer: 1. -
Page 7: Maximum Recommended Incline
(for example, areas covered with snow, ice, or cut grass). When driving down an incline, do so slowly and in the forward direction only. If your Jazzy 1120 starts to move faster than you anticipated or desired it would, allow the chair to come to a complete stop by releasing the joystick. -
Page 8: The Jazzy 1120

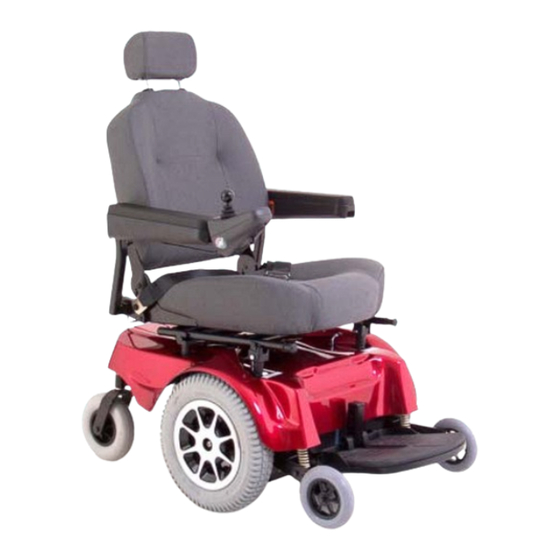

1 1 2 0 Your Jazzy 1120 has two main assemblies: the seat and the power base. See figures 1 and 2. There are a variety of seating options that are designed to accommodate most users. Typically, the seating assembly includes the armrests, seatback, seat base, and joystick/controller. - Page 9 J A Z Z Y 1 1 2 0 BATTERY JOYSTICK CHARGER CONTROLLER AMMETER POWER HARNESS CORD CONNECTORS OUTLET ARMREST WIDTH ADJUSTMENT KNOBS Figure 2. The Jazzy 1120 Rear View Figure 3. Utility Tray Figure 4. Europa Controller harness connector Jazzy 1120...
- Page 10 Battery charger power cord outlet: This cord is used whenever your battery needs recharging. See figure 3. n Main circuit breaker: The main circuit breaker is a safety feature built into your Jazzy 1120. See figure 5. When the batteries and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage to the motors and the electronics.
-
Page 11: Freewheel Levers
CAUTION! It is important to remember that when your Jazzy 1120 is in freewheel mode, the braking system is disengaged. If a lever is difficult to move in either direction, rock your Jazzy 1120 back and forth slightly. The lever should then move to the desired position. - Page 12 Battery Charger: Offboard (optional) Electronics: 70-amp Dynamic Europa Controller Weight Capacity: 136 kg Base: 37 kg Jazzy Weights: Seat: 13 kg Batteries: 20 kg Lifetime limited warranty on frame Warranty: Two-year warranty on electronics Eighteen-month warranty on drive motors Jazzy 1120...
-
Page 13: Assembly
7. Insert the seat towers into the seat tower receivers. 8. Insert the joystick into the mounting bracket and adjust the length. Figure 11. Controller Cable SEAT TOWER PINS SEAT TOWER RECEIVER NEOPRENE O-RING EXTERNAL SNAP-RING Figure 12. Seat Tower Pins Figure 13. Insert the Neoprene O-ring Jazzy 1120... - Page 14 2. Rotate the seat to the forward position until it locks tightly. VERSA SEAT OR VERSA TILT OPTION If your Jazzy is equipped with a Versa Seat or Versa Tilt, please refer to the instruction manual supplied with the Versa Seat/Versa Tilt. Figure 15. Power Seat Actuator Jazzy 1120...
-
Page 15: Required Tools
Required Tools: 7/16-in. wrench, 5/32-in. hex key CAUTION! If your Jazzy 1120 was configured at your authorized Pride provider, please consult your health care professional before changing the seat position or before making any other adjustment. Some adjustments may degrade your Jazzy’s performance and safety by changing its center of gravity. -
Page 16: Comfort Adjustments
Your Jazzy may be equipped with a swing-away joystick. This option enables you to move the joystick from the front of the armrest to the side of the armrest, without disconnecting it. The joystick can be mounted to the left or right side of your Jazzy. Contact your authorized Pride provider. Jazzy 1120... - Page 17 Jazzy. To swing the footrest: 1. Push in the release lever. See figure 22. 2. Swing the footrest off to the side. Figure 21. Footrest Angle SFR RELEASE LEVER Figure 22. Swing-away Footrests Jazzy 1120...
- Page 18 1. Press down on the seatback release lever. See figure 26. 2. Move the seatback down or up to the desired position. 3 Release the seatback release lever. Figure 24. Elevating Leg Rests Figure 26. Seatback Release Lever Figure 25. Reclining Seat Jazzy 1120...
- Page 19 2. Pull back on the power seat switch to lower the seat. POWER SEAT CAUTIONS n Read your Jazzy 1120 Owner’s Manual thoroughly before operating your Jazzy. n The power seat option is intended for use while your Jazzy is Figure 27.
-
Page 20: Disassembly
To remove the body shroud: 1. Turn the power off. 2. Make sure your Jazzy is not in freewheel mode. See III. “The Jazzy 1120.” 3. Unplug the controller wiring harness. 4. Remove the seat. -
Page 21: Operation
O P E R A T I O N JOYSTICK AND CONTROLLER Your Jazzy is operated by your joystick and controller. The Jazzy 1120 is currently available with the Europa Remote Controller. See figure 29. Refer to the section that applies to the controller you own. - Page 22 This causes the chair to decelerate and come to a complete stop. If your Jazzy 1120 begins to move in an unexpected manner, immediately release the joystick. Unless the joystick is damaged, this action should stop your Jazzy 1120.
- Page 23 Press the Drive Mode Select Key to change the mode. NOTE: We recommend that the first few times you operate your Jazzy 1120 you have your drive mode on the slowest setting until you become familiar with your new power chair.
-
Page 24: Sleep Mode
Reset it if necessary. Overvoltage Fault Contact your Pride provider. CANL Fault Contact your Pride provider. CANH Fault Contact your Pride provider. Stall Timeout Fault Turn the system off, then turn it on again. Module Mismatch Contact your Pride provider. Jazzy 1120... -
Page 25: Batteries And Charging
Wash hands after handling. CHARGING THE BATTERIES The battery charger is essential in providing long life for your Jazzy 1120 batteries. See figure 32. The battery charger is designed to optimize your Jazzy 1120’s performance by charging the batteries safely, quickly, and easily. - Page 26 1. Fully recharge any new battery prior to its initial use. This brings the battery up to about 90% of its peak performance level. 2. Operate your Jazzy 1120 about the house and yard. Move slowly at first, and don’t stray too far until you become accustomed to the controls and break in the batteries.
- Page 27 Daily Use If you use your Jazzy 1120 on a daily basis, charge the batteries as soon as you are finished. Your Jazzy 1120 will be ready each morning to give you a full day’s service. It is recommended that you charge the batteries 8 to 14 hours after daily use.
- Page 28 NOTE: If you are storing a Jazzy 1120 for an extended period of time, you may wish to block the unit up with several boards under the frame. This keeps the tyres off the ground and prevents the possibility of flat spots developing.
-
Page 29: Routine Maintenance
1. Dry your Jazzy 1120 as thoroughly as possible with a dry towel. 2. Allow your Jazzy 1120 to sit in a warm, dry place for 12 hours to allow unseen water to evaporate. 3. Check the joystick operation and the brakes before using your Jazzy again. -
Page 30: Daily Checks
3. Slowly push the joystick forward until you hear the electric brakes click. Immediately release the joystick. You must be able to hear each electrical brake operating within a few seconds of joystick movement. Repeat this test three times, pushing the joystick backwards, then left, and then right. Jazzy 1120... -
Page 31: Cleaning Instructions
Never hose off your Jazzy 1120 or place it in direct contact with water. n Your Jazzy 1120 has a clear-coated, ABS plastic body shroud that allows it to be easily wiped clean with a damp cloth. Never use any chemicals to clean a vinyl seat, as they may cause the seat to become slippery or dry out and crack. -
Page 32: Care And Maintenance
8. Remove the wires. 9. Replace the batteries. 10. Install the batteries into your Jazzy 1120 with the terminal sides of the batteries facing inward, towards each other. 11. Connect the wire marked (+) to the closest positive (red) battery terminal. -
Page 33: Corrective Maintenance
Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your Jazzy 1120 still does not power up, contact your authorized Pride provider. -
Page 34: Options And Accessories
Figure 37. Positioning Belt for use as a seat belt in a motor vehicle. Nor is your Jazzy 1120 suitable for use as a seat in any vehicle. Anyone traveling in a vehicle should be properly belted into seats approved by the auto manufacturer. - Page 35 The full lighting package consists of headlights, taillights, and turn signals. The light switch is located on the joystick. The headlights and taillights operate when the unit is powered on. When the unit is powered off, the light switch activates the flashers. Jazzy 1120...
-
Page 36: Warranty
