3
CONNECTION AND MAINTENANCE

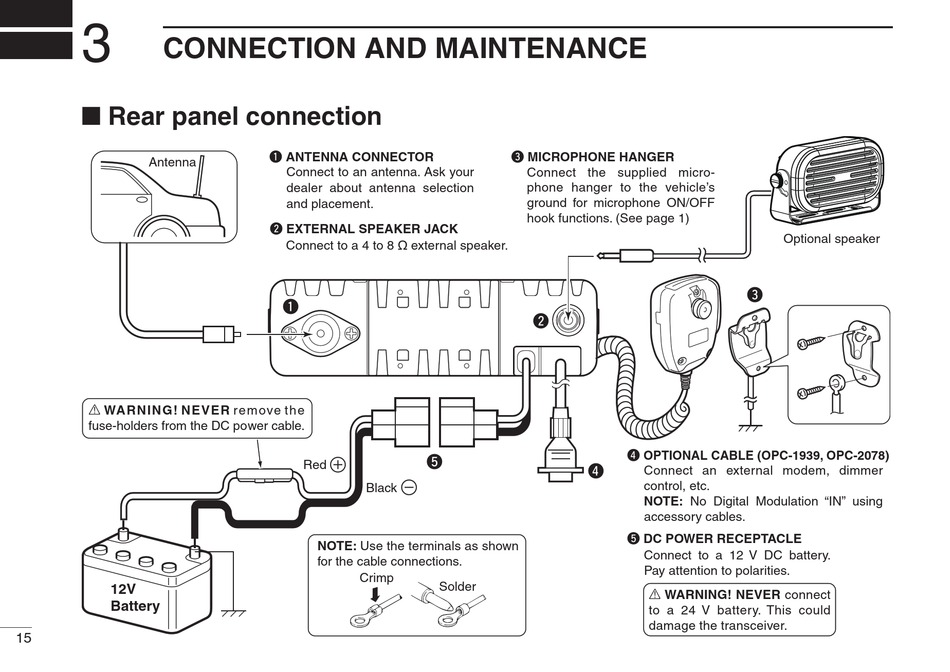

■ Rear panel connection
Antenna
R WARNING! NEVER remove the
fuse-holders from the DC power cable.
12V
Battery
15
q ANTENNA CONNECTOR
Connect to an antenna. Ask your
dealer about antenna selection
and placement.
w EXTERNAL SPEAKER JACK
Connect to a 4 to 8 ø external speaker.
q
t
Red
Black
NOTE: Use the terminals as shown
for the cable connections.
Crimp
Solder
e MICROPHONE HANGER
Connect the supplied micro-
phone hanger to the vehicle's
ground for microphone ON/OFF
hook functions. (See page 1)
w
r OPTIONAL CABLE (OPC-1939, OPC-2078)
r
Connect an external modem, dimmer
control, etc.
NOTE: No Digital Modulation "IN" using
accessory cables.
t DC POWER RECEPTACLE
Connect to a 12 V DC battery.
Pay attention to polarities.
R WARNING! NEVER connect
to a 24 V battery. This could
damage the transceiver.
Optional speaker
e
