JVC LT-19D200 Service Manual page 12

(S-14)

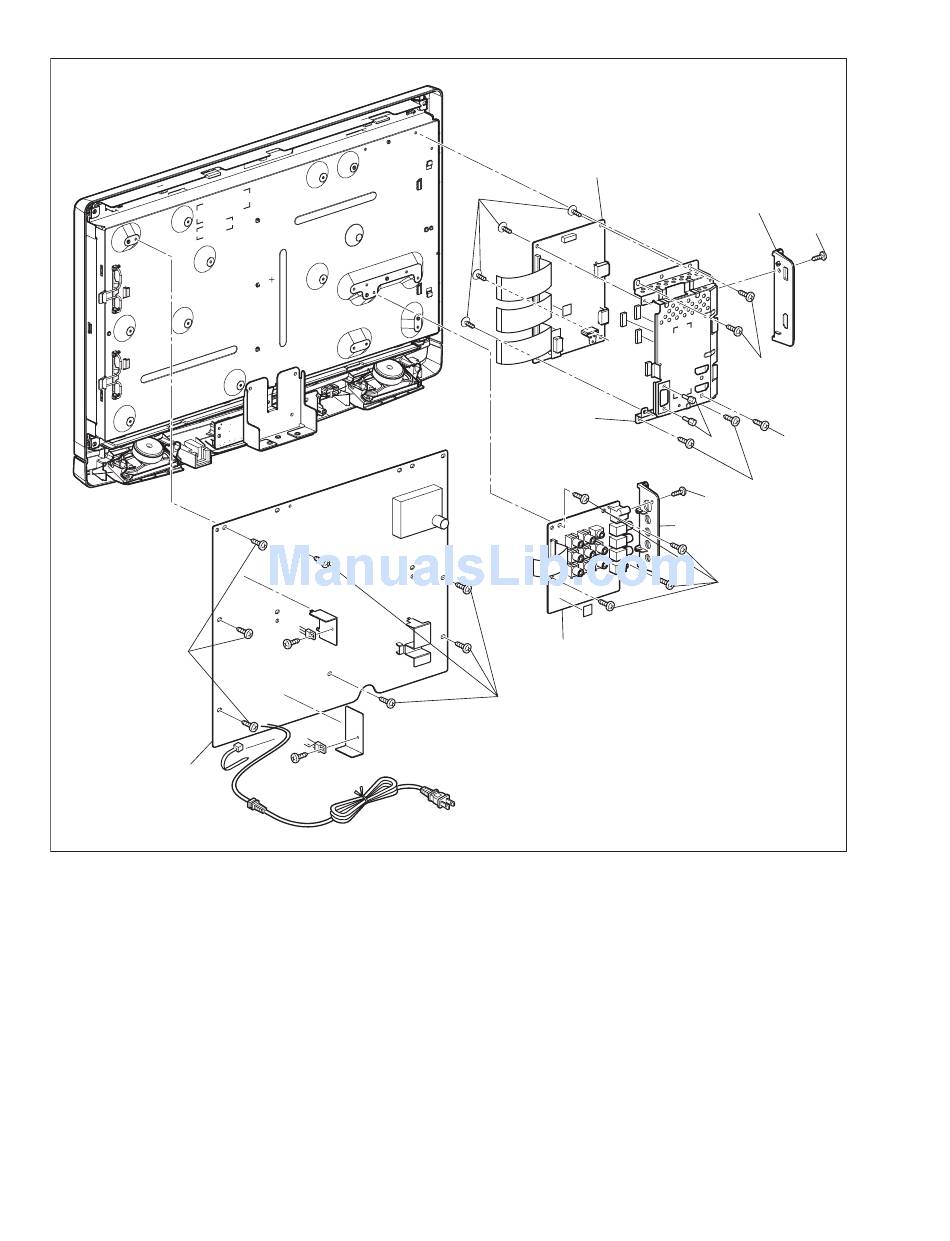

[10] Main PWB
1-12 (No.YA711<Rev.002>)
[7] Digital Main
PWB Unit
(S-11)
Shield Box
[9] Jack PWB
(S-14)
[6] Jack Holder(D)
(S-8)
(S-9)
(S-10)
(H-1)
(S-9)
(S-12)
[8] Jack Holder(A)
(S-13)
Fig. D3
