(S-5)
(S-7)
(S-6)
[3] DVD Holder
[5] DVD Main PWB unit
(S-6)
[4] DVD Mechanism
A

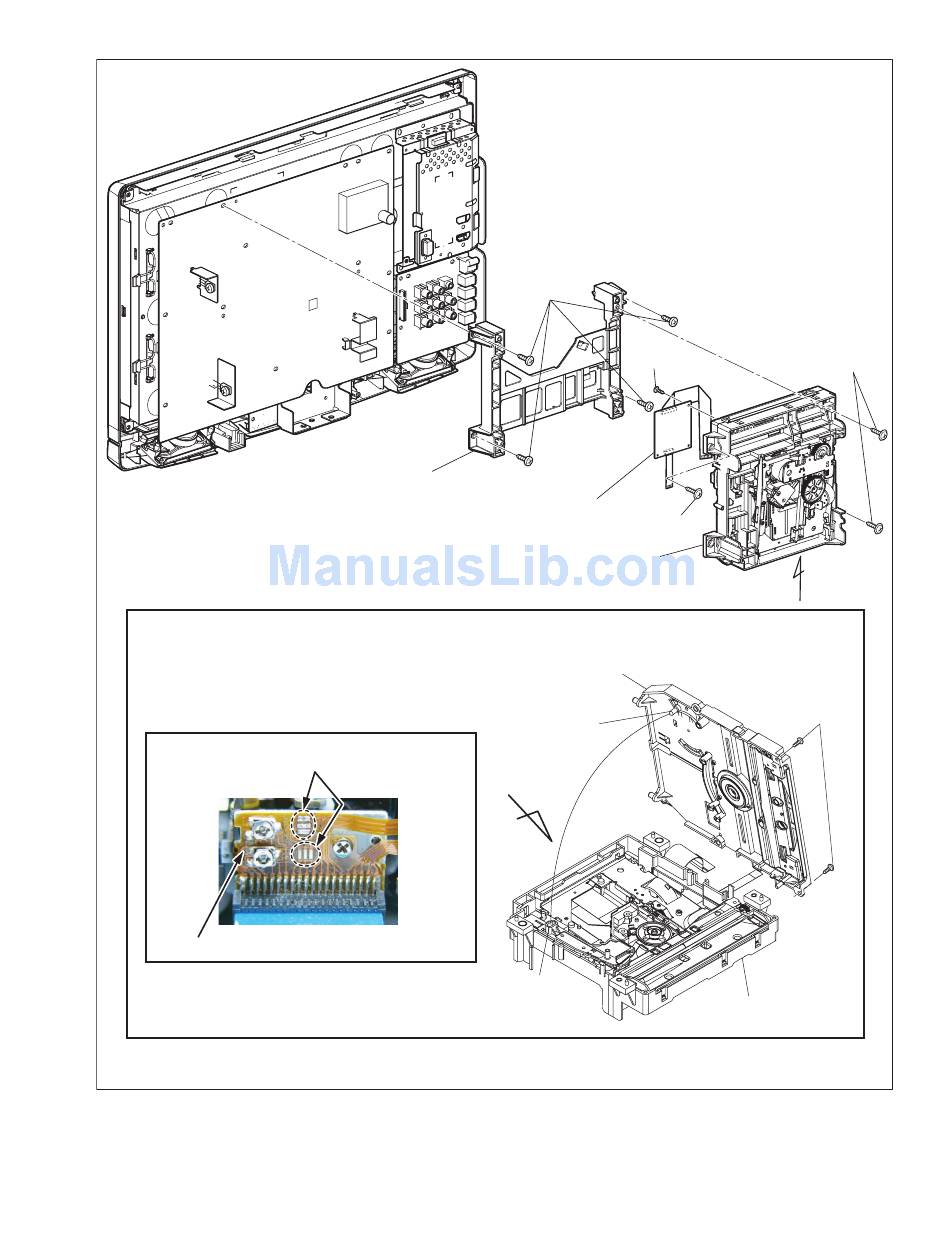

Remove two screws A, then short the three short lands by soldering as shown in View for A.
Chassis Cover
Screws A
Pin A
Either of two places
A
View for A
FPC Cable
Hole A
Main Chassis
Fig. D2
(No.YA711<Rev.002>)1-11
