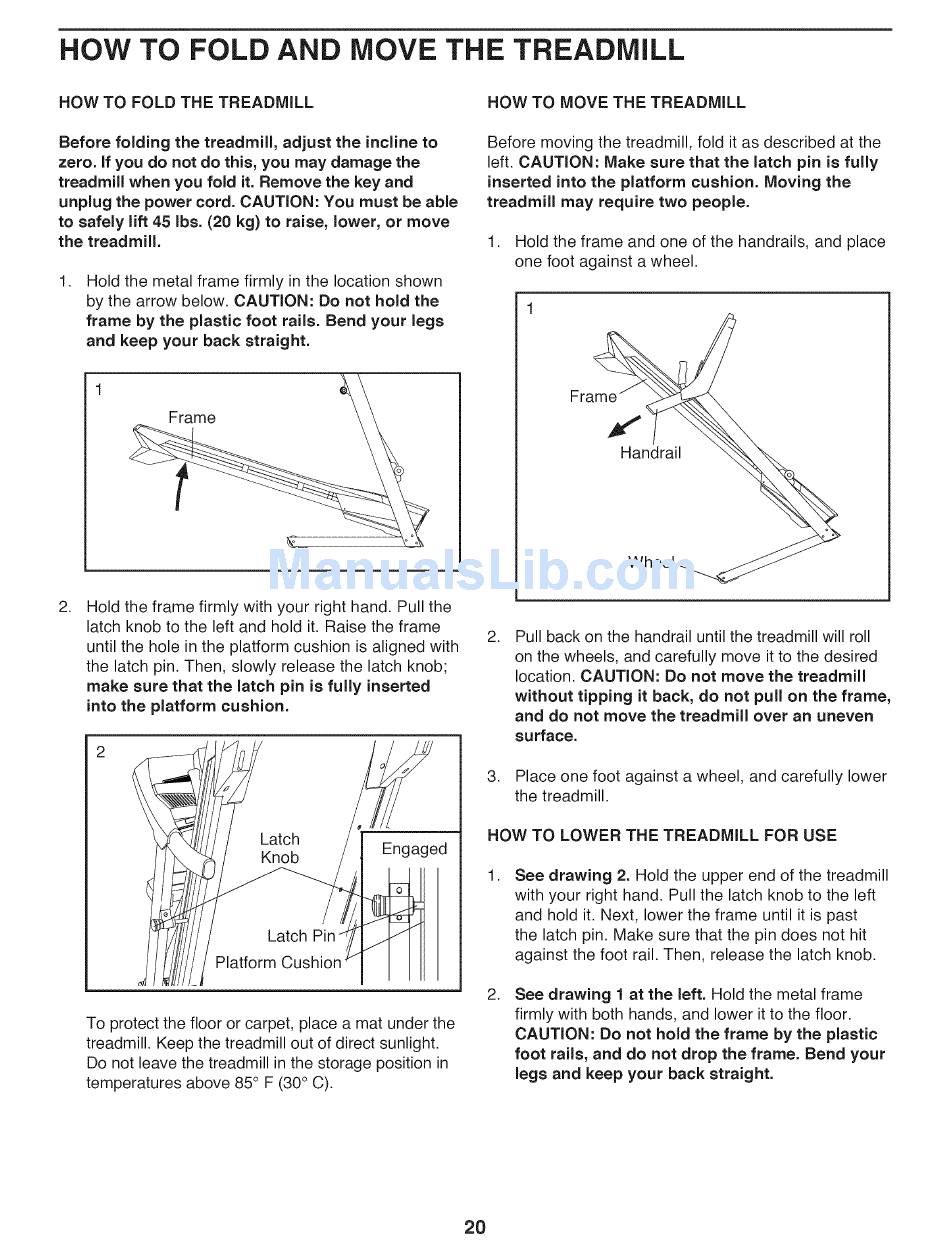

HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL
Before folding the treadmill, adjust the incline to
zero. if you do not do this, you may damage the
treadmill when you fold it. Remove the key and
unplug the power cord. CAUTION: You must be able
to safely lift 45 Ibs. (20 kg) to raise, lower, or move
the treadmill.
.
Hold the metal frame firmly in the location shown
by the arrow below. CAUTION: Do not hold the
frame by the plastic foot rails. Bend your legs
and keep your back straight.
Frame
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
left. CAUTION: Make sure that the latch pin is fully
inserted into the platform cushion. Moving the
treadmill may require two people.
1. Hold the frame and one of the handrails, and place
one foot against a wheel.
f
Handrail
Wheel
.
Hold the frame firmly with your right hand. Pull the
latch knob to the left and hold it. Raise the frame
until the hole in the platform cushion is aligned with
the latch pin. Then, slowly release the latch knob;
make sure that the latch pin is fully inserted
into the platform cushion.
Engaged
Latch
Platform Cushion
To protect the floor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight.
Do not leave the treadmill in the storage position in
temperatures above 85 ° F (30 ° C).
.
Pull back on the handrail until the treadmill will roll
on the wheels, and carefully move it to the desired
location. CAUTION: Do not move the treadmill
without tipping it back, do not pull on the frame,
and do not move the treadmill over an uneven
surface.
3. Place one foot against a wheel, and carefully lower
the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
.
.
See drawing 2. Hold the upper end of the treadmill
with your right hand. Pull the latch knob to the left
and hold it. Next, lower the frame until it is past
the latch pin. Make sure that the pin does not hit
against the foot rail. Then, release the latch knob.
See drawing 1 at the left. Hold the metal frame
firmly with both hands, and lower it to the floor.
CAUTION: Do not hold the frame by the plastic
foot rails, and do not drop the frame. Bend your
legs and keep your back straight.
2O
