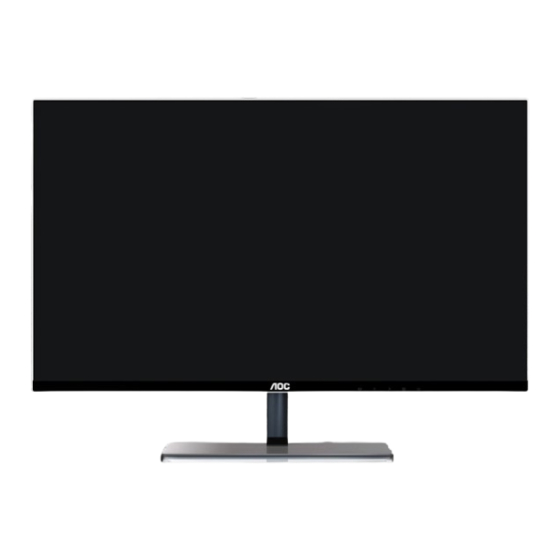

- Page 1 LCD Monitor User Manual I2477FWQ/I2777FQ LED Backlight www.aoc.com ©2014 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
Safety ..................................4 National Conventions ............................4 Power ................................5 Installation................................6 Cleaning ................................7 Other .................................. 8 Setup ..................................9 Content of the Box ............................. 9 Setup Stand ..............................10 Adjusting Viewing Angle ........................... - Page 3 EPA Energy Star............................... 60 EPEAT Declaration............................61 TCO DOCUMENT ............................62 Service ..................................63 AOC International (Europe) B.V........................67 Warranty Statement for North & South America (excluding Brazil) ............68 EASE PROGRAME ............................70 ...
-
Page 4: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 5: Power
100 - 240V ~, Min. 5A For use only with the attached power adapter. Factory: I2477FWQ TPV ELECTRONICS(FUJIAN) CO., LTD MODEL : ADPC1245 (OUTPUT 12V) L&T DISPLAY TECHNOLOGY(FUJIAN) LTD MODEL: ADPC1245 (OUTPUT 12V) SHENZHEN HONOR ELECTRONIC CO.,LTD MODEL:ADS-65LSI-12-1 12045G (OUTPUT 12V) I2777FQ TPV ELECTRONICS(FUJIAN) CO., LTD MODEL : ADPC1965 (OUTPUT 19V) -
Page 6: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 7: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 8: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 9: Setup
(Analog , Aud , DP, MHLand d HDMI cables s) will be provi ded for all cou untries and regions. P Please check w with the local dealer or AOC C branch office e for confirmat tion. -
Page 10: Setup Stand
Setup Stand Please setup or remove the Stand following the steps as below. Setup Remove: × 75mm 75mm... -
Page 11: Adjusting Viewing Angle
Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor's angle from -3°... -
Page 12: Connecting The Monitor
Conn necting the Mo nitor 3 2 4 5 1 Powe Analo og (D-Sub 15- -Pin VGA cabl Audio o in Earph hone out Displ ay port MI/MHL To protect t equipment, a always turn off f the PC and L LCD monitor b before connec cting. -
Page 13: Wall Mounting
Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall. Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. -
Page 14: Adjusting
Adjusting Setting Optimal Resolution Windows 8 For Windows 8: Right click and click All apps at the bottom-right of the screen. Set the “View by” to “Category”. Click Appearance and Personalization. - Page 15 Click DISPLAY. Set the resolution to Optimal preset resolution SLIDE-BAR...
-
Page 16: Windows 7
Windows 7 For Windows 7: 1. 1. Click START. 2. 2. Click CONTROL PANEL. 3. 3. Click APPEARANCE. 4. 4. Click DISPLAY. - Page 17 Set the resolution SLIDE-BAR to Optimal preset resolution.
-
Page 18: Windows Vista
Windows Vista For Windows Vista: 1 Click START. 2 Click CONTROL PANEL. 3 Click Appearance and Personalization. 4 Click Personalization... - Page 19 5 Click Display Settings. 6 Set the resolution SLIDE-BAR to Optimal preset resolution...
-
Page 20: Windows Xp
Window ws XP For Wind dows XP: 1 Click ST TART. 2 Click SE ETTINGS. 3 Click CO ONTROL PAN NEL. 4 Click Ap ppearance an nd Themes. 5 Double click DISPLAY... -
Page 21: Windows Me/2000
6 Click SE ETTINGS. 7 Set the resolution SL LIDE-BAR to O Optimal preset t resolution Window ws ME/200 For Wind dows ME/2000 1 Click ST TART. 2 Click SE ETTINGS. 3 Click CO ONTROL PAN NEL. 4 Double click DISPLAY 5 Click SE ETTINGS. -
Page 22: Hotkeys
Hotkeys I2477FWQ/ I2777FQ Source/Auto/Exit Clear Vision/< Volume/ > Menu/Enter Power Power Press the Power button to turn on/off the monitor. Volume / > When there is no OSD, press Volume adjust volume. Auto / Exit When there is no OSD, press Auto / Exit button continuously about 3 second to do auto configure. -
Page 23: Clear Vision
Clear Vision/< When there is no OSD, Press the “<” button to activate Clear Vision. Use the “<” or “>” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. Press and hold “<” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on”... -
Page 24: Using "Mhl(Mobile High-Definition Link)"（Optional
Using "MHL(Mobile High-Definition Link)"（Optional） 1."MHL" (Mobile High-Definition Link) This feature allows you to enjoy videos and photos (imported from a connected mobile device that supports MHL) on the screenof the product. To use the MHL function, you need an MHL-certified mobile device. You can check if your mobile device is MHL certified on the device manufacturer's website. -
Page 25: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Press the MENU-button to activate the OSD window. Press - or + to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate. Press - or + to navigate through the sub-menu. Once the desired function is highlighted, press MENU-button to activate. -
Page 26: Luminance
Luminance 1 Press (Menu) to display menu. 2 Press - or + to select (Luminance), and press to enter. 3 Press - or + to select submenu, and press to enter. 4 Press - or + to adjust. 5 Press to exit Brightness 0-100... -
Page 27: Image Setup
Image Setup 1 Press (Menu) to display menu. 2 Press - or + to select (Image Setup), and press to enter. 3 Press - or + to select submenu, and press to enter. 4 Press - or + to adjust. 5 Press to exit Clock... -
Page 28: Color Setup
Color Setup 1 Press (Menu) to display menu. 2 Press - or + to select (Color Setup), and press to enter. 3 Press - or + to select submenu, and press to enter. 4 Press - or + to adjust. 5 Press to exit Warm... -
Page 29: Picture Boost
Picture Boost 1 Press (Menu) to display menu. 2 Press - or + to select (Picture Boost), and press to enter. 3 Press - or + to select submenu, and press to enter. 4 Press - or + to adjust. 5 Press to exit Frame Size... -
Page 30: Osd Setup
OSD Setup 1 Press (Menu) to display menu. 2 Press - or + to select (OSD Setup), and press to enter. 3 Press - or + to select submenu, and press to enter. 4 Press - or + to adjust. 5 Press to exit H. -
Page 31: Extra
Extra 1 Press (Menu) to display menu. 2 Press - or + to select (Extra), and press to enter. 3 Press - or + to select submenu, and press to enter. 4 Press - or + to adjust. 5 Press to exit Auto/D-SUB/HDMI1(MHL1)/HDMI Input Select... -
Page 32: Exit
Exit 1 Press (Menu) to display menu. 2 Press - or + to select (Exit), and press to enter. 3 Press to exit Exit Exit the main OSD. -
Page 33: Led Indicator
LED Indicator Status LED Color Full Power Mode Blue Active-off Mode... -
Page 34: Driver
Driver Monitor Driver Windows 8 Start Windows® 8 Right click and click All apps at the bottom-right of the screen. Click on the “Control panel” icon Set the “View by” to “Large icons” or “Small icons”. - Page 35 Click on the “Display” icon. Click on the “Change display settings” button. “ Click the Advanced Settings” button. button Click the “Monitor” tab and then click the “Properties”...
- Page 36 Click the “Driver” tab. 10. Open the “Update Driver Software-Generic PnP Monitor” window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button. 11. Select "Let me pick from a list of device drivers on my computer".
- Page 37 12. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 13. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 14.
-
Page 38: Windows 7
Windows 7 Start Windows® 7 Click on the 'Start' button and then click on 'Control Panel'. Click on the 'Display' icon. - Page 39 Click on the “Change display settings” button. “ Click the Advanced Settings” button. button. Click the “Monitor” tab and then click the “Properties”...
- Page 40 Click the “Driver” tab. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button. Select "Let me pick from a list of device drivers on my computer".
- Page 41 10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 12.
-
Page 42: Windows Vista
Windows Vista Click "Start" and "Control Panel". Then, double-click on "Appearance and Personalization". Click "Personalization" and then "Display Settings". Click "Advanced Settings...". - Page 43 Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue". Click "Update Driver..."...
-
Page 44: Windows Xp
Window ws XP Start Windows® X Click on the 'Start' button and th en click on 'Co ontrol Panel'. Selec ct and click on n the category y ‘Appearance and Themes’ Click on the 'Displa ay' Item. - Page 45 Selec ct the 'Settings s' tab then clic ck on the 'Adv anced' button Selec ct 'Monitor' tab If the 'Proper rties' button is inactive, it me eans your mon nitor is properl ly configured. Please stop in nstallation. If the 'Proper rties' button is s active, click o on 'Properties'...
- Page 46 Selec ct the 'Install f rom a list or s pecific locatio n [advanced]' radio button a and then click on the 'Next' button. Selec ct the 'Don't S earch. I will ch hoose the driv ver to install' ra adio button.
-
Page 47: Windows 2000
Windows 2000 Start Windows® 2000 Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. Double click on the 'Display' Icon. Select the 'Settings' tab then click on 'Advanced...'. Select 'Monitor' If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. If the 'Properties' button is active. -
Page 48: I-Menu
i-Men Welcome to “i-Menu” so oftware by AO OC. i-Menu ma akes it easy to o adjust your m monitor display y setting by us sing on screen me enus instead o of the OSD bu utton on the m monitor. -
Page 49: E-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below). -
Page 50: Screen
Screen+ Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the... -
Page 51: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press to auto adjust. - Page 52 Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and Horizontal or vertical FOCUS. disturbances on the screen Press to auto-adjust. Display not on whole screen Use I-menu software from CD(or download from AOC official website), select in default resolution ration “reset” option to adjust.
-
Page 53: Specification
Specification General Specification Product name I2477FWQ Driving system TFT Color LCD Viewable Image Size 60.47cm diagonal Pixel pitch 0.2745(H)mm x 0.2745(V)mm Panel Video R, G, B Analog lnterface & Digital Interface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock 148.5MHz... - Page 54 Product name I2777FQ Driving system TFT Color LCD Viewable Image Size 68.6cm diagonal Pixel pitch 0.3114mm(H)X0.3114mm(V) Panel Video R, G, B Analog lnterface ,Digital interface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock 148.5MHz Horizontal scan range 30 kHz - 83 kHz Horizontal scan Size(Maximum) 597.888mm Vertical scan range...
-
Page 55: Preset Display Modes
Preset Display Modes Standard Resolution H. Frequency (kHz) V. Frequency (Hz) 640 X 480@60Hz 31.469 59.940 640 X 480@72Hz 37.861 72.809 640 X 480@75Hz 37.500 75.000 IBM MODE DOS 720 X 400@70Hz 31.469 70.087 800 X 600@56Hz 35.156 56.250 800 X 600@60Hz 37.879 60.317 SVGA... -
Page 56: Pin Assignments
Pin Assignments 15-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Video-Red Video-Green Ground Video-Blue N.C. N.C. DDC-Serial data Detect Cable H-sync GND-R V-sync GND-G DDC-Serial clock GND-B... - Page 57 19-Pin Co o lor Display S S ignal Cable Pin No. Sig gnal Name Signal Name Signal Nam Pin No. Pin No. TMDS Data a 2+ TMDS Data 0 DC/CEC Groun V Power TMDS Data a 2 Shield TMDS Clock TMDS Data TMDS Clock Shield...
-
Page 58: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 59: Regulation
Regulation FCC Notice FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 60: Weee Declaration
For more information about where you can drop off your waste equipment for recycling in India please visit the below web link.www.aocindia.com/ewaste.php. EPA Energy Star ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency. -
Page 61: Epeat Declaration
AOC believes in protecting the environment. With a key concern for the conservation of natural resources, as well as land ll protection, AOC announces the launch of AOC monitor’s packaging recycling program. This program is designed to help you discard of your monitor carton and ller materials properly. -
Page 62: Tco Document
TCO DOCUMENT (FOR TCO CERTIFIED MODELS) -
Page 63: Service
The freight cost for the warranty is pre-paid by AOC for the delivery and return. Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Certified or Authorized Service Center under the following condition: •... - Page 64 If your warranty has expired, you still have access to all available service options, but you will be responsible for the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified or Authorized Service Center will provide you with an estimate of service costs before receiving your authorization to perform service.
- Page 65 During this period, AOC International (Europe) B.V. offers a Carry-In (return to Service Center) Warranty Support at an AOC’s Authorized Service Center or Dealer and at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. As a Standard Policy,...
- Page 66 Any cause other than ordinary commercial or industrial application • Adjustment by non-authorized source • Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center • Improper environments like humidity, water damage and dusts •...
-
Page 67: Aoc International (Europe) B.v
No manufacturer can guarantee that all panels will be free from pixel defects, but AOC guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This Pixel Policy explains the different types of pixel defects and defines acceptable defect levels for each type. -
Page 68: Warranty Statement For North & South America (Excluding Brazil)
In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty. * This limited warranty does not cover any losses or damages that occur as a result of:... - Page 69 ARGENTINA: http://ar.aoc.com/support/warranty BOLIVIA: http://bo.aoc.com/support/warranty CHILE: http://cl.aoc.com/support/warranty COLOMBIA: http://co.aoc.com/warranty COSTA RICA: http://cr.aoc.com/support/warranty DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty ECUADOR: http://ec.aoc.com/support/warranty EL SALVADOR: http://sv.aoc.com/support/warranty GUATEMALA: http://gt.aoc.com/support/warranty HONDURAS: http://hn.aoc.com/support/warranty NICARAGUA: http://ni.aoc.com/support/warranty PANAMA: http://pa.aoc.com/support/warranty PARAGUAY: http://py.aoc.com/support/warranty PERU: http://pe.aoc.com/support/warranty URUGUAY: http://pe.aoc.com/warranty VENEZUELA: http://ve.aoc.com/support/warranty IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty...
-
Page 70: Ease Programe
Tube & LCD Panel) *AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the defective unit arriving at AOC’s service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the defective unit arrives at the AOC service center.
