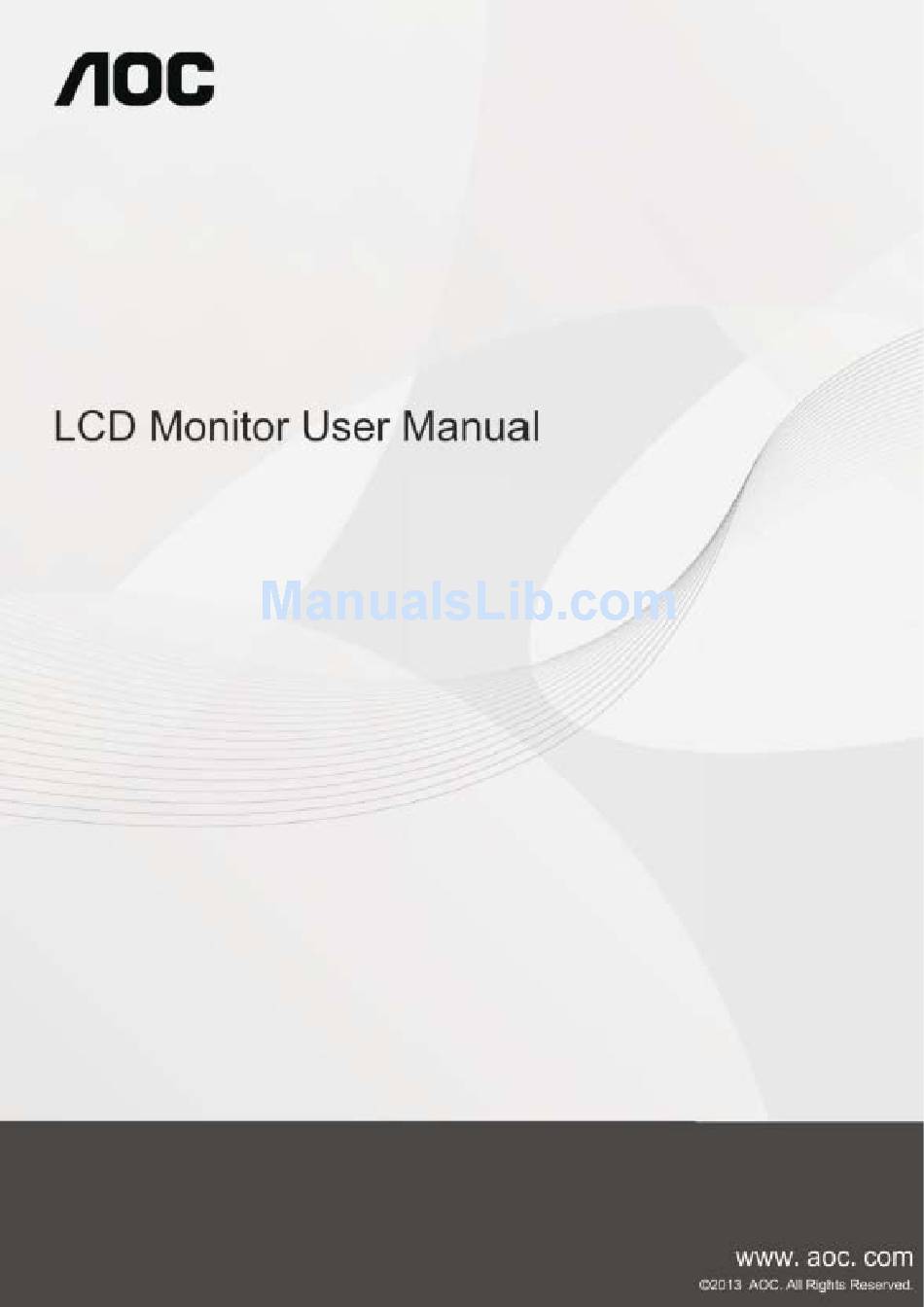

- Page 1 I2272PWHUT/I2472PWHUT (LED Backlight)
-
Page 2: Table Of Contents
Safety ..................................4 National Conventions ............................4 Power ................................5 Installation ................................6 Cleaning ................................8 Other .................................. 9 Setup ..................................10 Content of the Box ............................10 Setup Stand ..............................11 Adjusting Viewing Angle ........................... 12 Connecting the Monitor ............................ 13 Multi-Touch Screen ............................ - Page 3 WEEE Declaration for India ..........................63 Service ..................................64 Warranty Statement for Europe ........................64 Warranty Statement for Middle East and Africa (MEA) ..................66 AOC International (Europe) B.V........................68 Warranty Statement for North & South America (excluding Brazil) ............69...
-
Page 4: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 5: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 6: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 8: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 9: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 10: Setup
Power Cable Analog Cable HDMI Cable USB Cable Audio Cable Not all signal cables (Analog , Audio, MHLand HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 11: Setup Stand
Setup Stand Please setup or remove the Stand following the steps as below. Setup Remove:... -
Page 12: Adjusting Viewing Angle
Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor's angle from 15°... -
Page 13: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: Power Earphone out Audio in Analog (D-Sub 15-Pin VGA cable) HDMI/MHL1 HDMI/MHL2 USB 2.0x2 USB 3.0+ fast charging USB 3.0 10. USB 3.0 to PC To protect equipment, always turn off the PC and LCD monitor before connecting. Connect the power cable to the AC port on the back of the monitor. -
Page 14: Multi-Touch Screen
Troubleshooting. Multi-Touch Screen User can use Display Multi-touch Function under operating system higher than Window 7 home premium. Before using Display Multi-touch Function, user need to connect basic wires ( power cable, VGA cable, USB cable). Then user can fully enjoy Multi-touch Function. Part of specific use, please see the following drawings. -
Page 15: Wall Mounting
Wall Mounting Preparing to Install An Optional Wall Mounting Arm. This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure. Follow these steps: Fold the stand Follow the manufacturer's instructions to assemble the wall mounting arm. Place the wall mounting arm onto the back of the monitor. -
Page 16: Adjusting
Adjusting Setting Optimal Resolution Windows Vista For Windows Vista: 1 Click START. 2 Click CONTROL PANEL. 3 Click Appearance and Personalization. 4 Click Personalization... - Page 17 5 Click Display Settings. 6 Set the resolution SLIDE-BAR to Optimal preset resolution...
-
Page 18: Windows Xp
Windows XP For Windows XP: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Click Appearance and Themes. 5 Double click DISPLAY. -
Page 19: Windows Me/2000
6 Click SETTINGS. 7 Set the resolution SLIDE-BAR to Optimal preset resolution Windows ME/2000 For Windows ME/2000: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Double click DISPLAY. 5 Click SETTINGS. 6 Set the resolution SLIDE-BAR to Optimal preset resolution... -
Page 20: Windows 7
Windows 7 Start Windows® 7 Click on the 'Start' button and then click on 'Control Panel'. Click on the “Display” icon. Click on the “Change display settings” button. Advanced Settings” button. “ Click the... - Page 21 Click the “Monitor” tab and then click the “Properties” button. Click the “Driver” tab. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button.
- Page 22 Select "Let me pick from a list of device drivers on my computer". 10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 11.
-
Page 23: Windows 8
drive. 13. Close all open windows and remove the CD. 14. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles. Windows 8 For Windows 8: Right click and click All apps at the bottom-right of the screen. Set the “View by”... - Page 24 Click DISPLAY. Set the resolution SLIDE-BAR to Optimal preset resolution.
-
Page 25: Hotkeys
Hotkeys Source/Auto/Exit Clear Vision/< Volume/> Menu/Enter Power... - Page 26 Clear Vision When there is no OSD, Press the “<” button to activate Clear Vision. Use the “<” or “>” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. Press and hold “<” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on”...
-
Page 27: Using "Mhl(Mobile High-Definition Link)
Using "MHL(Mobile High-Definition Link)" 1."MHL" (Mobile High-Definition Link) This feature allows you to enjoy videos and photos (imported from a connected mobile device that supports MHL) on the screenof the product. To use the MHL function, you need an MHL-certified mobile device. You can check if your mobile device is MHL certified on the device manufacturer's website. -
Page 28: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Press the MENU-button to activate the OSD window. Press < or > to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate. Press < or > to navigate through the sub-menu. Once the desired function is highlighted, press MENU-button to activate. -
Page 29: Luminance
Luminance 1 Press (Menu) to display menu. 2 Press < or > to select (Luminance), and press to enter. 3 Press < or > to select submenu, and press to enter. 4 Press < or > to adjust. 5 Press to exit Brightness 0-100... -
Page 30: Image Setup
Image Setup 1 Press (Menu) to display menu. 2 Press < or > to select (Image Setup), and press to enter. 3 Press < or > to select submenu, and press to enter. 4 Press < or > to adjust. 5 Press to exit Clock... -
Page 31: Color Setup
Color Setup 1 Press (Menu) to display menu. 2 Press < or > to select (Color Setup), and press to enter. 3 Press < or > to select submenu, and press to enter. 4 Press < or > to adjust. 5 Press to exit Warm... -
Page 32: Picture Boost
Picture Boost 1 Press (Menu) to display menu. 2 Press < or > to select (Picture Boost), and press to enter. 3 Press < or > to select submenu, and press to enter. 4 Press < or > to adjust. 5 Press to exit Frame Size... -
Page 33: Osd Setup
OSD Setup 1 Press (Menu) to display menu. 2 Press < or > to select (OSD Setup), and press to enter. 3 Press < or > to select submenu, and press to enter. 4 Press < or > to adjust. 5 Press to exit H. -
Page 34: Extra
Extra 1 Press (Menu) to display menu. 2 Press < or > to select (Extra), and press to enter. 3 Press < or > to select submenu, and press to enter. 4 Press < or > to adjust. 5 Press to exit Input Select Analog / HDMI(MHL) -
Page 35: Exit
Exit 1 Press (Menu) to display menu. 2 Press < or > to select (Exit), and press to enter. 3 Press to exit Exit Exit the main OSD. -
Page 36: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange or red... -
Page 37: Driver
Driver Monitor Driver Windows 2000 1. Start Windows® 2000 2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. 3. Double click on the 'Display' Icon. 4. Select the 'Settings' tab then click on 'Advanced...'. 5. -
Page 38: Windows Xp
Windows XP 1. Start Windows® XP 2. Click on the 'Start' button and then click on 'Control Panel'. 3. Select and click on the category ‘Appearance and Themes’ 4. Click on the 'Display' Item. - Page 39 5. Select the 'Settings' tab then click on the 'Advanced' button. 6. Select 'Monitor' tab - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. - If the 'Properties' button is active, click on 'Properties' button. Please follow the steps below.
- Page 40 8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button. 9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button. 10.
-
Page 41: Windows Vista
Windows Vista 1. Click "Start " and "Control Panel". Then, double-click on "Appearance and Personalization". 2. Click "Personalization" and then "Display Settings". 3. Click "Advanced Settings...". - Page 42 4. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue". 5.
-
Page 43: Windows 7
Windows 7 1.Start Windows® 7 2.Click on the 'Start' button and then click on 'Control Panel'. 3. Click on the 'Display' icon. - Page 44 4.Ckick on the “Change display settings” button. Advanced Settings” button. “ Click the Click the “Monitor” tab and then click the “Properties” button.
- Page 45 7.Click the “Driver” tab. 8. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “and then click the "Browse my computer for driver software" button. 9. Select "Let me pick from a list of device drivers on my computer".
- Page 46 10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 12.
-
Page 47: Windows 8
Windows 8 Start Windows® 8 Right click and click All apps at the bottom-right of the screen. Click on the “Control panel” icon Set the “View by” to “Large icons” or “Small icons”. Click on the “Display” icon. - Page 48 Click on the “Change display settings” button. Advanced Settings” button. “ Click the Click the “Monitor” tab and then click the “Properties” button...
- Page 49 Click the “Driver” tab. 10. Open the “Update Driver Software-Generic PnP Monitor” window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button. 11. Select "Let me pick from a list of device drivers on my computer".
- Page 50 12. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 13. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 14.
-
Page 51: I-Menu
Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide. -
Page 52: E-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below). -
Page 53: Screen
Screen+ Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the... -
Page 54: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press to auto adjust. - Page 55 Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and Horizontal vertical FOCUS. disturbances on the screen Press to auto-adjust. Use I-menu software from CD(or download from AOC official website), select “reset” option to adjust. Display not on whole screen in default resolution ration...
-
Page 56: Specification
Specification General Specification Product name I2272PWHUT Driving system TFT Color LCD Viewable Image Size 54.7cm diagonal Pixel pitch 0.24825mm(H) x 0.24825m(V) Panel Video R, G, B Analog lnterface & Digital Interface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock... - Page 57 Product name I2472PWHUT Driving system TFT Color LCD Viewable Image Size 60.0cm diagonal Pixel pitch 0.2715mm(H) x 0.2715mm(V) Panel Video R, G, B Analog lnterface & Digital Interface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock 170MHz Horizontal scan range 30 kHz - 83 kHz Horizontal scan Size(Maximum) 521.28mm...
- Page 58 Touch screen specifications Touch technology Infrared rays interception detection Input Method Finger, gloved hand, or any other opaque stylus Touch stylus diameter >8mm Resolution 32767 x 32767 Touch accuracy <1.0mm Operating Systems Microsoft Windows 8 Multi-Touch(plug & play) Microsoft Windows 7 Multi-Touch(plug &...
-
Page 59: Preset Display Modes
Preset Display Modes Standard Resolution H. Frequency (kHz) V. Frequency (Hz) 640 x 480@60Hz 31.469 59.940 MAC MODE.VGA 640 x 480@67Hz 35.000 66.667 640 x 480@72Hz 37.861 72.809 640 x 480@75Hz 37.500 75.000 IBM MODE DOS 720 x 400@70Hz 31.469 70.087 800 x 600@56Hz 35.156... -
Page 60: Pin Assignments
Pin Assignments 15-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Video-Red Video-Green Ground Video-Blue N.C. N.C. DDC-Serial data Detect Cable H-sync GND-R V-sync GND-G DDC-Serial clock GND-B 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. -
Page 61: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 62: Regulation
Regulation FCC Notice FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 63: Weee Declaration
WEEE Declaration Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. -
Page 64: Service
The freight cost for the warranty is pre-paid by AOC for the delivery and return. Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Certified or Authorized Service Center under the following condition: ... - Page 65 If your warranty has expired, you still have access to all available service options, but you will be responsible for the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified or Authorized Service Center will provide you with an estimate of service costs before receiving your authorization to perform service.
-
Page 66: Warranty Statement For Middle East And Africa (Mea)
During this period, AOC International (Europe) B.V. offers a Carry-In (return to Service Center) Warranty Support at an AOC’s Authorized Service Center or Dealer and at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. As a Standard Policy,... - Page 67 Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center Improper environments like humidity, water damage and dusts Damaged by violence, earthquakes and terrorist attacks Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other...
-
Page 68: Aoc International (Europe) B.v
No manufacturer can guarantee that all panels will be free from pixel defects, but AOC guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This Pixel Policy explains the different types of pixel defects and defines acceptable defect levels for each type. -
Page 69: Warranty Statement For North & South America (Excluding Brazil)
In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty. * This limited warranty does not cover any losses or damages that occur as a result of:... - Page 70 ARGENTINA: http://ar.aoc.com/support/warranty BOLIVIA: http://bo.aoc.com/support/warranty CHILE: http://cl.aoc.com/support/warranty COLOMBIA: http://co.aoc.com/warranty COSTA RICA: http://cr.aoc.com/support/warranty DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty ECUADOR: http://ec.aoc.com/support/warranty EL SALVADOR: http://sv.aoc.com/support/warranty GUATEMALA: http://gt.aoc.com/support/warranty HONDURAS: http://hn.aoc.com/support/warranty NICARAGUA: http://ni.aoc.com/support/warranty PANAMA: http://pa.aoc.com/support/warranty PARAGUAY: http://py.aoc.com/support/warranty PERU: http://pe.aoc.com/support/warranty URUGUAY: http://pe.aoc.com/warranty VENEZUELA: http://ve.aoc.com/support/warranty IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty...
