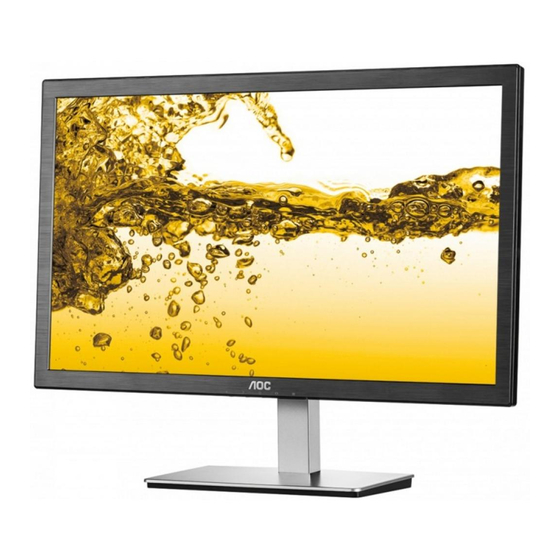

- Page 1 LCD Monitor User Manual I2476VXM LED Backlight www.aoc.com ©2017 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
Safety ..................................4 National Conventions ............................4 Power ................................5 Installation................................6 Cleaning................................7 Other .................................. 8 Setup ..................................9 Contents in Box ..............................9 Setup Stand & Base ............................10 Adjusting Viewing Angle ........................... 11 Connecting the Monitor ............................ 12 Wall Mounting .............................. - Page 3 Service ..................................63 Warranty Statement for Europe ........................63 Warranty Statement for Middle East and Africa (MEA) ..................65 AOC PIXEL POLICYISO 9241-307 CLASS 1 ....................67 Warranty Statement for North & South America (excluding Brazil) ..............68 EASE PROGRAME ............................70...
-
Page 4: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 5: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 6: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 7: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too roughas it will scratch the screen surface. -
Page 8: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 9: Setup
Power Cable Monitor Base Analog Cable DVI Cable HDMICable MHL Cable Not all signal cables (Analog, DVI,MHL and HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 10: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 11: Adjusting Viewing Angle
Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor's angle from -4°... -
Page 12: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: AC port Analog (D-Sub 15-Pin VGA cable) HDMI/MHL Earphone To protect equipment, always turn off the PC and LCD monitor before connecting. Connect the power cable to the AC port on the back of the monitor. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port. -
Page 13: Wall Mounting
Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall. Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. -
Page 14: Adjusting
Adjusting Setting Optimal Resolution Windows 10 For Windows 10: • Right click START. • Click "CONTROL PANEL". • Click "DISPLAY". • Click on the "Change display settings" button. - Page 15 • Set the resolution SLIDE-BAR to Optimal preset resolution.
-
Page 16: Windows 8
Windows 8 For Windows 8: • Right click and click All apps at the bottom-right of the screen. • Set the "View by" to "Category". • Click "Appearance and Personalization". • Click "DISPLAY". - Page 17 • Set the resolution SLIDE-BAR to Optimal preset resolution...
-
Page 18: Windows 7
Windows 7 For Windows 7: • Click START. • Click "CONTROL PANEL". • Click "Appearance". • Click "DISPLAY". • Click on the "Change display settings" button. - Page 19 • Set the resolution SLIDE-BAR to Optimal preset resolution...
-
Page 20: Hotkeys
Hotkeys Clear vision /< Volume / > or 4:3 / Wide / > Power Source/Auto/Exit Menu/Enter Power Press the Power button to turn on/off the monitor. Volume /> When there is no OSD,Press Volume button to active volume adjustment bar,Press < or > to adjust volume(Only HDMI). - Page 21 Clear Vision When there is no OSD, Press the “<” button to activate Clear Vision. Use the “<” or “>”buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. Press and hold“<”button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on”...
-
Page 22: Using "Mhl(Mobile High-Definition Link)
Using “MHL(Mobile High-Definition Link)” “MHL” (Mobile High-Definition Link) This feature allows you to enjoy videos and photos(imported from a connected mobile device that supports MHL) on the screen of the product. ●To usethe MHL function, you need an MHL-certified mobile device. You can check if your mobile device is MHL certified on the device manufacturer’s website. -
Page 23: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Press the -button to activate the OSD window. Press< or >to navigate through the functions. Once the desired function is highlighted, press the -button to activate it . press< or >to navigatethrough the sub-menu functions.Once the desired function is highlighted, press -button to activate it. -
Page 24: Luminance
Luminance Press (Menu) to display menu. Press< or >to select (Luminance), and press to enter. Press< or >to select submenu, and press to enter. - Page 25 Press< or >to adjust. Press to exit Brightness 0-100 Backlight Adjustment Contrast 0-100 Contrast from Digital-register. Standard Standard Mode Text Text Mode Internet Internet Mode Eco mode Game Game Mode Movie Movie Mode Sports Sports Mode Gamma1 Adjust to Gamma1 Gamma Gamma2 Adjust to Gamma 2...
-
Page 26: Image Setup
Image Setup Press (Menu) to display menu. Press< or >to select (Image Setup), and press to enter. Press< or >to select submenu, and press to enter. - Page 27 Press< or >to adjust. Press to exit Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise. Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise Sharpness 0-100 Adjust picture sharpness H.Position 0-100 Adjust the horizontal position of the picture. V.Position 0-100 Adjust the vertical position of the picture.
-
Page 28: Color Setup
Color Setup Press (Menu) to display menu. Press< or >to select (Color Setup), and press to enter. Press< or >to select submenu, and press to enter. - Page 29 Press< or >to adjust. Press to exit Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Cool Recall Cool Color Temperature from EEPROM. Color Temp. sRGB Recall SRGB Color Temperature from EEPROM. Red Gain from Digital-register User Green Green Gain Digital-register.
-
Page 30: Picture Boost
Picture Boost Press (Menu) to display menu. Press< or >to select (Picture Boost), and press to enter. Press< or >to select submenu, and press to enter. - Page 31 Press< or >to adjust. Press to exit Frame Size 14-100 Adjust Frame Size Brightness 0-100 Adjust Frame Brightness Contrast 0-100 Adjust Frame Contrast H. position 0-100 Adjust Frame horizontal Position V.position 0-100 Adjust Frame vertical Position Bright Frame on or off Disable or Enable Bright Frame...
-
Page 32: Osd Setup
OSD Setup Press (Menu) to display menu. Press< or >to select (OSD Setup), and press to enter. Press< or >to select submenu, and press to enter. - Page 33 Press< or >to adjust. Press to exit H.Position 0-100 Adjust the horizontal position of OSD V.Position 0-100 Adjust the vertical position of OSD Timeout 5-120 Adjust the OSD Timeout Transparence 0-100 Adjust the transparence of OSD Language Select the OSD language Break reminder if the user continuously work for more Break Reminder on or off...
-
Page 34: Extra
Extra Press (Menu) to display menu. Press< or >to select (Extra), and press to enter. Press< or >to select submenu, and press to enter. - Page 35 Press< or >to adjust. Press to exit Input Select Auto / D-SUB / HDMI(MHL) Select Input Signal Source Auto Config yes or no Auto adjust the picture to default Off timer 0-24hrs Select DC off time Image Ratio wide or 4:3 Select wide or 4:3 format for display DDC-CI yes or no...
-
Page 36: Exit
Exit Press (Menu) to display menu. Press< or >to select (Exit), and press to exit. Press to exit Exit Exit the main OSD... -
Page 37: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange... -
Page 38: Driver
Driver Monitor Driver Windows 10 • Start Windows® 10 • Right click START. • Click "Control Panel". • Click on the "Display" icon. - Page 39 • Click on the "Change display settings" button • Click the "Advanced Settings" button. • button. Click the "Monitor" tab and then click the "Properties"...
- Page 40 • Click the "Driver" tab. • Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver... “and then click the "Browse my computer for driver software" button. • Select "Let me pick from a list of device drivers on my computer".
- Page 41 • Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name(where X is the drive letter designator for the CD-ROM drive). • Select the "xxx.inf" file and click the "Open" button. Click the "OK" button. •...
-
Page 42: Windows 8
Windows 8 • Start Windows® 8 • Right click and click All apps at the bottom-right of the screen. • Click on the "Control Panel" icon • Set the "View by" to "Large icons" or "Small icons". • Click on the "Display" icon. - Page 43 • Click on the "Change display settings" button. • Click the "Advanced Settings" button. • button Click the "Monitor" tab and then click the "Properties"...
- Page 44 • Click the "Driver" tab. • Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver..." and then click the "Browse my computer for driver software" button. • Select "Let me pick from a list of device drivers on my computer".
- Page 45 • Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). • Select the "xxx.inf" file and click the "Open" button. Click the "OK" button. •...
-
Page 46: Windows 7
Windows 7 • Start Windows® 7 • Click on the "Start" button and then click on "Control Panel". • Click on the "Display" icon. • Click on the "Change display settings" button. - Page 47 • Click the "Advanced Settings" button. • button. Click the "Monitor" tab and then click the "Properties" • Click the "Driver" tab. • Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... " and then click the "Browse my computer for driver software" button.
- Page 48 • Select "Let me pick from a list of device drivers on my computer". • Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name(where X is the drive letter designator for the CD-ROM drive). •...
-
Page 49: I-Menu
Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide. -
Page 50: E-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below). -
Page 51: Screen
Screen+ Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the... -
Page 52: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press to auto adjust. -
Page 53: Specification
Specification General Specification Model name I2476VXM Driving system TFT Color LCD Viewable Image Size 60.5 cm diagonal Pixel pitch 0. 2745mm(H) x 0.2745mm(V) Panel Video R, G, B Analog lnterface &HDMI/MHL lnterface Separate Sync. H/V TTL Display Color 16.7M Colors Pixelclock 148.5 MHz... -
Page 54: Preset Display Modes
Preset Display Modes STAND RESOLUTION HORIZONTAL VERTICAL FREQUENCY(kHZ) FREQUENCY(Hz) 640×480 @60Hz 31.469 59.94 640×480 @72Hz 37.861 72.809 640×480 @75Hz 37.5 MAC MODE VGA 640 × 480@67Hz 66.667 IBMMODEDOS 720×400@70Hz 31.469 70.087 800×600 @56Hz 35.156 56.25 800×600 @60Hz 37.879 60.317 SVGA 800×600 @72Hz 48.077 72.188... - Page 55 MHL timing Format Resolution Type Vertical frequency 480p 640x480 60Hz 480p 720x480 60Hz 576p 720x576 50Hz, 720p 1280x720 50Hz,60Hz 1080i 1920x1080 50Hz,60Hz 1080p 1920x1080 30Hz 1080p 1920x1080 50Hz,60Hz...
-
Page 56: Pin Assignments
Pin Assignments 15-Pin Color Display Signal Cable Pin Number Signal Name Pin Number Signal Name Video-Red Video-Green Ground Video-Blue N.C. N.C. DDC-Serial data Detect Cable H-sync GND-R V-sync GND-G DDC-Serial clock GND-B 24-Pin Color Display Signal Cable Pin No. Signal Name Pin No. - Page 57 Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock - TMDS Data 1Shield TMDS Data 1-...
-
Page 58: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 59: Regulation
Regulation FCC Notice FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 60: Weee Declaration
Helpline number: 080-6788-6788 / 080-3323-1313 (Monday to Saturday, 10 a.m. to 6 p.m.) Centralized E-waste collection center Address: TPV Technology India Private Limited, 59, Maheswari Nagar, 1st Main Road, Mahadevapura Post, Whitefield Road, Bangalore, Karnataka, PIN: 560048, Tel: 080-3023-1000 E-mail: serviceindia@aoc.com... -
Page 61: Epa Energy Star
AOC believes in protecting the environment. With a key concern for the conservation of natural resources, as well as landfill protection, AOC announces the launch of AOC monitor’s packaging recycling program. This program is designed to help you discard of your monitor carton and filler materials properly. -
Page 62: Tco Document
TCO DOCUMENT (FOR TCO CERTIFIED MODELS) -
Page 63: Service
Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) B.V. will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. In the absent of the proof of purchase, the warranty will start 3 months after the date of manufacturing indicated on the product. - Page 64 If your warranty has expired, you still have access to all available service options, but you will be responsible for the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified or Authorized Service Center will provide you with an estimate of service costs before receiving your authorization to perform service.
-
Page 65: Warranty Statement For Middle East And Africa (Mea)
Original Invoice/Proof Of Purchase Receipt is mandatory. If the product appears to be defective, please contact your AOC authorized dealer or refer to the service and support section on AOC’s website for the warranty instructions in your country: ... - Page 66 Adjustment by non-authorized source Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center Improper environments like humidity, water damage and dusts Damaged by violence, earthquakes and terrorist attacks ...
-
Page 67: Aoc Pixel Policyiso 9241-307 Class 1
No manufacturer can guarantee that all panels will be free from pixel defects, but AOC guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This Pixel Policy explains the different types of pixel defects and defines acceptable defect levels for each type. -
Page 68: Warranty Statement For North & South America (Excluding Brazil)
In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty. * This limited warranty does not cover any losses or damages that occur as a result of:... - Page 69 ARGENTINA: http://ar.aoc.com/support/warranty BOLIVIA: http://bo.aoc.com/support/warranty CHILE: http://cl.aoc.com/support/warranty COLOMBIA: http://co.aoc.com/warranty COSTA RICA: http://cr.aoc.com/support/warranty DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty ECUADOR: http://ec.aoc.com/support/warranty EL SALVADOR: http://sv.aoc.com/support/warranty GUATEMALA: http://gt.aoc.com/support/warranty HONDURAS: http://hn.aoc.com/support/warranty NICARAGUA: http://ni.aoc.com/support/warranty PANAMA: http://pa.aoc.com/support/warranty PARAGUAY: http://py.aoc.com/support/warranty PERU: http://pe.aoc.com/support/warranty URUGUAY: http://pe.aoc.com/warranty VENEZUELA: http://ve.aoc.com/support/warranty IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty...
-
Page 70: Ease Programe
& LCD Panel) *AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the defective unitarriving at AOC’s service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the defective unit arrives at the AOCservice center.
