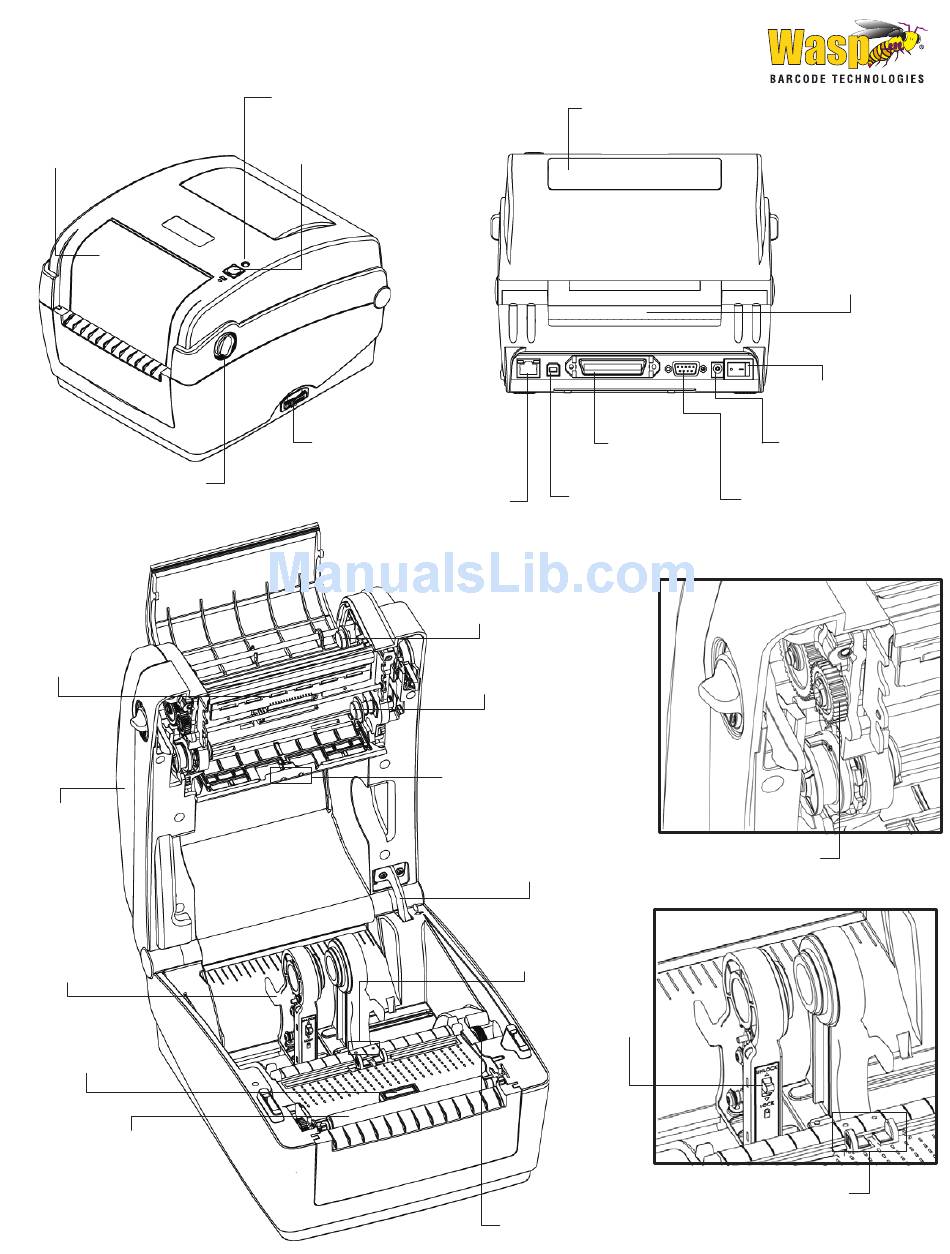

WPL304 Quick Start Guide
Ribbon access
cover
Top cover open
lever
Printhead
Top cover
Media holder
Black mark sensor
Platen roller
LED indicator
Feed button
SD card socket
Ethernet interface
Ribbon rewind hub
Ribbon supply hub
Gap sensor
(receiver)
Media view window
Centronics
interface
USB
interface
Top cover support
Gap sensor
(transmitter)
Media holder
lock switch
Media guide adjustment knob
Fan-fold paper
entrance chute
Power switch
Power jack
socket
RS-232C
interface
Ribbon rewind gear
Media guides
Advertisement
Related Manuals for Wasp WPL304
Summary of Contents for Wasp WPL304
- Page 1 WPL304 Quick Start Guide LED indicator Media view window Ribbon access cover Feed button Fan-fold paper entrance chute Power switch SD card socket Centronics Power jack interface socket Top cover open Ethernet interface lever RS-232C interface interface Ribbon rewind hub...
-
Page 2: Loading The Ribbon
Open / Close the Top Cover (1) Open the printer top cover by pulling (2) A top cover support at the rear of the (3) Hold the top cover and press the the tabs located on each side printer will engage with lower inner top cover support to disengage the towards the front of the printer, then cover to hold the printer top cover... - Page 3 Loading the Media (1) Open the printer top cover by (2) Separate and hold open the media (3) Place the roll between the holders pulling the tabs located on each holders. and close them onto the core. side towards the front of the printer, Press down the media holder lock then lift the top cover to the switch to hold the label roll firmly.
-
Page 4: Button Functions
Button Functions (1) Feed labels When the printer is ready, press the button to feed one label to the beginning of next label. (2) Pause the printing job When the printer is printing, press the button to pause a print job. When the printer is paused the LED will blink green. Press the button again to continue the printing job.
