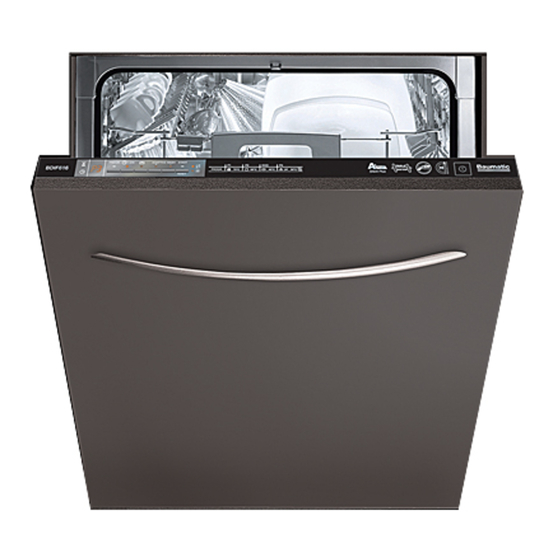

- Page 1 BDIF 616 Fully Integrated Dishwasher INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS General safety rules pag. Water connection pag. Loading the salt pag. Adjusting the upper basket pag. Loading the dishes pag. Information for test laboratories pag. Loading the detergent pag. Types of detergent pag. Loading the rinse aid pag. Cleaning the filters pag. -
Page 3: General Safety Rules
above and persons with reduced GENERAL SAFETY RULES physical, sensory or mental capabilities or lack of experience This appliances is intended to be and knowledge if they have been used in household and similar given supervision or instruction applications such as: concerning use of the appliance in a safe way and understand the - staff kitchen areas in shops,... - Page 4 In general it is not advisable to use For the maximum place loading, adaptors, multiple plugs and/or please refer to the "TECHNICAL extension cables. DATA" table/section. Do not remove the plug from the mains supply socket by pulling the WARNING ! mains cable or the machine itself.
- Page 5 Appliance complies with If it you need to move the machi- European Directives: ne after removing the packaging, do not try to lift it by the bottom of the door. 2006/95/EC (LVD); Open the door slightly and lift the 2004/108/EC (EMC); machine by holding on the top.
-
Page 6: Water Connection
WATER CONNECTION IMPORTANT The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused. The inlet and drain hoses can be directed to left or right. IMPORTANT The dishwasher can be connected to either cold or hot water, as long as it is no hotter than 60°C. - Page 7 The hose can be hooked over the side of Connecting the outlet hose the sink, but it must not be immersed in water, in order to prevent water from being syphoned back to the machine The outlet hose should disharge into a when this is in operation (fig.
-
Page 8: Loading The Salt
The salt dispenser has a capacity of LOADING THE SALT between 1.5 and 1.8 kg and, for efficient use of the appliance, it should be refilled The appearance of white stains on dishes from time to time according to the is generally a warning sign that the salt regulation of the water softener unit. -
Page 9: Loading The Dishes
ADJUSTMENT OF THE UPPER BASKET If 29 cm to 32.5 cm plates are normally used, load them onto the lower basket after the upper basket has been placed in its upper position and proceed as detailed below: 1. Pull out the upper basket; 2. -
Page 10: Loading Dishes
LOADING DISHES A standard daily load is represented in figs. 1, 2 and 3. Using the upper basket Upper basket (fig. 1) The upper basket is provided with A = soup plates mobile racks hooked to the sides of the B = dinner plates basket, which can be regulated into 4 C = dessert plates... -
Page 11: Using The Lower Basket
Upper basket (fig. 3) - POSITION “B”: for dishes which, although standard size, have a particular A = glasses shape (very deep bowls, square dishes B = saucers or ones without borders etc.). C = cups D = small bowl - POSITION “C”: for larger than average E = medium bowl flat plates and/or ones with non-... -
Page 12: Information For Test Laboratories
LABORATORIES Please ask information required for comparison testing and measuring noise levels, according to EN normative, to the following address: testinfo-dishwasher@baumatic.co.uk In the request, please specify model name and number of the dishwasher (see rating plate). Lower basket (fig. 8) -
Page 13: Loading The Detergent
LOADING THE DETERGENT The detergent IMPORTANT It is essential to use a detergent that is specifically designed for dishwashers either in powder, liquid or tablet form. After pouring the detergent into the container, close the lid, firstly pushing (1) and then “FINISH”... -
Page 14: Types Of Detergent
The effectiveness of detergents containing TYPES OF DETERGENT the built in water softener/salt depends on the hardness of your water supply. Detergent tablets Check that the hardness of your water supply is within the effective range given Detergent tablets of different manufacturers on the detergent packaging. -
Page 15: Loading The Rinse Aid
LOADING THE RINSE AID The rinse aid The rinse aid, which is automatically released during the last rinsing cycle, helps the dishes to dry quickly and prevents spots and stains forming. Filling the rinse aid container The rinse aid container can be found to the left of the detergent container (fig. -
Page 16: Cleaning The Filters
CLEANING THE FILTERS The filter system (fig.A “4”) consists of: a central container that traps the larger particles; a flat gauze that continuously filters the wash water; a micro filter, located beneath the gauze, that traps the tiniest particles ensuring a perfect rinse. - Page 17 PRATICAL HINTS How to make savings How to get really good wash If you want the dishwasher to give a complete wash, place the dishes in the results dishwasher at the end of each meal and if necessary turn on the COLD RINSE Before placing the dishes in the cycle to soften the food remains and dishwasher, remove any remaining...
-
Page 18: Cleaning And Maintenance
CLEANING AND MAINTENANCE To clean the dishwasher outside, do not use solvents (degreasing action) neither abrasives, but only a cloth soaked with water. The dishwasher does not require special maintenance, because the tank is self-cleaning. Regularly wipe the door gasket with a damp cloth to remove any food remains or rinse aid. -
Page 19: Description Of The Control Panel
DESCRIPTION OF THE CONTROL PANEL G H I A B C D E FM DIGITAL DISPLAY "DELAY START" indicator light "PROGRAMME SELECTION" button "OPTION SELECTION" light "DELAY START" button "ADAPTIVE WASH" lights "ALL IN 1" option button "SALT EMPTY" light "ADAPTIVE WASH"... -
Page 20: Programme Selection And Special Functions
PROGRAMME SELECTION Programme settings AND SPECIAL FUNCTIONS Open the door and place the dirty dishes inside the appliance. (Use in conjunction with programme guide) Press the "ON/OFF" button . The "ADAPTIVE WASH" buttons display will show two lines. Choose a programme by pressing the These buttons allow you to modify the "PROGRAMME SELECTION"... - Page 21 If there is any break in the power supply Programme interruption while the dishwasher is operating, a special memory stores the selected Opening the door when a programme is programme and, when the power is running is not recommended especially restored, it continues where it left off.
- Page 22 Alarm mute for the PROGRAMME "DELAY START" button The alarm for the programme end may be Dishwasher start time can be set with this muted as follows: button, delaying start from 1 to 23 hours. IMPORTANT Proceed as follows to set a delayed start: The dishwasher must ALWAYS be off before start of this procedure.
- Page 23 Memorization of the last 4. Press the same button again ("A1" will appear on the display to indicate that the programme used memorization is on). last programme used 5. Turn off the dishwasher by pressing the memorized by following the below: "ON/OFF"...
-
Page 24: Programme Guide
PROGRAMME GUIDE Wash with prewash For wash programmes with prewash, it is advisable to add a second dose of detergent (max. 10 g) directly in the machine. Programme Description Intended for extremely heavily soiled pans and any other items that have been left all day for washing. Hygienic 75°C Utilizing the additional power of the Triple Wash Zone. - Page 25 Avarage Special function Programme contents Check list duration buttons in minutes available • • • • • 75°C • • • • • 75°C • • • • • 65°C • • • • 70°C • • • • 60°C •...
- Page 26 AQUASTOP-SYSTEM The water-stop device protects against water damages caused by leaks on the fill hose which could develop due to natural ageing of the hose. In the water-stop system the leaking water fills the corrugated hose and activates a stop valve which cuts off the water supply to the machine. This fault is shown by a red sector on the window Would this occur, please refer to the Customer Care Department.
-
Page 27: Water Softener Unit
WATER SOFTENER UNIT * The softener unit is set in the factory at level 4 (d4) as this satisfies the requirements of the majority of users. Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the Regulate the setting of your water softener dishes leaving whitish stains and marks. -
Page 28: Identifying Minor Faults
IDENTIFYING MINOR FAULTS Should the dishwasher fail to operate, before contacting the Service Centre, make the following checks: FAULT CAUSE REMEDY Plug is not connected to wall Connect electric plug socket O/I button has not been pressed Press button 1 - Machine completely dead Door is open Close door No electricity... - Page 29 FAULT CAUSE REMEDY See causes for no. 5 Check Bottom of saucepans have not Burnt on food remains must been washed well be soaked before putting pans in dishwasher Edge of saucepans have not Reposition saucepans been washed well Spray arms are partially blocked Remove spray arms by unscrewing ring nuts clockwise and wash under running water...
- Page 30 1) The information on the label and fiche relates to the standard cleaning cycle, this programme is suitable to clean normally soiled tableware and it is the most efficient programme in terms of combined energy and water consumption. The standard cleaning cycle corresponds to the Eco cycle.
- Page 31 Unit 11, Beacontree Plaza Gillette Way Reading RG2 0BS Customer Care Telephone: (0884) 692 3605 Spare Parts Telephone: (0884) 692 3606 www.baumatic.co.uk...
- Page 32 Baumatic Part of Hoover Candy 11 Beacontree Plaza Gillette way Reading RG2 0BS www.baumatic.co.uk...
