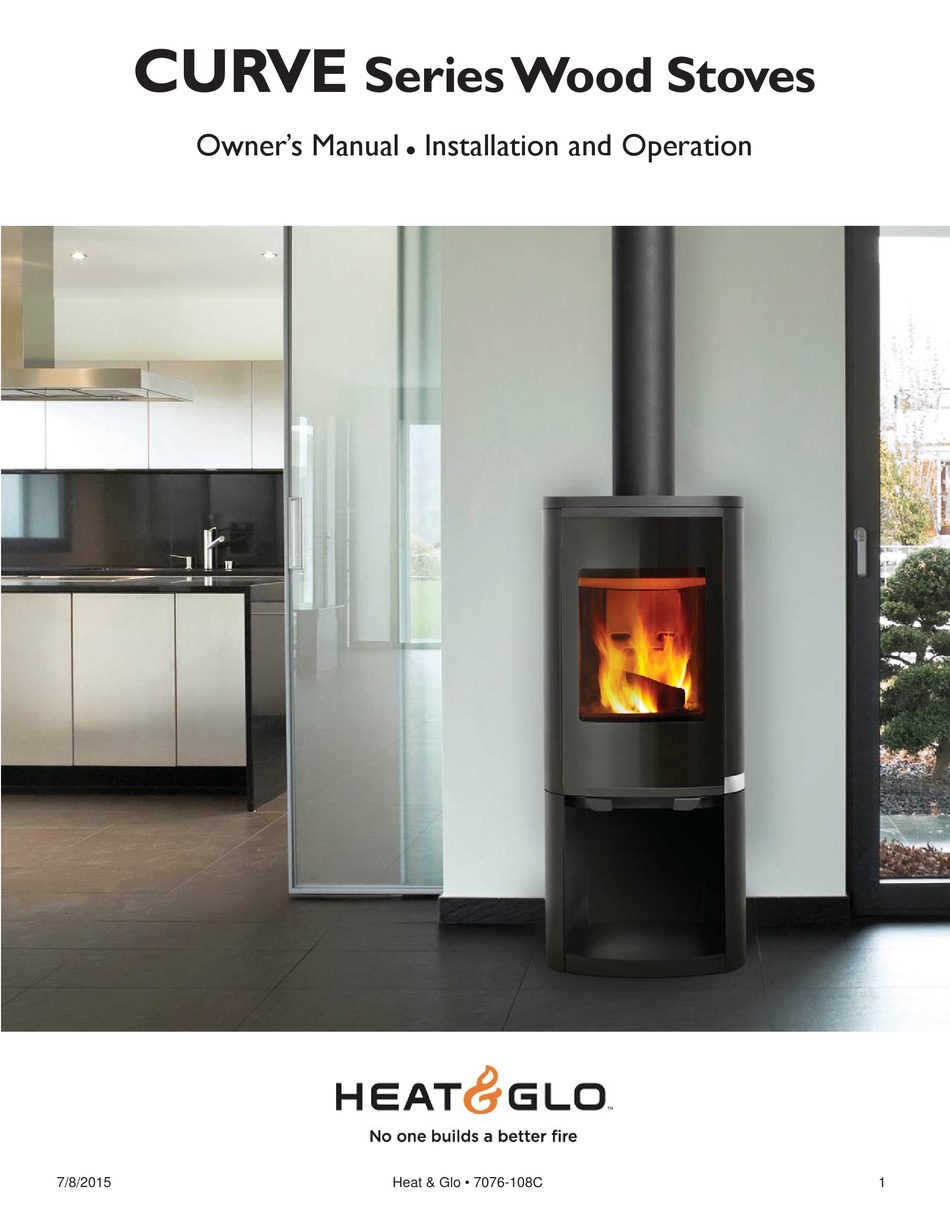

- Page 1 CURVE Series Wood Stoves Owner’s Manual Installation and Operation 7/8/2015 Heat & Glo • 7076-108C...
- Page 2 Curve Series and Welcome to the Heat & Glo Family Hearth & Home Technologies welcomes you to our tradition our stoves, inserts and fi replaces. And yet we are old-fash- of excellence! In choosing a Heat & Glo appliance, you have ioned when it comes to craftsmanship.
-
Page 3: Table Of Contents
Curve Series Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury. •... -
Page 4: Technical Data
Curve Series Technical Data A. Installation Technical data and dimensions The house owner is responsible for ensuring that all neces- Materials: steel plate, cast iron, galvanized sheet, skamol sary national and local safety measures are observed during Max. wood length: 25 cm installation and fi... -
Page 5: Installation & Assembly
Curve Series Installation & Assembly A. Positioning Your Wood Burning Stove the back panel so the fl ue attachment ring can slip through The wood burning stove must be set up so the stove, fl ue it. Attach the back panel back onto the appliance using connection, fl... -
Page 6: Leveling The Unit
Curve Series D. Leveling the Unit I. Removal of Curve from Pallet Four leveling bolts have come installed on the unit. Follow- 1. Remove the two 11 mm bolts holding the brackets in the ing installation, adjustments can be made to the heights of front and rear of the base on the unit, this requires holding the four bolts from the top of the base pan. -
Page 7: Dimensions & Clearances
Curve Series Dimensions & Clearances Curve 300 7/8/2015 Heat & Glo • 7076-108C... - Page 8 Curve Series Curve 100 Heat & Glo • 7076-108C 7/8/2015...
-
Page 9: Operation
Curve Series Operation A. General Use D. Fuels The Curve 100 Wood Stove is designed and tested for The Curve 100 wood stove is designed to burn a wide intermittent use. This means that it is not designed for or range of fi... - Page 10 Curve Series Lower intake holes Add paper to back repot making sure to not block lower air inlet with paper Add small pieces of wood on top of paper allowing for w between pieces Secondary Holes Add larger log on top of pile making sure it does not go above the upper intake holes Fig.
-
Page 11: Primary Air
Curve Series E. Primary Air G. Secondary Air (Lower Air Control) (Fig. 11.1) This unit is equipped with a secondary combustion system The primary air is controlled by the lever on the left side of that cannot be regulated. The purpose of this secondary the appliance. -
Page 12: Side Door Handle Operation
Curve Series this material is a high quality material specifi cally designed I. Side Door Handle Operation for wood burning appliances, it is subject to normal wear (Fig. 12.1) and tear and should be replaced if burn times are reduced To open the front door, pull the lever located on the blower or there is concern of leakage. -
Page 13: Chimney Systems
Curve Series Chimney Systems B. Drafting A. Chimney Systems A chimney or fl ue system is required to run your wood stove Weather and chimney location can affect the draft of your safely and effi ciently. When a fi re is started in the fi re box stove resulting in different performance settings. -
Page 14: Maintenance
Curve Series Maintenance A. Ash Drawer B. Refractory The fi rebox is lined with molded refractory fi rebrick. The (Figure 14.1) refractory protects the outside of the appliance and retains Before attempting any maintenance on the unit ensure the heat necessary for a clean effi cient burn. The material that the unit is cold and has no embers in the fi... -
Page 15: Troubleshooting
Curve Series Troubleshooting Smoke escaping • Inferior fi rewood (waste wood, pallets etc.) • Damp wood • Chimney not drawing suffi ciently • Chimney not drawing properly • Vacuum in room • Chimney is not properly dimensioned for the stove Excessive soot build-up in chimney •... -
Page 16: Warranty
WARRANTY COVERAGE AND PERIOD: HHT warrants that your Heat & Glo Curve Series wood stove will be free from defects in materials and work- manship at the time of manufacture. This warranty is subject to Conditions, Exclusions and Limitations described below. -
Page 17: Service Parts List
Curve Series Service Parts List CURVE-100G-HS Service Parts Beginning Manufacturing Date: June 2013 Wood Stove Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. - Page 18 Curve Series CURVE-100S-HS Service Parts Beginning Manufacturing Date: June 2013 Wood Stove Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
- Page 19 Curve Series CURVE-300G-HS Service Parts Beginning Manufacturing Date: June 2013 Wood Stove Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
- Page 20 Curve Series CURVE-300S-HS Service Parts Beginning Manufacturing Date: June 2013 Wood Stove Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
-
Page 21: Homeowner Notes
Curve Series Homeowner Notes 7/8/2015 Heat & Glo • 7076-108C... - Page 22 Curve Series Heat & Glo • 7076-108C 7/8/2015...
- Page 23 Curve Series 7/8/2015 Heat & Glo • 7076-108C...
- Page 24 CONTACT INFORMATION: Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES We recommend that you record the following pertinent information for your heating appliance Date purchased/installed: Serial Number: Location on appliance: Dealership purchased from: Dealer phone: Notes: This product may be covered by one or more of the following patents: (United States) 5341794, 5263471, 6688302, 7216645, 7047962 or other U.S.
