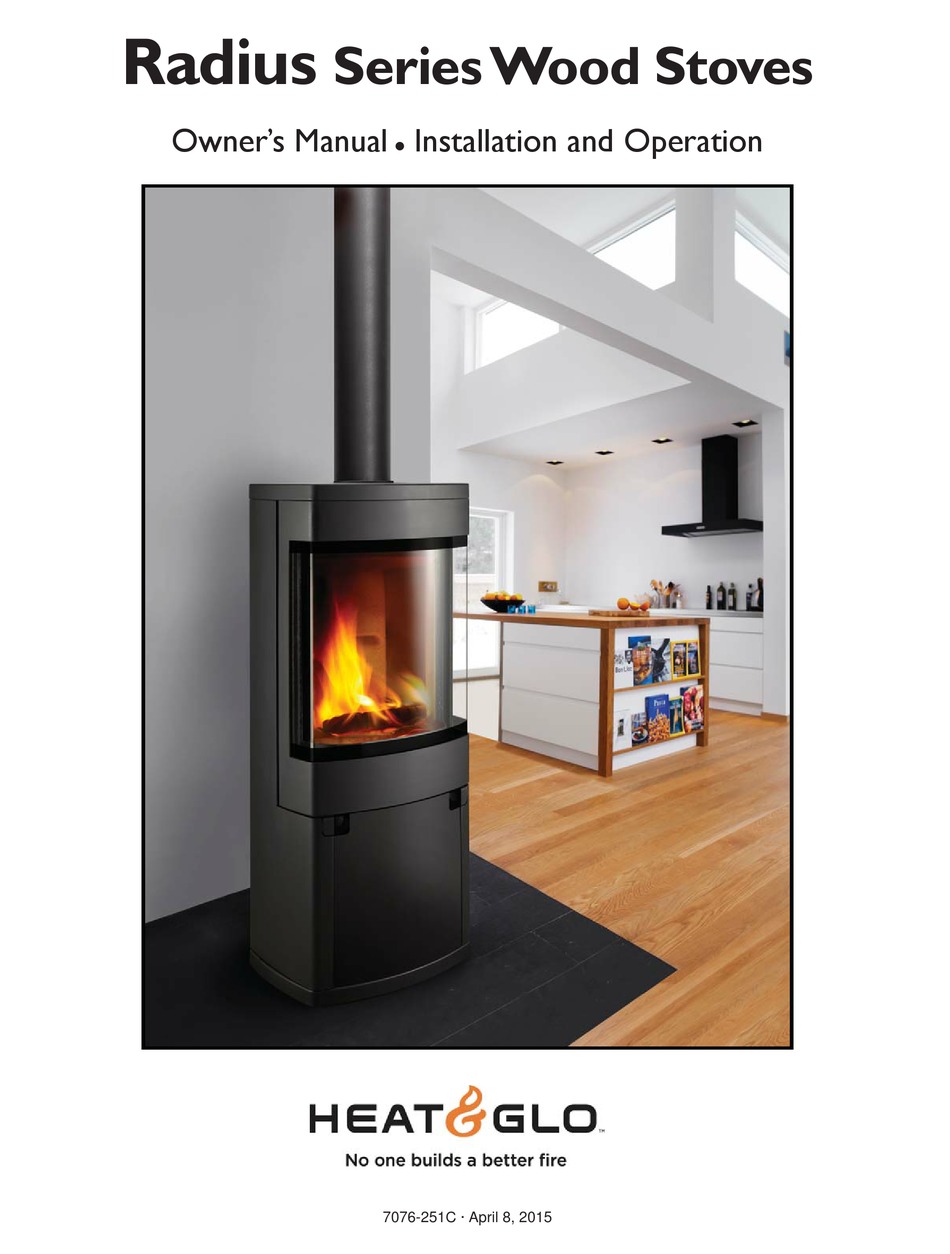

- Page 1 Radius Series Wood Stoves Owner’s Manual Installation and Operation 7076-251C · April 8, 2015...
- Page 2 Radius Series Page and Welcome to the Heat & Glo Family Hearth & Home Technologies welcomes you to our tradition our stoves, inserts and fi replaces. And yet we are old-fash- of excellence! In choosing a Heat & Glo appliance, you have ioned when it comes to craftsmanship.
-
Page 3: Table Of Contents
Page Radius Series Table of contents Technical data ....................4 Installation Safety Technical data and dimensions Dimension sketch for Radius - series Type plate Installation & Assembly................... 7 Positioning your wood burning stove Vertical Venting Horizontal Venting Leveling the Unit Position near to non-fl... -
Page 4: Technical Data
TECHNICAL DATA Page Installation Technical data and dimensions The house owner is responsible for ensuring that all neces- Materials: steel plate, cast iron, galvanized sheet, skamol sary national and local safety measures are observed during Max. wood length: 30 cm installation and fi... - Page 5 TECHNICAL DATA Page Dimension Sketch · Radius 100 Fig. 5.1: Front of Unit Fig. 5.2: Left Side Fig. 5.3: Right Side Fig. 5.5: Bottom of Unit Fig. 5.6: Top of Unit Fig. 5.4: Back of Unit 7076-251C · April 8, 2015...
- Page 6 TECHNICAL DATA Page Dimension Sketch · Radius 300 Fig. 6.1: Front of Unit Fig. 6.2: Side of Unit Fig. 6.4: Bottom of Unit Fig. 6.5: Top of Unit Fig. 6.3: Back of Unit 7076-251C · April 8, 2015...
-
Page 7: Installation & Assembly
INSTALLATION & ASSEMBLY Page A. Positioning Your Wood Burning Stove the same fasteners. Install the venting per the venting The wood burning stove must be set up so the stove, fl ue manufactures specifi cations. Place the top cover plate connection, fl... -
Page 8: Leveling The Unit
INSTALLATION & ASSEMBLY Page This unit is suitable for installation in a shared fl ue. Component Pack Leveling the Unit The component pack contains the following: Four leveling bolts have come installed on the unit. • Manual Following installation, adjustments can be made to the •... -
Page 9: Instruction For Use
Coals can hold heat for extended periods of time and may cause damage if The optimal size of fi rewood for the Radius Series wood improperly disposed of. stove is 25 cm long and 6 cm – 12 cm in diameter when split. - Page 10 INSTRUCTION FOR USE Page Fig.10: Proper Fill and Startup Confi guration Fig. 10.1: Add paper to back of fi repot making sure to not block lower air inlet with paper. Lower Intake Holes Fig. 10.2: Add small pieces of wood on top of paper allowing for air fl...
-
Page 11: Primary Air
INSTRUCTION FOR USE Page Primary Air (Lower Air Control) Secondary Air (holes in rear of fi rebox) This unit is equipped with a secondary combustion system (Figure 11.1) that cannot be regulated. The purpose of this secondary The primary air is controlled by the lever on the left side of system is to provide air that will mix with the combustion the appliance. -
Page 12: Front Door Handle Operation
INSTRUCTION FOR USE Page Front Door Handle Operation Front Door Seal The front door has a non-combustible rope which creates (Figure 12.1) a tight seal for the fi rebox. The fi rst time you open the To open the front door, pull the lever located on the front door and close it, the gasket may be stiff and the right side of the unit upwards (be sure to wear the glove door diffi... -
Page 13: Chimney System
INSTRUCTION FOR USE Page Chimney System Drafting A chimney or fl ue system is required to run your wood stove Weather and chimney location can affect the draft of your safely and effi ciently. When a fi re is started in the fi re box stove resulting in different performance settings. -
Page 14: Maintenance
MAINTENANCE Page Ash Drawer Removal of Radius refractory for (Figure 14) service or rear venting conversion Before attempting any maintenance on the unit ensure that Refractory that has been burned is fragile and must be the unit is cold and has no embers in the fi rebox. To access handled carefully to prevent breakage. -
Page 15: Baffl E Material
MAINTENANCE Page Baffl e Material 4. Lift Baffl e (Top piece) slightly and remove left and right sides then the Lower Back Refractory. There are two baffl e plates in the top of the unit. The purpose of these plates is to restrict and direct the combustion gases to allow for complete combustion of the gasses prior to exiting the fi... -
Page 16: Troubleshooting
TROUBLESHOOTING Page Smoke escaping • Damp wood • Inferior fi rewood (waste wood, pallets etc.) • Chimney not drawing properly • Chimney not drawing suffi ciently • Chimney is not properly dimensioned for the stove • Vacuum in room • Check if the smoke gas pipe/chimney are blocked Excessive soot build-up in chimney •... -
Page 17: Service Parts & Accessories
Service Parts & Accessories List Page RADIUS-100 Service Parts Beginning Manufacturing Date: Sept 2013 Wood Stove Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. ITEM DESCRIPTION COMMENTS... - Page 18 Service Parts & Accessories List Page RADIUS-300 Service Parts Beginning Manufacturing Date: Sept 2013 Wood Stove Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. ITEM DESCRIPTION COMMENTS...
-
Page 19: Warranty
WARRANTY COVERAGE AND PERIOD: HHT warrants that your Heat & Glo Radius Series wood stove will be free from defects in materials and workmanship at the time of manufacture. This warranty is subject to Conditions, Exclusions and Limitations described below. - Page 20 CONTACT INFORMATION: Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES We recommend that you record the following pertinent information for your heating appliance. Date purchased/installed: Serial Number: Location on appliance: Dealership purchased from: Dealer phone: Notes: This product may be covered by one or more of the following patents: (United States) 5341794, 5263471, 6688302, 7216645, 7047962 or other U.S.
