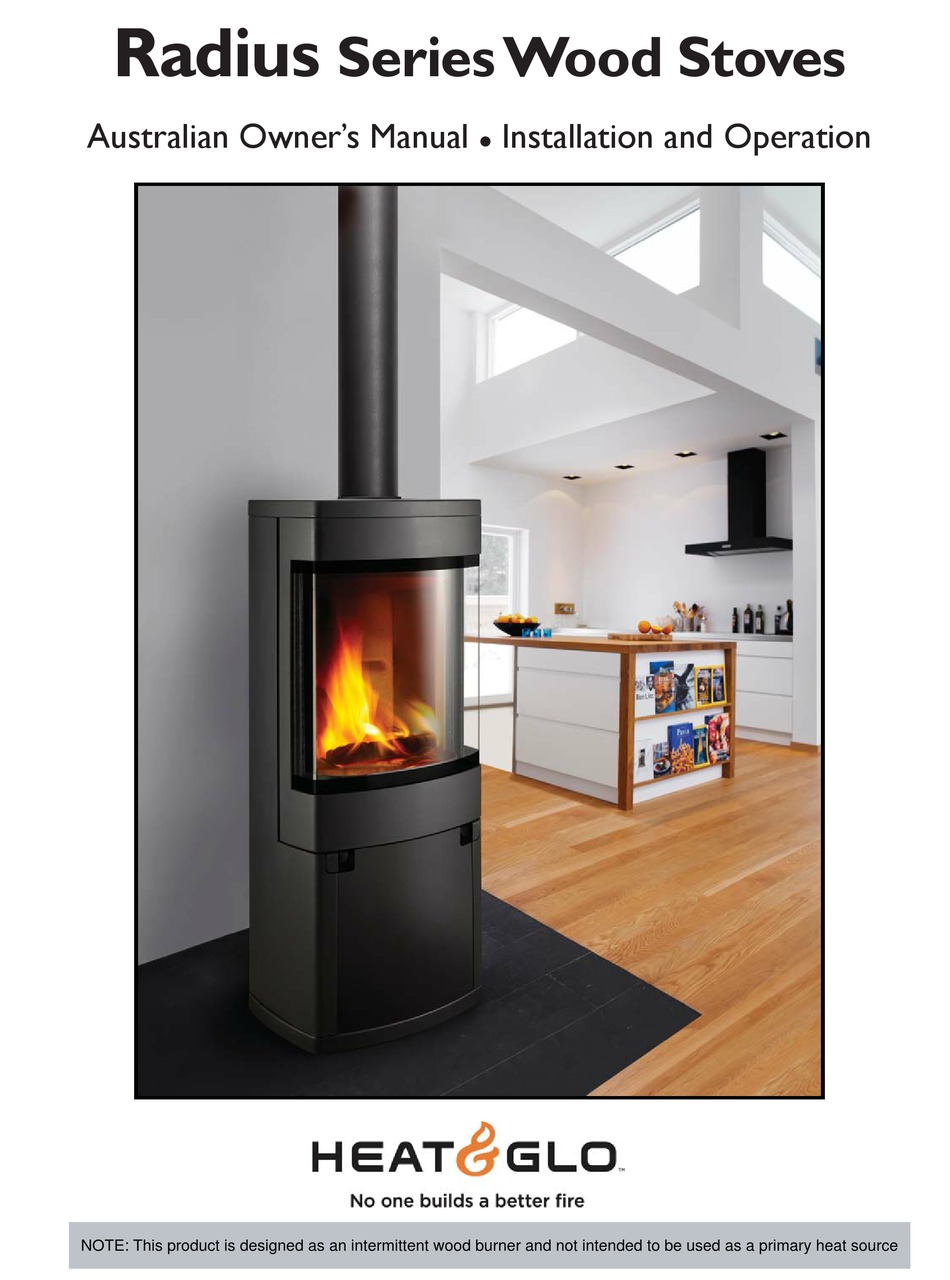

- Page 1 Radius Series Wood Stoves Australian Owner’s Manual Installation and Operation NOTE: This product is designed as an intermittent wood burner and not intended to be used as a primary heat source...
- Page 2 Radius Series Page and Welcome to the Heat & Glo Family Hearth & Home Technologies welcomes you to our tradition our stoves, inserts and fi replaces. And yet we are old-fash- of excellence! In choosing a Heat & Glo appliance, you have ioned when it comes to craftsmanship.
-
Page 3: Table Of Contents
Page Radius Series Table of contents Technical data ....................4 Installation Safety Technical data and dimensions Type plate Dimension sketch for Radius - series Installation & Assembly................... 7 Positioning your wood burning stove Vertical Venting Horizontal Venting Leveling the Unit Position near to non-fl... -
Page 4: Technical Data
TECHNICAL DATA Page Installation Technical data and dimensions The house owner is responsible for ensuring that all neces- Materials: steel plate, cast iron, galvanized sheet, skamol sary national and local safety measures are observed during Max. wood length: 30 cm installation and fi... - Page 5 TECHNICAL DATA Page Dimension Sketch · Radius 100 Fig. 5.1: Front of Unit Fig. 5.2: Left Side Fig. 5.3: Right Side Fig. 5.5: Bottom of Unit Fig. 5.6: Top of Unit Fig. 5.4: Back of Unit 7076-260B · April 8, 2015...
- Page 6 TECHNICAL DATA Page Dimension Sketch · Radius 300 Fig. 6.1: Front of Unit Fig. 6.2: Side of Unit Fig. 6.4: Bottom of Unit Fig. 6.5: Top of Unit Fig. 6.3: Back of Unit 7076-260B · April 8, 2015...
-
Page 7: Installation & Assembly
INSTALLATION & ASSEMBLY Page A. Positioning Your Wood Burning Stove the same fasteners. Install the venting per the venting The wood burning stove must be set up so the stove, fl ue manufactures specifi cations. Place the top cover plate connection, fl... -
Page 8: Leveling The Unit
INSTALLATION & ASSEMBLY Page This unit is suitable for installation in a shared fl ue. Component Pack Leveling the Unit The component pack contains the following: Four leveling bolts have come installed on the unit. • Manual Following installation, adjustments can be made to the •... -
Page 9: Instruction For Use
INSTRUCTION FOR USE Page General Use For the duration of this fi re keep both air controls in the completely open position to ensure hot burn to cure stove. The Radius Series Wood Stoves are designed and tested for intermittent use. This means that it is not designed for or recom- mended to burn continuously for 24 hours. - Page 10 INSTRUCTION FOR USE Page Fig.10: Proper Fill and Startup Confi guration Fig. 10.1: Add paper to back of fi repot making sure to not block lower air inlet with paper. Lower Intake Holes Fig. 10.2: Add small pieces of wood on top of paper allowing for air fl...
-
Page 11: Primary Air
INSTRUCTION FOR USE Page Primary Air (Lower Air Control) Secondary Air (holes in rear of fi rebox) This unit is equipped with a secondary combustion system (Figure 11.1) that cannot be regulated. The purpose of this secondary The primary air is controlled by the lever on the left side of system is to provide air that will mix with the combustion the appliance. -
Page 12: Front Door Seal
INSTRUCTION FOR USE Page the fi rebox through the air openings. When more air is Front Door Seal pulled into the fi re, the fi re burns hotter and is a cleaner The front door has a non-combustible rope which creates burn. -
Page 13: Maintenance
MAINTENANCE Page Ash Drawer Baffl e Material (Figure 13.1) There are two baffl e plates in the top of the unit. The Before attempting any maintenance on the unit ensure that purpose of these plates is to restrict and direct the the unit is cold and has no embers in the fi... - Page 14 MAINTENANCE Page Removal of Radius refractory for service or rear venting conversion Refractory that has been burned is fragile and must be handled carefully to prevent breakage. Remove Ash Drawer and set aside. 1. Using a pair of pliers; remove pin that secures the Firepot 2.
-
Page 15: Troubleshooting
TROUBLESHOOTING Page Smoke escaping • Damp wood • Inferior fi rewood (waste wood, pallets etc.) • Chimney not drawing properly • Chimney not drawing suffi ciently • Chimney is not properly dimensioned for the stove • Vacuum in room • Check if the smoke gas pipe/chimney are blocked Excessive soot build-up in chimney •... -
Page 16: Service Parts & Accessories
Service Parts & Accessories List Page RADIUS-100 Service Parts Beginning Manufacturing Date: Sept 2013 Wood Stove Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. ITEM DESCRIPTION COMMENTS... - Page 17 Service Parts & Accessories List Page RADIUS-300 Service Parts Beginning Manufacturing Date: Sept 2013 Wood Stove Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
-
Page 18: Warranty
WARRANTY Page AUSTRALIAN WARRANTY INFORMATION Hearth & Home Technologies Inc (HHT) 1445 N. Highway | Colville, WA 99114 | (509-684-3745) HHT extends the following manufacturer’s warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance will be free from defects in materials and workmanship at the time of manufacture. - Page 19 WARRANTY Page OTHER RIGHTS The HHT manufacturer’s warranty is in addition to other rights and remedies that you may have under Australian law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
- Page 20 CONTACT INFORMATION: Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES We recommend that you record the following pertinent information for your heating appliance. Date purchased/installed: Serial Number: Location on appliance: Dealership purchased from: Dealer phone: Notes: This product may be covered by one or more of the following patents: (United States) 5341794, 5263471, 6688302, 7216645, 7047962 or other U.S.
