Temblor
Active Studio Subwoofer
Owner's Manual
T10
®
®
www.presonus.com
English
Español
Deutsch
Français

Advertisement

Table of Contents
loading

Related Manuals for PRESONUS Temblor T10

Summary of Contents for PRESONUS Temblor T10

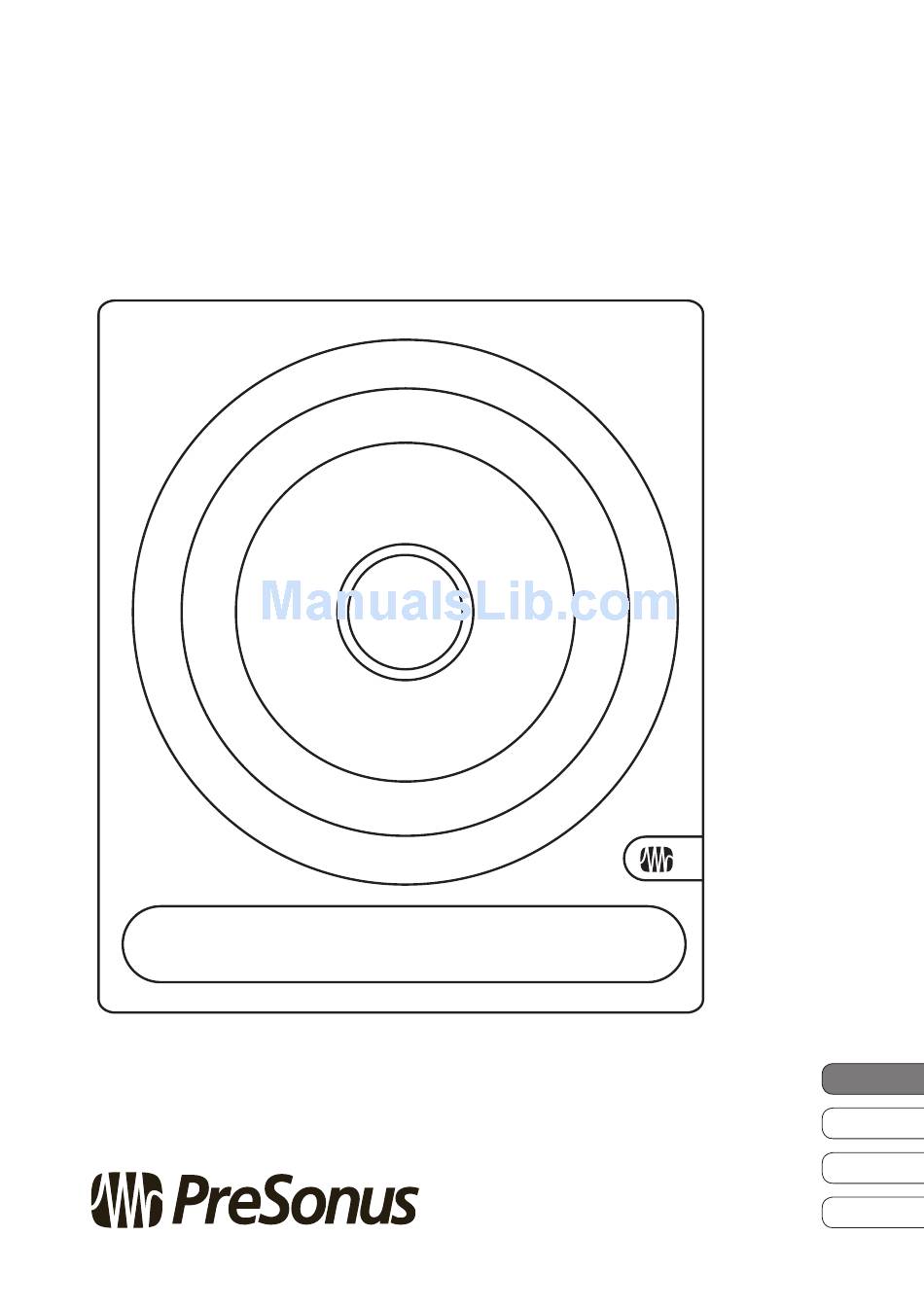

  • Page 1 Temblor ® Active Studio Subwoofer Owner’s Manual English Español Deutsch ® Français www.presonus.com...

  • Page 3: Table Of Contents

    Table of Contents Overview — 1 Introduction — 1 Summary of Temblor T10 Features — 2 What is in the box — 2 Hookup — 3 Rear-Panel Connections and Controls — 3 2.1.1 Inputs — 3 2.1.2 Outputs — 3 Power —...

  • Page 5: Overview

    SPL—with less power than a sealed-box design. Featuring a variable (50 to 130 Hz) lowpass filter, the Temblor T10 can be dialed in to pair perfectly with full-range studio monitors, making it the ideal solution for any 2.1 system.

  • Page 6: Summary Of Temblor T10 Features

    • Front-ported cabinet • Metal-mesh grille to protect driver What is in the box In addition to this manual, your Temblor T10 package contains the following: • (1) PreSonus Temblor T10 powered subwoofer • (1) IEC power cable • (1) Footswitch with cable...

  • Page 7: Hookup

    80 Hz are not sent from these outputs. Sub Out: This XLR Output sends the summed full-range input signal to a second Temblor T10. When connecting a second T10 to this output, set its Low Pass Filter control to the same setting as the first.

  • Page 8: Rear-Panel Connections And Controls

    AC Select Switch: The input-power voltage is set at the factory to correspond with the country to which it was shipped. Use this switch only if you are using your Temblor T10 in a country that uses a different standard voltage than is used in the country where you purchased your T10.

  • Page 9: Hookup Diagrams

    RFI, such as computers, laptop power supplies, and the like. Hookup Diagrams 2.2.1 Basic Setup 100 - 240 VAC 50-60Hz StudioLive 16.0.2 Temblor T10 Sceptre S6 (Right) Sceptre S6 (Left)

  • Page 10: 2.2.2 Advanced Setup

    Temblor-T10 Hookup Hookup Diagrams Owner’s Manual 2.2.2 Advanced Setup AudioBox 1818VSL Footswitch Temblor T10 (Master) Eris E8 (Right) Eris E8 (Left)
  • Page 11 Temblor-T10 Hookup Hookup Diagrams Owner’s Manual Temblor T10 (Slave)

  • Page 12: Tutorials

    EQs, compressors, and reverbs) have been bypassed. You’ll want a clean signal. Connect your studio monitors and Temblor T10 as shown in the hookup diagram in Section 2.2.1. 2. Turn your Temblor T10 and your full-range studio monitors’ input levels to their lowest setting.
  • Page 13 Owner’s Manual Play pink noise through your primary audio source’s outputs. You should not hear anything yet. Power User Tip: Some DAW applications, including PreSonus Studio One®, offer a tone generator for this purpose. If you’re mixing in a DAW application, use the built-in tone generator or load a sample audio file or plug-in.
  • Page 14 Hookup Diagrams Owner’s Manual 8. Turn your full-range monitors off. Begin slowly increasing the input volume on your Temblor T10 until the acoustic level of the pink noise reaches 79 dB SPL on your SPL meter when measured at mix position.

  • Page 15: Resources

    Resources Temblor-T10 Technical Specifications Owner’s Manual Resources Technical Specifications INPUTS 2- Balanced XLR 2- Balanced ¼” TRS 2- Unbalanced RCA OUTPUTS 2- Balanced XLR (full range with 80 Hz HPF option) 2- Balanced ¼” TRS (full range with 80 Hz HPF option) 1- Balanced XLR (Sub Out) PERFORMANCE Frequency Response...

  • Page 16: Block Diagram

    Resources Temblor-T10 Block Diagram Owner’s Manual POWER 100-120V ~50/60 Hz or 220-240V ~50/60 Hz CABINET Vinyl-laminated MDF PHYSICAL Width 12.60” (320 mm) Depth 15.75” (400 mm) Height 15.75” (400 mm) Weight 39.46 lbs (17.9 kg) Block Diagram Left RCA Input Left TRS Output Left TRS Input Left XLR Output...

  • Page 17: Troubleshooting

    Owner’s Manual Troubleshooting No power. First ensure that your Temblor T10 is plugged in. If it’s connected to a power conditioner, verify that the power conditioner is turned on and functioning. If it is, yet there is still no power to the monitor, contact PreSonus for a repair.

  • Page 18: Presonus Limited Warranty

    PreSonus reserves the right to update any unit returned for repair. PreSonus reserves the right to change or improve the design of the product at any time without prior notice. This warranty does not cover claims for damage due...
  • Page 19 XMAX are trademarks or registered trademarks of PreSonus Audio Electronics, Inc. Capture, Impact, Mixverb Presence, RedLightDist, SampleOne, Studio One, and Tricomp are trademarks or registered trademarks of PreSonus Software Ltd. Mac and Mac OS are registered trademarks of Apple, Inc., in the U.S. and other countries. Windows is a registered trademark of Microsoft, Inc., in the U.S.
  • Page 20 Temblor ® Active Studio Subwoofer Owner’s Manual 18011 Grand Bay Ct. • Baton Rouge, ® Louisiana 70809 USA• 1-225-216-7887 www.presonus.com...
