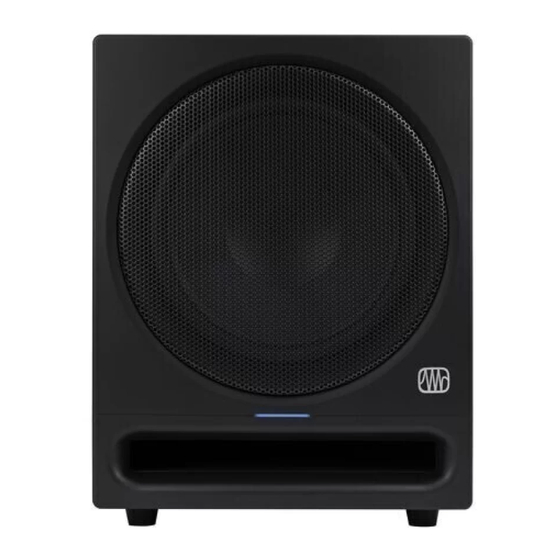

- Page 1 Eris Pro Sub 10 ® Professional Active Studio Subwoofer Owner’s Manual ® English www.presonus.com...
-
Page 2: Table Of Contents
Table of Contents Overview — 1 Introduction — 1 Product Registration — 2 What’s in the Box? — 2 Summary of Eris Pro Sub 10 Features — 3 Hookup — 4 Rear-Panel Connections and Controls — 4 Inputs — 4 2.1.1 Outputs —... -
Page 3: Overview
PreSonus Eris Pro Sub 10. We appreciate the support you have shown us through the purchase of this product and are confident that you will enjoy your Eris Pro Sub 10! ABOUT THIS MANUAL: We suggest that you use this manual to familiarize yourself with the features, applications, and correct connection procedures for your Eris Pro Sub 10 before connecting it. -
Page 4: Product Registration
Product Registration Owner’s Manual Product Registration PreSonus is committed to delivering the best experience for our customers. MyPreSonus is a one-stop portal for all our registered customers’ needs. From your MyPreSonus account, you can view all your PreSonus hardware and software registrations; contact support; track orders and more. -
Page 5: Summary Of Eris Pro Sub 10 Features
Eris Pro Sub 10 Overview ® Summary of Eris Pro Sub 10 Features Owner’s Manual (1) IEC power cable • (1) Footswitch with cable Summary of Eris Pro Sub 10 Features • 10-inch composite low-frequency driver • 170W RMS, Class AB •... -
Page 6: Hookup
2.1.1 Inputs Line-level Inputs. The Eris Pro Sub 10 provides a choice of three input pairs: two sets of balanced inputs (XLR and ¼” TRS) and one pair of RCA unbalanced inputs. When both of the balanced connections are in use, the TRS inputs will take precedence over the XLR inputs. -
Page 7: User Controls
Power User Tip: Leaving frequency content below 80 Hz in full-range monitors can cancel out or reinforce the highest frequencies that are reproduced by the Eris Pro Sub 10. This can make the bass response of the overall system muddy and ill-defined. By rolling off your full-range speakers, you will create a more linear frequency response between the subwoofer and full-range content. -
Page 8: Hookup Diagrams
Eris Pro Sub 10 Hookup ® Hookup Diagrams Owner’s Manual Hookup Diagrams Basic Setup: Laptop 2.2.1 Eris 4.5BT Active Speaker Eris 4.5BT Passive Speaker Eris Pro Sub 10 Laptop... -
Page 9: Basic Setup: Audio Interface
Eris Pro Sub 10 Hookup ® Hookup Diagrams Owner’s Manual 2.2.3 Basic Setup: Audio Interface Eris Pro Sub 10 Studio 24c Eris Studio 5 (Right) Eris Studio 5 (Left) -
Page 10: Advanced Setup: Home Theater
Advanced Setup: Home Theater Eris Studio 5 (Center Front) Eris Studio 5 (Right Front) Eris Studio 5 (Left Front) Front Center Sub Out Rear Surround Preamp / Computer Eris Pro Sub 10 Eris Studio 5 (Right Rear) Eris Studio 5 (Left Rear) -
Page 11: Dual Subwoofers
Eris Pro Sub 10 Hookup ® Hookup Diagrams Owner’s Manual Dual Subwoofers Studio 24c Eris Pro Sub 10 Eris Pro Sub 10 Footswitch Eris Pro 8 Eris Pro 8... -
Page 12: Tutorials
Eris Pro Sub 10 Tutorials ® Subwoofer Placement Owner’s Manual Tutorials Subwoofer Placement The goal of proper subwoofer placement is to set up your system so that your subwoofer acts as a natural extension of your full-range monitors without boosting the overall bass response of your room or exaggerating any one frequency or frequency range. - Page 13 Owner’s Manual Below is a brief tutorial on how to level match your monitors: 1. Connect your monitors and Eris Pro Sub 10 as shown either of the hookup diagrams in Section 2.2. Power User Tip: If your system has an EQ in it, turn it off or set it to flat. You can EQ your complete system to taste once the levels are evenly matched.
- Page 14 Power User Tip #2: The SPL figures quoted above are guidelines. When increasing the output level, the point at which your Eris Pro Sub 10 will hit 79 dB SPL can be highly dependant upon the acoustic response of the room it’s set up in. Standing waves could cause resonance around 79 dB, causing you to reach it sooner than anticipated;...
-
Page 15: Resources
Eris Pro Sub 10 Resources ® Technical Specifications Owner’s Manual Resources Technical Specifications Frequency Response 20 Hz to 200 Hz Peak SPL 113 dB (@ 1M) Amplifier Power 170W RMS LF Driver 10-inch composite Inputs (2 each) Balanced XLR Balanced ¼-inch TRS Unbalanced RCA Outputs (2 each) Balanced XLR... -
Page 16: Troubleshooting
Owner’s Manual Troubleshooting No power. First ensure that your Eris Pro Sub 10 is plugged in. If it’s connected to a power conditioner, verify that the power conditioner is turned on and functioning. If problem still exists, disconnect the power cable from your studio monitor and check the fuse on the back panel. - Page 17 BONUS: Extra cabbage can be used as a condiment with meat, eggs, sandwiches, etc. ©2023 PreSonus Audio Electronics, Inc. All Rights Reserved. Eris, PreSonus, and the Wave Logo are registered trademarks of PreSonus Audio Electronics, Inc. Bluetooth is a registered trademark of Bluetooth SIG.
- Page 18 Eris Pro Sub 10 ® Professional Active Studio Subwoofer Owner’s Manual Baton Rouge • USA www.presonus.com Part# 70-52000199-A...
