Summary of Contents for Chauvet D-Fi HUB

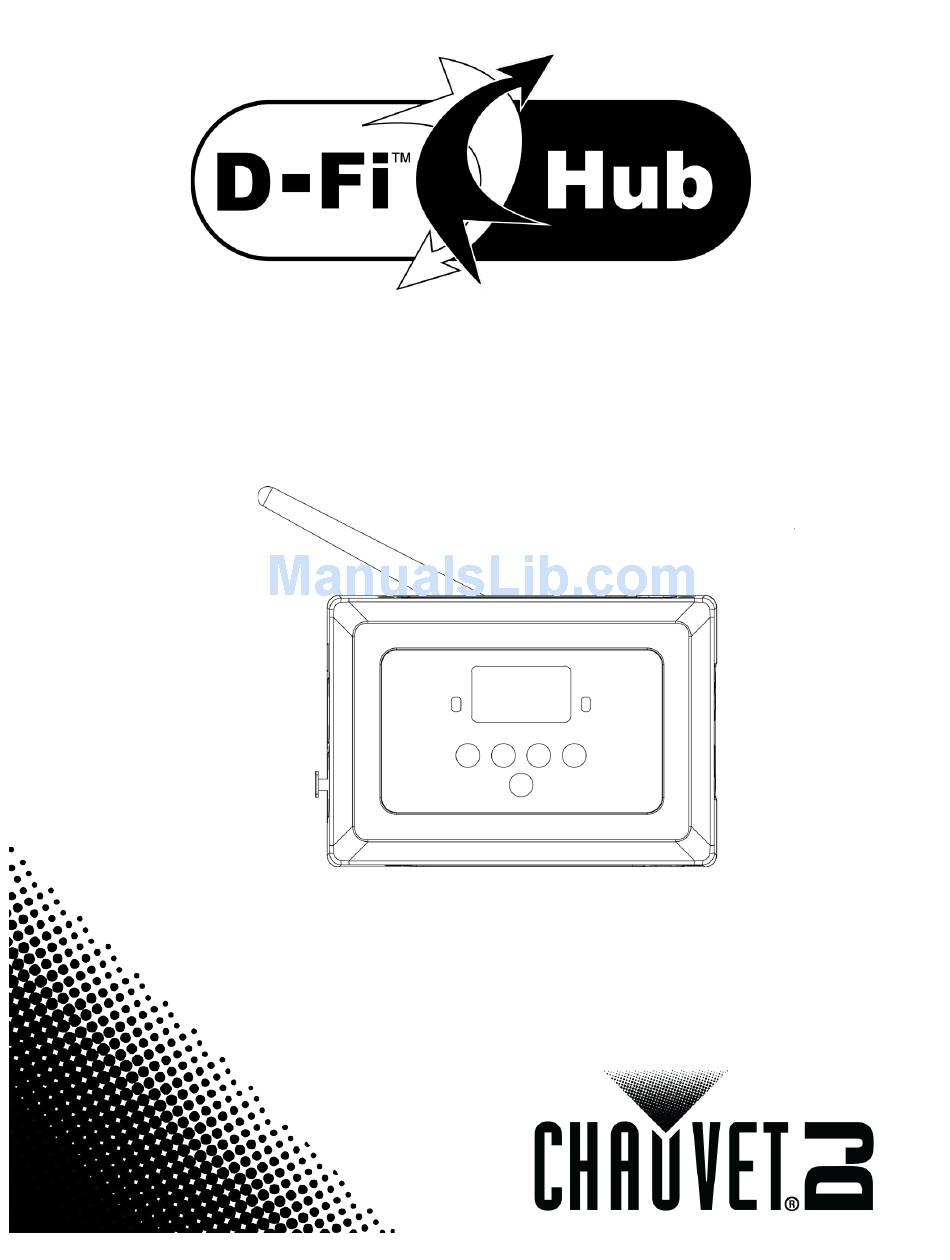

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before you Begin ........................ 3 What Is Included ............................ 3 Unpacking Instructions .......................... 3 Claims ................................3 Text Conventions ........................... 3 Symbols ..............................3 Disclaimer .............................. 3 Product at a Glance ..........................4 Safety Notes ............................4 2. -
Page 3: Before You Begin
Chauvet assumes no responsibility or liability for any errors or omissions that may appear in this manual. Chauvet reserves the right to update the existing document or to create a new document to correct any errors or omissions. -
Page 4: Product At A Glance
Use on Dimmer Auto Programs Product at a 9 VDC, 500 mA Glance Outdoor Use (100 to 240 VAC, 50/60 Hz) Sound-Activated Replaceable Fuse User-Serviceable Master/Slave Duty Cycle Safety Notes Please read the following Safety Notes carefully before working with this product. They include important safety information about its installation, usage, and maintenance. -
Page 5: Introduction
2. I NTRODUCTION Product Overview Antenna Right View Antenna Storage Left View Display and Control Buttons DC Power In DMX In DMX Out D-Fi™ Hub User Manual Rev. 1 Page 5 of 12... -
Page 6: Product Dimensions
Product Dimensions 3.2 in 82 mm (Mounting Holes) 4 in 102 mm 2 in 50 mm 1.6 in 41 mm 3.3 in 84 mm Page 6 of 12 D-Fi™ Hub User Manual Rev. 1... -
Page 7: Setup
3. S ETUP AC Power This product has an auto-ranging external power supply and it can work with an input voltage of 100 to 240 VAC, 50/60 Hz. It runs on 9 VDC, 500 mA. To determine the power requirements for this product (power outlet and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Operation
4. O PERATION Control Panel To access the control panel functions, use the four buttons located around the display. Please refer to the Product Overview to see the buttons location on the control panel. Operation Button Function Press to find an operation mode or to back out of the current menu <MENU>... -
Page 9: Programming And Signal Selection
The hub is now configured for manual signal reception. NOTE: The controller must be set to the D-Fi™ channel shown on the hub’s display. Information about using D-Fi™ lights and controllers is in the product manuals at the Chauvet website http://www.chauvetlighting.com/product-manuals-literature/. Information about CHAUVET®... -
Page 10: Technical Information
5. T ECHNICAL NFORMATION Technical Specifications Length Width Height Weight Dimensions and Weight 4 in (102 mm) 3.2 in (82 mm) 1.6 in (41 mm) 1.2 lb (0.6 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Input Voltage... -
Page 11: Returns
Contact Us). · If you live in any other country, DO NOT contact Chauvet. Instead, contact your distributor of record. Refer to our Web site for contact details of distributors outside the US, United Kingdom, or Ireland. If you live outside the U.S., United Kingdom, or Ireland, contact your distributor of record and follow their instructions on how to return Chauvet products to them. -
Page 12: Contact Us
+52 (728) 285-5000 Outside the U.S., United Kingdom, Ireland, or Mexico, contact the dealer of record and follow their instructions to request support or to return a product. Visit the Chauvet website for contact information. Page 12 of 12 D-Fi™ Hub User Manual Rev. 1...
