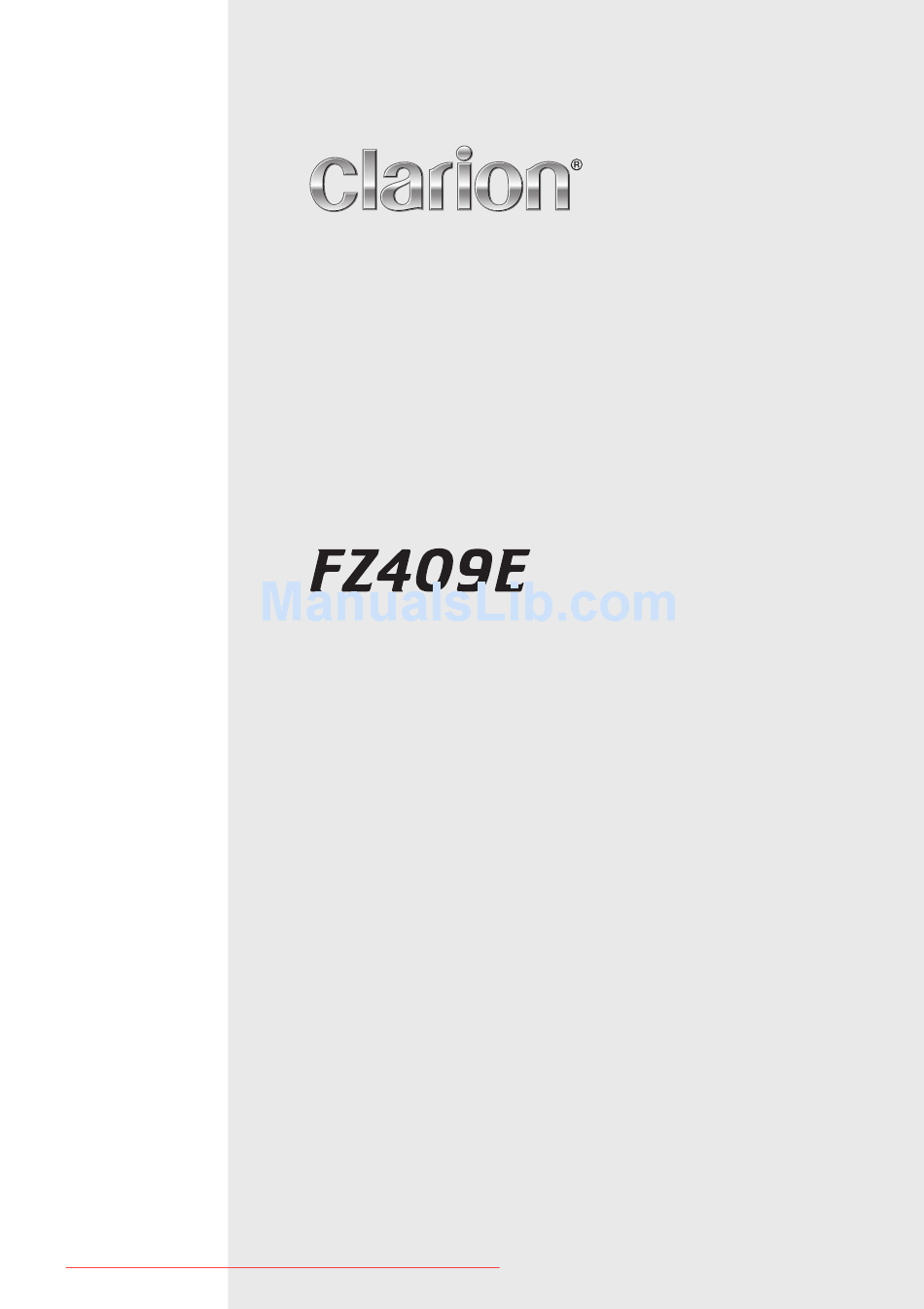

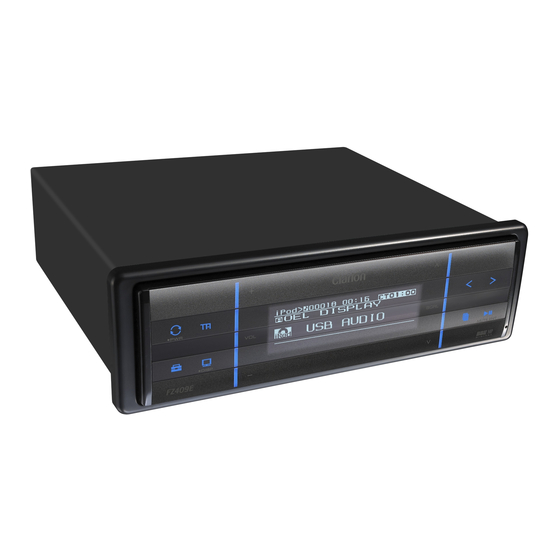

- Page 1 Owner’s manual Mode d’emploi Bedienungsanleitung Istruzioni per l’uso Gebruiksaanwijzing Manual de instrucciones Bruksanvisning Manual de instruções USB/MP3/WMA/AAC RECEIVER RÉCEPTEUR USB/MP3/WMA/AAC USB/MP3/WMA/AAC EMPFÄNGER RICEVITORE USB/MP3/WMA/AAC USB/MP3/WMA/AAC RECEIVER RECEPTOR DE USB/MP3/WMA/AAC USB/MP3/WMA/AAC-RECEIVER RECEPTOR DE USB/MP3/WMA/AAC Downloaded from Caradio-Manual.com Manuals...
- Page 2 English Nederlands Thank you for purchasing this Clarion product. Hartelijk bedankt voor de aankoop van dit Clarion- product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ Lees a.u.b. deze gebruiksaanwijzing compleet door, alvorens dit apparaat in gebruik te nemen.
-
Page 3: Table Of Contents
The use of apparatus in moderate climates. Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752, 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 4: Precautions
Volgende pagina uitvouwen en doorlezen a.u.b. / Cerciórese de desplegar y de leer la página siguiente. Glöm inte att vika ut och läsa nästa sida. / Não deixe de abrir e ler a próxima página. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 5: Controls
Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen. Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 6: Nomenclature
Switch the band, or seek tuning or manual tuning while in the Radio mode. Switch to List Search, or Top folder while in the USB mode. Switch between last menu level and Play display, or Top iPod menu while in the iPod mode. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 7: Slider's Key Operation
] will to will decrease volume con- scroll down items continu- tinuosly. osly. Touch and release [ Touch and release [ once will decrease the once will scroll down items volume 1 step. 1 step. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 8: Display Items
A descending line across the screen will be displayed regularly to prevent OEL Display burn-in. Please note that these are not hardware/software failures as it happens to be the structure of the organic electro-luminescence display. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 9: Remote Control ( Optional Item )
Do not subject battery to heat, or dispose of in fire or water. Do not attempt to disassemble the battery. 4. Replace the cover and slide in until it clicks Dispose of used batteries properly. into place. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 10: Functions Of Remote Control Unit Buttons
1 second or longer to perform folder random play. perform folder random play. ∗ Some of the corresponding buttons on the main unit and remote control unit have different functions. ∗ TV/VTR is not supported in this model. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 11: Operations
30 seconds and the display returns to the screen saver display. For details, refer to the subsection “Turning the screen saver function on or off” in section “Common Operations”. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 12: Sound Adjustments
EXCITE : Bass and treble emphasized mid emphasized CUSTOM : User custom When “BASS BOOST”/“IMPACT”/ “EXCITE” is set: “BASS BOOST”/“IMPACT”/“EXCITE” will appear after the “BEAT EQ” item in the sound Adjust- ment mode. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 13: Adjusting The Bass
F : “50Hz” ( Adjustment range: 50/100/200 ) Q : “1.0” ( Adjustment range: 0.7/1.0/1.4/2.0 ) After completing settings, touch the [ ENT ] - 5 . key to return to the 1 selected item. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 14: Adjusting The Treble
) Process improves digitally compressed sound, such as MP3, by restoring and enhancing the harmonics lost through compression. BBE MP works by regenerating harmonics from the source material, effectively recovering warmth, detail and nuance. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 15: Setting The Subwoofer
- 1 . Touch [ ] key to enter detail setting stage. - 2 . Slide along [ ] slider or touch [ ] / [ - 3 . key to increases or decreases the subwoofer volume. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 16: Radio Mode Operations
When the [ ] key is touched, search will be per- formed in the direction of lower frequencies. ∗ When seek tuning starts, “DX SEEK” appears in the display. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 17: Auto Store
3. Touch [ ENT ] key to recall the stored radio nel. frequency. When a desired station is tuned in, touch - 3 . the [ ] / [ ] key to continue receiving that station. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 18: Radio Data System Operations
] slider to set the volume to the desired level ( 0 to 33 ) . ∗ When the TA, ALARM or PTY interrupt ends, the volume returns to the level it had before the inter- rupt. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 19: Selecting Pty
Document Documentaries “PTY” in the display goes off and PTY standby mode is cancelled. ∗ During PTY list, if no operation is performed for 7 seconds, the display will return to 1 “PTY SELECT” item. Downloaded from Caradio-Manual.com Manuals FZ409E... - Page 20 When this func- tion is OFF, if the regional station area switches as you drive, a regional station for that region is received. ∗ The factory default setting is “OFF”. Downloaded from Caradio-Manual.com Manuals FZ409E...
-
Page 21: Usb Operations
( the actual playback order may not be the same as that indicated on your computer’s display ) . If you continuously operate folder up/down, the play time keeps as “00:00”, and the sound is not emitted. Downloaded from Caradio-Manual.com Manuals FZ409E... - Page 22 file extension) will be displayed in capital let- tions can be played: ters. AAC files encoded with iTunes. iTunes Ver. 7.0 or earlier. File extension “.m4a” ( “.M4A” ) Tracks purchased at an iTunes Music store, and copyright-protected files cannot be played. Downloaded from Caradio-Manual.com Manuals FZ409E...
-
Page 23: Selecting A Track
∗ The order in which tracks are recorded may differ depending on the device connected (the actual playback order may not be the same as that indicated on your computer’s display). Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 24: Repeat Play
“TRACK”. selected item. Touch the [ ENT ] key, “TRACK SCAN” will be lights in the display. - 4 . - 5 . displayed for 2 seconds before return to the selected item. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 25: Ipod Operations
For a list of compatible Apple iPod unit with the this Touch the [ ENT ] key, “TRACK RANDOM” will - 4 . model, please contact your Clarion dealer or www. be displayed for 2 seconds before return clarion.com. the 1 selected item. -
Page 26: Ipod Operations
When playing the last track within a selected light in the display. - 5 . category in Random mode, if ACC is switched off then on again, playback will begin from a different track. Downloaded from Caradio-Manual.com Manuals FZ409E... - Page 27 ∗ During search, touch the [ ENT ] key to cancel key will return to the currently playing search. folder name display. 8. Slide along [ ] slider or touch [ ] / [ ] key to select a track within a category. Downloaded from Caradio-Manual.com Manuals FZ409E...
- Page 28 “ON” or “OFF”. To operate iPod contents from iPod. To operate iPod contents from this unit. After completing settings, touch the [ ENT ] - 4 . key to return to the 1 selected item. Downloaded from Caradio-Manual.com Manuals FZ409E...
-
Page 29: Common Operations
After the locking peroid, “OFF”. "INPUT 0000" will be displayed again. For mistakes less than 7 times, the locking time will be 15 seconds; from 7 time onwards, the locking time will be 15 minutes. Downloaded from Caradio-Manual.com Manuals FZ409E... - Page 30 30 seconds and the display returns to the screen saver display. ∗ The factory default setting is “ON”. Note: White down your personal code in case you forget Downloaded from Caradio-Manual.com Manuals FZ409E...
- Page 31 ∗ The factory default setting is “OFF”. Select “BLINKING LED”. - 1 . Touch [ ] key to enter detail setting stage. - 2 . Touch the [ ] / [ ] key to select “ON” or - 3 . “OFF”. Downloaded from Caradio-Manual.com Manuals FZ409E...
- Page 32 This unit requires hands-free kit that supports [ AUX ] input as a source of cellular phone audio 2. Select OPTION in the menu to enter AUX OP- input. Please consult your local authorized Clarion TION mode. dealer for more information on the hands free kit 3.
-
Page 33: Troubleshooting
Can’t insert the device. The device has been Try reversing the connection direction of the inserted improperly. device (usually the brand name surface should be facing left). The connector is broken. Replace with a new device. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 34: Error Displays
Over current detection. Disconnect the devices and reconnect. If the devices are still not recognized, try replacing with a different devices. HUB ERR Do not support the HUB devices. Do not use the HUB devices. Downloaded from Caradio-Manual.com Manuals FZ409E... -
Page 35: Specifications
8-320 kbps Folder Level Limit: 8 Level Folder Support: 512 File Support: 255 per folder Total File Support: 130560 Folder Name: Maximum 64 single bytes alphabetical letters File Name: Maximum 64 single bytes alphabetical letters Downloaded from Caradio-Manual.com Manuals FZ409E... - Page 36 Clarion Co., Ltd. All Rights Reserved. Copyright © 2009: Clarion Co., Ltd. PE-8504-E Printed in Malaysia / Imprimé en Malaisie / Gedruckt in Malaysia / Stampato in Malaysia 280-8769-01 Gedrukt in Maleisi / Impreso en Malasia / Tryckt i Malaysia / Impresso na Malásia...
