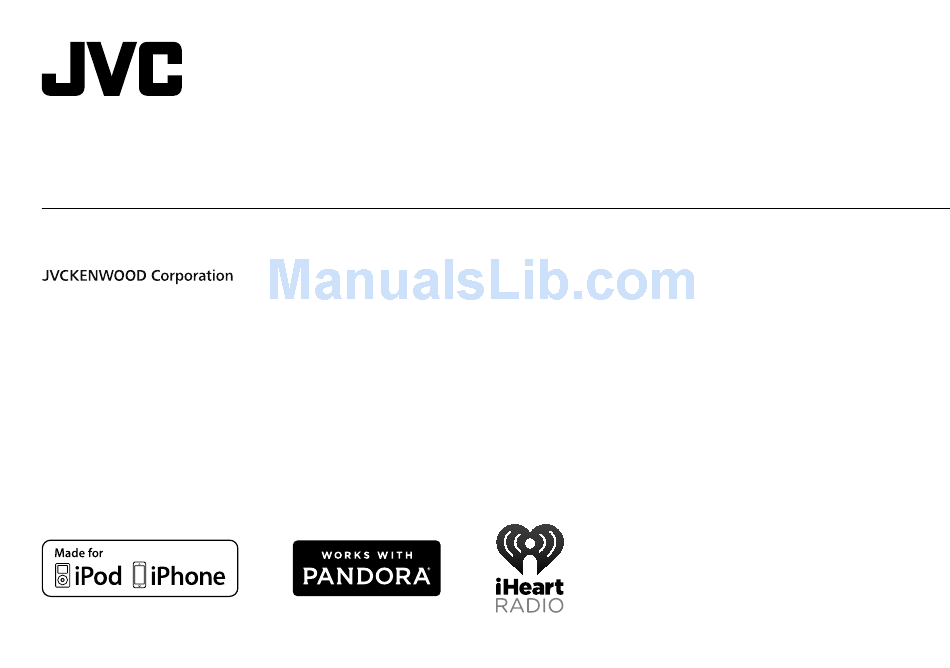

Page 1: Instruction Manual
ENGLISH KD-R661 / KD-R561 / KD-R466 / KD-R461 CD RECEIVER Please read all instructions carefully before INSTRUCTION MANUAL operation to obtain the best possible performance from the unit. B5A-0106-00 [U/UI]... -
Page 2: Table Of Contents
General: • Avoid using the external device if it might hinder safe driving. Pandora® (for KD-R661) (Applicable for • Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data. Australia or New Zealand models only) •... -
Page 3: Basics
BASICS Faceplate Remote control (RM-RK52) Attach Remote sensor (Do not expose Display window to bright sunlight.) KD-R561 KD-R561 KD-R466 KD-R461 Volume knob Detach (turn/press) Loading slot Pull out the insulation sheet when using for the first time. How to reset How to replace the battery Detach KD-R561... -
Page 4: Aux
ON: Enables SW2 in source selection. ; OFF: Disables. Press and hold Turn the volume knob to select [DEMO], then press the knob. PANDORA * (For KD-R661) Turn the volume knob to select [DEMO OFF], then press the knob. ON: Enables PANDORA in source selection. ; OFF: Disables. Press to exit. -
Page 5: Usb/Ipod/Android
Do not leave the cable inside the car when not using. When connecting an Android device, “Press [VIEW] to install JVC MUSIC PLAY APP” is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. - Page 6 Quick Search repeatedly. If you have many files, you can search through them quickly. AUTO MODE: Control from the unit (using JVC MUSIC For MP3/WMA/WAV or JPC / JMC file: PLAY application). Turn the volume knob quickly. AUDIO MODE: Control other media player applications...
-
Page 7: Radio
RADIO Other settings Press and hold Turn the volume knob to select [TUNER], then press the knob. Turn the volume knob to make a selection (see the following table), then press the knob. Repeat step until the desired item is selected/ “ST”... - Page 8 RADIO Default: XX Use a portable audio player Connect a portable audio player (commercially available). LOCAL SEEK* ON: Searches only stations with good reception. ; OFF: Cancels. • Settings made are applicable only to the selected source/station. Once 3.5 mm stereo mini plug with “L” shaped connector you change the source/station, you need to make the settings again.
-
Page 9: (For Kd-R661) (Applicable For Australia Or New Zealand Models Only)
Pandora® (for KD-R661) (Applicable for Australia or New Zealand models only) Preparation: Create and save a new station Install the latest version of the Pandora application on your device Press (iPhone/ iPod touch), then create an account and log in to Pandora. -
Page 10: Iheartradio
(for KD-R661) (Applicable for Australia or New Zealand models only) Preparation: Search for a station Install the latest version of iHeart Link for JVC application on your device (iPhone/ iPod Press touch), then create an account and log in to iHeartRadio. -
Page 11: Audio Settings
AUDIO SETTINGS Default: XX On the faceplate EQ SETTING Select a preset Press repeatedly. equalizer EQ PRESET FLAT / HARD ROCK / JAZZ / POP / R&B / TALK / USER1 / USER2 / Press , then turn the volume knob VOCAL BOOST / BASS BOOST / CLASSICAL / DANCE: Selects a preset within 2 seconds. equalizer. Preset equalizer: FLAT (default), HARD ROCK, JAZZ, POP, R&B, TALK, USER1, USER2, VOCAL BOOST, BASS BOOST, 1 USER1/ USER2: Select a preset name. - Page 12 AUDIO SETTINGS AUDIO D.T.EXP ON: Creates realistic sound by compensating the high-frequency (Digital Track components and restoring the rise-time of the waveform that are lost in BASS BOOST +01 / +02: Selects your preferred bass boost level. ; OFF: Cancels. Expander) audio data compression. ; OFF: Cancels. LOUD 01 / 02: Boosts low or high frequencies to produce a well-balanced TEL MUTING *...
-
Page 13: Display Settings
DISPLAY SETTINGS SCROLL * ONCE: Scrolls the display information once. ; AUTO: Repeats scrolling at KD-R661 / KD-R466 / KD-R461 KD-R561 5-second intervals. ; OFF: Cancels. COLOR (for KD-R561) PRESET Select a color for [BUTTON ZONE]. Default: [COLOR 06] • COLOR 01 to COLOR 29 Press and hold • USER: The color you have created for [DAY COLOR] or [NIGHT COLOR] is Turn the volume knob to make a selection (see the following table), shown. -
Page 14: More Information
• If some operations are not performed correctly or as this unit. It depends on the disc format used (includes 4 extension intended, visit: <http://www.jvc.net/cs/car/>. characters—<.mp3> or <.wma>). - ISO 9660 Level 1 and 2: 32 characters - Romeo: 32 characters... -
Page 15: Troubleshooting
Control. • Check the cords and connections. • When you play audio file with song data added using the JVC Playlist Creator or JVC Music Control, you can search for audio file by Genres, Artists, Albums, Playlists, and Songs. “MISWIRING CHECK Turn the power off, then check to be sure the terminals of •... - Page 16 ( 14) the web version of iHeartRADIO, custom stations become unavailable. Cannot playback at • Make sure JVC MUSIC PLAY APP is installed on the Android [AUTO MODE]. device. ( 5) “CREATE ERR”...
-
Page 17: Specifications
SPECIFICATIONS FM Frequency Range 87.5 MHz — 108.0 MHz (50 kHz step) USB Standard USB 1.1, USB 2.0 (Full speed) Usable Sensitivity 8.2 dBf (0.71 μV/75 Ω) Compatible Devices Mass storage class (S/N = 26 dB) File System FAT12/ 16/ 32 Quieting Sensitivity 17.2 dBf (2.0 μV/75 Ω) Maximum Supply Current DC 5 V 1 A (DIN S/N = 46 dB) MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 Frequency Response (±3 dB) 30 Hz —... -
Page 18: Basic Procedure

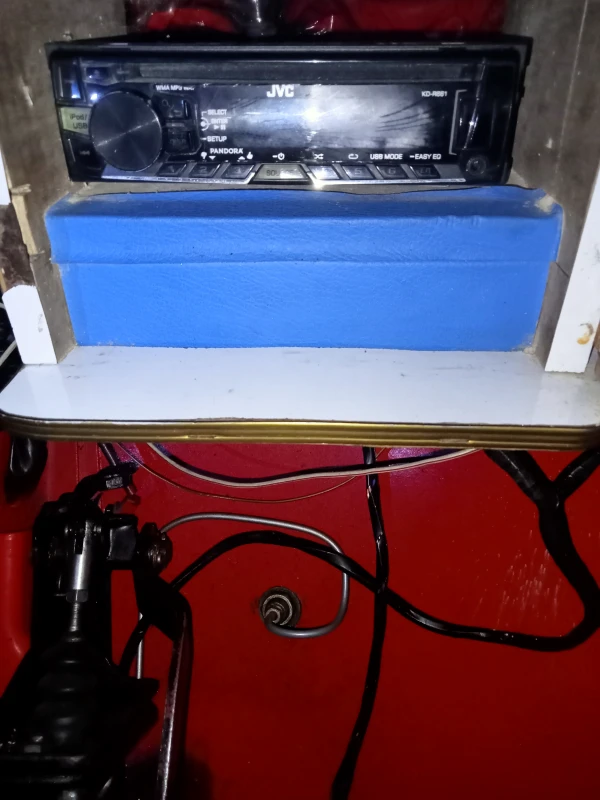

Warning Installing the unit (in-dash mounting) • The unit can only be used with a 12 V DC power supply, negative ground. • Disconnect the battery’s negative terminal before wiring and mounting. • Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit. -
Page 19: Connection
Wiring connection Firmly connect the ground wire of the amplifier to the car’s chassis to avoid JVC Amplifier * Rear/subwoofer output damaging the unit. Signal cord (not supplied) Part list for Fuse (10 A) installation Remote wire Vehicle dashboard (not supplied) - Page 20 Pandora Media, Inc., used with permission. • iHeartRadio® is a registered mark of Clear Channel Broadcasting, Inc. in the United States and other countries. Such marks are used under license. • Android is trademark of Google Inc. © 2014 JVC KENWOOD Corporation 0814DTSMDTJEIN...
