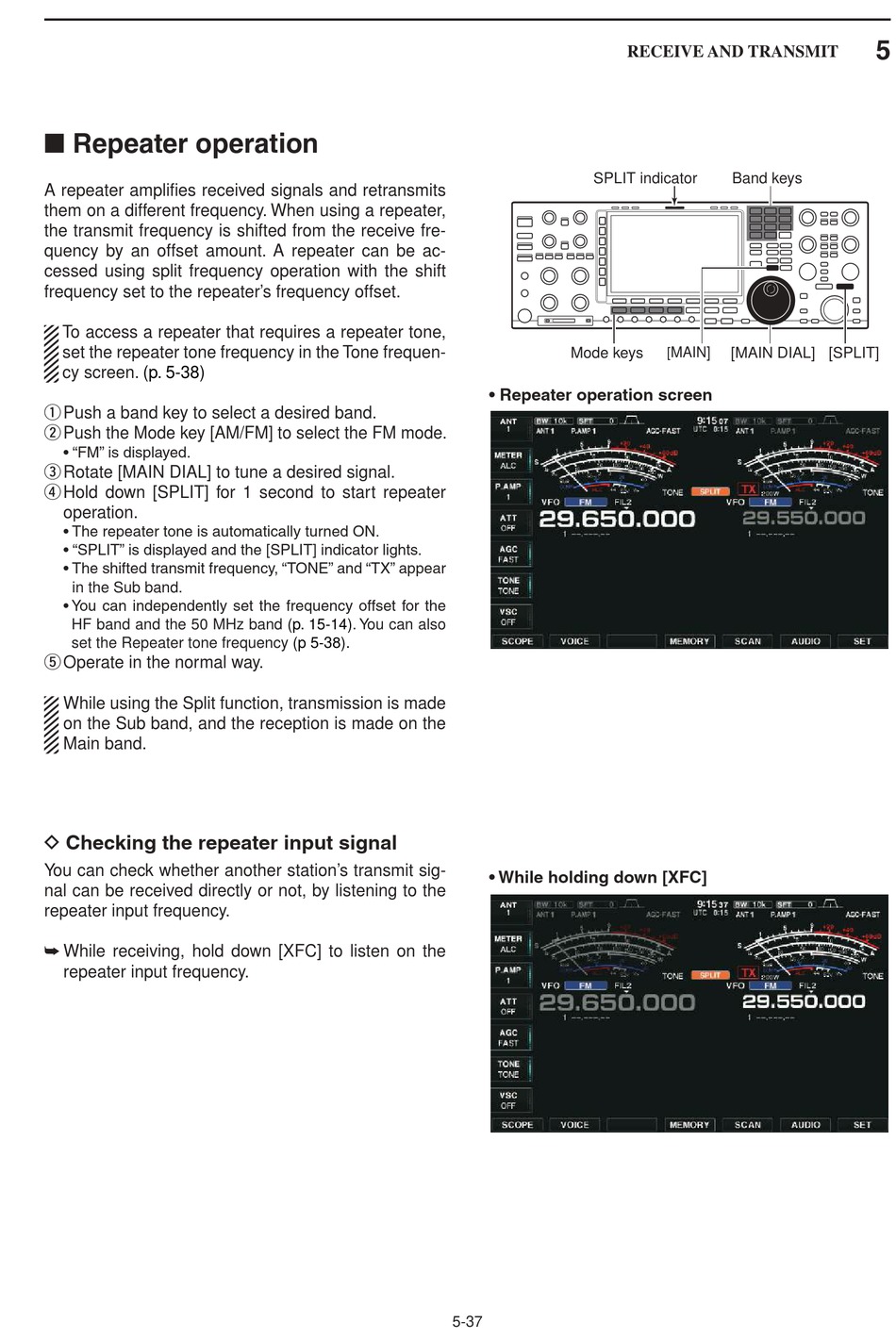

■ Repeater operation

A repeater amplifies received signals and retransmits
them on a different frequency. When using a repeater,
the transmit frequency is shifted from the receive fre-
quency by an offset amount. A repeater can be ac-
cessed using split frequency operation with the shift
frequency set to the repeater's frequency offset.
To access a repeater that requires a repeater tone,
set the repeater tone frequency in the Tone frequen-
cy screen. (p. 5-38)
q
Push a band key to select a desired band.
w Push the Mode key [AM/FM] to select the FM mode.
• "FM" is displayed.
e
Rotate [MAIN DIAL] to tune a desired signal.
r
Hold down [SPLIT] for 1 second to start repeater
operation.
• The repeater tone is automatically turned ON.
• "SPLIT" is displayed and the [SPLIT] indicator lights.
• The shifted transmit frequency, "TONE" and "TX" appear
in the Sub band.
• You can independently set the frequency offset for the
HF band and the 50 MHz band
set the Repeater tone frequency
t
Operate in the normal way.
While using the Split function, transmission is made
on the Sub band, and the reception is made on the
Main band.
D Checking the repeater input signal
You can check whether another station's transmit sig-
nal can be received directly or not, by listening to the
repeater input frequency.
➥
While receiving, hold down [XFC] to listen on the
repeater input frequency.
(p. 15-14). You can also
(p 5-38).
5-37
RECEIVE AND TRANSMIT
SPLIT indicator
Mode keys
• Repeater operation screen
• While holding down [XFC]
Band keys
MAIN] [MAIN DIAL] [SPLIT]
[
5
