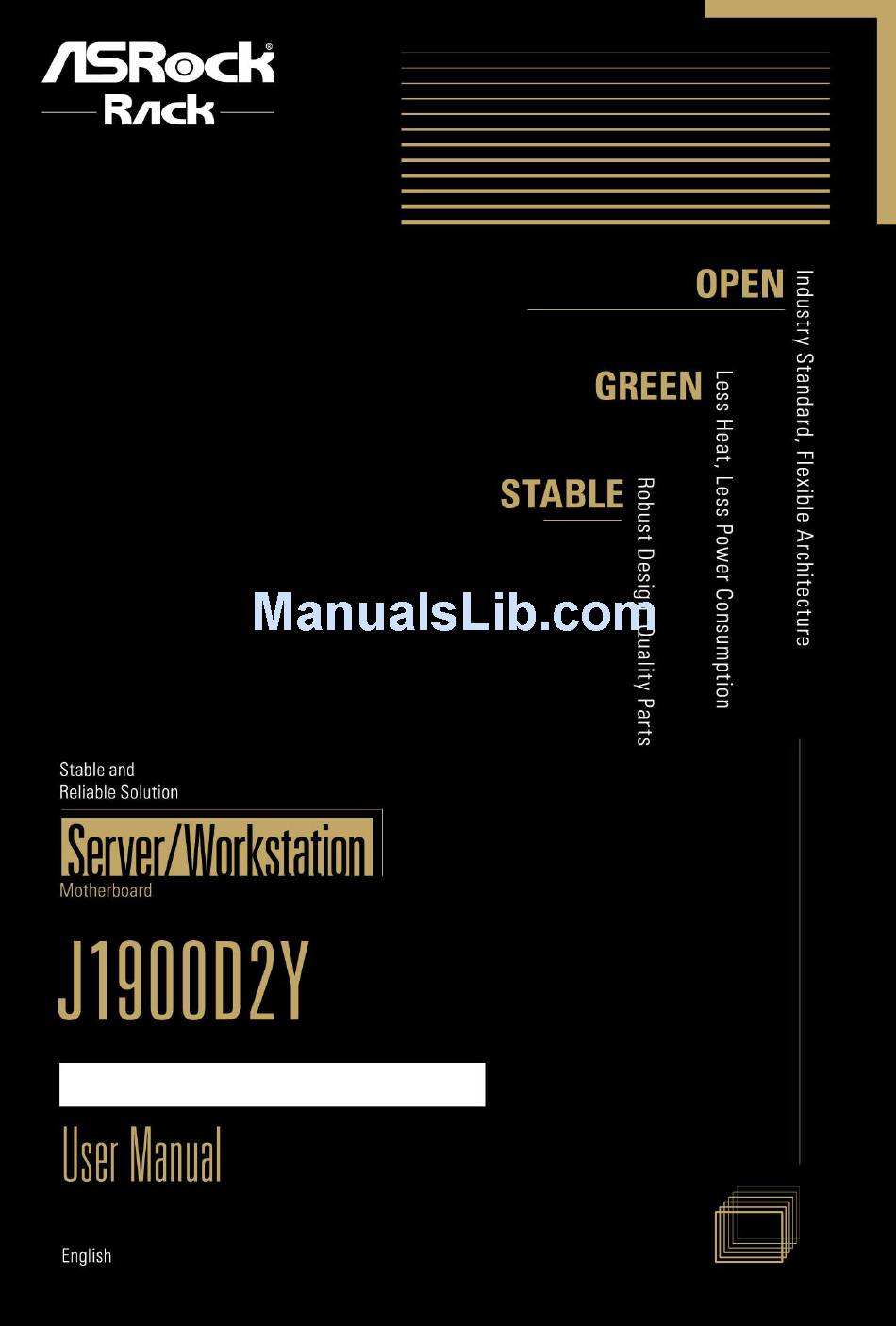

ASROCK J1900D2Y User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ASROCK J1900D2Y

Summary of Contents for ASROCK J1900D2Y

  • Page 2: Copyright Notice

    In no event shall ASRock Rack, its directors, oicers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of proits, loss of business, loss of data, interruption of business and the like), even if ASRock Rack has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 Contact Information If you need to contact ASRock Rack or want to know more about ASRock Rack, you’re welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you may contact your dealer for further information. ASRock Rack Incorporation 6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,...

  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Speciications Unique Features Motherboard Layout Onboard LED Indicators I/O Panel Block Diagram Chapter 2 Installation Screw Holes Pre-installation Precautions Installation of Memory Modules (SO-DIMM) Expansion Slots (PCI Express Slots) Jumper Setup Onboard Headers and Connectors Dr.
  • Page 5 Advanced Screen 3.3.1 CPU Coniguration 3.3.2 DRAM Coniguration 3.3.3 ACPI Coniguration 3.3.4 Conigure Super IO Settings 3.3.5 Serial Port Console Redirection 3.3.6 CSM Parameters 3.3.7 USB Coniguration 3.3.8 Chipset Coniguration 3.3.9 Storage Coniguration 3.3.10 H/W Monitor 3.3.11 Instant Flash Server Mgmt Security Boot Screen Event Logs...
  • Page 6 Chapter 5 Troubleshooting Troubleshooting Procedures Technical Support Procedures Returning Merchandise for Service Chapter 6: Net Framework Installation Guide Installing .Net Framework 3.5.1 (For Server 2008 R2)

  • Page 7: Chapter 1 Introduction

    In case any modiications of this manual occur, the updated version will be available on ASRock Rack website without further notice. You may ind the latest memory and CPU support lists on ASRock Rack website as well. ASRock Rack’s Website: www.ASRockRack.com If you require technical support related to this motherboard, please visit our website for speciic information about the model you are using.

  • Page 8: Speciications

    1.2 Speciications J1900D2Y MB Physical Status Form Factor mini-ITX Dimension 6.7'' x 6.7'' (17.0 cm x 17.0 cm) Processor System Supports Intel® Quad-Core Processor J1900(2 GHz) Chipset System Memory Capacity 2 x DDR3/DDR3L SO-DIMM slots Type - Dual Channel DDR3/DDR3L memory technology - Supports DDR3/DDR3L 1333/1066 non-ECC, un-bufered memory Max.
  • Page 9 64Mb AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8.0 Support - ASRock Rack Instant Flash Hardware Monitor Temperature - CPU Temperature Sensing - System Temperature Sensing - System Inlet Temperature Sensing...
  • Page 10 Support OS Microsot® Windows® - Server 2008 R2 SP1 (64 bit) - Server 2012 (64 bit) - Server 2012 R2 (64 bit) Linux® - RedHat Enterprise Linux Server 6.5 (32 / 64 bit) (SATA AHCI mode) - CentOS 6.5 (32 / 64 bit) (SATA AHCI mode) - Fedora core 19 (32 / 64 bit) (SATA AHCI mode) - FreeBSD 9.2 (32 / 64 bit) (SATA AHCI mode) Environment...

  • Page 11: Unique Features

    POST or the <F2> key to enter into the BIOS setup menu to access ASRock Rack Instant Flash. Just launch this tool and save the new BIOS ile to your USB lash drive, loppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional loppy diskette or other complicated lash utility.

  • Page 12: Motherboard Layout

    1.4 Motherboard Layout 17.0cm (6.7in) J1900D2Y JACK1 ATXPWR1 PSU_SMB1 REAR_FAN1 DCPWR1 HDMI1 LAN1 LAN2 CPU_FAN1 IMPI_ LAN1 BIOS BAT1 64Mb CLRMOS1 SATA_0 USB 2.0/3.0 SATA_1 T: USB3_1 B: USB_1 Super BUZZER1 USB_2 AST2300 SATA_PWR1 T 1 R BMC_SMB1 FRNT_FAN1 UID1...
  • Page 13 J1900D2Y Description Front VGA Header (FRNT_VGA1) ATX Power Connector (ATXPWR1) PSU SMBus Connector (PSU_SMB1) Rear Fan Connector (REAR_FAN1) ATX 12V/19V Power Connector (DCPWR1) Clear CMOS Pad (CLRCMOS1) BMC SMBus Header (BMC_SMB2) CPU Fan Connector (CPU_FAN1) SATA2 Connector (SATA_0) SATA2 Connector (SATA_1) SATA Power Connector (SATA_PWR1) Vertical Type A USB 2.0 (USB_2)
  • Page 14 1. his motherboard provides three power inputs: 4-pin ATX 12V power connector (DCPWR1), 20-pin ATX power connector (ATXPWR1), and DC power jack (DC_Jack) connector on the rear I/O panel. Only use ONE power input at a time. Using more than one input at the same time will create a short circuit! 2.

  • Page 15: Onboard Led Indicators

    J1900D2Y 1.5 Onboard LED Indicators J1900D2Y JACK1 ATXPWR1 FAN_LED5 HDMI1 LAN1 LAN2 FAN_LED3 IMPI_ LAN1 BIOS BAT1 64Mb BMC_LED1 USB 2.0/3.0 T: USB3_1 B: USB_1 Super BUZZER1 USB_2 AST2300 FAN_LED1 UID1 FAN_LED2 Debug SB_PWR1 PCIE1 RoHS...
  • Page 16 Status Description Amber Rear_FAN1 failed Amber CPU_FAN1 failed Amber Front_FAN1 failed Amber Front_FAN2 failed Green STB PWR ready Green BMC heartbeat LED...

  • Page 17: I/O Panel

    J1900D2Y 1.6 I/O Panel No. Description No. Description DC Jack* LAN RJ-45 Port (LAN2)** D-Sub Port (VGA1) LAN RJ-45 Port (IPMI_LAN1)** HDMI Port (HDMI1) USB 3.0 Ports (USB3_1) LAN RJ-45 Port (LAN1)** USB 2.0 Ports (USB_1) * Please use a 19V power adapter for the DC jack. his jack accepts dual barrel plugs with an inner diameter of 2.5 mm and an outer diameter of 5.5 mm, where the inner contact is +19 (±10%) VDC and the shell is GND.
  • Page 18 LAN Port LED Indications **here are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port LAN Port (LAN1, LAN2) / Dedicated IPMI LAN Port LED Indications Activity / Link LED Speed LED Status...

  • Page 19: Block Diagram

    J1900D2Y 1.7 Block Diagram...

  • Page 20: Chapter 2 Installation

    Chapter 2 Installation This is a Mini-ITX form factor (6.7'' x 6.7'', 17.0 cm x 17.0 cm) motherboard. Before you install the motherboard, study the coniguration of your chassis to ensure that the motherboard its into it. Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so may cause physical injuries to you and damages to motherboard components.

  • Page 21: Installation Of Memory Modules (So-Dimm)

    J1900D2Y 2.3 Installation of Memory Modules (SO-DIMM) his motherboard provides two 204-pin DDR3/DDR3L (Double Data Rate 3) SO- DIMM slots. Please install the SO-DIMM module into the DDR3_A1 for the irst priority. It is not allowed to install a DDR or DDR2 memory module into a DDR3/DDR3L slot;...

  • Page 22: Expansion Slots (Pci Express Slots)

    2.4 Expansion Slots (PCI Express Slots) here is 1 PCI Express slot on this motherboard. Before installing an expansion card, please make sure that the power supply is switched of or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 23: Jumper Setup

    J1900D2Y 2.5 Jumper Setup he illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. he illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...
  • Page 24 Chassis ID1 Jumper (3-pin CHASSIS_ID1) (see p.6, No. 24) Chassis ID2 Jumper (3-pin CHASSIS_ID2) (see p.6, No. 23) Chassis ID3 Jumper (3-pin CHASSIS_ID3) (see p.6, No. 22) Board Level SKU (Default) Reserved for system level Chassis ID1 Jumper (3-pin CHASSIS_ID1) (see p.6, No.

  • Page 25: Onboard Headers And Connectors

    J1900D2Y 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. PLED+ System Panel Header...
  • Page 26 Auxiliary Panel Header his header supports multiple (18-pin AUX PANEL_1) functions on the front panel, (see p.6, No. 26) including the front panel SMB, internet status indicator and chassis intrusion pin. A. Front panel SMBus connecting pin (6-1 pin FPSMB) his header allows you to connect SMBus (System Management Bus) equipment.
  • Page 27 CPU_ FAN_SPEED to connect a 3-Pin CPU fan, FAN_SPEED_CONTROL please connect it to Pin 1-3. *For more details, please refer to the Cooler QVL list on the ASRock Rack website. Front and Rear Fan Please connect fan cables to the Connectors...
  • Page 28 ATX Power Connector his motherboard provides a (24-pin ATXPWR1) 24-pin ATX power connector. (see p.6, No. 2) To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13. ATX 12V/19V Power his motherboard provides Connector one 4-pin ATX 12V/19V power (4-pin DCPWR1) connector.
  • Page 29 J1900D2Y Intelligent Platform This 4-pin connector is used No connect Management Bus Header to provide a cabled base-board (4-pin IPMB1) or front panel connection for IPMB_SCL (see p.6, No. 28) value added features and 3rd- IPMB_SDA party add-in cards, such as...
  • Page 30 Front VGA Header Please connect either end (15-pin FRNT_VGA1) of VGA_2X8 cable to VGA (see p.6, No. 1) header.

  • Page 31: Dr. Debug

    J1900D2Y 2.7 Dr. Debug Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes. Code Description Please check if the CPU is installed correctly and then clear CMOS.

  • Page 32: Driver Installation Guide

    2.8 Driver Installation Guide To install the drivers to your system, please insert the support CD to your optical drive irst. hen, the drivers compatible to your system can be auto-detected and listed on the support CD driver page. Please follow the order from top to bottom to install those required drivers.

  • Page 33: Dual Lan And Teaming Operation Guide

    J1900D2Y 2.9 Dual LAN and Teaming Operation Guide Dual LAN with Teaming enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more efective and improving the quality of transmission of distant images.

  • Page 34: Chapter 3 Uefi Setup Utility

    Chapter 3 UEFI Setup Utility 3.1 Introduction his section explains how to use the UEFI SETUP UTILITY to conigure your system. he UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP UTILITY;...

  • Page 35: Navigation Keys

    J1900D2Y 3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor let or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Tab>...

  • Page 36: Main Screen

    3.2 Main Screen Once you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. he Main screen provides system overview information and allows you to set the system time and date.

  • Page 37: Advanced Screen

    J1900D2Y 3.3 Advanced Screen In this section, you may set the conigurations for the following items: CPU Coniguration, DRAM Coniguration, ACPI Coniguration, Conigure Super IO Settings, Serial Port Con- sole Redirection, CSM Parameters, USB Coniguration, Chipset Coniguration, Storage Coniguration, H/W Monitor and Instant Flash.

  • Page 38: Cpu Coniguration

    3.3.1 CPU Coniguration Intel SpeedStep Technology Intel SpeedStep technology is Intel’s new power saving technology. Processors can switch between multiple frequencies and voltage points to enable power saving. he default value is [Enabled]. Configuration options: [Enabled] and [Disabled]. If you install Windows® Vista / 7 / 8 and want to enable this function, please set this item to [Enabled].
  • Page 39 J1900D2Y and applications in independent partitions, so that one computer system can function as multiple virtual systems.

  • Page 40: Dram Coniguration

    3.3.2 DRAM Coniguration DRAM Voltage Use this to select DRAM Voltage. he default value is [Auto].

  • Page 41: Acpi Coniguration

    J1900D2Y 3.3.3 ACPI Coniguration ACPI HPET Table Use this item to enable or disable ACPI HPET Table. he default value is [Enabled]. PCIE Devices Power On Use this item to enable or disable PCIE devices to turn on the system from the power-sot- of mode.

  • Page 42: Conigure Super Io Settings

    3.3.4 Conigure Super IO Settings Serial Port 1 Coniguration Use this item to conigure the onboard serial port 1. Select and enter the "Serial Port 1 Coniguration" and you will see the followings: SOL Port Use this item to enable or disable the onboard serial port. Change Settings Use this item to select an optimal setting for Super IO device.

  • Page 43: Serial Port Console Redirection

    J1900D2Y 3.3.5 Serial Port Console Redirection COM1 / SOL Console Redirection Use this option to enable or disable Console Redirection. If this item is set to Enabled, you can select a COM Port to be used for Console Redirection. Console Redirection Settings Use this option to conigure Console Redirection Settings, and specify how your computer and the host computer to which you are connected exchange information.
  • Page 44 Bits Per Second Use this item to select the serial port transmission speed. The speed used in the host computer and the client computer must be the same. Long or noisy lines may require lower transmission speed. he options include [9600], [19200], [57600] and [115200]. Data Bits Use this item to set the data transmission size.

  • Page 45: Console Redirection

    J1900D2Y Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) Console Redirection Use this option to enable or disable Console Redirection. If this item is set to Enabled, you can select a COM Port to be used for Console Redirection.

  • Page 46: Csm Parameters

    3.3.6 CSM Parameters Boot Option Filter his option controls Legacy/UEFI ROMs priority. Launch Storage OpROM Policy Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to run those that support legacy option ROM only. Select Do not launch to not execute both legacy and UEFI option ROM.

  • Page 47: Usb Coniguration

    J1900D2Y 3.3.7 USB Coniguration USB Coniguration screen displays the Intel USB3.0 Mode, USB Controller and Legacy USB Support state.

  • Page 48: Chipset Coniguration

    3.3.8 Chipset Coniguration Primary Graphics Adapter Use this item to select the type and primary VGA in case of multiple video contorllers. Share Memory Conigure the size of memory that is allocated to the integrated graphics processor when the system boots up. IGPU Multi-Monitor Select disable to disable the integrated graphics when an external graphics card is installed.
  • Page 49 J1900D2Y Select the link speed from the PLX chip to the PCIE slot for PCIE1. Restore on AC/Power Loss his allows you to set the power state ater an unexpected AC/power loss. If [Power Of] is selected, the AC/power remains of when the power recovers. If [Power On] is selected, the AC/power resumes and the system starts to boot up when the power recovers.

  • Page 50: Storage Coniguration

    3.3.9 Storage Coniguration SATA Controller(s) Use this item to enable or disable SATA Controller. SATA Mode Selection Identify the SATA port is connected to Solid State Drive or Hard Disk Drive. Press <Ctrl+I> to enter RAID ROM during UEFI POST process. SATA Aggressive Link Power Mgmt Use this item to enable or disable SALP.
  • Page 51 J1900D2Y External SATA Use this item to enable SATA safe removal notiications. Please note that the SATA device will be downgraded to SATA2. Hot Plug Designates this port as Hot Plugglable.

  • Page 52: H/W Monitor

    3.3.10 H/W Monitor In this section, it allows you to monitor the status of the hardware on your system, includ- ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CPU1_FAN1 his allows you to set the CPU1 fan1’s speed.
  • Page 53 J1900D2Y Smart Fan Temp Control Smart Fan Temp x (x means 1 to 11 stage) his allows you to set temperature for each stage. Watch Dog Timer his allows you to enable or disable the Watch Dog Timer. he default value is [Disabled].

  • Page 54: Instant Flash

    3.3.11 Instant Flash Instant Flash is a UEFI lash utility embedded in Flash ROM. his convenient UEFI update tool allows you to update system UEFI without entering operating systems ® irst like MS-DOS or Windows . Just save the new UEFI ile to your USB lash drive, loppy disk or hard drive and launch this tool, then you can update your UEFI only in a few clicks without preparing an additional loppy diskette or other compli- cated lash utility.

  • Page 55: Server Mgmt

    J1900D2Y 3.4 Server Mgmt Wait For BMC Wait For BMC response for speciied time out. In PILOTII, BMC starts at the same time when BIOS starts during AC power ON. It takes around 30 seconds to initialize Host to BMC interfaces.
  • Page 56 BMC Network Coniguration Enter to conigure BMC Network parameters. Update IPMI LAN Coniguration Use this item to enable or disable that BIOS sets below setting to IPMI in next boot. If Yes is selected, the BMC network parameters are allowed to be conigured. he deafult value is [No].

  • Page 57: Security

    J1900D2Y 3.5 Security In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility.

  • Page 58: Boot Screen

    3.6 Boot Screen In this section, it will display the available devices on your system for you to conigure the boot settings and the boot priority. Boot From Onboard LAN Use this item to enable or disable the Boot From Onboard LAN feature. Setup Prompt Timeout his shows the number of seconds to wait for setup activation key.
  • Page 59 J1900D2Y AddOn ROM Display Use this option to adjust AddOn ROM Display. If you enable the option “Full Screen Logo” but you want to see the AddOn ROM information when the system boots, please select [Enabled]. Coniguration options: [Enabled] and [Disabled]. he default value is [Enabled].

  • Page 60: Event Logs

    3.7 Event Logs Change Smbios Event Log Settings his allows you to conigure the Smbios Event Log Settings. When entering the item, you will see the followings: Smbios Event Log Use this item to enable or disable all features of the SMBIOS Event Logging during system boot.

  • Page 61: View Smbios Event Log

    J1900D2Y View Smbios Event Log Press <Enter> to view the Smbios Event Log records. All values changed here do not take efect until computer is restarted.

  • Page 62: Exit Screen

    3.8 Exit Screen Save Changes and Exit When you select this option, the following message “Save coniguration changes and exit setup?” will pop-out. Press <F10> key or select [Yes] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, the following message “Discard changes and exit setup?”...

  • Page 63: Chapter 4 Software Support

    4.2.4 Contact Information If you need to contact ASRock Rack or want to know more about ASRock Rack, welcome to visit ASRock Rack’s website at http://www.ASRockRack.com; or you may contact your...

  • Page 64: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting 5.1 Troubleshooting Procedures Follow the procedures below to troubleshoot your system. Always unplug the power cord before adding, removing or changing any hardware com- ponents. Failure to do so may cause physical injuries to you and damages to motherboard components.
  • Page 65 1. Verify if the battery on the motherboard provides ~3VDC. Install a new battery if it does not. 2. Conirm whether your power supply provides adaquate and stable power. Other problems... 1. Try searching keywords related to your problem on ASRock Rack’s FAQ page: http://www.asrockrack.com/support...

  • Page 66: Technical Support Procedures

    5.2 Technical Support Procedures If you have tried the troubleshooting procedures mentioned above and the problems are still unsolved, please contact ASRock Rack’s technical support with the following information: 1. Your contact information 2. Model name, BIOS version and problem type.

  • Page 67: Chapter 6: Net Framework Installation Guide

    J1900D2Y Chapter 6: Net Framework Installation Guide ® To let Intel RSTe works properly, it is required to install Net Framework. Please follow the ® ® steps below to enable “.Net Framework” feature on Microsot Windows Server 2008 R2. 6.1 Installing .Net Framework 3.5.1 (For Server 2008 R2) 1.
  • Page 68 3. Check the box next to .Net Framework 3.5.1 and then click Next. 4. Click Next to continue.
  • Page 69 J1900D2Y 5. Click Install to start installing .Net Framework 3.5.1. 6. Ater the installation completes, click Close.
