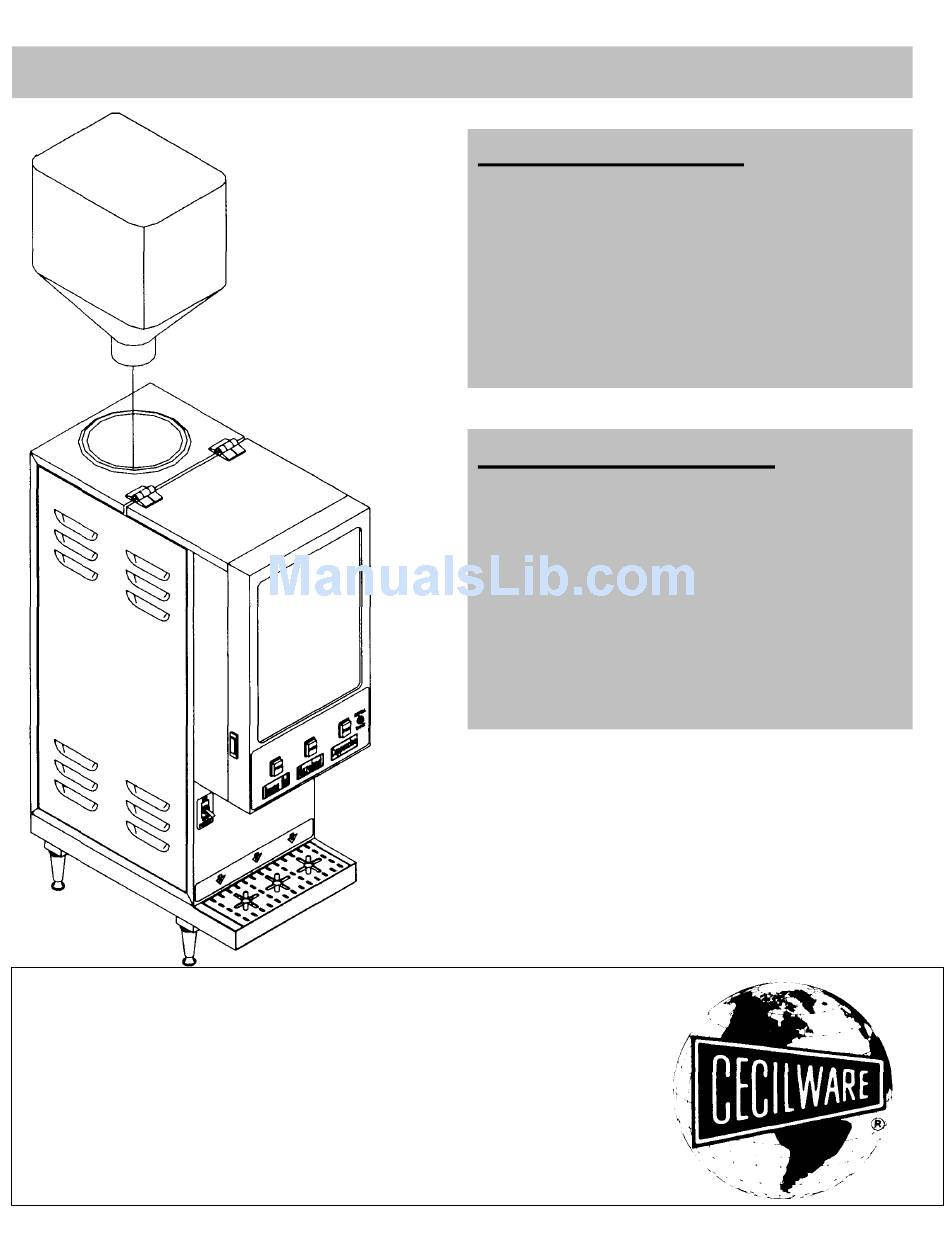

Operating Manual
CAPPUCCINO, COFFEE, and SOUP DISPENSERS
Cecilware sells value... Worldwide
45-05 20th Avenue, Long Island City, NY 11105
GB POUROVER models:
•GB1P
•GB2P
•GB3P
•GB4P
OPERATION MANUAL
• Specifications....................................................... 2
• Installation and Operating Instructions.............. 4
• Adjustments.......................................................... 6
• Care and Maintenance.......................................... 8
• Components Illustration..................................... 11
• Parts Identification.............................................. 15
• Wiring Diagrams.................................................. 21
• 718-932-1414
FAX 718-932-7860
NH79A 11/99
Advertisement
Related Manuals for Cecilware GB1P
Summary of Contents for Cecilware GB1P
- Page 1 • Installation and Operating Instructions....4 • Adjustments..........…..... 6 • Care and Maintenance......…....8 • Components Illustration..…......11 • Parts Identification....…......15 • Wiring Diagrams......…..... 21 Cecilware sells value... Worldwide 45-05 20th Avenue, Long Island City, NY 11105 • 718-932-1414 FAX 718-932-7860 NH79A 11/99...
-
Page 2: Electrical Specifications
GB1P, GB2P, GB3P 120V 1.8KW 5-15R 120/240V 50/60 L14-20R** GB1P, GB2P, GB3P, GB4P 3.0KW 50/60 3.0KW L6-20R 120V, 1.8 KW, 15A, Nema 5-15R standard on ail models; 3.0 KW, 120/240V units available ** 120/240V, 3 pole, 4 wire grounding type Twist-Plug Receptacle. - Page 3 START UP INSTRUCTIONS FOR GB POUROVER CAPPUCCINO DISPENSER (see illustration 9-3 for clarification) INSTALLATION INSTRUCTIONS This equipment is to be installed to comply with the applicable Federal, State, or local plumbing codes having jurisdiction. In addition: A quick disconnect water connection or enough extra coiled tubing (at least 2x the depth of the unit) so that the machine can be moved for cleaning underneath.
- Page 4 III. PRIMING - AUTOFILL - Water Selection Switch - Toggle Down (See Back Panel) 1. Plug into power outlet. 2. Turn Heater Switch ON. 3. Allow 10 to 15 minutes for water to reach dispense temperature of 185°F. Heater Indicator Light (red) goes ON when heater is on (see lower front panel).
- Page 5 DRINK STRENGTH ADJUSTMENT - Adjusting the AUGER SPEED or the WATER FLOW RATE ON DISPENSE VALVE. I. UNITS WITH FIXED SPEED AUGER MOTORS-AC [CD150] • Fixed Auger Speed [95 RPM] and dispenses powder at a constant fixed rate. Drink Strength adjustments can be made by adjusting the water flow rate on the Water Dispense Valves. [See ILL. C] 1.
- Page 6 GB3P (POUROVER) PARTS IDENTIFICATION...
- Page 7 DESCRIPTION AND LOCATION OF COMPONENTS GB3P (POUROVER)
-
Page 8: Item Description
ITEM DESCRIPTION GB1P GB2P GB3P WATER BOTTLE 3 gal / OR 6 gal M518A /M519A M518A /M519A M518A/M519A RESERVOIR ICOVER 97128 97128 97128 RESERVOIR ASSY 01740 Q174Q 01740 SILICONE HOSE - RESERVOIR TO TANK M540A M540A M540A SILICONE HOSE - BREATHER TUBE TO BREATHER TUBE... - Page 9 PARTS IDENTIFICATION LIST GB3P (POUROVER) RESERVOIR AND TANK ASSEMBLY Q174Q RESERVOIR ASSEMBLY ITEM DESCRIPTION PART NO P.O-LINE TANK(CB3M/ICAP) Q174A FLOAT SWITCH 70-V-A L499A DIRECT MOUNTING SEAL (?0.466 ID) H46IA LEVEL CONTROL PROBE SEAL K402A LEVEL CONTROL PROBE P410A ELBOV ASS'Y. K5ZSQ ½”...
