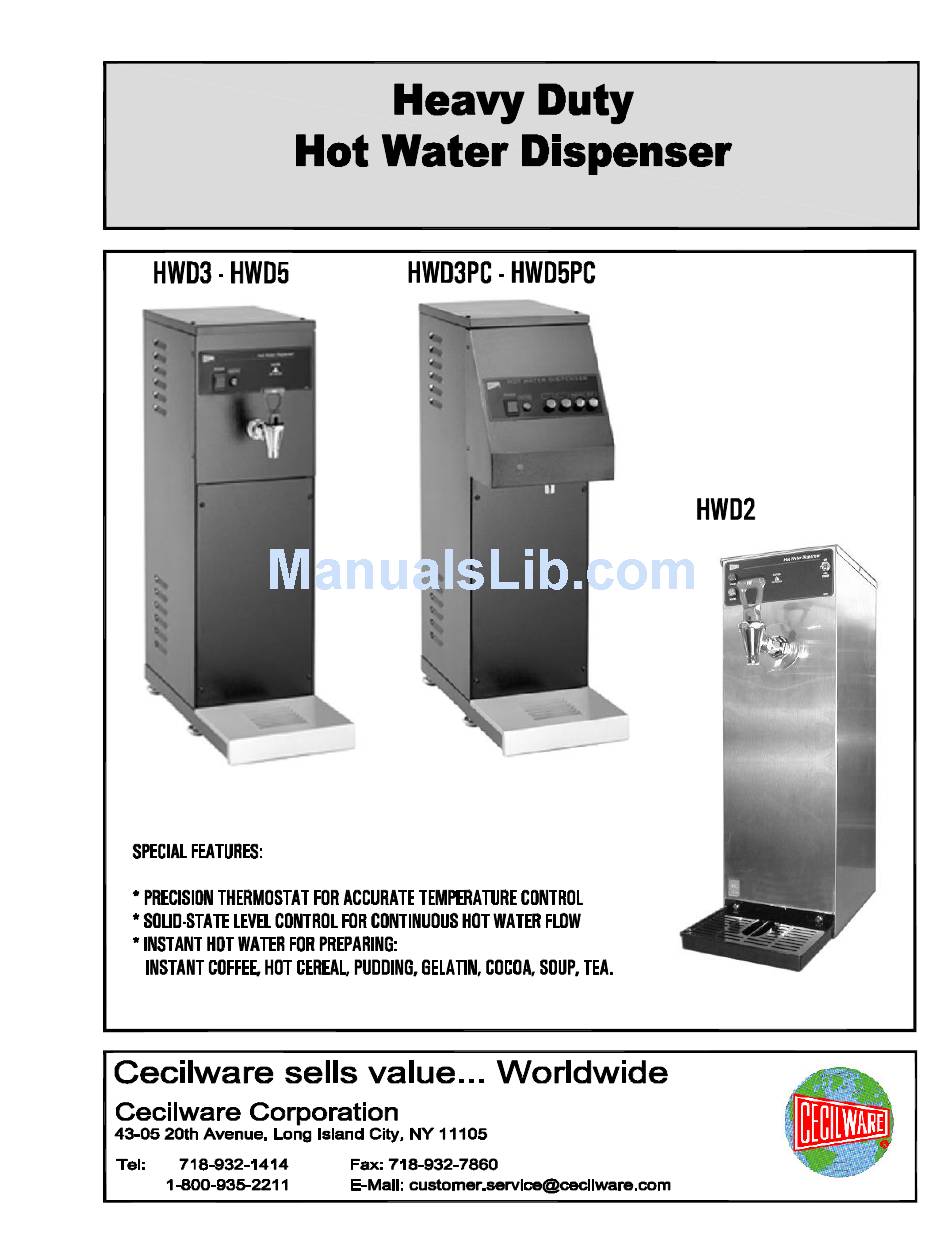

- Page 1 Operation Manual NI60A 04-2002...
-
Page 2: Water Inlet Connection
The Hot Water Dispenser is shipped, from the factory, with the Heater Switch in the "OFF" position. DO NOT turn the heater switch ON until the unit is primed with water. The heater switch is located at the lower back of the unit. WATER INLET CONNECTION : The Hot Water Dispenser is to be installed to comply with all applicable Federal, State and Local plumbing codes. -
Page 3: Water Connection
Hot Water Dispenser - HWD2 Tomlinson faucet Manual dispense Electrical Specifications MODEL NO VOLTS HWD2 Export units add "X" to Model No. Specify Voltage and type of line cord required. Water Connection Water pressure: 20 - 90 PSI (69 - 621 KPA) Supplied with ¼ OD male flare fitting... - Page 4 WATER INLET VALVE, 240V COIL STRAIN RELIEF 77203 L069A LINE CORD, 120V 15A LINE CORD, 240V 15A C165A C260A HEATER SWITCH WATER TANK, HWD2 M461A WATER LEVEL CONTROL, 120V K402Q L573A WATER LEVEL CONTROL, 240V DRIP TRAY PAN G267A G266A DRIP TRAY GRILL SILICONE HOSE 3/8ID x 16"...
- Page 5 Hot Water Dispenser - HWD3 Tomlinson faucet Manual dispense Electrical Specifications MODEL NO VOLTS HWD3 Export units add "X" to Model No. Specify Voltage and type of line cord required. Water Connection Water pressure: 20 - 90 PSI (69 - 621 KPA) Supplied with ¼ OD male flare fitting Operational VOLTS MODEL NO...
- Page 6 Hot Water Dispenser - HWD5 Electrical Specifications MODEL NO VOLTS HWD5 Export units add "X" to Model No. Specify Voltage and type of line cord required. Water Connection Water pressure: 20 - 90 PSI (69 - 621 KPA) Supplied with ¼ OD male flare fitting Operational VOLTS MODEL NO...
- Page 7 HEATER ELEMENT, 120V 1700W HEATER ELEMENT, 240V 3000W THERMOSTAT HI-LIMIT 220° CUTOUT FLOAT SWITCH LEVEL CONTROL PROBE SILICONE HOSE 3/8ID x 16" LG PILOT LIGHT "HEATING" POWER SWITCH PILOT LIGHT "READY" TEACH-ME TIMER SILICONE HOSE 3/8ID x 16" LG DRIP TRAY PAN G267A DRIP TRAY GRILL CONTACTOR, 2 POLE 30/40 AMP, 120V...
- Page 8 PROGRAMMABLE TIMER "TEACH ME" ADJUSTMENTS This timer can be programmed from the push buttons to dispense different volumes of hot water. PROGRAMMING INSTRUCTIONS FOR AUTOMATIC DISPENSE 1. Turn Power Switch ON. 2. PRESS and HOLD [red] STOP Button with one hand. 3.
- Page 9 Push Button with Portion control or Manual dispense Electrical Specifications MODEL NO VOLTS HWD3PC Export units add "X" to Model No. Specify Voltage and type of line cord required. Water Connection Water pressure: 20 - 90 PSI (69 - 621 KPA) Supplied with ¼ OD male flare fitting Operational VOLTS MODEL NO...
- Page 10 Push Button with Portion control or Manual dispense Electrical Specifications MODEL NO VOLTS HWD5PC Export units add "X" to Model No. Specify Voltage and type of line cord required. Water Connection Water pressure: 20 - 90 PSI (69 - 621 KPA) Supplied with ¼ OD male flare fitting Operational VOLTS MODEL NO...
- Page 11 HEATER ELEMENT, 120V 1700W HEATER ELEMENT, 230V 6000W THERMOSTAT HI-LIMIT 220° CUTOUT FLOAT SWITCH LEVEL CONTROL PROBE SILICONE HOSE 3/8ID x 16" LG PILOT LIGHT "HEATING" POWER SWITCH FAUCET SHANK SUB-ASSEMBLY SILICONE HOSE 3/8ID x 16" LG DRIP TRAY PAN DRIP TRAY GRILL G267A CONTACTOR, 2 POLE 30/40 AMP, 120V...
- Page 12 HEATER LIGHT CECILWARE CORPORATION HEATER SWITCH POWER LIGHT POWER SWITCH...
- Page 13 CECILWARE CORPORATION...
- Page 14 HI-LIMIT THERMOSTAT CONTACTOR HEATER SW HEATING LEVEL WATER INLET VALVE CONTROL FLOAT SWITCH WATER LEVEL PROBE CECILWARE CORPORATION...
