Summary of Contents for Chauvet LFS-5D

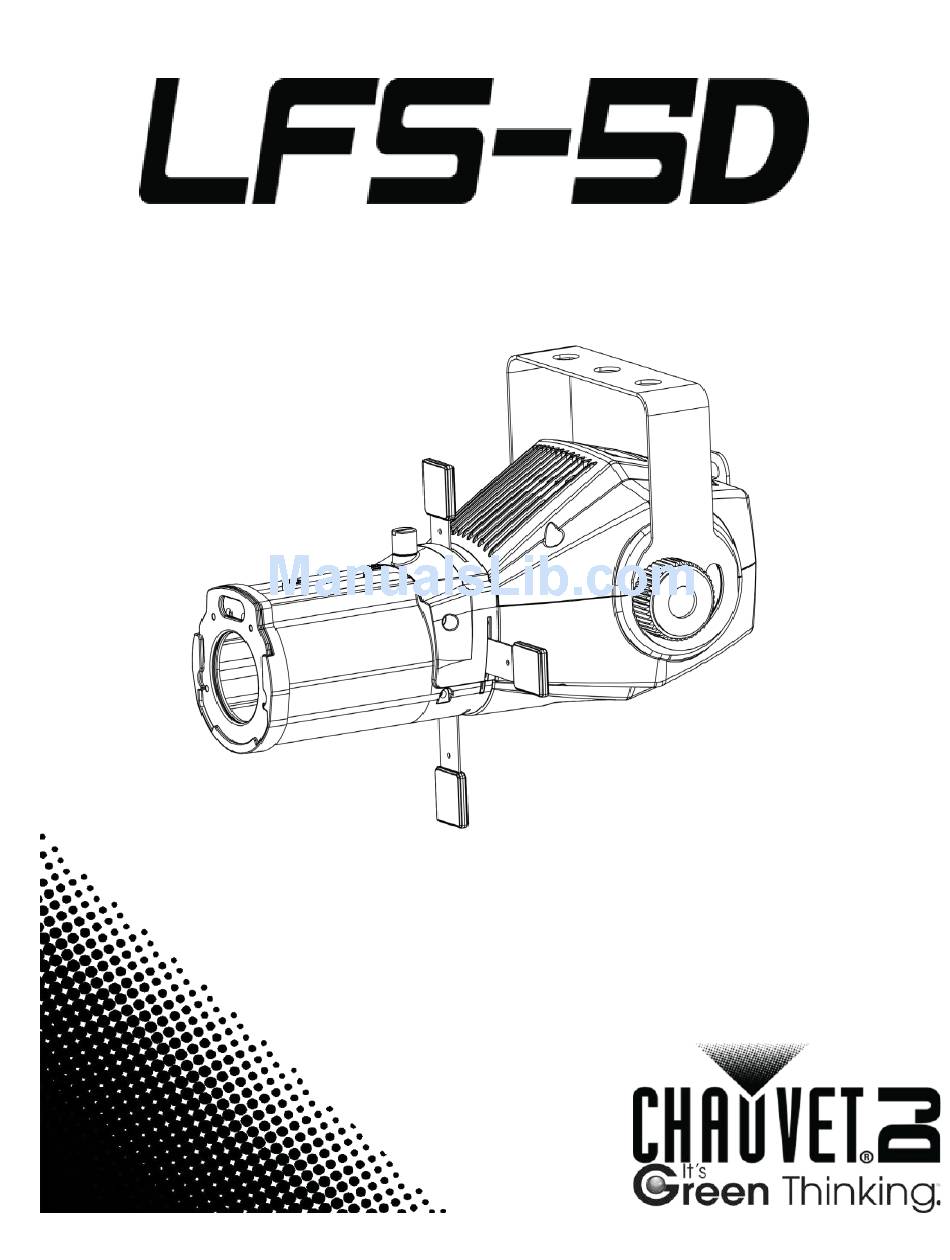

- Page 1 User Manual...
-
Page 2: Table Of Contents
Product Maintenance ............................11 Technical Specifications ........................12 Dimensions and Weight ............................12 Power ..................................12 Light Source ................................12 Photometrics ................................. 12 Accessories ................................12 Ordering ................................12 Returns ............................... 13 Contact Us ............................14 LFS-5D User Manual Rev. 1... -
Page 3: Before You Begin
Included · · 4 Framing shutters Quick Reference Guide Carefully unpack the LFS-5D and check that all the parts are in the package, and are in good Unpacking condition. Instructions Claims If the box, or any of the contents, appear damaged from shipping, save all the packaging and file a claim with the carrier immediately. -
Page 4: Product At A Glance
· Keep this User Manual for future reference. If you sell the product to another user, be sure to give this manual to the next owner. Page 4 of 14 LFS-5D User Manual Rev. 1... -
Page 5: Introduction

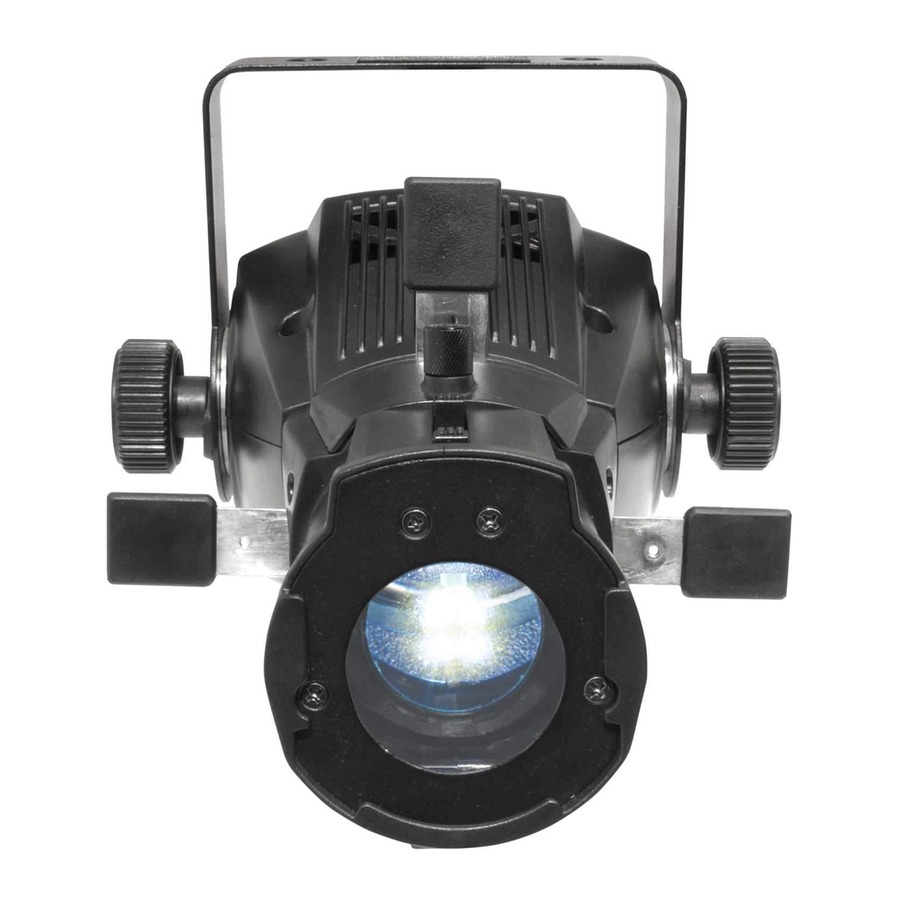

Introduction NTRODUCTION The LFS-5D is a compact, dimmable LED spot light with framing shutters and a zoom range of Product 16° to 24°. The LFS-5D comes with 4 metal gobos, and can be used with custom-made gobos Description of transparent material for colorful projections. -
Page 6: Dimensions
Introduction 12.5 in 318 mm Dimensions 7.5 in 191 mm 9.5 in 241 mm Page 6 of 14 LFS-5D User Manual Rev. 1... -
Page 7: Setup
Always replace a blown fuse with another of the same type and rating. A spare fuse is not included; however, the safety cap has room for a spare. The LFS-5D can be used with any type of dimmer. Using a dimmer controls the intensity of the Dimming light allowing fades up and down. -
Page 8: Power Linking
Power Linking allowing many products to be powered from one outlet. Up to 23 LFS-5D products can be power linked at 120 V or up to 45 LFS-5D products can be power linked at 230 V. The diagram below illustrates power-linking. -
Page 9: Operation
Operation PERATION Gobos make patterns in the light and can be customized for special events. The LFS-5D uses Gobos V size gobos, which are gobos that have a 25.4 mm outside measurement, a 19 mm image size and a 1 mm maximum thickness. -
Page 10: Gel Frame
Operation The LFS-5D has a gel frame so that gel can be used to color the light. The gel frame is 2 flat Gel Frame pieces of plastic with 4 little tabs that snap the pieces of plastic together. The gel goes in between these 2 flat pieces of plastic and the gel frame sits in the gel frame holder at the front end of the light. -
Page 11: Technical Information
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external and internal surfaces. The LFS-5D cannot be taken apart for cleaning, so carefully blow dust out of the unit from the front where the lenses are located and the back where the ventilation fans are located. -
Page 12: Technical Specifications
25.4 mm outside, 19 mm image Gobos Plastic or Metal 1 mm max thickness (size V) Ordering Item Name Item Code UPC Code 08030653 (120 V) 781462210014 (120 V) LFS-5D 08030663 (230 V) 781462210113 (230 V) Page 12 of 14 LFS-5D User Manual Rev. 1... -
Page 13: Returns
Mexico. If you live outside the U.S., United Kingdom, Ireland, or Mexico, contact your distributor of record and follow their instructions on how to return CHAUVET® products to them. Visit our website for contact details. Call the corresponding Chauvet Technical Support office and request a Return Merchandise Authorization (RMA) number before shipping the product. -
Page 14: Contact Us
Voice: (954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 Toll free: World Wide Web www.chauvetlighting.com UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd. General Information Technical Support Address:Unit 1C Email: uktech@chauvetlighting.com Brookhill Road Industrial Estate Pinxton, Nottingham, UK World Wide Web www.chauvetlighting.co.uk...
