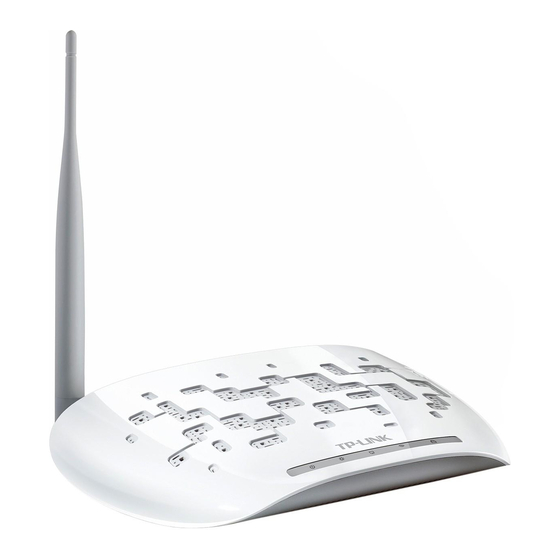

TP-Link TL-WA701ND Installation Manual

Hide thumbs Also See for TL-WA701ND:

Advertisement

Quick Links

Download this manual See also: User Manual, Manual
Connect to the Access Point with
the Ethernet cable or via wireless.
The default SSID of the Access
Point is TP-LINK_ XXXXXX. The
XXXXXX is the last 6 characters
of the Access Point's MAC
address.
Plug the provided power adapter
into the power jack on the back of
the Access Point, and the other
end to a standard electrical wall
socket. Then press the ON/OFF
button to power on the device.
If the distance between the outlet and the Access Point is too long to supply
Note
the power, you can refer to the Power over Ethernet (PoE) solution in
Appendix A: With PoE Setup on page 13.
Turn on all of your network devices and then check to see if the LEDs on the
Access Point display normally as the diagram below describes.
Solid light
Flashing
Solid light or flashing
Flashing if the Wireless
Radio function is enabled
1

Advertisement

loading

Related Manuals for TP-Link TL-WA701ND

Summary of Contents for TP-Link TL-WA701ND

  • Page 1 Connect to the Access Point with the Ethernet cable or via wireless. The default SSID of the Access Point is TP-LINK_ XXXXXX. The XXXXXX is the last 6 characters of the Access Point’s MAC address. Plug the provided power adapter into the power jack on the back of the Access Point, and the other end to a standard electrical wall...

  • Page 2: Wireless Settings

    If the LEDs display abnormally, please check to see if all the cable Note connectors (power adapter and Ethernet cable) are well connected to your device. Login Open your web browser, type in 192.168.0.254 in the address bar and press Enter A dialog box will prompt you for the User name and Password.
  • Page 3 The Operation Mode page will appear then. The TL-WA701ND supports up to five operation modes. Select the operation mode based on your need Click Next For Access Point mode, please refer to part A on page 3. For Multi-SSID mode, please refer to part B on page 4.
  • Page 4 After the settings above, please go to Network Settings on page 8 to continue the configuration. B. Multi-SSID Mode Introduction In this mode, the product can be assigned up to four SSIDs to work with your VLAN. Settings You can create up to 4 SSIDs and rename them here.
  • Page 5 Settings Select the repeater mode, for example Universal Repeater. Click Survey The window displaying a list of available SSIDs will appear. Find the SSID of the root Access Point / Router that you want to repeat, and then click Connect in the corresponding row.
  • Page 6 D. Bridge with AP mode Introduction In this mode, the product can wirelessly connect two or more remote LANs together. Settings Click Survey The window displaying a list of available SSIDs will appear. Find the SSID of the root Access Point / Router that you want to bridge, and then click Connect in the...
  • Page 7 You will then return to the previous page. Enter the password that is the same as on the remote AP. Click Next Name the bridge AP here. Click Next After the settings above, please go to Network Settings on page 8 to continue the configuration.

  • Page 8: Network Settings

    The window displaying a list of available SSIDs will appear. Find the SSID of the Access Point / Router or WISP, and click Connect in the corresponding row. You will then return to the previous page. Select the security mode and enter the password that is the same as on the root Click Next...
  • Page 9 The Finish page will appear then. Here takes the settings for Access Point mode for example. Check your settings and click Save to save your settings for future reference Click Reboot Click OK Wait until the router restarts successfully. Congratulations! You have completed the setup. To change to another mode, please refer to T3 in Troubleshooting on page Note 10 to assign a static IP address 192.168.0.100 for your computer first before...
  • Page 10 T1. How do I restore my Access Point’s configuration to its factory default settings? With the Access Point powered on, use a pin to press and hold the RESET button on the rear panel for 8 to 10 seconds before releasing it. Hold it in for 8 to 10 seconds Once the Access Point is reset, the current configuration settings will be lost Note...
  • Page 11 Click Change adapter settings Right-click Local Area Connection Click Properties Double-click Internet Protocol Version 4 (TCP/IPv4)
  • Page 12 Select Use the following IP address Enter the 192.168.0.100 into the IP address field, 255.255.255.0 into the Subnet mask field Click OK Now, try to log on to the Web-based configuration page again after the above settings have been configured. If you still cannot access the configuration page, please restore your Access Point’s factory default settings and reconfigure your Access Point following the instructions of this QIG.

  • Page 13: Appendix A: With Poe Setup

    Passive PoE Injector supports a maximum cable length up to 30 meters Note due to the environment. For longer powered cable up to 100 meters, please choose TP-LINK's 48V PoE adapters: TL-POE200 or TL-POE150S & TL-POE10R. Product information can be found on our official website...

  • Page 14: Technical Support

    08:00 AM to 08:00 PM Turkey Indonesia Tel: 444 19 25 (Turkish Service Tel: (+62) 021 6259 135 E-mail : support.id@tp-link.com E-mail: support.tr@tp-link.com Service time : Monday to Friday Service time: 9:00 AM to 6:00 PM 9:00 -12:00; 13:00 -18:00...
