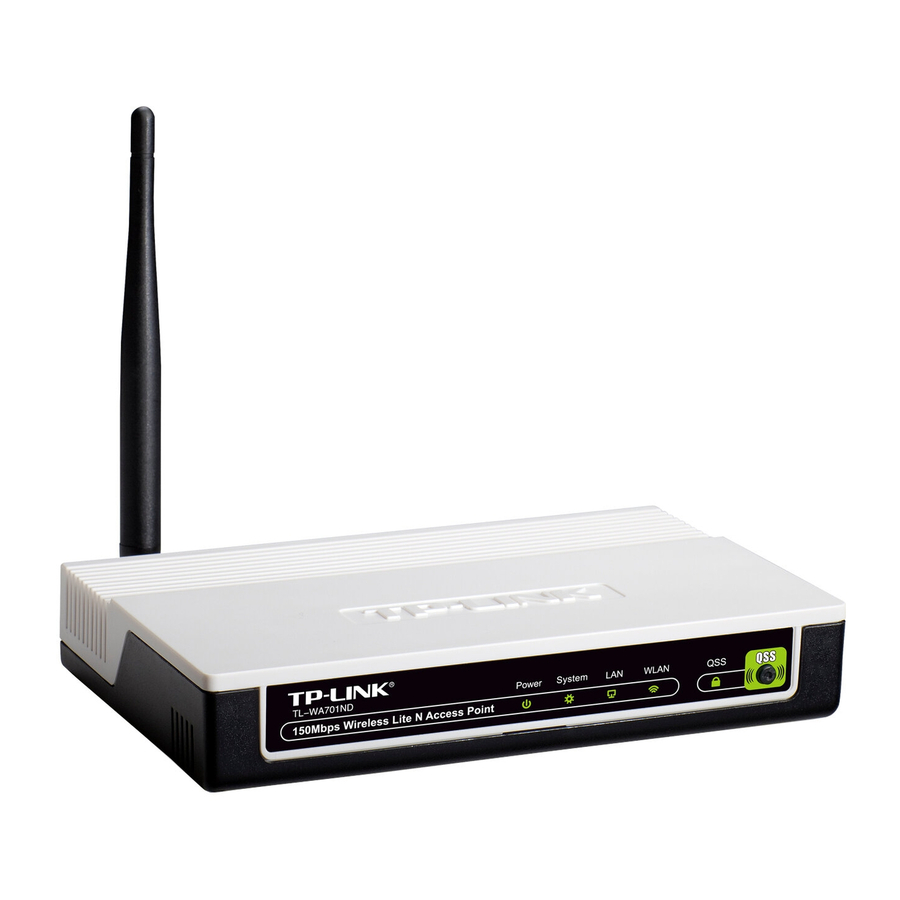

TP-Link TL-WA701ND Installation Manual

Hide thumbs Also See for TL-WA701ND:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual
The product model shown in this QIG is TL-WA701ND, as an example.
Note
Assign a static IP address 192.168.1.100 for your computer. Please refer to
the T3 in Troubleshooting guide if you need assistance.
Connect to the Access Point with
the
Ethernet
wireless.The default SSID of the
Access
Point
XXXXXX. The XXXXXX is the
last 6 characters of the Access
Point's MAC address.
Plug the provided power adapter
into the power jack on the back of
the Access Point, and the other
end to a standard electrical wall
socket.
Note
If the distance between the outlet and the Access Point is too long to supply
the power, you can refer to the Power over Ethernet(PoE) solution in
Appendix B: With PoE Setup.
cable
or
via
is
TP-LINK_
1

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TL-WA701ND

Summary of Contents for TP-Link TL-WA701ND

  • Page 1 The product model shown in this QIG is TL-WA701ND, as an example. Note Assign a static IP address 192.168.1.100 for your computer. Please refer to the T3 in Troubleshooting guide if you need assistance. Connect to the Access Point with...
  • Page 2 Turn on all of your network devices and then check to see if the LEDs on the Access Point display normally as the diagram bleow describes. Solid light Flashing Solid light or flashing Flashing if the Wireless Radio function is enabled If the LEDs display abnormally, please check to see if all the cable Note connectors (power adapter and Ethernet cable) are well connected to your...

  • Page 3: Network Setting

    A dialog box will prompt you for the Username and Password. Enter the default values and click OK. User name: admin Password: admin Click OK If the dialog box does not pop up, please refer to T3 in the Troubleshooting Note guide.

  • Page 4: Operation Mode Selection

    Operation Mode Selection This Access Point provides six operational modes: Access Point mode, Multi-SSID, Client mode, Repeater mode, Universal Repeater mode and Bridge with AP mode. Please choose an appropriate operation mode for the Access Point. Access Point Mode In this mode, the Access Point will act as a wireless central hub for your wireless LAN clients, giving a wireless extension for your current wired network.

  • Page 5: Bridge With Ap Mode

    Bridge with AP Mode In this mode, the Access Point can wirelessly connect two or more remote LANs together. Operation Mode Setting Click Wireless Click Wireless Settings Choose the Operation Mode appropriate to your needs If Access Point mode is selected, please proceed to part A; If Client mode is selected, please skip to part B;...
  • Page 6 Access Point Mode This Access Point is set to Access Point mode by default. The wireless settings can be changed as follows. Create a unique name (SSID) for your wireless network Select your Region Click Save at the bottom of this page. Your setup is now complete. Note The setup for Multi-SSID mode is similar to that of Access Point mode.
  • Page 7 The SSID and MAC address will be automatically filled into the corresponding box Click Save at the bottom of this page. Your setup is now complete. Repeater Mode Click Search The AP List page will then pop up in a new window. Find the SSID of the root Access Point / Router that you want to repeat, and then click Connect in the...
  • Page 8 Bridge Mode Click Search The AP List page will then pop up in a new window. Find the SSID of another bridge, and click Connect in the corresponding The BSSID of the remote bridge will be automatically filled into the MAC of AP box Click Save at the bottom of this page.
  • Page 9 T1. How do I restore my Access Point’s configuration to its factory default settings? With the Access Point powered on, press and hold the Reset button on the rear panel for 8 to 10 seconds before releasing it. Hold it in for 8 to 10 seconds Once the Access Point is reset, the current configuration settings will be lost Note and you will need to reconfigure the Access Point.
  • Page 10 For Windows Vista OS Go to Start > Settings > Control Panel > View network status and tasks; Click View Status at the right side > Properties; Double Click Internet Protocol Version 4 (TCP/IPv4) in the item list; Select Use the following IP address, enter the 192.168.1.100 as the IP address, 255.255.255.0 as the Subnet mask;...

  • Page 11: Appendix A: Wireless Security Setup

    Appendix A: Wireless Security Setup Log on to the web management page. Click Wireless on the leftmost side. Click Wireless Security Select WPA-PSK/WPA2-PSK Create a security password using 8 to 63 ASCII characters or 8 to 64 Hexadecimal characters in the PSK Password field Click Save The WPA-PSK/WPA2-PSK encryption type is more secure and recommended,...

  • Page 12: Appendix B: With Poe Setup

    Passive PoE Injector supports a maximum cable length up to 30 meters Note due to the environment. For longer powered cable up to 100 meters, please choose TP-LINK's 48V PoE adapters: TL-POE200 or TL-POE150S & TL-POE10R. Product information can be found on our official website...

  • Page 13: Technical Support

    For all other technical support, please contact us by using the following details: Global Australia & New Zealand Tel: +86 755 26504400 Tel: AU 1300 87 5465 E-mail: support@tp-link.com NZ 0800 87 5465 Service time: 24hrs, 7days a week E-mail: support@tp-link.com.au Service time: 24hrs, 7days a week Singapore...
