3.3.1.1.6 Bezel Key Test
The Bezel Key Test function verifies the operation of the bezel keys and knobs. While on the Ground
Maintenance TEST menu page, press the BEZEL KEYS line select key to go the the Bezel Key Test page.
Follow the on-screen directions to press each one of the bezel keys and actuate the knobs. After completing
the bezel key test the results will be shown on the display. If a key / knob is not actuated for ten seconds
(30 seconds for the first key in the test sequence), the test will automatically advance to the next key / knob
and will show a FAIL message upon completion of the test. Repeat the test carefully to ensure that the
keys and knobs are actuated within the required time.
Once the Bezel Key Test is initiated it cannot be exited until every key and knob is
actuated or times out.
The bezel key test should be run upon initial installation or any time a problem is suspected with one of the
CNX80 bezel keys or knobs.
3.3.1.1.7 Autopilot Test
The AUTOPILOT TEST page allows testing of the roll steering interface (if installed) to the autopilot by
allowing specific roll steering commands to be set. While on the TEST menu page, press the
AUTOPILOT TEST line select key to display the AUTOPILOT TEST page. The AUTOPILOT TEST
page is shown in Figure 3-17.
Apollo CNX80 Installation Manual
NOTE

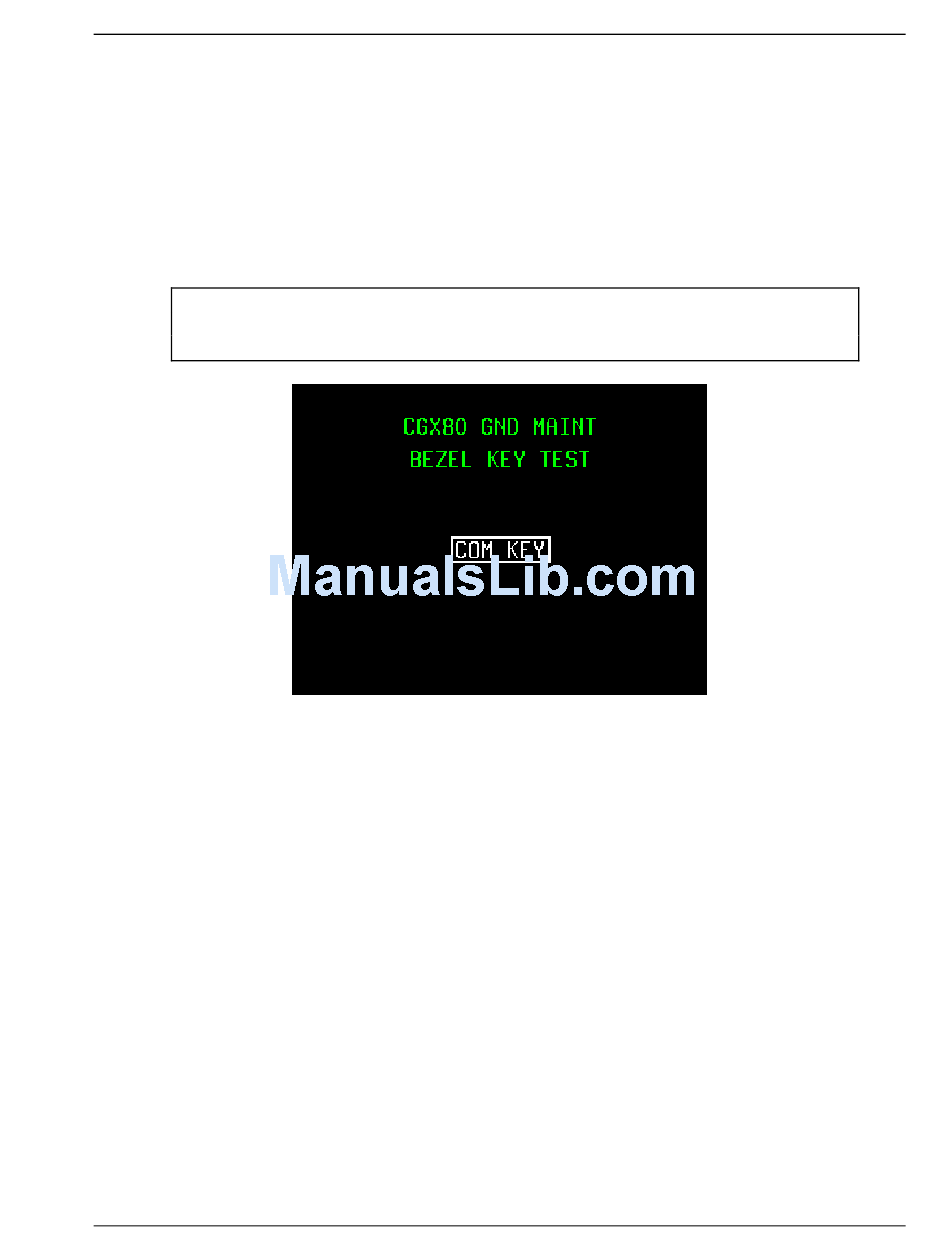

Figure 3-16 - Bezel Key Test
