I
DTC
11
23
27
31
33
36

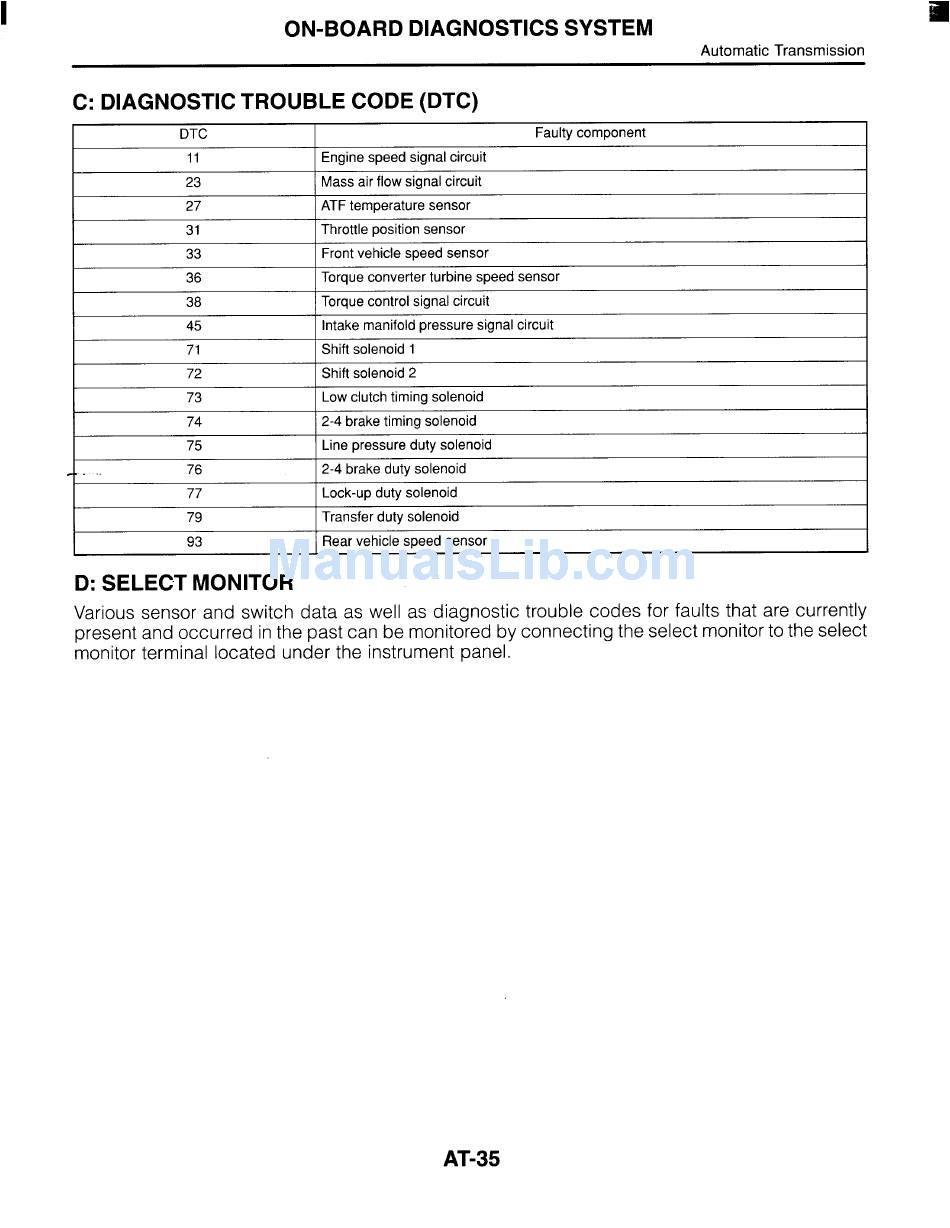

ON-BOARD DIAGNOSTICS SYSTEM
Automatic Transmission
Faulty component
Engine speed signal circuit
Mass air flow signal circuit
ATF temperature sensor
Throttle position sensor
Front vehicle speed sensor
Torque converter turbine speed sensor
r .
I
38
I
Torque control siqnal circuit
I
45
71
Shift solenoid 1
72
Shift solenoid 2
73
Low clutch timing solenoid
74
2-4 brake timing solenoid
75
Line pressure duty solenoid
77
Lock-up duty solenoid
79
Transfer duty solenoid
93
Rear vehicle speed sensor
Intake manifold pressure signal circuit
-
76
2-4 brake duty solenoid
D: SELEC-T MONITOR
Various sensor and switch data as well as diagnostic trouble codes for faults that are currently
present and occurred in the past can be monitored by connecting the select monitor to the select
monitor terminal located under the instrument panel.
AT-35
