Lindy 51245 User Manual

2S (16C950 128 FIFO)
User Manual
LINDY No. 51245
www.lindy.com
Installation
1. Turn off the power of your computer and remove the power
cable
2. Install the PCIe Low Profile card into an available PCIe Low
profile slot in your computer
3. Connect the peripheral ie Printer, Modem, etc. to the adapters
port
4. Re-connect the power cable & turn on the power of your
computer
PCI device listing display (for example...)
Bus Device Func Vendor ID
No No No
0 7 1 8086
0 13 0 1409
If the Vendor ID, Device ID, Device Class or IRQ aren't displayed or an
error occurs, please try another PCI slot.
Once the hardware has installed correctly you can start installing the
software from the driver CD.
Pin Assignments
Serial 9 Pin male connector pin assignments:
Serial 9 Pin male connector :
Pin Signal Pin Signal
1 CD 4 DTR
2 RD 5 GROUND
3 TD
PCIe Low Profile
English
Device Device Class
ID
7010 IDE Controller
7168 Simple COMM.
Controller
Pin Signal Pin
6 DSR 8
7 RTS 9
Introduction
Thank you for purchasing the LINDY PCIe Low Profile two Port Serial.
This card is equipped with one high speed RS-232 serial interfaces.
The serial ports include 128Byte FIFO with speeds up to 921Kb/Sec.
Port Specification
Serial Port:
Chipset: Oxford 952, 128Byte DMA FIFO
Compatible chips: with 16C950, 16C750, 16C650, 16C550,
and 16C450.
IEEE standard: RS-232 Interface
Max. Speed: Bi-directional speeds from 50 bps to
15Mbps/port.
2 x DB9 Male
Package Contents

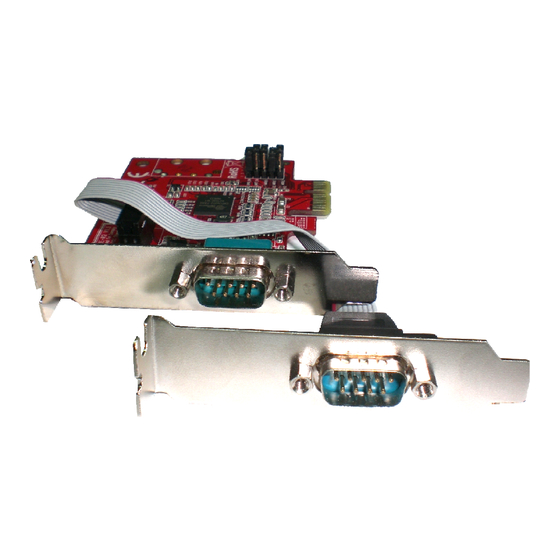

1 x LINDY PCIe Low Profile 2S Card
LINDY User manual
LINDY Driver CD
Technical Specifications
IRQ
14
10
Signal
CTS
RI
Support x1,x2,x4,x8,x16（lane）PCI-Express Bus
connector keys
Operating system: DOS, WIN 9.x, ME, NT, 2000, XP, 2003
Server, VISTA, Win7, LINUX,
5V / 12V / RI (no power) power selectable on each
th
individual port (Pin 9 )
Ready of the Intel and AMD 32/64-bit CPU System
Built-in 128 byte hardware FIFO
IRQ and IO address assigned by System
Certified by Microsoft WHQL, CE, FCC approval
PCB: 80 x 65 mm
