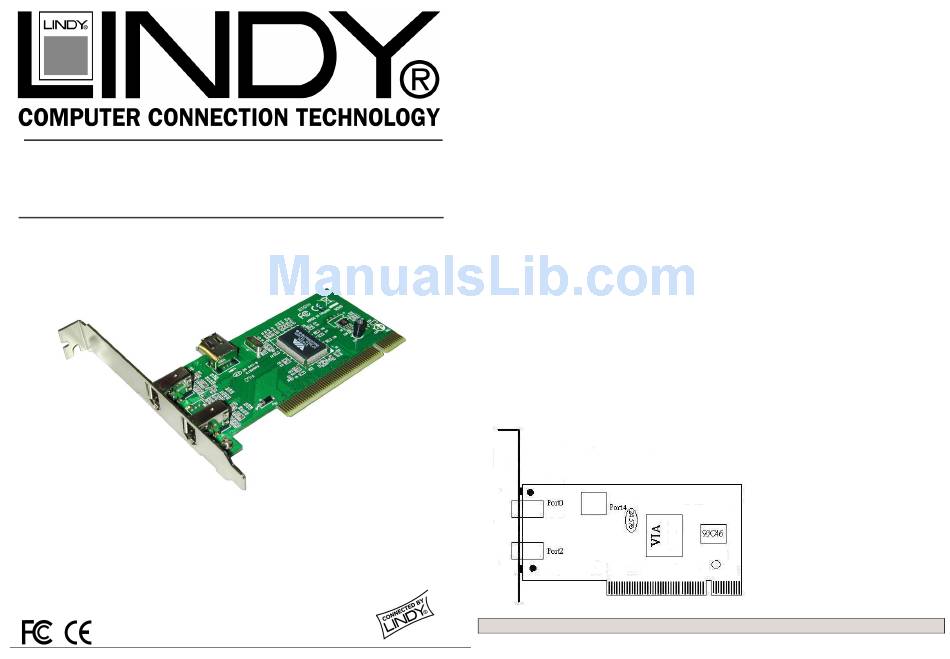

IEEE1394 2+1 Port PCI Card
User Manual
LINDY No. 51097
www.LINDY.com
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (Jan. 2008)
Introduction
Thank you for purchasing the LINDY FireWire 1394 2+1 card!
With the LINDY FireWire 1394 Card can instantly connect devices to your PC without opening up the
case. FireWire offers true plug and play and hot swapping of devices.
Use the LINDY FireWire 1394 Card to provide an interface that enables you to transfer video from your
digital camcorder to your PC for editing.
Features:
• Supports Provisions of IEEE 1394-1995 Standard for High Performance Serial Bus and the P1394a
Supplement 2.0.
Full P1394a Supplement Support includes:
•
* Arbitrated short reset
* Ack Accelerated Arbitration
• Provides Four 1394a Fully Compliant Cable Ports at 100/200/400 Megabits per Second (Mbit/s)
• Logic Performs Bus Initialization and Arbitration Functions
• Encode and Decode Functions Included for Data-Strobe Bit-Level Encoding
English
• Incoming Data Resynchronized to Local Clock.
• Data Interface to Link-Layer Controller Provided Through 2/4/8 Parallel Lines at 49.152 MHz
• 24.576 MHZ Crystal Oscillator and PLL Provide TX/RX Data at 100/200/400 Mbps and Link-Layer
Controller
• Programmable Node Power Class Information for System Power Management
Embedded Bus Holder Isolation to Link Layer Controller Interface
•
• Optional On-chip Resistors to Reduce Component Counts for Electrical Isolation to Link Layer
Controller Interface
• Separate TPBIAS for Each Port
• Fully Interoperable with IEEE Std1394-1995 Devices
• Cable Ports Monitor Line Conditions for Active Connection to Remote Node
• Low Power Design for Battery-Powered Applications includes: User Controlled Power-Down via PD,
Automatic
• Device Power-Down during All Ports Suspended and Link Interface Disabled, Link Interface Power-
Down via
• Inactive LPS, Automatic Inactive Ports Powered-Down, and Automatic Inactive Logic Power-Down
Self Power Up Reset and Pinless PLL to Reduce Component Counts on System
•
• Compatible with Windows 98SE/ME/2000/XP/Vista and Mac OS 9.0 or later.
WARNING: PORT 0 & PORT 4 are on the same circuit and cannot be used at the same time
* Connection Debounce * Multi-speed Concatenation
* Fly-By Concatenation,
