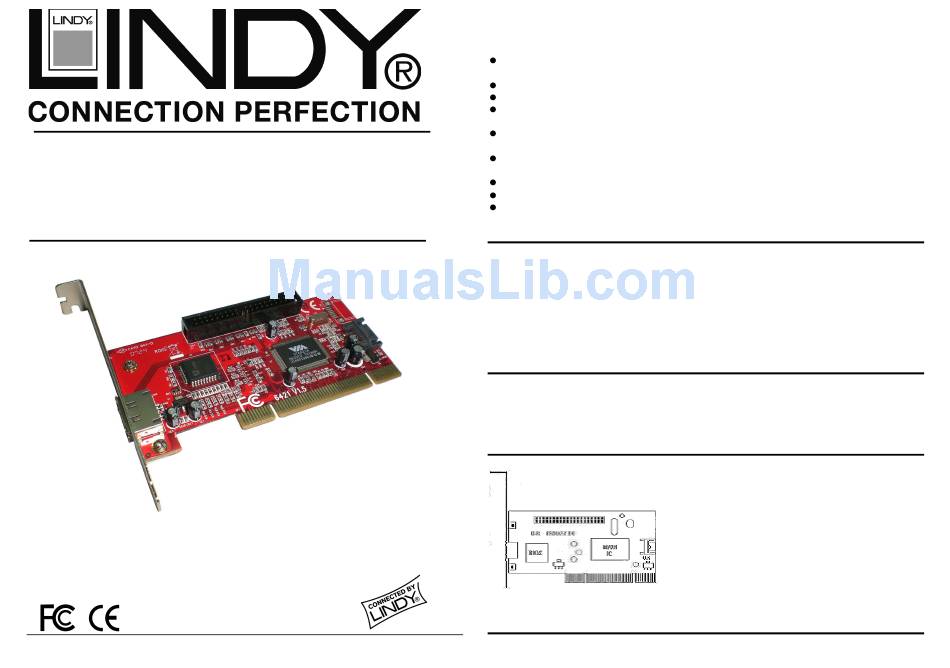

Lindy 51115 User Manual

_________________________________________ ________________________________
2 Ports SATA & 1 Port PATA
User Manual
LINDY No. 51115
www.LINDY.com
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (AUG. 2009)
Features
Raid Controller
Support RAID Level 0, Raid Level 1, 0+1 and JBOD
PCI Bus Interface
Compliant with PCI Specification revision 2X.
Supports up to 33/66 MHz PCI interface clock.
Supports PCI native modes
Serial-ATA Interface
Supports SATA 1.0 (High Speed Serialized AT Attachment, Revision 1.0), 1.5 Gbit/s
data rate
PCI Card
Supports internal PHY, with each PHY supporting up to SATA devices
Parallel-ATA Interface
Supports Ultra DMA Mode Transfers up to Mode 6 Timing (133 Mbytes/sec).
Supports PIO Modes up to Mode 4 Timings.
Multiword DMA Mode 0,1,2 with Independent Timing of up to 4 drives.
English
System Requirements
Hardware:
•
A Pentium®, Pentium Pro®, Pentium® III, IV or later, Pentium® compatible computer
•
One PCI slot
This I/O card is made exclusively for the IBM-PC or compatible line of computer. If you are
not sure what type of computer you have, check your system documentation for
compatibility. This I/O card requires an available PCI slot inside your computer.
Software:
• Windows® 98SE/ME • Windows® NT/2000/XP/Server 2003
Package Contents
This PCI Card package includes the following:
•
Hardware:
•
Configuration
The Serial ATA PCI Card
V-E(1PATA+1 ESATA external+1 SATA internal)
•
Installation Guide CD Driver
PCI Ultra ATA Card
