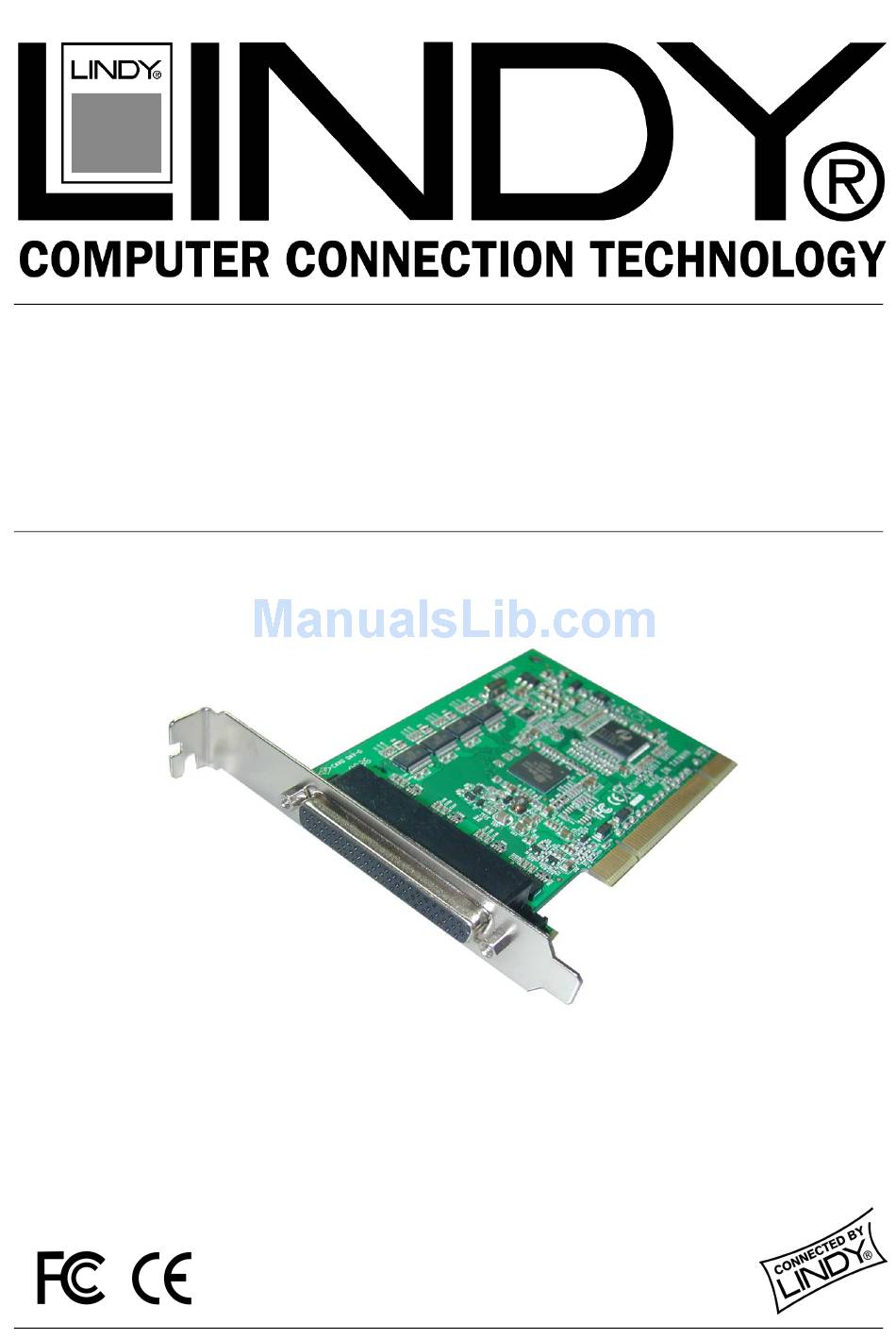

- Page 1 PCI 32Bit 8 Port Serial Card (16C950 128FIFO) User Manual English LINDY No. 51275 www.lindy.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (April 2010)
- Page 2 1. Introduction This PCI Host Adapter is a PCI controller board which can upgrade your desktop computer to have Multiple RS232 (UART) ports. The board supports a 32-bit 33 MHz PCI bus revision 3.0, RS232 transfer rate of 920 Kbps. It comes with drivers for Windows.
-
Page 3: Package Contents
1.2. Package Contents RS232 PCI Host This User’s Manual LINDY Driver CD Fan-Out Cable (for 4Ports and 8Ports card only) Software Installation After driver installation, please setup the correct Data Rate by 14.745MHz frequency or by automatic frequency detection for proper operation. - Page 4 2. Double click “ Multifunction adapters ”, If there is no yellow “!” or “?” in front of OX16PCI954 PCI UARTs (unique bars) OX16PCI95x PCI bridge The driver has started correctly. 3. Double click another “Ports”, If there is no yellow “!” or “?” in front of PCI Communications Port (COM3) PCI Communications Port (COM4) PCI Communications Port (COM5)
- Page 5 3. Make sure “Search for the best driver for your device (Recommended)”, and “Specify a location are both selected, uncheck the other boxes, and type in X:\ (If your CD-ROM/DVD is X:\) and click “Browse”. 4. Points specify a location, example X:\PCI IO Host \OXmPCI \Win_Driver_v6.5.1.5\Windows_95-98-ME.
-
Page 6: Windows Nt4.0 Installation
8. Repeat Step 4-7 for the setting of COM4, COM5 and COM6. 3.5. Windows NT4.0 installation 1. Power up the system, and insert the Driver CD into your CD-ROM/DVD. 2. Browse the Driver CD, and points specify a location, example X:\PCI IO Host \OXmPCI \Win_Driver_v6.5.1.5\Windows_NT4.0. - Page 7 1. Right click on “Start” icon, select " Settings ", " Control Panel ". 2. Double click on " Ports " and select COM Port, example “COM3”. The driver has started correctly.
- Page 8 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including inerference that may cause undesired operations.
