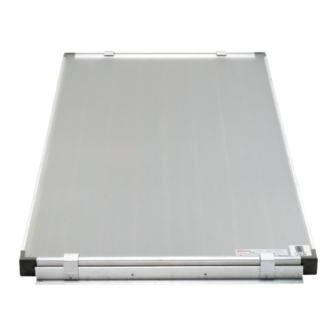

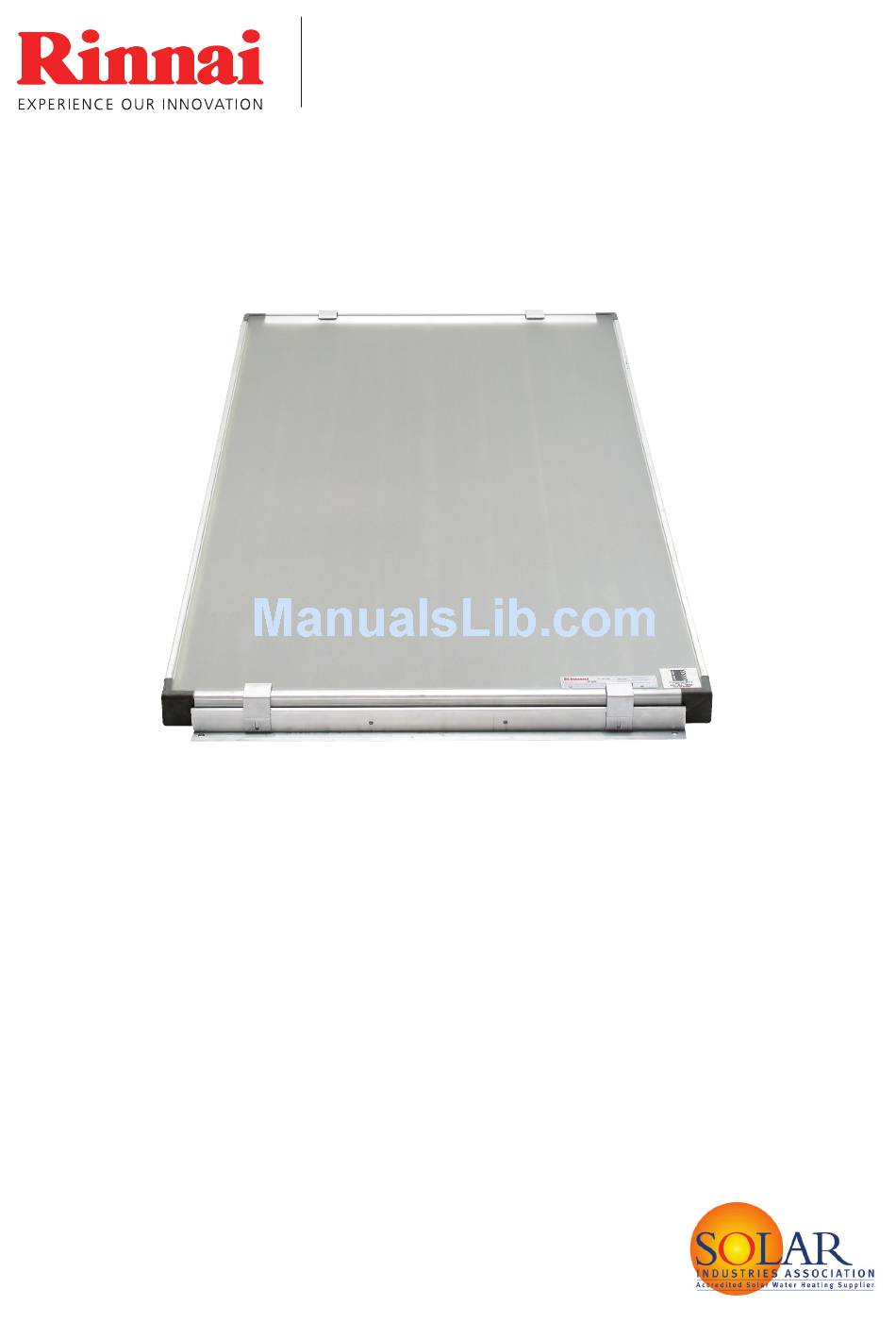

- Page 1 E-Frost Solar Collector Installation Manual Suitable for solar split hot water systems only • Must be installed, commissioned and serviced by an authorised person in accordance with all applicable local rules and regulations. • Power supply must be available to the system at all times...
- Page 2 1 year 1 year all terms of the warranty are effective from the date of installation of the rinnai solar system. rinnai new Zealand Limited (rinnai) reserves the right to verify this date by requesting a copy of the Certificate of Compliance obtained by local building authority inspection of the system.
- Page 3 Most metropolitan water supplies fall within these limits. If you are unsure about water quality, please contact rinnai and we will provide you with the details of an authorised agency able to test your water for compliance to rinnai standards. If sludge or foreign matter is present in the water supply, a suitable filter should be incorporated in the water supply.
- Page 4 G12/aS2 dUraBILIty as required by the new Zealand Building Code compliance document G12/aS2, clause 7.2.3, in respect of the durability of the solar system components supplied by rinnai, rinnai makes the following statements. The collector mounting rails have a durability of fifteen years provided they are kept clear of debris such as leaves.
-
Page 5: Table Of Contents
Fitting connecting pipes and sensor lead Commissioning Consenting requirements for solar WARNING Improper installation, adjustment, alteration, service or maintenance can cause property damage, personal injury or loss of life. For assistance or additional information contact rinnai on 0800 rInnaI (0800 746 624). -
Page 6: Introduction
Introduction this manual is intended to be used by rinnai accredited solar installers, who have a good understanding of the different types of solar systems and how they operate. the information contained is designed to reinforce information from the tradeSmart Solar training Course, provide an understanding of the rinnai Solar System, its suitability for use and high level instructions for installation. -
Page 7: Solar Collector Fittings Kits
M5 Fasteners (guide stoppers for panels) Hot outlet connection the rinnai standard mounting rails are for arrangements where the hot outlet connection is on the top right hand corner. If you have an arrangement that requires a top left hot outlet connection you will need a different top mounting rail. -
Page 8: Mounting Collectors On The Roof - General
Mounting collectors on the roof - general Each rinnai solar collector is approximately 2 m tall by 1 m wide. Select Roof sizing and a location with sufficient space for the collectors and associated plumbing collector weight connections. the collectors weigh approximately 40 kg each and due care and skill should be taken when lifting them onto the roof. -
Page 9: Mounting Collectors On A Metal Roof
Mounting collectors on a metal roof the rinnai standard mounting rails are for arrangements where the hot outlet connection is on the top right hand corner. If you have an arrangement that requires a top left hot outlet connection you will need a different top mounting rail. - Page 10 Fasten the lower mounting rail through the straps to the roof and in mounting rail additional places as required. Check the distance between the inside faces to the straps of the mounting rails is correct. rinnai new Zealand Limited E-Frost Solar Collector Install Manual: 11496-a 01-10...
- Page 11 Tighten fasteners on the first collector. Firmly push collectors together, tighten connectors and then tighten fasteners on second collector. Repeat from step 7 if fitting a third panel. rinnai new Zealand Limited E-Frost Solar Collector Install Manual: 11496-a 01-10...
-
Page 12: Mounting Collectors On A Tile Roof
Mounting collectors on a tile roof the rinnai standard mounting rails are for arrangements where the hot outlet connection is on the top right hand corner. If you have an arrangement that requires a top left hot outlet connection you will need a different top mounting rail. this can be purchased as an accessory from rinnai. -
Page 13: Fitting Connecting Pipes And Sensor Lead
Longer leads of 30 m length are available from rinnai as an accessory, or the lead can be terminated and extended using two core sheathed (double insulated) flex with conductors of 0.5 mm... -
Page 14: Commissioning
Commissioning the solar collectors need to be commissioned as part of a complete solar system. For commissioning information for the rinnai Solar Split System refer to instructions detailed in the Solar Split System Installation Manual. Keep the solar collectors covered until system filling and commissioning is complete. -
Page 15: Consenting Requirements For Solar
