OWNER'S OPERATION AND
INSTALLATION MANUAL
FOR MODELS
AGDV8, AGDV12, AGDV20
WARNING: If the information in this
Manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
Do not store or use gasoline or other
flammable vapours and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch;
·
do not use any phone in your
building.
Immediately call your gas supplier
·
from a neighbour's phone. Follow
The gas supplier's instructions.
If you cannot reach your gas
·
Supplier, call the fire department.
Installation and service must be
performed by a qualified installer,
Service agency or the gas supplier.
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or
mobile home, where not prohibited by
local codes.
This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases, unless a certified kit is
used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.

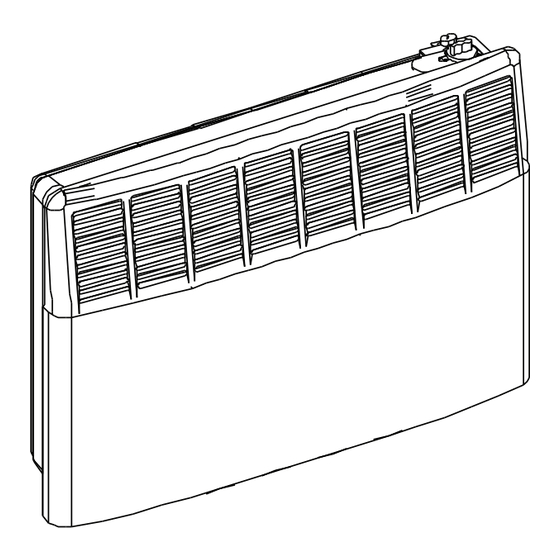

GRAVITY
DIRECT VENT
WALL FURNACE
AVERTISSEMENT. Assurez-vous de bien
suivre les instructions données dans cette
notice pour réduire au minimum le risque
d'incendie ou d'explosion ou pour éviter
tout dommage matériel, toute blessure ou
la mort.
Ne pas entreposer ni utilliser d'essence ni
d'autres vapeurs ou liquides inflammables
dans le voisinage de cet appareil ou de tout
autre appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
Ne pas tenter d'allumer d'appareils.
·
Ne touchez à aucun interrupteur. Ne pas
·
vous servir des téléphones dans le
bâtiment où vous vous trouvez.
Appelez immédiatement votre fournisseur
·
de gaz depuis un voisin. Suivez les
instructions du fournisseur.
Si vous ne pouvez rejoindre le fournisseur
·
de gaz, appelez le service de incendies.
L'installation et l'entretien doivent être assuré
par un installeteur ou un service d'entretien
qualifié ou par le fournisseur de gaz.
Cet appareil peut être installé dans une maison
préfabriquée (É.-U. Seulement) ou mobile déjà
installée à demeure si les règlements locaux le
permettent.
Cet appareil doit être utilisé uniquement avec
le type de gaz indiqué sur la plaque
signalétique. Cet appareil ne peut être converti
à d´autres gaz, sauf si une trousse de
conversion est utilisée.
INSTALLATEUR: Laissez cette notice avec
l´appareil.
CONSOMMATEUR: Conservez cette notice
pour consultation ultérieure.
1
852351
Advertisement
Table of Contents
Related Manuals for Ashley AGDV8
Summary of Contents for Ashley AGDV8
-
Page 1: Preface
OWNER'S OPERATION AND GRAVITY INSTALLATION MANUAL DIRECT VENT FOR MODELS AGDV8, AGDV12, AGDV20 WALL FURNACE AVERTISSEMENT. Assurez-vous de bien WARNING: If the information in this suivre les instructions données dans cette Manual is not followed exactly, a fire or notice pour réduire au minimum le risque explosion may result causing property d'incendie ou d'explosion ou pour éviter... -
Page 2: Table Of Contents
CONTENT Section Page Preface Product Identification Product Features Installation 4-10 Gas Piping 11-12 Operation 12-14 Cleaning and Maintenance 14-15 Troubleshooting 16-18 Service and Maintenance Parts List 19-23 This gas appliance must not be connected to a chimney flue serving a separate solid- fuel burning appliance. -
Page 3: Product Features
AGDV12L Depth: 7 5/8 / (194) ignitor Height: 20 / (508) Piezo- AGDV20N 425 / (39.5) 48.7 / (22.1) Atmospheric Width: 27 3/8 / (695) electric AGDV20L Depth: 8 3/8 / (213) ignitor Model AGDV8 Model AGDV12 Model AGDV20... -
Page 4: Installation
PRODUCT FEATURES (CONTINUED) NOTICE A qualified service person must install the heater. Follow all local codes. CHECK GAS TYPE Use only the type of gas indicated on the rating plate. INSTALLATION INSTALLATION ITEMS Before installing heater, make sure you have the items listed below. ·... - Page 6 INSTALLATION (CONTINUED) This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.
- Page 7 INSTALLATION (CONTINUED) TABLE1 MODEL AGDV8N - AGDV8L 19 ½” (495 mm) 6 ¾” (172 mm) AGDV12N - AGDV12L 19 ½” (495 mm) 7 ¾” (197 mm) AGDV20N - AGDV20L 19” (483 mm) 8 ¾” (222 mm) Figure 5 Figure 6 2.
- Page 8 INSTALLATION (CONTINUED) 1. Drill through the wall according to measurements and positions indicated. 2. Place wall bracket over the hole. After leveling the hanging bracket, mark the four holes as shown in figures 9 and 10. Figure 9 Figure 10 5.
- Page 9 INSTALLATION (CONTINUED) INSTALLING THE VENTING SYSTEM These models of wall furnaces are designed for direct venting through a wall. Only venting components specifically approved for these furnaces may be used. The flow of combustion gases and ventilation air must not be obstructed. Minimum clearance between pipes and combustible materials is one (1) inch (25.4 mm).
- Page 10 INSTALLATION (CONTINUED) 7. Before attaching the vent cap to the exterior wall, run a bead of non-hardening mastic (silicone caulk) around its outside edge, so as to make a seal between it and the plate. (See figure 17). 8. Place cap and screw nut “E”, until cap leans against the plate. (See figures 16 and 17). Figure 16 Figure 17 INSTALLING THE THERMOSTAT SENSOR...
-
Page 11: Gas Piping
GAS PIPING Gas Connection We recommend using only new black iron or steel pipe. CHECK LOCAL CODES. 2) The gas supply line shall be sized and installed to provide a sufficient supply of gas to meet the maximum demand of the heater without undue loss of pressure. 3) The sealant used on the threaded joints of the gas pipe must be a type resistant to the action of L.P.Gas. -
Page 12: Operation
GAS PIPING (CONTINUED) CAUTION: NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS Pressure testing supply line ATTENTION: This appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of ½ psi (3,5 kPa). The appliance must be isolated from the gas supply piping system by closing equipment shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than ½... -
Page 13: Lighting Instructions
3. Régler le thermostat à la température la plus basse. Model AGDV 20 Model AGDV8 4. Appuyez doucement sur le bouton et tournez-le en direction 7. Tournez le bouton en direction contraire aux aiguïlles d'une des aigüilles d'une montre jusqu'à... -
Page 14: Cleaning And Maintenance
OPERATION (CONTINUED) CAUTION Do not try to adjust heating levels by using the manual shutoff valve. IMPORTANT · Do not dry clothes over the heater. · Do not spray any aerosol near the heater when functioning. Do not store these elements near the appliance. - Page 15 Correct pilot burner flame pattern SECONDARY FLAME PRIMARY FLAME PILOT FLAME THERMOCOUPLE Fig. 25 Correct main burner flame pattern (top view) Models AGDV8 and 12 SECONDARY FLAME PRIMARY FLAME PILOT FLAME THERMOCOUPLE Fig. 26 Correct main burner flame pattern (top view)
-
Page 16: Troubleshooting
TROUBLESHOOTING WARNING Turn off heater and let cool before servicing. Only a qualified service person should service and repair heater. POSSIBLE CAUSE REMEDY OBSERVED PROBLEM 1) Ignitor electrode broken. 1) Replace ignitor electrode. 2) Ignitor electrode not connected to 2) Reconnect ignitor cable. ignitor cable When ignitor button is pressed, there is no spark at... - Page 17 TROUBLESHOOTING (CONTINUED) 1) Clean burner orifice or replace 1) Burner orifice is clogged. burner orifice. Burner does not light after 2) Replace burner orifice. pilot is lit. 2) Burner orifice diameter is too small. 3) Contact local Gas Company. 3) Inlet gas pressure is too low. 1) Contact local Gas Company.
-
Page 18: Service And Maintenance
TROUBLESHOOTING (CONTINUED) WARNING If you smell gas: · Shut off gas supply. · Do not try to light any appliance · Do not touch any electrical switch, do not use any phone in your building. · Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions. ·... -
Page 19: Parts List
This manual will help you obtain efficient, dependable service from your Ashley heater, and enables you to obtain repair parts correctly. Parts may be ordered through your service person, dealer or directly from the factory. Parts can be shipped directly to you or to your ser- vice person/dealer. - Page 20 Model AGDV8...
- Page 21 Model AGDV12...
- Page 22 Model AGDV20...
-
Page 23: Parts List
PARTS LIST ITEM No. PARTS No. DESCRIPTION AGDV8 AGDV12 AGDV20 0XXXX 0XXXX 0XXXX Front panel 01196101 05146 05262 05359 Grill guard 05046 Glass frame 05090 Lateral radiation shield 01212001 Glass 01090001 Gasket 05204 05222 05398 Combustion chamber 05075 05225 05330 Back 01192701 –... - Page 24 PARTS LIST (CONTINUED) ITEM No. PARTS No. DESCRIPTION AGDV8 AGDV12 AGDV20 02220702 02220705 Ignitor rod 01140701 Control Knob 02100117 Control panel 02100126 Ignitor button 012123 01212301 Knob rod 01210603 Adapter 010002 Washer 05096 05097 Gas control valve bracket 01190403 Bolt...
