Cradlepoint CBR450 Setup Manual

CBR400/CBR450
Compact Broadband Router
Setup Guide
SETTING UP THE ROUTER
Plug the power supply into an electrical outlet.
1 )
2 ) Connect the power supply to the CBR400/CBR450.
Ensure power is switched on. o = OFF | = ON
3 ) Connect a: USB or ExpressCard Wireless Broadband Data Modem
with Active Subscription, or, (CBR400 only) a Cable, DSL, Satellite, T1,
T3, Ethernet Modem .
What's In The Box

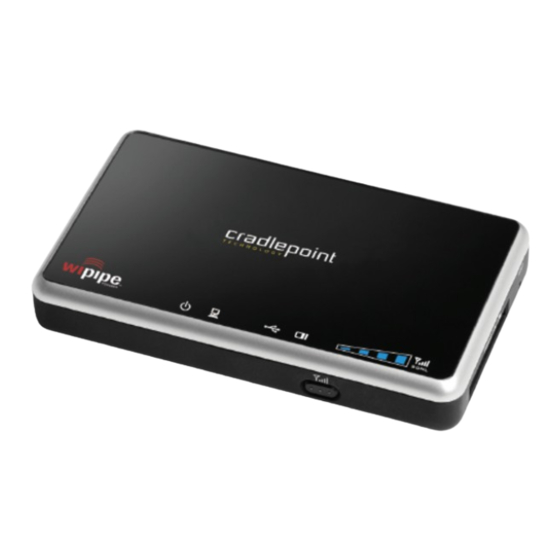

CBR400/CBR450
Compact Broadband Router
Setup Guide
AC Power Supply Setup Guide
Compact Broadband Router
www.cradlepoint.com/cbr400
for more information about your product, visit:
PORTS & SWITCHES
ETHERNET CONNECTION
COMPUTERS
or LOCAL DEVICES
( LAN )
default
CABLE/DSL
3G/4G MODEM
POWER
MODEM SLOT POWER 12 VDC
OFF/ON ( WAN )*
(USB)
(CBR400 only)
EXPRESS CARD
EXPRESS CARD LOCK
2
* WAN Ethernet connection available on CBR400 only
CONNECTING YOUR COMPUTER
After you connect your modem to the router, you're now ready
to connect to the CBR450 via Ethernet or the CBR400 via
Ethernet or WiFi.
The main difference between the CBR400 and CBR450 is that
RESET the CBR450 has no WiFi radio.
Default SSID: CBR400-xxx
Internal 802.11n antennas provide up to 500 feet of range from
the CradlePoint router to your connected computers or
WiFi-enabled devices.
Find your default password on the bottom of your router
( last 8 characters of your MAC Address ).
MODEM
SIGNAL
NOTE: If you are asked for an "8-digit PIN", click CONNECT
STRENGTH
USING A SECURITY KEY and enter your eight character
default password found on the bottom of your router.
For additional information, visit:
www.cradlepoint.com/cbr400
© 2012 CradlePoint, Inc. All rights reserved. CradlePoint is not responsible for omissions or errors in typography or photography. CradlePoint, WiPipe™,
3
and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are property of their respective owners.
FINDING
YOUR
PASSWORD
Your unique default password
is shown on the product label
on the bottom of your router.
It's the last eight characters
of the MAC Address .
You will be asked for this
password when you connect a
new device to the WiFi network
or log into the administration
pages.
The default password provides
WiFi security out-of-the-box.
Part No.: CBR400
H/W ver.: 1.0
www.cradlepoint.com
MAC Address : 0030440aec87
FCC ID: UXX-CTR550
IC: 6921A-CTR550
Model: CTR550
Serial #: MM100096300005
SSID: CBR400-c87
MFG DATE: JAN 2011 RoHS
Made in Taiwan 12V 1.5A
dual-stream n
find this label on the bottom of your router
