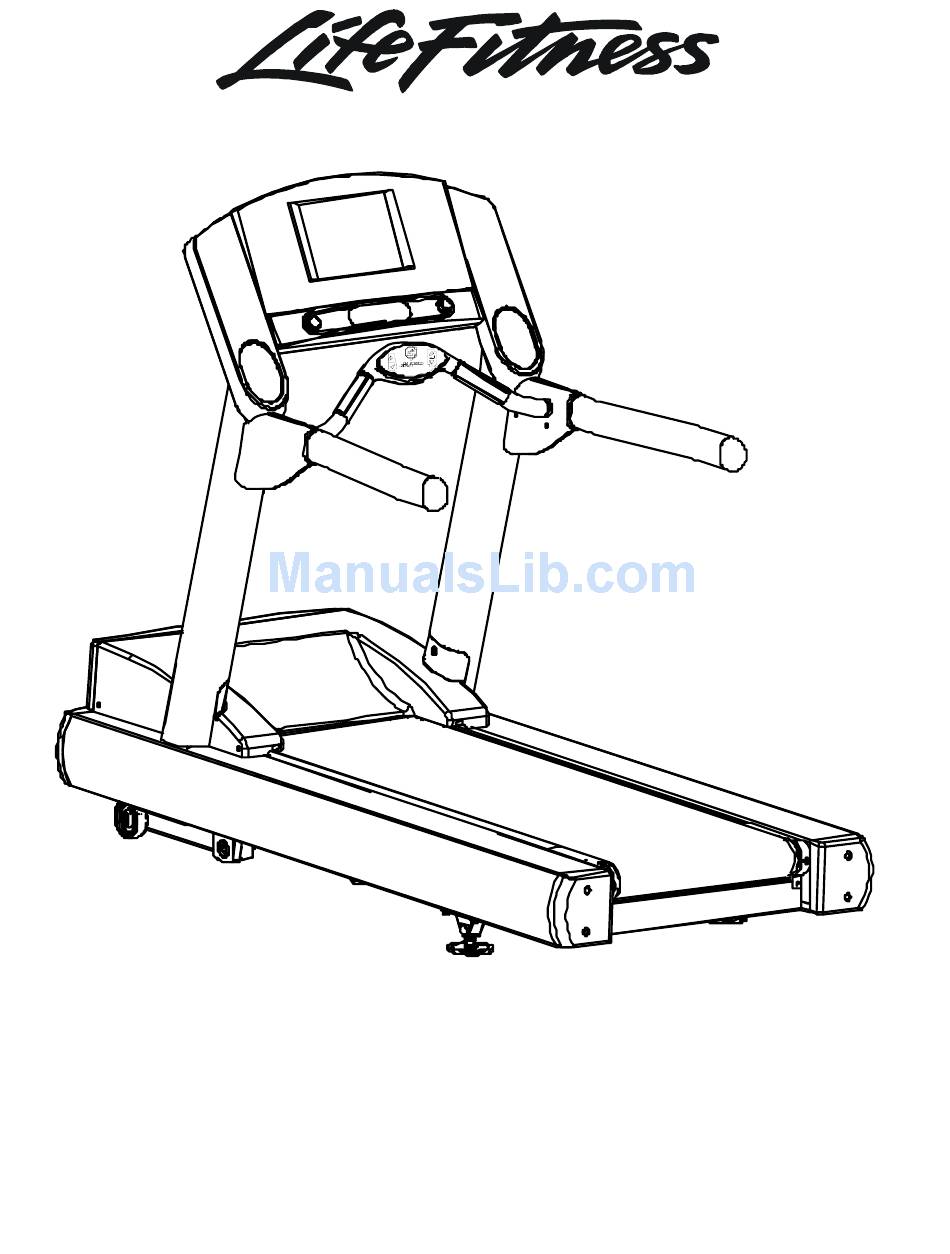

- Page 1 ARCTIC SILVER 97TE-XXXX-08 TREADMILL Customer Support Services PARTS MANUAL rev 30 May 2008...
-
Page 2: Table Of Contents
ARCTIC SILVER 97TE 97TE-XXXX-08 CONTENTS S/N TSN100000 and up Page MISCELLANEIOUS PARTS ... 3 CONSOLE, OVERLAY ASSEMBLY, AND OVERLAY ... 5 CONSOLE COMPONENTS ... 6 UPRIGHTS AND HANDRAILS... 8 ERGO BAR, HEART RATE SENSORS, AND ACTIVITY ZONE ... 9 A-Z MODULE WITH OVERLAY ASSEMBLY ... 10 REAR ENDCAPS AND CUP HOLDERS ... -
Page 3: Miscellaneious Parts
ARCTIC SILVER 97TE MISCELLANEOUS PARTS OPERATION LANGUAGE MANUAL ENGLISH M051-00K58-A276 FRENCH M051-00K58-A277 PORTUGUESE SPANISH DUTCH M051-00K58-A278 GERMAN ITALIAN JAPANESE M051-00K58-A279 * All Operation, Instruction assembly & Instruction Bag assembly may not be available. AK58-00226-0000 Item 0K58-01305-0002 0K58-01347-0000 Only available in the kit 0017-00042-0326 0017-00042-0840 0017-00101-1770... - Page 4 ARCTIC SILVER 97TE MISCELLANEOUS PARTS GK58-00002-0096 Part Number AK58-00361-0001 AK58-00361-0002 Only available in the kit 0017-00042-0326 0017-00042-1147 0017-00101-1776 GK58-00002-0071 Part Number Only available in the kit Only available in the kit 0K58-01376-0000 Only available in the kit 0017-00008-0204 0017-00008-0205 0017-00008-0206 INK TRANSFER TOUCH-UP PAINT: SB No.
-
Page 5: Console, Overlay Assembly, And Overlay
ARCTIC SILVER 97TE Console, Overlay Assembly, and Overlay Rubber Pad 0K58-01359-0000 Tether AK58-00322-0000 LANGUAGE ENGLIGH SPANISH NTSC JAPANESE FRENCH ENGLISH GERMAN SPANISH FRENCH ITALIAN DUTCH Emergency Stop Switch AK58-00036-0002 Disk Magnet 0K40-01070-0000 Headphone Jack Assy AK32-00043-0000 Screw 0017-00101-1811 Stop Stitch 0K58-01321-0000 Switch: Micro;... -
Page 6: Console Components
ARCTIC SILVER 97TE Console Components Touch Screen Assmbly 0K32-01001-0013 Nuts 0017-001030084 TORX Screws(4) 0017-001011843 Protective Covers(2) 0017-00042-1156 Sleeve(4) 0K58-01381-0000 Double-Back Tape 0K39-01044-0001 Polar Transmitter AK39-00064-0000 Flat Cable 118E-00001-0178 Grommet(4) 0017-00042-1160 97TE-XXXX-08 S/N TSN100000 and up... - Page 7 ARCTIC SILVER 97TE Console Components - Continued Single Board Computer Console Back Cover A084-92251-A002 AK58-00281-0000 Decal 0K58-01357-0000 Access cover Console Back 0K58-01280-0000 Cover Screws(8) 0017-00101-1288 Inverter Board Inverter Board 135E-00002-0002 Screws(2) 0017-00101-1813 Screws(3) 0017-00101-1814 Spacers(4) 0017-00042-1159 Screws(8) 0017-00101-1801 97TE-XXXX-08 S/N TSN100000 and up Bracket 0K58-01370-0000 Interface Board...
-
Page 8: Uprights And Handrails
ARCTIC SILVER 97TE Uprights and Handrails Handrail Mounting Screw (4) Console Mounting 0017-00101-1774 Screw (4) 0017-00101-1773 Top LT Handrail Boot 0K58-01303-0002 Upright, Plug (2) 0K58-01305-0002 Upright, LT AK58-00311-0004 Upright Tube Cap (2) 0K58-01302-0000 Bottom RT Handrail Boot 0K58-01304-0001 Bottom LT Handrail Boot 0K58-01304-0002 Handrail Boot... -
Page 9: Ergo Bar, Heart Rate Sensors, And Activity Zone
ARCTIC SILVER 97TE Ergo Bar, Heart Rate Sensors, and Activity Zone ERGO-BAR OVERMOLD ASSY: PURCH. D AK58-00376-0000 ACTIVITY-ZONE MODULE ASSY AK58-00554-0000 SEE NEXT PAGE 8-16X18 PHL PAN PLT ST BO B ( 2 ) 0017-00101-0824 Heart Rate Sensor Kit KIT: SERV; MFG; ELECTRODES; LARGE GK20-00002-0005 GASKET: ERGOBAR ( 2 ) 0K58-01347-0000... -
Page 10: A-Z Module With Overlay Assembly
ARCTIC SILVER 97TE A-Z Module with Overlay Assembly LANGUAGE ENG/ENG ENG+MET GERMAN SPANISH JAPANESE FRENCH ITALIAN DUTCH *All Console, Overlay/Bezel Assembly or Overlay may not be available. A-Z MODULE AZ OVERLAY W/OVERLAY ASSY AK58-00556-0001 0K58-01461-0001 AK58-00556-0002 0K58-01461-0002 AK58-00556-0003 0K58-01461-0003 AK58-00556-0004 0K58-01461-0004 AK58-00556-0006 0K58-01461-0006... -
Page 11: Rear Endcaps And Cup Holders
ARCTIC SILVER 97TE Rear End Caps and Cup Holders CUP-COVER ASSY, LT AK58-00247-0002 CUP-COVER ASSY, RT AK58-00247-0001 Qty needed ( 4 ) ENDCAP: REAR 10-16X 8 PHL PAN 0K58-01268-0000 B ST ZS B 0017-00101-1772 97TE-XXXX-08 S/N TSN100000 and up ENDCAP: REAR 0K58-01268-0000... -
Page 12: Motor Cover, Front Cover And, Front Endcaps
ARCTIC SILVER 97TE Motor Cover, Front Cover, and Front End Caps 10-16X 8 PHL PAN B ST ZS B ( 4 ) 0017-00101-1772 ENDCAP: FRONT 0K58-01267-0000 FRONT-PANEL W/MEDALLION ASSY AK58-00272-0000 10-32x10 PHL PAN MS ST ZS B ( 4 ) AK58-00360-0001 GUARD-ASSY: MFG;... -
Page 13: Scuff Pad And Tinsel
ARCTIC SILVER 97TE Scuff Pad and Tinsel RAIL: ANTI-SLIP; STEALTH-GREY 0K58-01376-0000 SPRING: EXTENSION; TINSEL 0017-00009-0901 S/N TSN100000 and up 8-32X 6 SLT HXW TINSEL: TT ST ZN B 0K58-01102-0001 0017-00101-0975 97TE-XXXX-08 RAIL: ANTI-SLIP; STEALTH-GREY 0K58-01376-0000... -
Page 14: On-Off Switch, Access Plate, And Grommets
ARCTIC SILVER 97TE On-Off Switch, Access Plate, and Grommets GROMMET: PLASTI; . 130/.005 S/C#13-B ( 4 ) 0017-00042-0326 CLIP: WIRE; PUSH- MTG; 3/4"; S/C#80-B 0017-00042-0840 SWITCH: ROCKER; 22A DPST 0017-00032-0198 ACCESS-PLATE ASSY AK58-00286-0000 FRONT VIEW Ink transfer decal can not be replaced in the field, it can only be touched up. -
Page 15: Belt, Deck, And Rear Roller
FL-D ST ZN B (8) 0017-00104-0072 Rear Roller Adjusting Bolt ( 2 ) 3/8 -16X48 HEX SOC L CS ST SS B 0017-00101-1880 LBL: BELT-LIMIT; LT. M051-00K58-A101 DECK: TREADMILL; WAXLESS 0K58-01091-0002 255-.562-046 97TE-XXXX-08 S/N TSN100000 and up LBL: CAUTION; HI-VOLT;ENG+FRN B M051-00K58-A014 LBL: BELT-LIMIT;... -
Page 16: Lift Frame And Receptacle Assembly
ARCTIC SILVER 97TE Lift Frame and Receptacle Assembly Line-Cord Frame Screws (2) 0017-00101-1723 Lift Frame End Cap (4) 0017-00042-1076 Line Cord Clip 0017-00042-0840 Wheel (2) 0K58-01071-0000 Phillips Screw (2) 0017-00101-1612 Washer (2) 0017-00104-0189 Hex Screw (2) 0017-00101-1777 Flat Washer (2) 0017-00104-0259 Bronze Sleeve (2) 0K58-01089-0000... -
Page 17: Lift Motor Assembly
ARCTIC SILVER 97TE Lift Motor Assembly - AK58-00075-0000 Actuator: Linear 0K58-01062-0000 Clevis Pin 0017-00007-0214 S/N TSN100000 and up ( * ) Decline Switch Bracket Assy. AK58-00116-0000 Cotter Pin 0017-00007-0208 Nut 10-24 Locking D ST ZN B (2) 0017-00103-0283 Decline Switch Bracket ( 0K58-01150-0003 Mini Switch ( * ) 0017-00032-0194... -
Page 18: Idler Arm Assembly
ARCTIC SILVER 97TE Idler Arm Assembly Idler Arm Assembly AK58-00053-0002 Anti Static Brush 0K58-01263-0001 Tinsel Bracket Screw(2) 0017-00101-1193 Grommet 0017-00042-0326 Drive Belt 0K58-01114-0000 Idler Pulley 0K26-01731-0000 Threaded Idler Shaft 0K58-01084-0002 Lock Nut: Idler 0017-00103-0324 Motor Pulley 0K58-01057-0001 Allen Screw 0017-00101-0333 Wire Clamp Limit Switch 0017-00042-1072... -
Page 19: Leg Leveler Assembly
ARCTIC SILVER 97TE Leg Leveler Assembly – AK58-00464-0000 Flat Washer (4) 0017-00104-0190 Lock Washer (4) 0017-00104-0333 Hex Nut (4) 0017-00101-1652 S/N TSN100000 and up Lever W/Bush Assy. AK58-00089-0000 Stop Nut 0K58-01099-0000 Leveling Foot 0K58-01110-0000 97TE-XXXX-08 Pivot Pin 0K58-01098-0001... -
Page 20: Front Roller Assembly
ARCTIC SILVER 97TE Front Roller Assembly – AK58-00067-0000 Polley V Pulley 8” 0K58-01105-0000 Lock Washer 0017-00104-0005 Hex Bolt 0017-00101-1632 Mounting Bolt 0017-00101-0974 Flat Washer 0017-00104-0043 Flat Washer 0017-00104-0330 97TE-XXXX-08 S/N TSN100000 and up ROLLER: FRONT; 5" 0K58-01067-0001... -
Page 21: Drive Motor Assembly
ARCTIC SILVER 97TE Drive Motor Assembly Setscrews (2) 0017-00101-0333 Poly-V Pulley 0K58-01056-0001 Locking Nuts (4) 0017-00103-0027 Washers (4) 0017-00104-0409 Description Drive Motor Assembly Cast Iron Flywheel Flywheel Setscrews/Bolt Ref: technical bulletin TR07060101N The key is part of the drive motor (not available separately). -
Page 22: Stride Sensor Assy And Stride Sensor Pcb Assembly
ARCTIC SILVER 97TE Stride Sensor Assembly and Stride Sensor PCB Assembly BUSHING: SNAP; 1.75" 0017-00042-1180 STRIDE-SENSOR ASSY AK58-00560-0000 S/N TSN100000 and up SUPPORT: PCB; 3/8" 0017-00042-1057 PCB-ASSY: STRIDE SENSE ISO B084-92329-0000 97TE-XXXX-08... -
Page 23: Dsp-Controller Assembly
ARCTIC SILVER 97TE DSP-Controller Assembly VOLTAGE PART NUMBER 100-120 GK58-00002-0119 200-240 GK58-00002-0121 PART DESCRIPTION KIT: SERV; MFG; DSP CONTROLLER 100-120; LCD KIT: SERV; MFG; DSP CONTROLLER 200-240; LCD 97TE-XXXX-08 S/N TSN100000 and up... -
Page 24: Line-Cords And Line-Cord Options
ARCTIC SILVER 97TE Line Cords and Line Cord Options MODEL # MODEL DESCRIPTION 97TE-0100-07 97Te ENG+MET 120/60 DOM NTSC 97TE-0300-07 97Te FRN/MET 120/60 DOM NTSC 97TE-0400-07 97Te SPN/MET 120/60 DOM NTSC 97TE-0800-07 97Te POR/MET 120/60 DOM NTSC 97TE-0103-07 97Te ENG+MET 220/60 DOM NTSC 97TE-0105-07 97Te ENG+MET 100/50 DOM NTSC 97TE-0106-07... -
Page 25: Arctic Silver 97Te 97Te-Xxxx
ARCTIC SILVER 97TE 97TE-XXXX-08 Block Diagram S/N TSN100000 and up... - Page 26 ARCTIC SILVER 97TE Block Diagram A TTACHED TO DECLINE SWITCH 0 SWITCH -3 SWITCH A TTACHED TO LIFT LIFT MOTOR S/N TSN100000 and up 97TE-XXXX-08...
-
Page 27: Block Diagram
ARCTIC SILVER 97TE Block Diagram CBL-ASSY: POWER; 100-200V AK58-00520-0000 POWER CABLE PLUGS INTO P7 ON THE DSP CONTROLLER CBL-ASSY: MOV; FILTER AK58-00224-0001 CBL-ASSY: HI-POT JUMPER AK58-00263-0000 CBL-ASSY: POWER; 230-240V; LED AK58-00596-0001 POWER CABLE PLUGS INTO P7 ON THE DSP CONTROLLER CBL-ASSY: MOV;...
