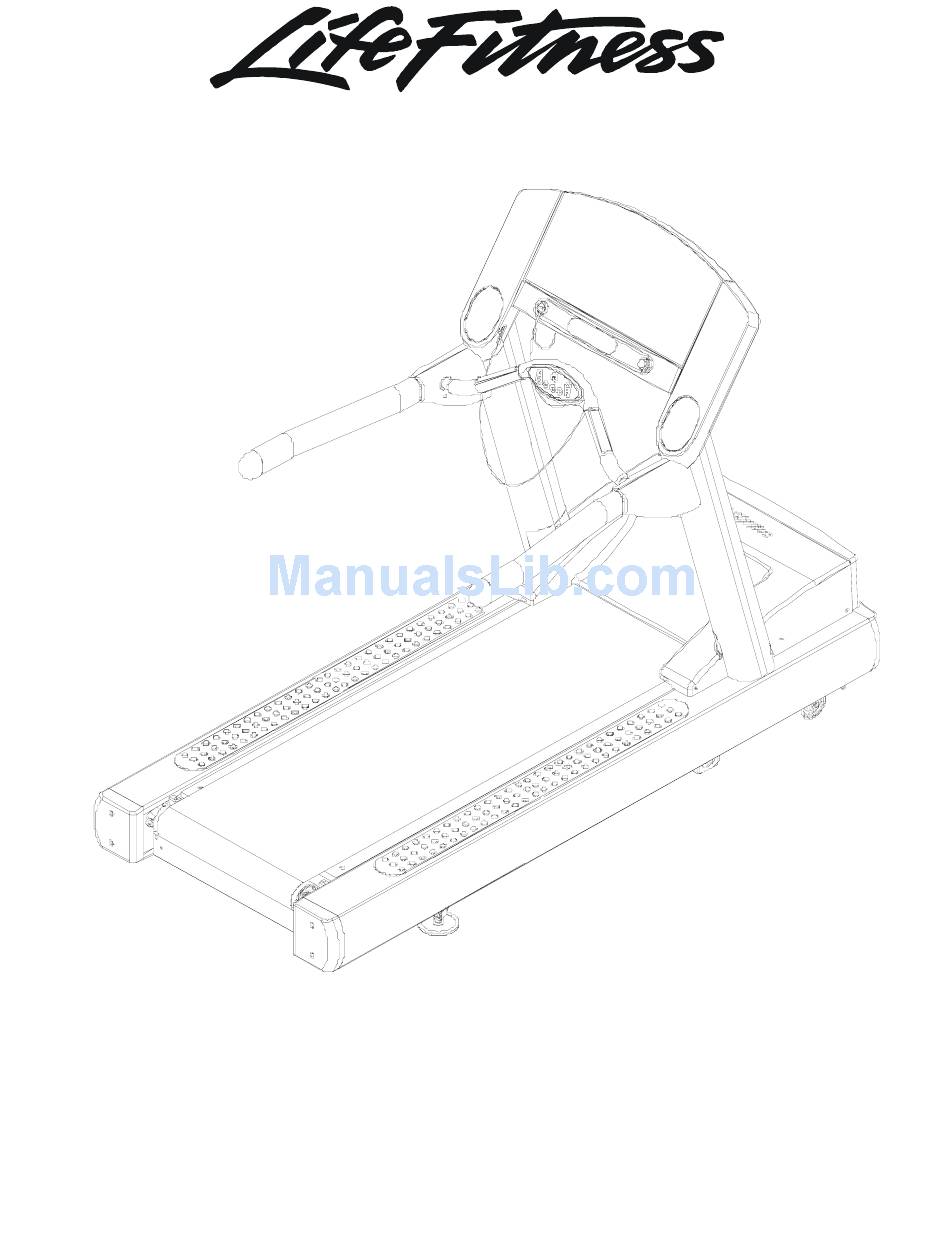

- Page 1 ARCTIC SILVER 95T-XXXX-07 TREADMILL Customer Support Services PARTS MANUAL rev 29 May 2008...
-
Page 2: Table Of Contents
ARCTIC SILVER 95T 95T-XXXX-07 Contents S/N TSS100000 and up Page REFERENCES ... 3 CONSOLE, OVERLAY ASSEMBLY & OVERLAY ... 5 CONSOLE COMPONENTS ... 6 UPRIGHTS & HANDRAILS... 7 ERGO BAR, HEART RATE SENSORS & ACTIVITY ZONE ... 8 A-Z MODULE WITH OVERLAY ASSY ... 9 REAR ENDCAPS &... -
Page 3: References
CS ST ZS B 1/2 -13X16 UNS HEX CS G5 ZB B 8- X20 PHL TRS AB SS NO B 516-.873-125 SL-D ST ZN B NUT 5/16-18 HEX; JAM D ST ZS B 95T-XXXX-07 S/N TSS100000 and up SERVICE BAG ASSY. MANUAL M051-00K58-A253... - Page 4 TOUCH UP PAINT: PAINT: CAN; SPRAY; ARCTIC SILVER PAINT: BOTTLE; ARCTIC SILVER ( .5 OZ ) PAINT: PEN; ARCTIC SILVER ( .33 OZ ) PAINT: TOUCH-UP; SHADOW-GRAY; .6 OZ BTL. PAINT: TOUCH-UP; SHADOW-GRAY; .6 OZ. PEN 95T-XXXX-07 S/N TSS100000 and up...
-
Page 5: Console, Overlay Assembly & Overlay
AK58-00580-0009 PORTUGUESE AK58-00580-0010 *All Console, Overlay/Bezel Assembly or Overlay may not be available CONSOLE OVERLAY/BEZEL ASSY AK58-00203-0001 AK58-00203-0002 AK58-00203-0003 AK58-00203-0004 AK58-00202-0006 AK58-00203-0007 AK58-00203-0008 AK58-00203-0009 AK58-00203-0010 95T-XXXX-07 S/N TSS100000 and up OVERLAY 0K58-01298-0001 0K58-01298-0001 0K58-01298-0003 0K58-01298-0004 0K58-01296-0006 0K58-01298-0007 0K58-01298-0008 0K58-01298-0009 0K58-01298-0010... -
Page 6: Arctic Silver 95T 95T-Xxxx
ARCTIC SILVER 95T 95T-XXXX-07 Console Components S/N TSS100000 and up... -
Page 7: Uprights & Handrails
Handrail Boot 0K58-01304-0001 Bottom LT Handrail Boot 0K58-01304-0002 Handrail Boot Screws (6) 0017-00101-1770 Handrail Tube Caps (2) 0K58-01396-0000 95T-XXXX-07 S/N TSS100000 and up Console/Cup Holder Mounting Screw (8) 0017-00101-1780 Handrail Hex Nut (4) 0017-00103-0327 Top RT Handrail Boot 0K58-01303-0001 Handrail-Assy: Boxed... -
Page 8: Ergo Bar, Heart Rate Sensors & Activity Zone
AK58-00376-0000 ACTIVITY-ZONE MODULE ASSY AK58-00554-0000 SEE NEXT PAGE 8-16X18 PHL PAN PLT ST BO B ( 2 ) 0017-00101-0824 Heart Rate Sensor Kit KIT: SERV; MFG; ELECTRODES; LARGE GK20-00002-0005 GASKET: ERGOBAR ( 2 ) 0K58-01347-0000 95T-XXXX-07 S/N TSS100000 and up... -
Page 9: A-Z Module With Overlay Assy
ENG/MET GERMAN SPANISH JAPANESE FRENCH ITALIAN DUTCH *All Activity-Zones Overlays may not be available ACTIVITY ZONE ASSY AZ OVERLAY AK58-00555-0001 0K58-01459-0001 AK58-00555-0002 0K58-01459-0002 AK58-00555-0003 0K58-01459-0003 AK58-00555-0004 0K58-01459-0004 AK58-00555-0006 0K58-01459-0006 AK58-00555-0007 0K58-01459-0007 AK58-00555-0008 0K58-01459-0008 AK58-00555-0009 0K58-01459-0009 95T-XXXX-07 S/N TSS100000 and up... -
Page 10: Rear Endcaps & Cup Holders
ARCTIC SILVER 95T Rear End Caps & Cup Holders CUP-COVER ASSY, LT AK58-00247-0002 ENDCAP: REAR 0K58-01268-0000 Qty needed ( 4 ) 10-16X 8 PHL PAN B ST ZS B 0017-00101-1772 ENDCAP: REAR 0K58-01268-0000 95T-XXXX-07 S/N TSS100000 and up CUP-COVER ASSY, RT AK58-00247-0001... -
Page 11: Motor Cover, Front Cover & Endcaps
ENDCAP: FRONT 0K58-01267-0000 10-16X 8 PHL PAN B ST ZS B ( 4 ) 0017-00101-1772 MEDALLION-ASSY: PURCH;LF-BUG B AK58-00245-0000 95T-XXXX-07 S/N TSS100000 and up 10-16X 8 PHL PAN B ST ZB B 0017-00101-1776 GUARD-ASSY: MFG; LT; 3.50 B AK58-00360-0002 MOTOR-SHROUD ASSY: MFG;... -
Page 12: Scuff Pad & Tinsel
ARCTIC SILVER 95T Scuff Pad & Tinsel RAIL: ANTI-SLIP; STEALTH-GREY 0K58-01376-0000 SPRING: EXTENSION; TINSEL 0017-00009-0901 S/N TSS100000 and up 8-32X 6 SLT HXW TINSEL: TT ST ZN B 0K58-01102-0001 0017-00101-0975 95T-XXXX-07 RAIL: ANTI-SLIP; STEALTH-GREY 0K58-01376-0000... -
Page 13: On-Off Switch, Access Plate & Grommets
TT ST PH B ( 2 ) 0017-00101-0162 BACK VIEW GROMMET: NYLON; SCREW ( 2 ) 0017-00042-1147 GROMMET: PLASTI; . 130/.005 S/C#13-B ( 8 ) 0017-00042-0326 95T-XXXX-07 S/N TSS100000 and up DECAL: FRAME; LF-LOGO 0K60-01193-0000 GROMMET: PLASTI; . 130/.005 S/C#13-B ( 2 ) 0017-00042-0326... -
Page 14: Belt, Deck & Rear Roller
0017-00104-0072 Rear Roller Adjusting Bolt ( 2 ) 3/8 -16X48 HEX SOC L CS ST SS B 0017-00101-1880 S/N TSS100000 and up LBL: BELT-LIMIT; LT. M051-00K58-A101 LBL: CAUTION; HI-VOLT;ENG+FRN B M051-00K58-A014 LBL: BELT-LIMIT; RT. M051-00K58-A100 ROLLER: REAR; 3.5" 0K58-01002-0000 95T-XXXX-07... -
Page 15: Lift Frame, Lift Motor & Iec Receptacle
Line-Cord Socket Brkt * 0017-01419-0000 Clevis Pin 0017-00007-0214 Lower Receptacle Brkt 0K58-01420-0000 Lift Motor Hex Bolt 0017-00101-1021 Lock Nut (2) 0017-00103-0285 95T-XXXX-07 S/N TSS100000 and up MFG; RECESS B AK58-00514-0000 Lift Motor 0K58-01062-0000 Cotter Pin 0017-00007-0208 Lock Nut 0017-00103-0025 Vinyl Cap... -
Page 16: Idler Arm Assembly
Motor Pulley 0K58-01057-0001 Allen Screw 0017-00101-0333 Wire Clamp Limit Switch 0017-00042-1072 0017-00032-0195 Screw Limit Switch Cable 0017-00101-1193 AK58-00027-0000 95T-XXXX-07 S/N TSS100000 and up Idler Pin 0017-00007-0248 Plug 0017-00042-1053 (For units not equipped with circuit breaker.) 2A CIRCUIT BREAKER 0017-00003-0626 4A CIRCUIT... -
Page 17: Leg Leveler Assembly
ARCTIC SILVER 95T Leg Leveler Assembly – AK58-00370-0000 Flat Washer (4) 0017-00104-0190 Lock Washer (4) 0017-00104-0333 Hex Nut (4) 0017-00101-1652 S/N TSS100000 and up Bracket Leveler 0K58-01083-0000 Stop Nut 0K58-01099-0000 Leveling Foot 0K58-01110-0000 95T-XXXX-07 Pivot Pin 0K58-01098-0000... -
Page 18: Front Roller Assembly
ARCTIC SILVER 95T Front Roller Assembly – AK58-00066-0000 Polley V Pulley 8” 0K58-01105-0000 Lock Washer 0017-00104-0005 Hex Bolt 0017-00101-1632 Mounting Bolt 0017-00101-0974 Flat Washer 0017-00104-0043 Flat Washer 0017-00104-0330 95T-XXXX-07 S/N TSS100000 and up ROLLER: FRONT; 3.5" 0K58-01001-0001... -
Page 19: Drive Motor Assembly
Ref: technical bulletin TR07060101N The key is part of the drive motor (not available separately). Part Nos. S/N TSS100000—TSS102326 AK58-00171-0001 (dual cable) 0K58-01092-0002 0017-00101-0975 (uses setscrews) 95T-XXXX-07 S/N TSS100000 and up S/N TSS102327 and up AK58-00171-0002 (tapered shaft) 0K58-01092-0004 0017-00101-1885 (uses bolt) -
Page 20: Stride Sensor Assy & Stride Sensor Pcb Assy
ARCTIC SILVER 95T Stride Sensor Assembly & Stride Sensor PCB Assembly BUSHING: SNAP; 1.75" 0017-00042-1180 STRIDE-SENSOR ASSY AK58-00560-0000 S/N TSS100000 and up SUPPORT: PCB; 3/8" 0017-00042-1057 PCB-ASSY: STRIDE SENSE ISO B084-92329-0000 95T-XXXX-07... -
Page 21: Dsp-Controller Assembly
ARCTIC SILVER 95T DSP-Controller Assembly VOLTAGE PART NUMBER 100-120 GK58-00002-0118 200-240 GK58-00002-0120 PART DESCRIPTION KIT: SERV; MFG; DSP CONTROLLER 100-120; LED KIT: SERV; MFG; DSP CONTROLLER 200-240; LED 95T-XXXX-07 S/N TSS100000 and up... -
Page 22: Line-Cords & Line-Cord Options
LINE-CORD: U.K; R/A LINE-CORD: IEC; AUSTRALIAN; 230/50 C OPTIONAL LINE CORDS LINE-CORD: 120V; 20A; LINE-CORD: R/A 120V LINE-CORD: R/A; NEMA 5-20 144" LINE-CORD: R/A; W/PLUG 220/60 LINE-CORD: 220V; 15A; 95T-XXXX-07 S/N TSS100000 and up 0017-00003-0974 0017-00003-0781 0017-00003-0696 0017-00003-0890 0017-00003-0996 7.5'... -
Page 23: Block Diagram - Console View
ARCTIC SILVER 95T 95T-XXXX-07 BLOCK DAIGRAM – CONSOLE VIEW S/N TSS100000 and up... -
Page 24: Block Diagram - Dsp View
REMOVE IF USING TAPER SHAFT DRIVE MOTOR AK58-00171-0002 CBL-ASSY: AUTO-XFRMR; 20" AK58-0000527-0000 CONTROLLER CBL-ASSY: THERMAL ADAPTER AK58-00524-0000 CBL-ASSY: NOTE: EXT ISO SENSOR AK58-00597-0000 95T-XXXX-07 S/N TSS100000 and up 200-240V ONLY XFRMR-BRKT ASSY: AK58-00210-0000 CIRCUIT-BREAKER CBL-ASSY: ISO POWER AK58-00598-0000 ISOLATION BOARD STRIDE... -
Page 25: Block Diagram - Line Filter View
FILTER: LINE; 20A 0017-00003-1015 CBL-ASSY: FILTER: LINE; 10A JUMPER; BLK; 4" 0017-00003-0898 AK58-00081-0000 GRN/YLW LINE FILTER CBL-ASSY: JUMPER; WHT; 6" AK58-00082-0000 95T-XXXX-07 S/N TSS100000 and up GRN/YLW ON/OFF SWITCH CBL-ASSY: JUMPER; GR/YL; 5" AK58-00083-0000 GRN/YLW ON/OFF SWITCH CBL-ASSY: JUMPER; GR/YL; 5"...
