Summary of Contents for Pride Mobility Go-Go ELITE TRAVELLER

  • Page 1 ELITE TRAVELLER...
  • Page 2 The latest/current version of this manual is available on our website. This product is manufactured by: Pride Mobility Products Corporation 182 Susquehanna Avenue Exeter, PA 18643-2694 Copyright © 2008 Pride Mobility Products Australia Pty. Ltd. 088 609 661 INFMANU3106/Rev E/April 2008...
  • Page 3 C O N T E N T S INTRODUCTION......................... 4 SAFETY ............................5 III. YOUR TRAVEL SCOOTER ....................18 IV. BATTERIES AND CHARGING .................... 22 OPERATION ..........................27 VI. COMFORT ADJUSTMENTS....................29 VII. DISASSEMBLY AND ASSEMBLY ..................31 VIII. BASIC TROUBLESHOOTING ..................... 33 IX.
  • Page 4 I N T R O D U C T I O N SAFETY Welcome to Pride Mobility Products Australia Pty. Ltd. (Pride). The product you have purchased combines state- of-the-art components with safety, comfort, and styling in mind. We are confident the design features will provide you with the conveniences you expect during your daily activities.
  • Page 5 I I . S A F E T Y PRODUCT SAFETY SYMBOLS The symbols below are used on the Travel Scooter to identify warnings, mandatory actions and prohibited actions. It is very important for you to read and understand them completely. Read and follow the information in the owner’s manual.
  • Page 6 I I . S A F E T Y Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. Do not allow unsupervised children to play near the Travel Scooter while the batteries are charging. Do not remove anti-tip wheels.
  • Page 7 I I . S A F E T Y Wear safety goggles. Contains Lead. Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new batteries. Always replace both batteries at the same time. Do not sit on the mobility product when it is being used in connection with any type of lift/elevation product.
  • Page 8 I I . S A F E T Y GENERAL MANDATORY! Do not operate your new Travel Scooter for the first time without completely reading and understanding this owner’s manual. Your Travel Scooter is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an extensive variety of products to best fit the individual needs of the Travel Scooter user.
  • Page 9 I I . S A F E T Y Perform the following inspections prior to using your Travel Scooter: ! Check for proper tyre inflation (if equipped with pneumatic tyres). ! Check all electrical connections. Make sure they are tight and not corroded. ! Check all harness connections.
  • Page 10 I I . S A F E T Y When climbing an incline, try to keep your Travel Scooter moving. If you must stop, start up again slowly and then accelerate cautiously. When driving down an incline, do so by setting the speed adjustment dial to the slowest setting and driving in the forward direction only.
  • Page 11 I I . S A F E T Y When you approach an incline, it is best to lean forward. See figures 2 and 2A. This shifts the centre of gravity of you and your Travel Scooter toward the front of the Travel Scooter for improved stability. NOTE: When negotiating ramps, if the throttle control lever is released while moving forward, the powered Travel Scooter may "rollback"...
  • Page 12 I I . S A F E T Y OUTDOOR DRIVING SURFACES Your Travel Scooter is designed to provide optimum stability under normal driving conditions—dry, level surfaces composed of concrete, blacktop or tarmac. However, Pride recognizes that there will be times when you will encounter other surface types.
  • Page 13 I I . S A F E T Y INCLEMENT WEATHER PRECAUTIONS Exposure of your Travel Scooter to inclement weather conditions should be avoided whenever possible. If suddenly caught up in rain, snow, severe cold or heat while operating your Travel Scooter, proceed to shelter at the earliest opportunity.
  • Page 14 I I . S A F E T Y LIFTS Modern lifts have a door edge safety mechanism that, when pushed, reopens the door(s). ! If you are in the doorway of a lift when the door(s) begin to close, push on the rubber door edge or allow the rubber door edge to contact the Travel Scooter and the door will reopen.
  • Page 15 I I . S A F E T Y MOTOR VEHICLE TRANSPORT Pride recommends that you do not remain seated in your Travel Scooter while traveling in a motor vehicle. The Travel Scooter should be stowed in the boot of a car or in the back of a truck or van with the batteries removed and properly secured.
  • Page 16 I I . S A F E T Y REACHING AND BENDING Avoid reaching or bending while driving your Travel Scooter. Bending forward creates the risk of accidental throttle control lever contact. Bending to the side while seated creates the risk of tipping. It is important to maintain a stable centre of gravity and keep the Travel Scooter from tipping.
  • Page 17 I I . S A F E T Y ELECTROMAGNETIC AND RADIO FREQUENCY INTERFERENCE (EMI/RFI) WARNING! Laboratory tests have shown that electromagnetic and radio frequency waves can have an adverse affect on the performance of electrically-powered mobility vehicles. Electromagnetic and Radio Frequency Interference can come from sources such as cellular phones, mobile two- way radios (such as walkie-talkies), radio stations, TV stations, amateur radio (HAM) transmitters, wireless computer links, microwave signals, paging transmitters and medium-range mobile transceivers used by emergency vehicles.
  • Page 18 I I I . Y O U R T R A V E L S C O O T E R TILLER CONSOLE The tiller console houses all controls needed to drive your Travel Scooter, including the key switch, throttle control lever, horn button, speed adjustment dial and the battery condition meter.
  • Page 19 I I I . Y O U R T R A V E L S C O O T E R Speed Adjustment Dial This dial allows you to preselect and limit your Travel Scooter’s top speed. ! The image of the tortoise represents the slowest speed setting. ! The image of the hare represents the fastest speed setting.
  • Page 20 I I I . Y O U R T R A V E L S C O O T E R BATTERY PACK Your Travel Scooter is equipped with an innovative, easy to remove battery pack. A handle on the top of the battery pack makes it easy to lift the pack off of the Travel Scooter with one hand.

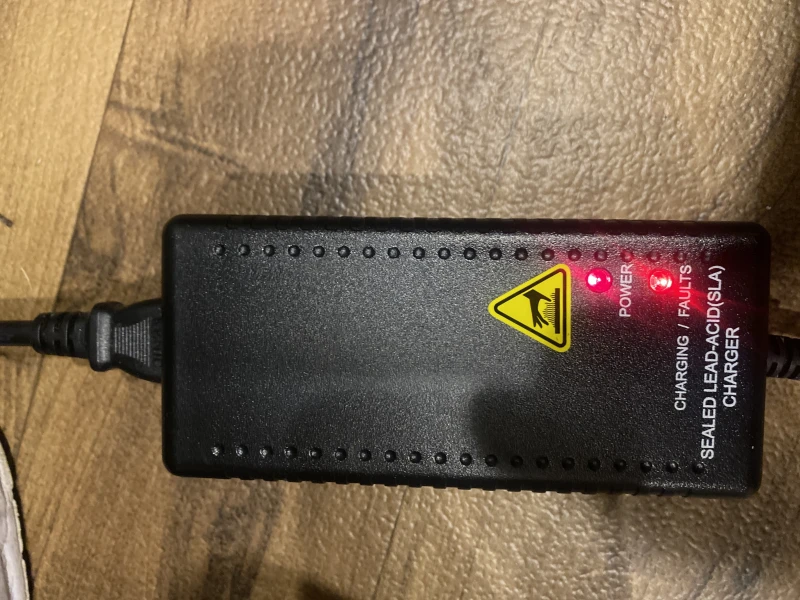

  • Page 21 I I I . Y O U R T R A V E L S C O O T E R OFF-BOARD BATTERY CHARGER PLUGS INTO STANDARD LED’S The off-board battery charger, when plugged ELECTRICAL OUTLET into the charger power lead receptacle (located on the battery pack) and a standard electrical outlet, charges the Travel Scooter’s batteries.
  • Page 22 I V . B A T T E R I E S A N D C H A R G I N G Your Travel Scooter requires two long-lasting, 12-volt, deep-cycle batteries that are sealed and maintenance free. They are recharged by the supplied off-board charging system. ! Charge your Travel Scooter’s batteries for 8 to 14 hours prior to using it for the first time.
  • Page 23 I V . B A T T E R I E S A N D C H A R G I N G WARNING! If your battery charger has not been tested and approved for outdoor use, then do not expose it to adverse or extreme weather conditions. If the battery charger is exposed to adverse or extreme weather conditions, then it must be allowed to adjust to the difference in environmental conditions before use indoors.
  • Page 24 I V . B A T T E R I E S A N D C H A R G I N G Can I use a different charger? Chargers are selected precisely for particular applications and are especially matched to the type, size and chemi- cal formulation of specific batteries.
  • Page 25 I V . B A T T E R I E S A N D C H A R G I N G What type and size of battery should I use? Your Travel Scooter requires two deep-cycle batteries. We recommend only sealed, maintenance-free batteries such as AGM or Gel-Cell which are similar in performance.
  • Page 26 I V . B A T T E R I E S A N D C H A R G I N G NOTE: If you encounter a damaged or cracked battery, immediately enclose it in a plastic bag and contact your local disposal agency or authorised Pride Provider for instructions on disposal and bat- tery recycling which is our recommended course of action.
  • Page 27 O P E R A T I O N BEFORE GETTING ONTO YOUR TRAVEL SCOOTER ! Have you fully charged the batteries? See IV. “Batteries and Charging.” ! Is the manual freewheel lever in the drive (rearward) position? Never leave the manual freewheel lever in the forward position unless you are manually pushing your Travel Scooter.
  • Page 28 O P E R A T I O N ! Pull on the left handgrip to steer your Travel Scooter to the left. ! Pull on the right handgrip to steer your Travel Scooter to the right. ! Move the tiller to the centre position to drive straight ahead. ! To stop, slowly release the throttle control lever.
  • Page 29 V I . C O M F O R T A D J U S T M E N T S TILLER ANGLE ADJUSTMENT TILLER ADJUSTMENT KNOB WARNING! Remove the key from the key switch before adjusting the tiller or the seat.
  • Page 30 V I . C O M F O R T A D J U S T M E N T S SEAT HEIGHT ADJUSTMENT UPPER SEAT POST The seat can be repositioned to different heights. See figure 19. LOWER SEAT POST 1.
  • Page 31 V I I . D I S A S S E M B L Y A N D A S S E M B L Y DISASSEMBLY You can disassemble the Travel Scooter into five pieces: BASKET SEAT the seat, the front section, the rear section, the basket and the battery pack.
  • Page 32 V I I . D I S A S S E M B L Y A N D A S S E M B L Y ASSEMBLY 1. Use the frame release lever to lift the front section as you align the frame hooks of the front section with the lower frame tube of the rear section.
  • Page 33 V I I I . B A S I C T R O U B L E S H O O T I N G Any electromechanical device occasionally requires some troubleshooting. However, most of the problems that may arise can usually be solved with a bit of thought and common sense. Many of these problems occur because the batteries are not fully charged or because the batteries are worn down and can no longer hold a charge.
  • Page 34 V I I I . B A S I C T R O U B L E S H O O T I N G What if the Travel Scooter’s batteries won’t charge? ! Check the fuse located on the battery pack. Replace if necessary. ! During the charging process, if the charger LED’s never indicate a full charge, check the fuse located on the battery pack.
  • Page 35 I X . C A R E A N D M A I N T E N A N C E Your Travel Scooter requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you may schedule inspection and maintenance with your authorised Pride Provider.
  • Page 36 I X . C A R E A N D M A I N T E N A N C E BATTERY TERMINAL CONNECTIONS Make certain that the terminal connections remain tight and are not corroded. WIRING HARNESSES ! Regularly check all wiring connections. ! Regularly check all wiring insulation, including the charger power lead, for wear or damage.
  • Page 37 I X . C A R E A N D M A I N T E N A N C E Batteries that are regularly and deeply discharged, infrequently charged, stored in extreme temperatures or stored without a full charge may be permanently damaged, causing unreliable performance and limited service life. It is recommended that you charge the Travel Scooter batteries periodically throughout periods of prolonged storage to ensure proper performance.
  • Page 38 X . W A R R A N T Y FIVE-YEAR LIMITED WARRANTY Structural frame components, including: platform, fork, seat post, and frame welds. TWO-YEAR LIMITED WARRANTY All electronic parts, including controllers and battery chargers, have a two (2) year warranty. Servicing to the controller or battery charger must be carried out by your authorised Pride Provider.
  • Page 39 A P P E N D I X S P E C I F I C A T I O N S Model Number 3-wheel: SC40EAUS 4-wheel: SC44EAUS Class Of Use Maximum Safe Slope See figure 1. Maximum Climbing Ability See figure 1.
  • Page 40 A P P E N D I X S P E C I F I C A T I O N S 35.56 cm 52.71 cm-56.52 cm 6.35 cm 3-wheel: 92.71 cm 4-wheel: 100.96 cm 38 cm 42 cm 3-wheel: 82.55 cm 4-wheel:110 cm Turning Radius 48.56 cm...
  • Page 41 N O T E S Elite Traveller www.pridemobility.com...
  • Page 42 N O T E S www.pridemobility.com Elite Traveller...
  • Page 44 Mobility Products Australia Pty. Ltd. *INFMANU3106*...
