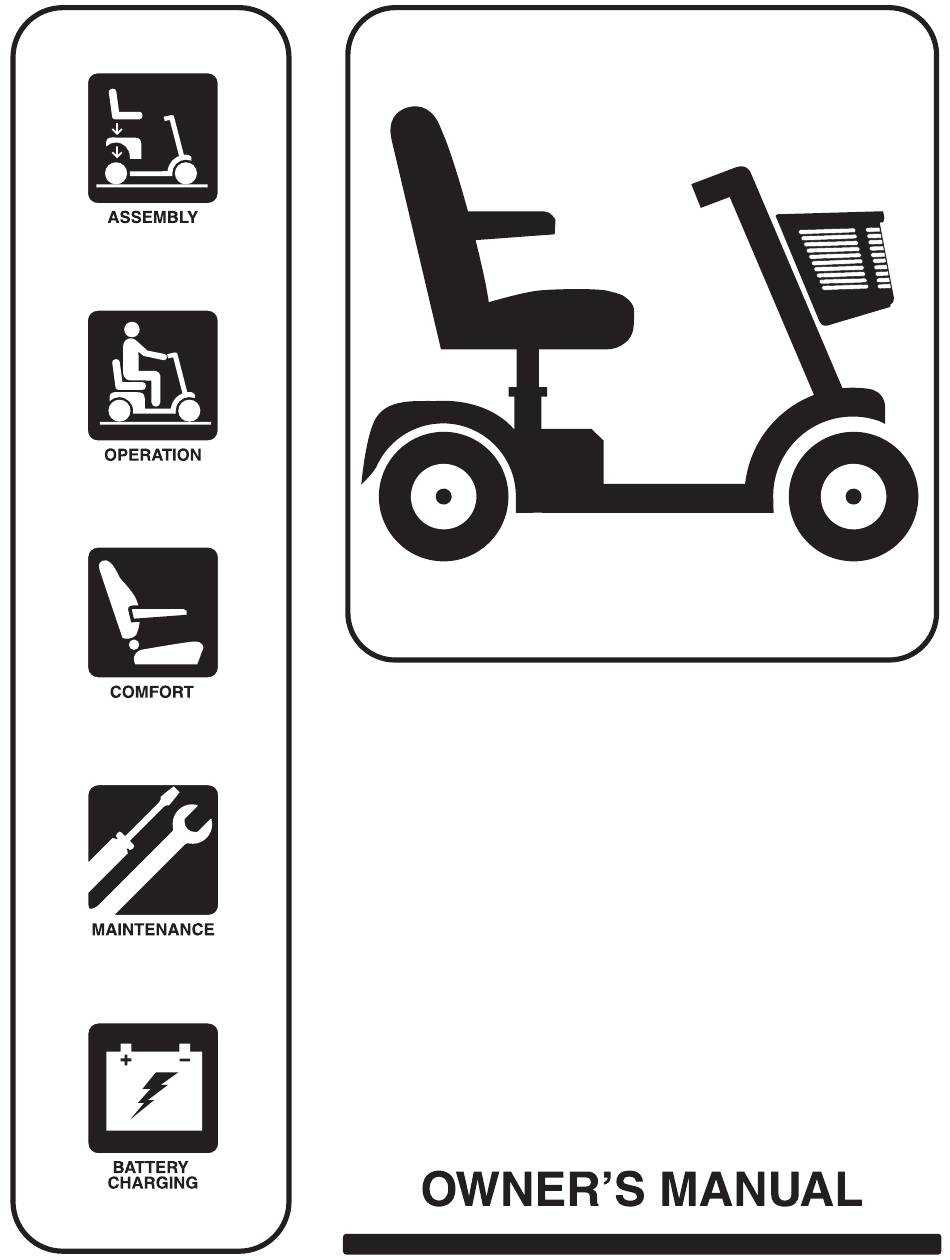

- Page 1 TRAVEL SCOOTER SERIES LITHIUM BATTERY...
- Page 2 Travel Scooter’s unique characteristics. For Apex Alumalite, please refer to model number 39 INTENDED USE The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated position that have the capacity of operating a scooter.
-
Page 3: Table Of Contents
PROHIBITED! These actions are prohibited. These actions should not be performed at any time or in any circumstances. Performing a prohibited action can cause personal injury and/or equipment damage. On the product, this icon is represented as a black symbol with a red circle and red slash. Travel Scooter Series... -
Page 4: Safety
Remove key from an unattended Travel Scooter. Indicates tie-down points on the Travel Scooter. Does not meet ISO 7176-19 standards for occupied transport in a motor vehicle. When traveling in a motor vehicle, do not sit in your Travel Scooter. Manufactured in Travel Scooter Series... - Page 5 Ensure the manual freewheel lever is in drive mode before sitting on the Travel Scooter. If you discover a problem, contact your authorized Provider for assistance. Please refer to the Contact Information insert in your Owner’s Package. Travel Scooter Series...
-
Page 6: Your Travel Scooter
*Charger Power Cord Receptacle (Tiller Port) also functions as a Programming Port in Tiller Consoles E and F (see fi gures 5 and 6). Figure 1. Tiller Console A (Models 36, 40X, 44E) Figure 2. Tiller Console B (Models 39, 40E, 44E, 49, 83, 84) Travel Scooter Series... - Page 7 I I . Y O U R T R A V E L S C O O T E R Figure 3. Tiller Console C (Models 40E [Australia only], 44E [Australia only], 53, 53HD, 54, 54HD) Figure 4. Tiller Console D (Models 40LX, 44LX, 50LX, 54LX, 73, 74) Figure 5. Tiller Console E (Model Jazzy ZTS) Travel Scooter Series...
- Page 8 To use throttle control lever for models equipped with Tiller Consoles A and B: To move Forward, use your right thumb to push the right side of the throttle control lever. To move Rearward, use your left thumb to push the left side of the throttle control lever. Travel Scooter Series...
- Page 9 2. Push forward on the manual freewheel lever to disable the drive system and the brake system. You may now push your Travel Scooter. 3. Push the manual freewheel lever rearward to reengage the drive and the brake systems; this takes your Travel Scooter out of freewheel mode. Travel Scooter Series...
- Page 10 NOTE: You must turn off the power before disabling the drive systems; otherwise, you may get an error code on the scooter. To clear this code, turn off the scooter and place the travel scooter in drive mode. Then turn on the scooter. The error message should be cleared. If not, contact an authorized Provider. Travel Scooter Series...
- Page 11 If the main circuit breaker trips frequently, you may need to charge your batteries more often. You may also need to have your authorized Provider perform a load test on your Travel Scooter’s batteries. If the main circuit breaker trips repeatedly, see your authorized Provider for service. Travel Scooter Series...
- Page 12 3. Charger Power Cord Receptacle 7. Tiller Console Fuse 4. Battery Pack Fuse Battery Pack Style A Battery Pack Style B Battery Pack Style D Battery Pack Style C (Travel Scooter Deck) (Travel Scooter Deck) Figure 9. Battery Pack Travel Scooter Series...
- Page 13 Travel Scooter’s batteries. See fi gure 13. Figure 10 Battery Box - Jazzy ZTS, 50LX, 54LX Figure 11. Charger Power Cord Receptacle (Tiller Mounted) Figure 12. Charger Power Cord Receptacle (Battery Pack) Figure 13. Off-board Battery Charger Travel Scooter Series...
- Page 14 1b. Models 36, 39, 40X, 40E, 40LX, 50LX, 53, 53HD, and 73 1c. Model 66 only 2. Front Securement Points (4-wheel models) Models 44X, 44E, 44LX, 49, 54LX, 54, 54HD, 67, 74, and Jazzy ZTS 3. Rear Securement Points Figure 14. Securement Points (Identifi ed with black dots) Travel Scooter Series...
- Page 15 NOTE: When installing the front and rear fender panels, make sure the tab at the bottom of each panel is inserted into the tab opening before securing the panel. See fi gure 15. Figure 16. Tiller Console Visor Travel Scooter Series...
-
Page 16: Batteries And Charging
Batteries and Charging Batteries and Charging Your scooter uses one long-lasting Lithium-Ion battery. This battery is sealed and maintenance-free. Since it is sealed, there is no need to check the electrolyte (fluid) level. Lithium-Ion batteries are designed to handle a longer and deeper discharge. Though they are similar in appearance to automotive batteries, they are not interchangeable. - Page 17 NOTE: The scooter battery can be charged with the battery box either installed on or removed from the scooter. To charge the battery using the off-board charger: 1. Position your scooter next to a standard electrical outlet. 2. Be certain the scooters power is turned off. 3.
- Page 18 To charge the battery with the battery removed from the scooter: 1. Remove the battery from the scooter. See figure 4. 2. Position the battery next to a standard electrical outlet. 3. Plug the off-board charger into the battery charger port. See figure 13. 4.
- Page 19 How can I get maximum range or distance per charge? Rarely do you have an ideal driving situation such as smooth, flat, hard terrain with no wind, hills, or curves. More often you are presented with hills, pavement cracks, uneven and loosely packed surfaces, curves, and wind.
- Page 20 How should I store my scooter and its battery? If you do not use your scooter regularly, we recommend maintaining battery vitality by charging the battery at least once per week. If you do not plan on using your scooter for an extended period, fully charge the battery prior to storage. Disconnect the battery, and store the scooter in a warm, dry environment.
-
Page 21: Operation
Travel Scooter comes to a stop. If equipped with Zero Turn Technology, ensure your travel scooter is pivoting properly in both directions by observing the rear wheel on the side of the scooter you are turning to. Travel Scooter Series... - Page 22 Travel Scooter for approximately 20 minutes, the Travel Scooter’s controller shuts down automatically. If the power down timer feature takes effect, perform the following steps to resume normal operation. 1. Remove the key from the key switch. 2. Reinsert the key and power up your Travel Scooter. Travel Scooter Series...
-
Page 23: Comfort Adjustments
6. Replace the battery pack and seat. NOTE: If equipped, the under-seat storage feature must be removed to obtain a seat height of 16.5 inches (41.9 cm) or less. Refer to “Under-seat Storage” for more information. Figure 25. Seat Height Adjustment Travel Scooter Series... - Page 24 1. Align the slot on the under-seat storage bin over the securement post. 2. Lower the under-seat storage pin onto the securement post and push the under-seat storage bin toward the center of the Travel Scooter until you hear the latch engage. Figure 27. Under-seat Storage Travel Scooter Series...
- Page 25 If you discover a problem, contact your authorized Provider for maintenance and repair. Figure 30. Positioning Belt - Reusable Hook and Loop Fastener Style Travel Scooter Series...
-
Page 26: Disassembly And Assembly
4. Remove the battery pack by lifting the pack straight up and off of the Travel Scooter. NOTE: Please check the Travel Scooter Features Table on the inside of the front cover to determine if your Travel Scooter has a frame release lever or a lock-up pin before attempting to separate the frame. Travel Scooter Series... - Page 27 6. Unlock the tiller by turning the tiller lock knob 90° counterclockwise. See fi gure 32. 7. If equipped, install under-seat storage. See fi gure 27. WARNING! After assembly, make absolutely certain the tiller lock knob is in the unlocked position before riding your Travel Scooter. Travel Scooter Series...
-
Page 28: Basic Troubleshooting
When the manual freewheel lever is pushed forward, the brakes are disengaged and all power to the motor/ transaxle assembly is cut. Pull back on the manual freewheel lever, turn the Travel Scooter off, and then back on to return to normal operation. Travel Scooter Series... - Page 29 Or, see the previous troubleshooting question for load testing the batteries yourself. If you experience any problems with your Travel Scooter that you are not able to solve, immediately contact your authorized Provider for information, maintenance, and service. Travel Scooter Series...
-
Page 30: Care And Maintenance
Use a damp cloth and mild, non-abrasive cleanser to clean the plastic and metal parts of your Travel Scooter. Avoid using products that may scratch the surface of your Travel Scooter. If necessary, clean your product with an approved disinfectant. Make sure the disinfectant is safe for use on your product before application. Travel Scooter Series... - Page 31 Check for extreme wear on the anti-tip wheels. Replace them as necessary. Check for tire wear. See your authorized provider for repair. Keep you Travel Scooter clean and free of foriegn material, such as mud, dirt, hair, food, drink, etc. Travel Scooter Series...
- Page 32 Your Travel Scooter must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorized Provider for information on proper disposal of packaging, metal frame components, plastic components, electronics, batteries, neoprene, silicone, and polyurethane materials. Travel Scooter Series...
- Page 33 N O T E S Travel Scooter Series...
- Page 34 B.V. De Zwaan 3 182 Susquehanna Avenue 1601 MS Enkhuizen Exeter, PA 18643-2694 Netherlands Canada www.pride-mobility.nl 5096 South Service Road Beamsville, Ontario L0R 1B3 Italy Via del Progresso, ang. Via deL Australia Lavoro Loc. Prato della Corte 20-24 Apollo Drive 00065 Fiano Romano (RM) Hallam, Victoria 3803 www.pride-italia.it...
