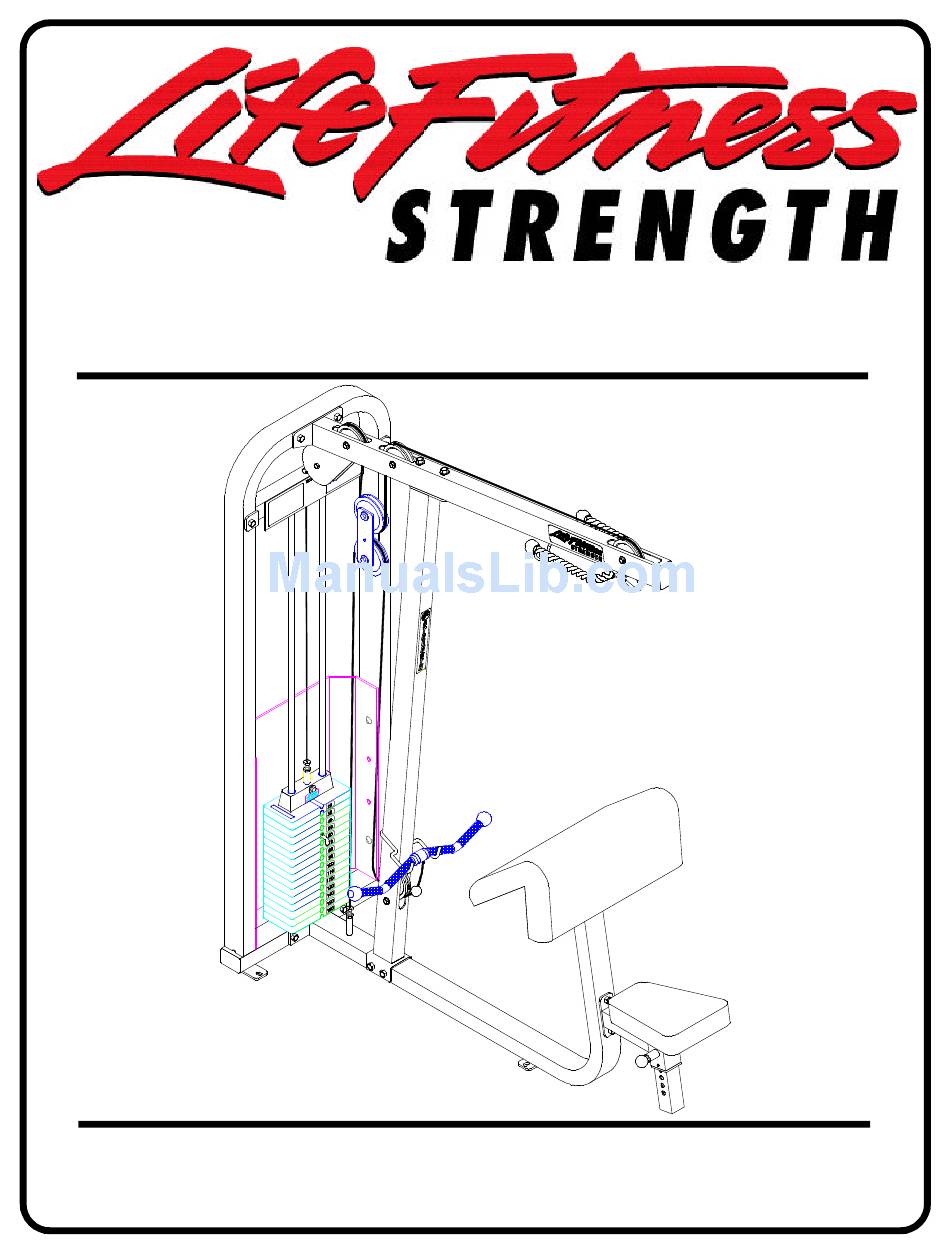

8225 BICEP/TRICEP MACHINE
ASSEMBLY INSTRUCTIONS
Part # 6845001
1
Revision:11/2/99

Advertisement

Table of Contents
loading

Related Manuals for Life Fitness 8225

Summary of Contents for Life Fitness 8225

  • Page 1 8225 BICEP/TRICEP MACHINE ASSEMBLY INSTRUCTIONS Part # 6845001 Revision:11/2/99...

  • Page 2: Tools Required For Assembly

    2. Do not allow minors or children to play on or around this equipment. 3. Exercise with care to avoid injury. 4. If unsure of proper use of equipment, call your local LIFE FITNESS STRENGTH distributor or call the LIFE FITNESS STRENGTH customer service department at (800) 328-9714.

  • Page 3: Table Of Contents

    PART # DESCRIPTION 6846003 BASE 6845503 TOP BOOM 6845103 TOWER 6777703 TOWER BRACE 6845303 UPRIGHT 6845703 SEAT SUPPORT 6847002 PAD SUPPORT 6489902 2 X 7-1/4” PLATE 6851401 ARM CURL BAR 6851501 TRICEP ROPE 6851901 ARM CURL CABLE 6852001 TRICEP CABLE 3116101 4-1/2”...
  • Page 4 18 1/2 X 4” FIGURE 1 STEP 1: • LOOSELY assemble the BASE (1) to the TOWER (3) using two 1/2 X 4” BOLTS (18), two 1/2” WASHERS (24), and two 1/2” LOCK NUTS (26) as shown in FIGURE 1.
  • Page 5 FIGURE 2 STEP 2: • LOOSELY assemble the UPRIGHT (5) to the BASE (1) using four 1/2 X 4” BOLTS (18), two 1/2” WASHERS (24), and four 1/2” LOCK NUTS (26) as shown in FIGURE 2. FIGURE 3 STEP 3: •...
  • Page 6 1/2 X 4” 18 FIGURE 4 STEP 4 • LOOSELY assemble the TOP BOOM (2) to the TOWER (3) and the UPRIGHT (5) using four 1/2 X 4” BOLTS (18), four 1/2” WASHERS (24), and three 1/2” LOCK NUTS (26) as shown in FIGURE 4. •...
  • Page 7 STEP 6: • SECURELY assemble SEAT PAD (16) to the PAD SUPPORT (7) using two 3/8 X 1- 1/4” BOLTS (21) and two 3/8” WASHERS (25) as shown in FIGURE 6. STEP 7: • SECURELY assemble the 3/8” SPRING PIN (29) to the SPRING PIN HOUSING on the SEAT SUP- PORT (6) as shown in FIGURE 7.

  • Page 8: X 1-1/4" Bolt

    FIGURE 8 STEP 8: • SECURELY assemble ARM PAD (17) to the BASE (1) using four 3/8 X 1-1/4” BOLTS (20) and four 3/8” WASHERS (25) as shown in FIGURE 8. FIGURE 9 STEP 9: • Snap two WEIGHT PLATE BUSHINGS (37) into the top of all fifteen WEIGHT PLATES (35) as shown in FIGURE 9.
  • Page 9 STEP 10 • Insert the two GUIDE RODS (15) into the base of the TOWER (3) as shown in FIGURE 10. Lubricate the GUIDE RODS (15) with a slicon or teflon spray that is available at most hardware stores. • Slide two WEIGHT STACK CUSHIONS (36) down over the GUIDE RODS (15).

  • Page 10: X 2-1/4" Bolt

    FIGURE 11 STEP 11: • Place TOWER BRACE (4) over the GUIDE RODS (15) as shown and SECURELY assemble TOWER BRACE (4) to the TOWER (3) using two 1/2 X 4” BOLTS (18), two 1/2” WASHERS (24), and two 1/2” LOCK NUTS (26) as shown in FIGURE 11.
  • Page 11 FIGURE 13 STEP 13: • Route threaded end of the TRICEP CABLE (12) around pulleys in TOP BOOM (2) and PULLEY BLOCK ASSEMBLY. Route TRICEP CABLE (12) down through hole in TOWER BRACE (7) as shown in FIGURE 13. FIGURE 14 3/8 X 2-1/4”...
  • Page 12 STEP 15: • Screw the treaded end of the TRICEP CABLE (12) approximately 1” into the end of theWEIGHT STACK SHAFT (32) of the HEAD PLATE (33) and tighten jam nut securely. See FIGURE 15. FIGURE 15...

  • Page 13: X 2-3/4" Bolt

    PULLEY BLOCK ASSEMBLY FIGURE 16 STEP 16: • Route the threaded end of the ARM CURL CABLE (11) through the UPRIGHT (5) as shown, then SE- CURELY assemble one 4-1/2” PULLEY (13) to the UPRIGHT (4) and over the top of the cable using two 3/8 X 2-3/4”...
  • Page 14 FIGURE 17 STEP 17: • Screw the threaded end of the ARM CURL CABLE (11) into threaded housing on the base of BASE (1) and tighten jam nut securely. • Slide the SHROUD (14) between the TOWER (3) as shown in FIGURE 17. •...

  • Page 15: X 1" Button Head

    3/8 X 1” BUTTON HEAD CAP SCREW FIGURE 18 STEP 18: • SECURELY assemble the SHROUD (14) to the TOWER (63) using four 3/8 X 1” BUTTON HEAD CAP SCREWS (23) as shown in FIGURE 18.

  • Page 16: Snap Hook

    PLATE (35) or if there is excess slack in the cable system, adjust the threaded end of the CABLE accord- ingly and retighten the jam nut. Thank you for purchasing the LifeFitness 8225 BICEP/TRICEP. If unsure of proper use of equipment, call your local LifeFitness distributor or call the LifeFitness customer service department at (800) 328-9714.
