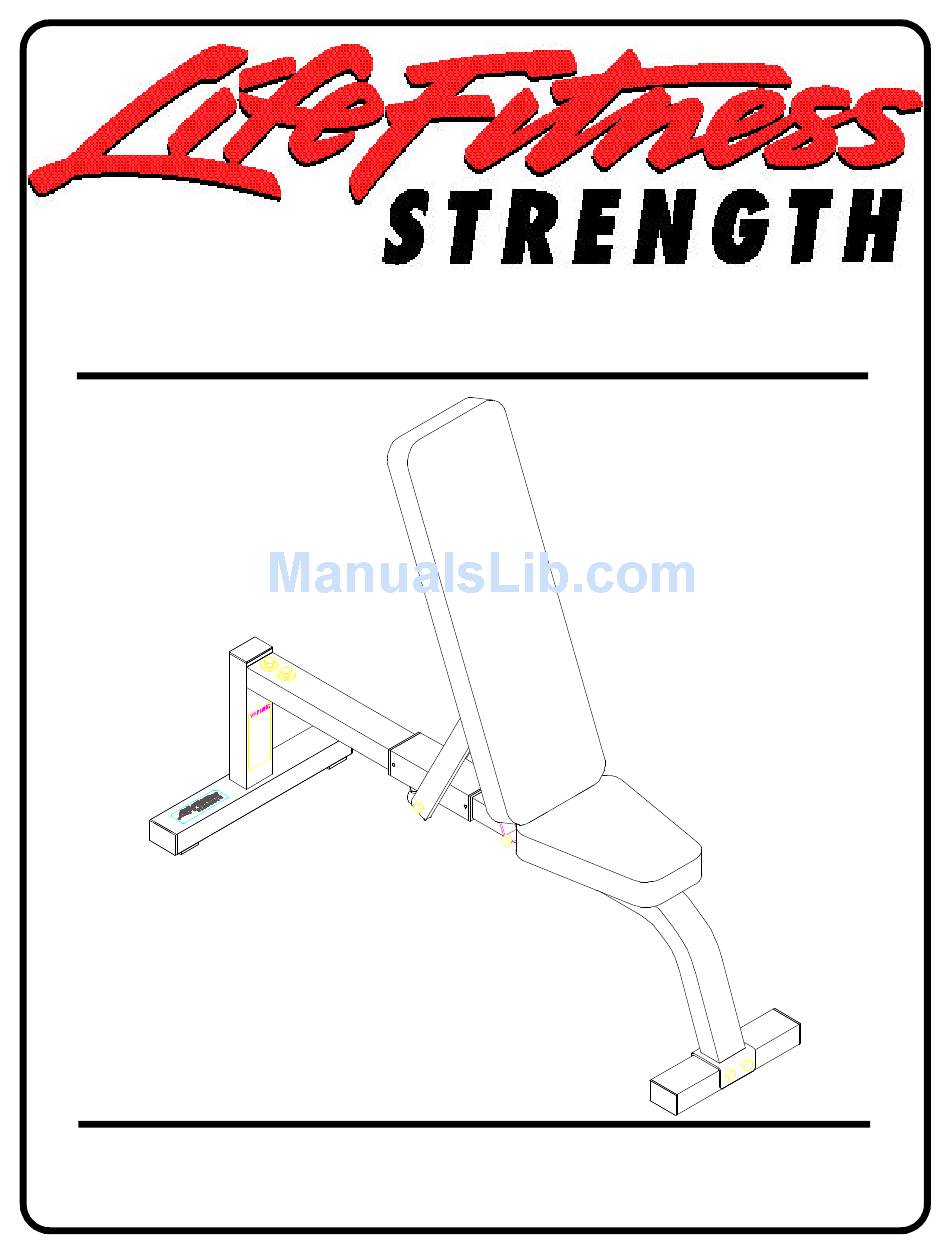

- Page 1 8115 FLAT & INCLINE BENCH ASSEMBLY INSTRUCTIONS Part # 6791801 Revision:7/20/98...
-
Page 2: Important Notes
IMPORTANT NOTES Please note: * Thank you for purchasing the LIFE FITNESS 8115 FLAT & INCLINE BENCH. Please read these instructions thoroughly and keep them for future reference. This product must be assembled on a flat, level surface to assure its proper function. -
Page 3: Parts List
PARTS LIST PART # DESCRIPTION PART # DESCRIPTION 6651703 REAR UPRIGHT 3202101 1/2 X 1-1/4” BOLT 6700503 BENCH FRAME 3102901 3/8 X 1-1/4” BOLT 6712803 ADJUSTABLE SLEEVE 3102502 1/2” WASHER 6697203 BASE TUBE 3102501 3/8” WASHER 6624202 LEFT BACK PAD ANGLE 3102801 1/2”... - Page 4 FIGURE 2 STEP 2: • SECURELY assemble the 3/8” SPRING PIN (23) to the ADJUSTABLE SLEEVE (3) as shown in FIGURE 2. • Pull back the 3/8” SPRING PIN (23) on the ADJUSTABLE SLEEVE (3) and slide it over the end of the BENCH FRAME (2) as shown in FIGURE 2.
- Page 5 13 1/2 X 3” 1/2 X 4” 12 FIGURE 3 STEP 3: • SECURELY assemble the REAR UPRIGHT (1) to the BENCH FRAME (2) using two 1/2 X 3” BOLTS (13), four 1/2” WASHERS (16), and two 1/2” LOCK NUTS (18) as shown in FIGURE 3. •...
- Page 6 19 1/2” LOW HEIGHT 1/2 X 9-1/2” 10 FIGURE 4 STEP 4: • Assemble the LEFT & RIGHT BACK PAD ANGLES (5 & 6) and two HINGE TABS (20) to the BENCH FRAME (2) using one 1/2 X 9-1/2” BOLT (10) and one 1/2” LOW HEIGHT LOCK NUT (19). (NOTE: Tighten connection enough to remove play yet allowing the parts to rotate freely.) See FIGURE 4.
- Page 7 1/2” 14 1/2 X 1-1/4” 1/2 X 6-1/2” 11 FIGURE 5 STEP 5: • Assemble the LEFT & RIGHT BACK PAD ANGLES (5 & 6) and two HINGE TABS (20) to the BENCH FRAME (2) using one 1/2 X 9-1/2” BOLT (10) and one 1/2” LOW HEIGHT LOCK NUT (19). (NOTE: Tighten connection enough to remove play yet allowing the parts to rotate freely.) See FIGURE 4.
- Page 8 3/8 X 1-1/4” 15 FIGURE 6 STEP 6: • SECURELY assemble the BACK PAD (9) to the LEFT & RIGHT BACK PAD ANGLES (5 & 6) using four 3/8 X 1-1/4” BOLTS (15) and four 3/8” WASHERS (17) as shown in FIGURE 6.
- Page 9 • SECURELY assemble the SEAT PAD (8) to the HINGE TABS (20) using two 3/8 X 1-1/4” BOLTS (15) and two 3/8” WASHERS (17) as shown in FIGURE 7. Thank you for purchasing the LifeFitness 8115 FLAT & INCLINE BENCH. If unsure of proper use of Thank you for purchasing the LifeFitness 8115 FLAT & INCLINE BENCH. If unsure of proper use of...
