Life Fitness Model TR9700, TR9500, TR9100 Treadmills
How To...Replace or Install Rear Roller Guards
Tools Required: Philips Screwdriver
NOTE: The following steps are applicable to units with Configuration No. 1, Rear Roller Guards.
1. Remove the Screws securing the Rear Roller Guard Assembly to the Frame.
2. Remove the old Grommets from the Rear Roller Welded Guard Tab and Base Frame (model
specific).
3. Install the new Grommets (included in kit) in the Rear Roller Guard Weldment and Base Frame
locations.
4. Place new Roller Guard in position as shown with the top surface under walking belt. Align mounting
holes.

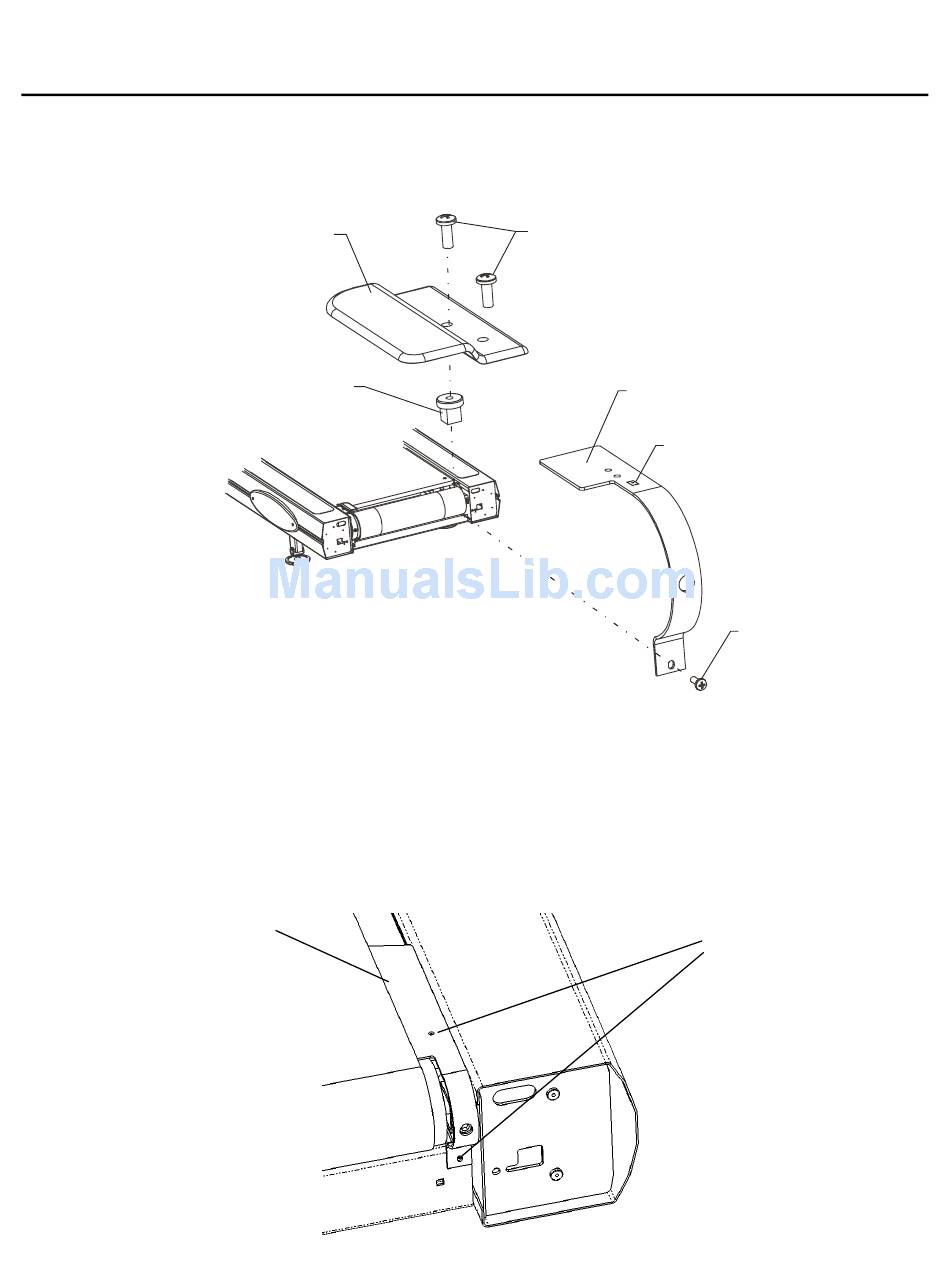

Roller Guard to be
located between belt
and deck
Cover Guard
Grommet
Configuration No. 1
Screw
Roller Guard, RT
Roller Guard, LT
Grommet
Screw
Align mounting holes
with grommet holes
Advertisement
Related Manuals for Life Fitness TR9100
Summary of Contents for Life Fitness TR9100
- Page 1 Life Fitness Model TR9700, TR9500, TR9100 Treadmills How To...Replace or Install Rear Roller Guards Tools Required: Philips Screwdriver NOTE: The following steps are applicable to units with Configuration No. 1, Rear Roller Guards. 1. Remove the Screws securing the Rear Roller Guard Assembly to the Frame.
- Page 2 Life Fitness Model TR9700, TR9500, TR9100 Treadmills How To...Replace or Install Rear Roller Guards 5. Install Screws and fasten securely. Approx. 22-37 in/lbs. 6. Repeat steps for opposite side. After completion run treadmill and check for interference or binding. If needed loosen Mounting Screws, re-align Guard, and refasten securely.
- Page 3 Life Fitness Model 97Ti, 95Ti, 93T Treadmills How To...Replace or Install Rear Roller Guards Tools Required: Philips Screwdriver, Flat Blade Screwdriver NOTE: The following steps are applicable to units with Configuration No. 2, Rear Roller Guards. 1. Remove existing Roller Guard by unscrewing mounting screws on top and base of frame.
- Page 4 Life Fitness Model 97Ti, 95Ti, 93T Treadmills How To...Replace or Install Rear Roller Guards (Continued) 4. Place new Roller Guard in position shown with top surface under walking belt. Align mounting holes. Roller Guard to be located between belt and deck 5.
