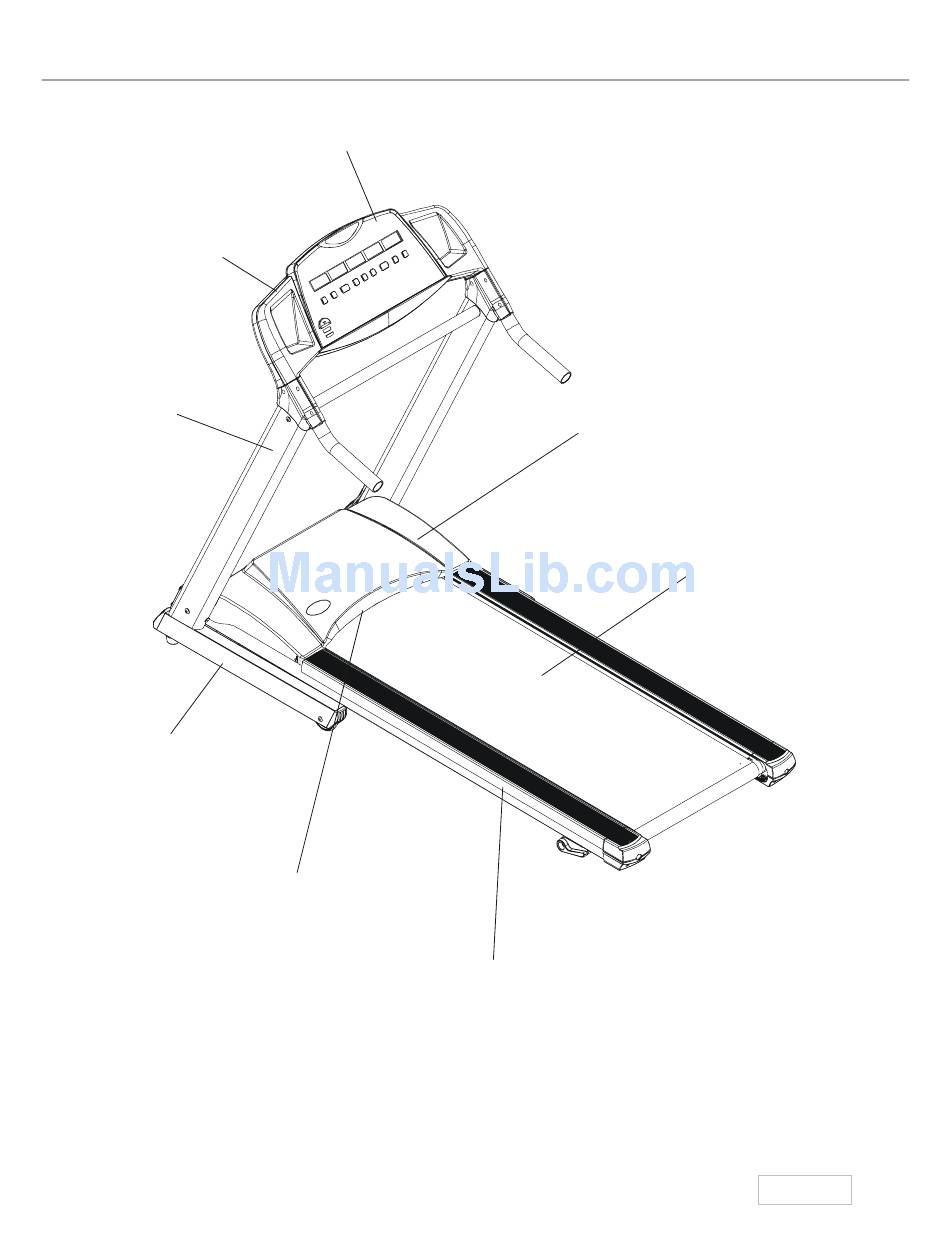

- Page 1 LF Sport Treadmill - TRST35-XXXX-01 Unit Assembly Console Wiring Diagram Upright Posts Base Frame Drive Components Cylinder & Linkages Frame Components Belt & Deck rev. 04/26/06...
- Page 2 LF Sport Treadmill - TRST35-XXXX-01 Belt and Deck Lube-N-Walk 7371201 Deck Screws(8) HEAS 10625 Screw(2) HEAS 10510 *Decals Motor Cover HEA50774-LF Motor Cover Screw(2) HEAS 10510 Washer(2) HEAW206015 *Decals LF Sport: Metal: HEA73429 LF Sport: ST35 Oval: HEA73444 LF Sport: ST55 Oval: HEA73445...
-
Page 3: Frame Components
LF Sport Treadmill - TRST35-XXXX-01 Frame Components Cap(R) HEA52843-LF Cap Screws(4) HEASA10540 Cap(L) HEA52842-LF Spring HEA52872 Lock Pin HEA52845 Release Cable HEA52846 Release Cable Kit HEALF-02 Wheel(2) HEA52865 Wheel Kit HEALF-03 Release Lever HEA52841-LF Release Lever Kit HEALF-04 Screw HEASC40870... -
Page 4: Drive Components
LF Sport Treadmill - TRST35-XXXX-01 Drive Components Circuit Breaker HEAE 002 Incline Motor HEA50721 Cotter Pin HEA50830 Lift Nut Kit HEALF-06 Bracket HEA53411 Screws(2) HEASD10510 Clevis Pin HEA50829 Screw(4) HEAS 10408 Sleeve Controller Screw HEA52916 HEA52742 Spring HEASK10820 HEA52910 HEAN208078... -
Page 5: Base Frame
LF Sport Treadmill - TRST35-XXXX-01 Base Frame Cross Base End Cap(2) HEA52914-LE PVC Foot(4) HEA50713 Track Stop(2) Screw(4) HEA52509 HEAS 10625 Socket Head Screw(2) HEAS 10640 Screw(2) HEAS 40850 Sleeve(4) HEA50709 Frame Base HEA53304 Hex Nut(2) HEAN208078 Flat Washer(2) HEAW108016... - Page 6 LF Sport Treadmill - TRST35-XXXX-01 Cylinder and Linkages Incline Wheel(2) HEA52830 Screw(2) HEASC10820 Bushing Spacer(2) HEA50720 Track Slider(2) HEA50714 Connection Tube Bushing HEA50708 Gas Shock(2) HEA52605 Shock Nut(4) HEAN208078...
- Page 7 LF Sport Treadmill - TRST35-XXXX-01 Upright Posts Safety Key HEAF105001 Star Washers HEAW308008 Handlebar Screw HEASC40855 Mounting Screws HEASC10815 Star Washers HEAW308008 Upright Post Bracket, LT HEA53432 Upright Post, LT HEA50618 Note: Hardware Bag, HEALF-05 Handlebar Cover, LT HEA52543-LF Handlebar w/Grip...
- Page 8 LF Sport Treadmill - TRST35-XXXX-01 T810 Console Model Number Language/ Units TRST35-0000-01 Eng/Eng TRST35-0100-01 Eng/Met TRFT4-0000-01 Eng/Eng TRFT4-0100-01 Eng/Met TRST35-0101-01 Ger/Met Overlay Console No Decals HEA73424 HEAD105013 HEALD-5W0M10-LF01 HEA73424 HEAD105014 HEALD-5WK012-LF01 HEA73424 HEAD105013 HEALD-5W0M10-LF01 HEA73424 HEAD105014 HEALD-5WK012-LF01 HEAK70061 Console Decals...
- Page 9 LF Sport Treadmill - TRST35-XXXX-01 Wiring Diagram...
