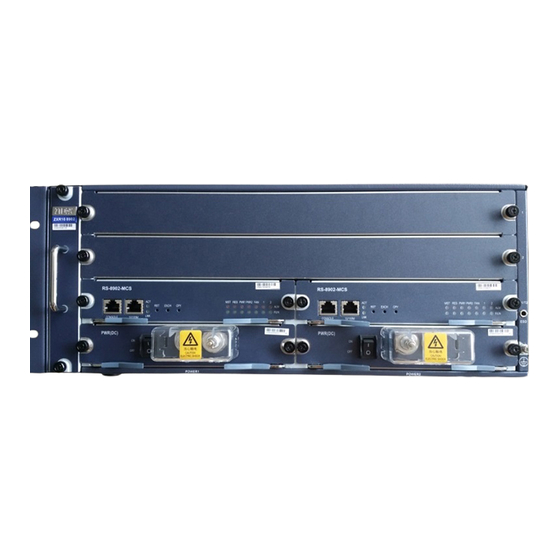

ZXR10 8900 Series
10 Gigabit Routing Switch
Command Reference (Voice and Video Volume)
Version 2.8.02.C
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: (86) 755 26771900
Fax: (86) 755 26770801
URL: http://ensupport.zte.com.cn
E-mail: support@zte.com.cn

Advertisement

Table of Contents
loading

Related Manuals for Zte ZXR10 8900 Series

Summary of Contents for Zte ZXR10 8900 Series

  • Page 1 ZXR10 8900 Series 10 Gigabit Routing Switch Command Reference (Voice and Video Volume) Version 2.8.02.C ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: (86) 755 26771900 Fax: (86) 755 26770801 URL: http://ensupport.zte.com.cn E-mail: support@zte.com.cn...
  • Page 2 The contents of this document are protected by copyright laws and international treaties. Any reproduction or distribution of this document or any portion of this document, in any form by any means, without the prior written consent of ZTE CORPO- RATION is prohibited.

  • Page 3: Table Of Contents

    ..............15 echo-cancel coverage-time ..........16 fast-connect ..............16 gateway ...............17 h323-description ............17 h323-gateway voip gw-id ..........17 h323-gateway voip id.............18 h323-gateway voip interface ...........18 h323-gateway voip tech-prefix ........19 input gain..............19 jitter-buffer ..............20 num-exp ..............20 output gain..............21 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 4 ZXR10 8900 Series Command Reference (Voice and Video Volume) port ................21 prefix................22 ring number..............22 session target ...............23 show call-history ............23 show dial-peer voice ............23 show gateway ...............24 show num-exp ..............24 show voice-port.............24 shutdowndial-peer ........... 25 shutdownvoice-port..........25 timeouts ..............26 vad................26 voice-port..............27...
  • Page 5 ............53 show iptv prw ...............54 show iptv view-profile ............54 show iptv cdr ..............55 show iptv cdr record idlist ..........56 show iptv client .............56 show iptv control ............57 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 6 ZXR10 8900 Series Command Reference (Voice and Video Volume) This page is intentionally blank. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 7: About This Manual

    About This Manual About this Manual ZXR10 8900 Series (V2.8.02.C) 10G Routing Switch Command Reference (Voice and Video). ZXR10 8900 Series (V2.8.02.C) 10G Routing Switch Command Reference has 16 volumes. The details are as follows: Summary Manual Name ZXR10 8900 Series (V2.8.02.C)
  • Page 8 ZXR10 8900 Series Command Reference (Voice and Video Volume) Manual Name Summary ZXR10 8900 Series (V2.8.02.C) This manual describes interface 10G Routing Switch Command configuration, DHCP and Reference (Basic Configuration VRRP-related commands in Volume II) ZXR10 8900 series 10G routing switch.

  • Page 9: Safety Instruction

    ZTE Corporation will assume no responsibility for consequences re- sulting from violation of general specifications for safety operations or of safety rules for design, production and use of the devices.
  • Page 10 ZXR10 8900 Series Command Reference (Voice and Video Volume) Caution: Indicates the matters needing attention during configuration. Note: Indicates the description, hint, tip and so on for configuration op- erations. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 11: Command Introduction

    Reference includes 16 volumes. For details of each volume, please refer to preface of this manual. Commands in ZXR10 8900 Series (V2.8.02.C) 10G Routing Switch Command Reference (Index) are listed in sequence of from letter a to letter z and in form of table. Commands of all other volumes are classified and illustrated according to different function modules.

  • Page 12: Auxiliary Function

    ZXR10 8900 Series Command Reference (Voice and Video Volume) � Command format It describes the complete format of this command. If no for- mat is available, list it. � Parameter Description It describes parameters in this command in the form and pre- scribes the range and default value.

  • Page 13: Command Modes

    Use show history command in any mode, and the latest sev- eral commands in this mode will be listed. Command Modes The command modes in this manual are as follows: Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 14 ZXR10 8900 Series Command Reference (Voice and Video Volume) Modes Prompt Admis- Command Function sion to Enter the Mode Mode User ZXR10> Enter this View simple Mode mode directly information after logging onto system Privi- User enable Configure ZXR10# leged...
  • Page 15 OSPF protocol parameters router isis Configure IS-IS protocol parameters router bgp Configure BGP protocol parameters router Configure pimsm PIM-SM protocol parameters ipv6 router It configures RIPng parameters. ipv6 router It configures ospf OSPFv3 parameters. Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 16 ZXR10 8900 Series Command Reference (Voice and Video Volume) Modes Prompt Admis- Command Function sion to Enter the Mode Mode ZXR10(config- Global ip vrf Configure Config- vrf)# config- VRF protocol uration uration parameters Mode mode VFI con- ZXR10(config- Global It configures...
  • Page 17 Mode Mode IPSec ZXR10(config- Global ipsec It configures config- ipsec)# config- IPv6 IPSec uration uration protection. mode mode Diagno- Privi- diagnose It tests CPU ZXR10(diag)# sis mode leged utilization mode and memory utilization. Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 18 ZXR10 8900 Series Command Reference (Voice and Video Volume) This page is intentionally blank. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 19: Voip Configuration

    ............25 shutdownvoice-port ............. 25 timeouts ................26 vad..................26 voice-port.................27 cancel-truncate Purpose Use this command to cancel truncating the called number. Enable the truncating called number function with no command. Command Modes Dial-up peer configuration Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 20: Clear Call-History

    ZXR10 8900 Series Command Reference (Voice and Video Volume) Syntax cancel-truncate no cancel-truncate Defaults If this area is configured, it is truncated by default. Instructions � This command is only applied to the dial-peer in pots type. � It is only applied to ZXR10 GAR and ZXR10 ZSR.

  • Page 21: Comfort-Noise

    It is only applied to ZXR10 GAR and ZXR10 ZSR. Instructions Example This example describes how to configure the descriptor “zxr10 voice port” for port voice_3/1. ZXR10(config)#voice-port voice_3/1 ZXR10(config-voice-port)#description zxr10 voice port Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 22: Destination-Pattern

    ZXR10 8900 Series Command Reference (Voice and Video Volume) destination-pattern Purpose Use this command to configure the phone number associated with the dial-peer. Cancel the configuration with the no command. Command Modes Dial-up peer configuration Syntax destination-pattern <phone-number> no destination-pattern Syntax <phone-number>...

  • Page 23: Dtmf Threshold

    The modified voice port configuration will take effect in the next dial-up. � It is only applied to ZXR10 GAR and ZXR10 ZSR. Example This example describes how to configure the echo cancellation function on port voice_3/1. ZXR10(config)#voice-port voice_3/1 ZXR10(config-voice-port)#echo-cancel enable Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 24: Echo-Cancel Coverage-Time

    ZXR10 8900 Series Command Reference (Voice and Video Volume) echo-cancel coverage-time Purpose Use this command to configure the echo cancellation sampling time length. Restore the default value with no command. Command Modes Voice port configuration Syntax echo-cancel coverage-time <coverage-time> no echo-cancel coverage-time Syntax <coverage-time>...

  • Page 25: Gateway

    It is only applied to ZXR10 GAR and ZXR10 ZSR. h323-gateway voip gw-id Purpose Use this command to configure the gateway alias. Delete the alias with the no command. Command Modes Interface configuration Syntax h323-gateway voip gw-id <gw-name> Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 26: H323-Gateway Voip Id

    ZXR10 8900 Series Command Reference (Voice and Video Volume) no h323-gateway voip gw-id Syntax <gw-name> Gateway alias, 1~32 characters Description Instructions � The gateway alias is configured so that the gateway can regis- ter and be identified on the GK Server, only one alias is avail- able for a gateway and the latest configured character string is valid.

  • Page 27: H323-Gateway Voip Tech-Prefix

    Purpose Use this command to configure the voice port input gain value. Restore the default value with the no command. Command Modes Voice port configuration Syntax input gain <value> no input gain Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 28: Jitter-Buffer

    ZXR10 8900 Series Command Reference (Voice and Video Volume) Syntax <value> Voice input gain value, in the range of Description -140~60, in unit of db, 0 dB by default Instructions � The modified voice port configuration will take effect in the next dial-up.

  • Page 29: Output Gain

    Syntax <voice-port> Specify the voice port Description Instructions � This command is only applied to the dial-peer in pots type. � The modified dial-peer configuration will take effect in the next dial-up. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 30: Prefix

    ZXR10 8900 Series Command Reference (Voice and Video Volume) � It is only applied to ZXR10 GAR and ZXR10 ZSR. Example This example describes how to associate dial-peer 1 in pots type to port voice_1/3. ZXR10(config)#dial-peer voice 1 pots ZXR10(config-pots1)#port voice_1/3...

  • Page 31: Session Target

    It is only applied to ZXR10 GAR and ZXR10 ZSR. show dial-peer voice Purpose Use this command to show the configuration information of the dial-peer. Command Modes Privileged EXEC Syntax show dial-peer voice [<peer-number>| summary] Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 32: Show Gateway

    ZXR10 8900 Series Command Reference (Voice and Video Volume) Syntax <peer-number> Dial-up peer number, 1~65535 Description Instructions � show dial-peer voice : It shows the configuration informa- tion of all dial-peers. � show dial-peer voice <peer-number>: It shows the config- uration information of the specified dial-peer.

  • Page 33: Shutdowndial-Peer

    Instructions It is only applied to ZXR10 GAR and ZXR10 ZSR. Example This example describes how to change the management status of port voice_3/1 to down. ZXR10(config)#voice-port voice_3/1 ZXR10(config-voice-port)#shutdown Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 34: Timeouts

    ZXR10 8900 Series Command Reference (Voice and Video Volume) timeouts Purpose Use this command to configure the time interval between the voice port and dial-up. Restore the default with the no command. Command Modes Voice port configuration Syntax timeouts {call-dead | call-disconnect | initial | interdigit}<s econds>...

  • Page 35: Voice-Port

    Specifies the voice port Description Instructions It is only applied to ZXR10 GAR and ZXR10 ZSR. Example This example describes how to enter the configuration mode of the voice_3/1 port. ZXR10(config)#voice-port voice_3/1 ZXR10(config-voice-port)# Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 36 ZXR10 8900 Series Command Reference (Voice and Video Volume) This page is intentionally blank. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 37: Iptv Control Configuration

    (Interface Mode) ............46 iptv max-access ..............46 show iptv rule ..............47 show iptv rule statistics ............50 show iptv channel..............51 show iptv channel statistics..........52 show iptv package .............53 show iptv prw ..............54 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 38: Iptv Control

    ZXR10 8900 Series Command Reference (Voice and Video Volume) show iptv view-profile ............54 show iptv cdr ..............55 show iptv cdr record idlist ...........56 show iptv client ..............56 show iptv control ...............57 iptv control Command This enables or disables iptv function. To conduct all iptv configu- Function rations, this command must be enabled.

  • Page 39: Iptv Sms-Server

    Default Configuration Related show iptv control Commands no iptv channel Command This deletes one channel. Function Command Modes Global configuration mode Command format no iptv channel { name <channel-name>| all| id-list <0-204 7>} Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 40: Clear Iptv Client

    ZXR10 8900 Series Command Reference (Voice and Video Volume) Parameter Parameter Description Description <channel-name The deletes the channel with specified name (1-32 characters). This deletes all channels. id-list This deletes channels with known channel ids (0 2047). Example To delete all channels, execute the following command:...
  • Page 41 100 and multicast group is 224.1.1.1: ZXR10(config)#iptv channel mvlan 100 group 224.1.1.1 To create 20 channels in batch with multicast address ranging from 224.1.1.1 to 224.1.1.20, execute the following command: ZXR10(config)#iptv channel mvlan 100 group 224.1.1.1 count 20 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 42: Iptv Channel Rename

    ZXR10 8900 Series Command Reference (Voice and Video Volume) Related show iptv channel all Commands iptv channel rename Command The renames channel. Function Command Modes Global configuration mode Command format iptv channel name <channel-name> rename <new-name> Parameter Parameter Description Description <channel-name>...

  • Page 43: Iptv Channel Cdr

    To enable iptv fast leave function, it is necessary to enable fast leave function of igmp snooping in mvlan. Example To enable fast leave function for the channel whose mvlan is 100, execute the following commands: ZXR10(config)#vlan 100 ZXR10(config-vlan100)#igmp snooping fast-leave Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 44: Iptv Package (Global Mode)

    ZXR10 8900 Series Command Reference (Voice and Video Volume) ZXR10(config)#iptv fast-leave mvlan 100 Related Igmp snooping fast-leave Commands iptv package (Global Mode) Command This creates multicast package; to delete one package, execute Function command no. Command Modes Global configuration mode Command format iptv package name <package-name>[id <package-id>]...

  • Page 45: Iptv Prw

    To enable IPTV preview function, execute the following command: ZXR10(config)# iptv prw enable Related show iptv prw Commands iptv prw reset Command This resets iptv preview function. Function Command Modes Global configuration mode Command format iptv prw reset Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 46: Iptv Prw Auto-Reset-Time

    ZXR10 8900 Series Command Reference (Voice and Video Volume) iptv prw auto-reset-time Command This sets auto reset time for iptv preview. Function Command Modes Global configuration mode Command format iptv prw auto-reset-time <HH:MM:SS> Parameter Parameter Description Description <HH:MM:SS> This is absolute time.

  • Page 47: Iptv View-Profile

    Global configuration mode Command format iptv view-profile name <viewfile-name> count <view-count> Parameter Parameter Description Description <viewfile-name> This is the name of preview configuration file (1-60 characters). <view-count> This is the max preview times (165535). Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 48: Iptv View-Profile Duration

    ZXR10 8900 Series Command Reference (Voice and Video Volume) Default Configuration iptv view-profile duration Command This sets the max duration time for one time preview. Function Command Modes Global configuration mode Command format iptv view-profile name <viewfile-name> duration <view-dura tion>...

  • Page 49: Iptv Cdr Max-Records

    This sets the interval of reporting CDR regularly. Function Command Modes Global configuration mode Command format iptv cdr report-interval <report-interval> Parameter Parameter Description Description <report-interval> This sets the interval of reporting CDR (s 1-65535). Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 50: Iptv Cdr Create-Period

    ZXR10 8900 Series Command Reference (Voice and Video Volume) 300 s Default Configuration iptv cdr create-period Command This sets the period of generating CDR regularly when user with Function permit privilege watches programs for a long time. Command Modes Global configuration mode Command format iptv cdr create-period <period>...

  • Page 51: Iptv Cdr Warning Threshold

    Parameter Parameter Description Description <threshold value> This is the number threshold of sent CDR (1-1000). Default Configuration iptv service Command This sets current service state of user. Function Command Modes Interface configuration mode Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 52: Iptv Control-Mode

    ZXR10 8900 Series Command Reference (Voice and Video Volume) Command format iptv [ vlan {<vlan-idlist>|<vlan-name>}] service { start | pause | resume | remove} Parameter Parameter Description Description vlan This specifies to configure the command on a vlan of an interface.

  • Page 53: Iptv Package (Interface Mode)

    ZXR10(config-gei_2/10)#iptv vlan 1 package id-list 0 iptv channel Command This sets channel access right on user interface. Function Command Modes Interface configuration mode Command format iptv [vlan {<vlan-idlist>|<vlan-name>}] channel{name <cha nnel-name>| idlist <channel-idlist>}{deny|permit|preview|q uery} Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 54: Iptv Cdr (Interface Mode)

    ZXR10 8900 Series Command Reference (Voice and Video Volume) Parameter Parameter Description Description vlan This specifies to configure the command on a vlan attribute of interface. <channel-name> This is channel name. <channel-idlist>} This is idlist list. Multiple lists can be configured at one time.

  • Page 55: Show Iptv Rule

    ZXR10(config)#show iptv ru MaxRuleNum: 2048 CurrentConfigTotal: 1 HistoryConfigTotal: 1 Port Vlan Mode Service Cdr ViewNum PrwNum QryNum PkgNum ---- ------------ ---- ------- ------- ----- ------- gei_2/5 channel IN FALSE 1 Description of displayed fields: Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 56 ZXR10 8900 Series Command Reference (Voice and Video Volume) Field Description MaxRuleNum This is the max number of rules. CurrentConfigTotal This is the number of assigned rules currently. HistoryConfigTotal This is the number of rules configured in history. This is rule ID.
  • Page 57 Related create iptv cac-rule Commands iptv cac-rule name iptv cac-rule prvcount iptv cac-rule prvinterval iptv cac-rule prvtime iptv cac-rule right clear iptv cac-rule Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 58: Show Iptv Rule Statistics

    ZXR10 8900 Series Command Reference (Voice and Video Volume) show iptv rule statistics Command This shows statistics of CAC rule. Function Command Modes All modes except user mode Command format show iptv cac-rule statistics [<rule-id>] Parameter Parameter Description Description <rule-id>...

  • Page 59: Show Iptv Channel

    To show all channels, execute the following command: ZXR10(config)#show iptv channel all MaxGroupNum :2048 CurrentConfigTotal:3 HistoryConfigTotal:3 Name GroupIp MVlan ----- ------------- ------------- ------ cctv1 224.1.1.1 100 2 cctv2 224.1.1.2 101 3 cctv3 224.1.1.3 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 60: Show Iptv Channel Statistics

    ZXR10 8900 Series Command Reference (Voice and Video Volume) Description of displayed fields: Field Description MaxGroupNum This is the Max number of channels that can be assigned. CurrentConfigTotal This is the number of assigned channels currently. HistoryConfigTotal This is the number of channels configured in history.

  • Page 61: Show Iptv Package

    Command Modes All modes except user mode show iptv package [{name <package-name>| id <package-id Command format >}] Parameter Parameter Description Description name This is package name (1-31 characters). This is package id (0-127). Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 62: Show Iptv Prw

    ZXR10 8900 Series Command Reference (Voice and Video Volume) Example To show all packages, execute the following command: ZXR10(config)#show iptv package Pkgid Pkgname ----- --------- 0 PKT1 4 PKT2 Description of displayed fields: Field Description Pkgid This is the package id.

  • Page 63: Show Iptv Cdr

    CDR for user with Deny right. CDR Prw-right This specifies whether to generate CDR for user with Preview right. CDR Create-Period This specifies the period of generating cdr for user with Permit right (in seconds, 03600). Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 64: Show Iptv Cdr Record Idlist

    ZXR10 8900 Series Command Reference (Voice and Video Volume) Field Description MAX-RECORDS This is the Max cdr's that can be cached in system (500-10000). REPORT-INTERVAL(sec.) This is the interval of reporting CDR. REPORT-THRESHOLD This is the CDR report threshold each time.

  • Page 65: Show Iptv Control

    This is the min. recognition time of user. MaxPrvCount This is the Max preview times. ResetPeriod This is the interval of resetting preview times. MinPrvInterval This is the min. preview interval. MaxPrvTime This is the Max preview time. Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 66 ZXR10 8900 Series Command Reference (Voice and Video Volume) Related iptv control login-time Commands iptv control prvcount count iptv control prvcount reset-period iptv control prvinterval iptv control prvtime Confidential and Proprietary Information of ZTE CORPORATION...
